HOT POINT HCM15
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | HCM15 |
| Kód 12NC: | 869990398050 |
| I.C. kód: | 45398050000 |
| Značka: | HOT POINT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

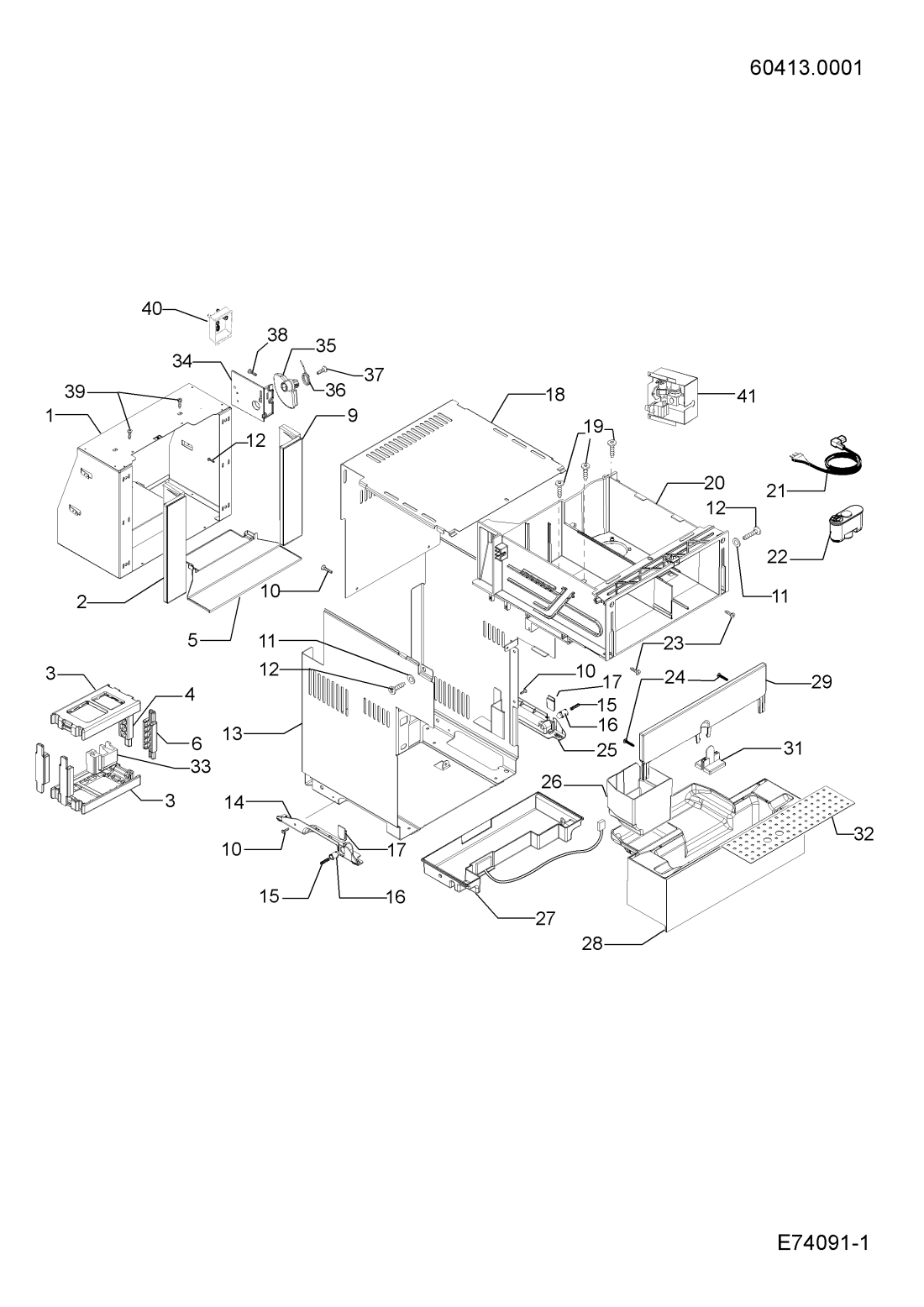

| 000 E74091-1 |
C00145433 | USER INSTRUCTIONS GB HOTPOINT | Na dotaz | Zadat poptávku | |
| 001 E74091-1 |
C00144174
488000144174 |
CHASSIS## | Na dotaz | Zadat poptávku | |
| 002 E74091-1 |
C00144175
482000082097 |
LEFT SIDE TRIM | Na dotaz | Zadat poptávku | |
| 003 E74091-1 |
C00144177
482000082098 |
INSERT UPPER/LOWER | Na dotaz | Zadat poptávku | |
| 004 E74091-1 |
C00144178
482000082099 |
INSERT SIDE/REAR | Na dotaz | Zadat poptávku | |
| 005 E74091-1 |
C00144179
482000082100 |
WATER RECOVER TANK LID | Na dotaz | Zadat poptávku | |
| 006 E74091-1 |
C00144180
482000082101 |
INSERT SIDE/FRONT | Na dotaz | Zadat poptávku | |
| 009 E74091-1 |
C00144181
482000082102 |
RIGHT SIDE TRIM | Na dotaz | Zadat poptávku | |
| 010 E74091-1 |
C00144182 | ŠROUB TORX 2,9X6,5 | Na dotaz | Zadat poptávku | |
| 011 E74091-1 |
C00144183 | PODLOŽKA D11 X 0.8 | Na dotaz | Zadat poptávku | |
| 012 E74091-1 |
C00144184 | ŠROUB TORX K 35X16 | Na dotaz | Zadat poptávku | |
| 013 E74091-1 |
C00144185 | CHASSIS | Na dotaz | Zadat poptávku | |
| 014 E74091-1 |
C00144186
488000144186 |
LEFT HANDLE | Na dotaz | Zadat poptávku | |
| 015 E74091-1 |
C00144187
488000144187 |
BOLT SPRING WATER RECOVER TANK | Na dotaz | Zadat poptávku | |
| 016 E74091-1 |
C00144188
488000144188 |
FIXING PIN FOR WATER RECOVER TANK | Na dotaz | Zadat poptávku | |
| 017 E74091-1 |
C00144190
488000144190 |
COVER FIXING PIN FOR WATER RECOVER TANK | Na dotaz | Zadat poptávku | |
| 018 E74091-1 |
C00145386
482000063138 |
BACK PANEL COFFE MACHINE | Na dotaz | Zadat poptávku | |
| 019 E74091-1 |
C00144192
482000082103 |
ŠROUB TORX M 5X20 | Na dotaz | Zadat poptávku | |
| 020 E74091-1 |
C00145387
482000063137 |
CHEST SUPPORT | Na dotaz | Zadat poptávku | |
| 021 E74091-1 |
C00145431 | POWER LINE UK H05RR-F 3X1 L=2000 | Na dotaz | Zadat poptávku | |
| 022 E74091-1 |
C00094963
482000078124 |
WATER FILTER | Na dotaz | Zadat poptávku | |
| 023 E74091-1 |
C00144197
488000144197 |
ŠROUB K 30X12 | Na dotaz | Zadat poptávku | |
| 024 E74091-1 |
C00144198
488000144198 |
ŠROUB K 30X8 | Na dotaz | Zadat poptávku | |
| 025 E74091-1 |
C00144199
488000144199 |
RIGHT HANDLE | Na dotaz | Zadat poptávku | |
| 026 E74091-1 |
C00144200
482000029866 |
COFFEE BOX | Na dotaz | Zadat poptávku | |
| 027 E74091-1 |
C00144202
482000082105 |
INNER RECOVER WATER TANK ASSEMBLY | Na dotaz | Zadat poptávku | |
| 028 E74091-1 |
C00145432
488000145432 |
RECOVER WATER TANK HOTPOINT | Na dotaz | Zadat poptávku | |
| 029 E74091-1 |
C00144204
482000082106 |
RECOVER WATER TANK INSERT | Na dotaz | Zadat poptávku | |
| 031 E74091-1 |
C00144206
482000082107 |
WATER LIMIT FLOAT (FOR TANK RECOVER) | Na dotaz | Zadat poptávku | |
| 032 E74091-1 |
C00144207
482000082108 |
GRID FOR WATER RECOVER TANK | Na dotaz | Zadat poptávku | |
| 033 E74091-1 |
C00144208
482000082109 |
BOX MIDDLE INSERT | Na dotaz | Zadat poptávku | |
| 034 E74091-1 |
C00144209
482000082110 |
LEVER SUPPORT | Na dotaz | Zadat poptávku | |
| 035 E74091-1 |
C00144210
482000082111 |
PIVOT PIN | Na dotaz | Zadat poptávku | |
| 036 E74091-1 |
C00144211
482000082112 |
SPRING FOR PIVOT PIN SUPPORT | Na dotaz | Zadat poptávku | |
| 037 E74091-1 |
C00144212
482000082113 |
ŠROUB K 30X8 WN 1452 | Na dotaz | Zadat poptávku | |
| 038 E74091-1 |
C00144213
488000144213 |
ŠROUB TCB TORX TX10 3,5X8,5 | Na dotaz | Zadat poptávku | |
| 039 E74091-1 |
C00144214 | ŠROUB TSP 3,5X9,5 DIN 7982 INOX | Na dotaz | Zadat poptávku | |
| 001 E74091-2 |
C00144215
482000082114 |
ŠROUB TORX M 3X20 ISO 14580 | Na dotaz | Zadat poptávku | |
| 002 E74091-2 |
C00144217 | WASHER UNI 8842 INOX | Na dotaz | Zadat poptávku | |
| 003 E74091-2 |
C00144216 | ŠROUB TORX M 3X8 DIN 7500 | Na dotaz | Zadat poptávku | |
| 005 E74091-2 |
C00144218
482000082115 |
WASHER UNI 8842 A6 | Na dotaz | Zadat poptávku | |
| 006 E74091-2 |
C00144219
482000082116 |
POUZDRO | Na dotaz | Zadat poptávku | |
| 007 E74091-2 |
C00144220
482000082117 |
INNER PLATE | Na dotaz | Zadat poptávku | |
| 008 E74091-2 |
C00144221
488000144221 |
CLOSING TAP COFFEE HOSE | Na dotaz | Zadat poptávku | |
| 009 E74091-2 |
C00144222
488000144222 |
HOSE GASKET | Na dotaz | Zadat poptávku | |
| 010 E74091-2 |
C00144223
488000144223 |
COFFEE HOSE | Na dotaz | Zadat poptávku | |
| 011 E74091-2 |
C00144224
488000144224 |
COFFEE DISTRIBUTOR SUPPORT | Na dotaz | Zadat poptávku | |
| 012 E74091-2 |
C00144225
488000144225 |
COFFEE DISTRIBUTOR SEALING | Na dotaz | Zadat poptávku | |
| 013 E74091-2 |
C00144228
488000144228 |
DOOR PUSH-BUTTON SUPPORT | Na dotaz | Zadat poptávku | |
| 014 E74091-2 |
C00144230
488000144230 |
DOOR PUSH-BUTTON SPRING | Na dotaz | Zadat poptávku | |
| 015 E74091-2 |
C00144231
482000082119 |
DOOR PUSH-BUTTON | Na dotaz | Zadat poptávku | |
| 017 E74091-2 |
C00144234
482000082120 |
INSERT STOP HOSE TEFLON | Na dotaz | Zadat poptávku | |
| 018 E74091-2 |
C00144236
482000082121 |
SLEEVE SUPPORT | Na dotaz | Zadat poptávku | |
| 019 E74091-2 |
C00144239
482000082124 |
OR 117 | Na dotaz | Zadat poptávku | |
| 020 E74091-2 |
C00144240
482000082125 |
SEAL | Na dotaz | Zadat poptávku | |
| 023 E74091-2 |
C00144241
488000144241 |
ŠROUB TORX M 4X10 TESTA D=8X1,5 | Na dotaz | Zadat poptávku | |
| 024 E74091-2 |
C00144242
482000082126 |
DOOR HINGE | Na dotaz | Zadat poptávku | |
| 025 E74091-2 |
C00144243
482000029869 |
OR 0040-20 | Na dotaz | Zadat poptávku | |
| 026 E74091-2 |
C00144244
482000029870 |
CREAM REGULATION ROD | Na dotaz | Zadat poptávku | |
| 027 E74091-2 |
C00144245
482000029871 |
SPRING FOR CREAM REGULATION ROD | Na dotaz | Zadat poptávku | |
| 028 E74091-2 |
C00144246
482000029872 |
SUPPORT FOR CREAM REGULATION ROD | Na dotaz | Zadat poptávku | |
| 029 E74091-2 |
C00144247
488000144247 |
KNOB FOR CREAM REGULATION | Na dotaz | Zadat poptávku | |
| 030 E74091-2 |
C00144248 | ŠROUB TORX M 2,5X5 DIN 7500 | Na dotaz | Zadat poptávku | |
| 031 E74091-2 |
C00144249
488000144249 |
COVER FOR DELIVERY COFFEE INSERT | Na dotaz | Zadat poptávku | |
| 032 E74091-2 |
C00144250
488000144250 |
SPRING FOR COFFEE DISTRIBUTOR | Na dotaz | Zadat poptávku | |
| 033 E74091-2 |
C00144252
488000144252 |
RESTRAINT INSERT COFFEE DISTRIBUTOR | Na dotaz | Zadat poptávku | |
| 034 E74091-2 |
C00144253
482000029874 |
REAR COVER COFFEE DISTRIBUTOR | Na dotaz | Zadat poptávku | |
| 035 E74091-2 |
C00144254
488000144254 |
KNOB FOR CREAM REGULATION | Na dotaz | Zadat poptávku | |
| 036 E74091-2 |
C00144255
482000029875 |
TVAROVKA | Na dotaz | Zadat poptávku | |
| 037 E74091-2 |
C00144257
482000082127 |
DOOR | Na dotaz | Zadat poptávku | |
| 038 E74091-2 |
C00144258
482000082128 |
FIXED SLEEVE FOR STEAM HOSE | Na dotaz | Zadat poptávku | |
| 039 E74091-2 |
C00144259
482000082129 |
MOBILE SLEEVE FOR STEAM HOSE | Na dotaz | Zadat poptávku | |
| 040 E74091-2 |
C00144260
482000082130 |
OR METRICO 0060-20 | Na dotaz | Zadat poptávku | |
| 041 E74091-2 |
C00144261
482000082131 |
STEAM HOSE PROTECTION | Na dotaz | Zadat poptávku | |
| 042 E74091-2 |
C00144262
482000029877 |
SUPERIOR DUCT | Na dotaz | Zadat poptávku | |
| 043 E74091-2 |
C00144263
482000029878 |
OR 108 | Na dotaz | Zadat poptávku | |
| 044 E74091-2 |
C00144264
482000082132 |
INNER INFERIOR DUCT | Na dotaz | Zadat poptávku | |
| 045 E74091-2 |
C00144265
482000082133 |
EXTERNAL COVER FOR DUCT | Na dotaz | Zadat poptávku | |
| 046 E74091-2 |
C00144266
488000144266 |
DISTRIBUTOR COFFEE PUSHBUTTON | Na dotaz | Zadat poptávku | |
| 047 E74091-2 |
C00144267
488000144267 |
DISTRIBUTOR COFFEE FRONT COVER | Na dotaz | Zadat poptávku | |
| 048 E74091-2 |
C00144268
482000082134 |
DISTRIBUTOR COFFEE INNER MECHANISM | Na dotaz | Zadat poptávku | |
| 049 E74091-2 |
C00144269
488000144269 |
MOBILE PART INNER MECHANISM | Na dotaz | Zadat poptávku | |
| 050 E74091-2 |
C00144270
488000144270 |
MOBILE PART INNER MECHANISM | Na dotaz | Zadat poptávku | |
| 051 E74091-2 |
C00144271
482000082135 |
DISTRIBUTOR COFFEE SPONGE | Na dotaz | Zadat poptávku | |
| 052 E74091-2 |
C00144272
482000029879 |
DISTRIBUTOR COFFEE SUPPORT SPONGE | Na dotaz | Zadat poptávku | |
| 002 E74091-3 |
C00145392
482000082366 |
POWER BOARD | Na dotaz | Zadat poptávku | |
| 003 E74091-3 |
C00144274
482000029880 |
FAST CONNECTION 2 POLES | Na dotaz | Zadat poptávku | |
| 004 E74091-3 |
C00144275
488000144275 |
PROTECTION BOARD | Na dotaz | Zadat poptávku | |
| 005 E74091-3 |
C00144276 | WATER VALVE SUPPORT | Na dotaz | Zadat poptávku | |
| 006 E74091-3 |
C00144277 | TANK TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 008 E74091-3 |
C00144278
488000144278 |
COFFEE DISPENSER BODY | Na dotaz | Zadat poptávku | |
| 009 E74091-3 |
C00144279
488000144279 |
COFFEE BOX LOCK INSERT | Na dotaz | Zadat poptávku | |
| 011 E74091-3 |
C00144280
488000144280 |
PLUG FOR FLAT-CABLE COVER | Na dotaz | Zadat poptávku | |
| 012 E74091-3 |
C00144281
488000144281 |
FLAT-CABLE COVER | Na dotaz | Zadat poptávku | |
| 013 E74091-3 |
C00144282
482000029881 |
MICROSWITCH | Na dotaz | Zadat poptávku | |
| 014 E74091-3 |
C00144283
482000082136 |
REAR COVER FOR COFFEE CONTAINER | Na dotaz | Zadat poptávku | |
| 015 E74091-3 |
C00144284
482000029882 |
FRONT COVER FOR COFFEE CONTAINER | Na dotaz | Zadat poptávku | |
| 016 E74091-3 |
C00144285
482000082137 |
COFFEE CONTAINER | Na dotaz | Zadat poptávku | |
| 017 E74091-3 |
C00144286
482000082138 |
LEVERS SUPPORT | Na dotaz | Zadat poptávku | |
| 018 E74091-3 |
C00144288
482000082139 |
LEFT LEVER COFFEE CONTAINER | Na dotaz | Zadat poptávku | |
| 019 E74091-3 |
C00144289
482000029883 |
RIGHT LEVER COFFEE CONTAINER | Na dotaz | Zadat poptávku | |
| 020 E74091-3 |
C00144290
482000082140 |
LOCK SUPPORT COFFEE CONTAINER | Na dotaz | Zadat poptávku | |
| 021 E74091-3 |
C00144291
488000144291 |
ŠROUB TORX K 25X8 WN 1452 | Na dotaz | Zadat poptávku | |
| 022 E74091-3 |
C00144292
482000029884 |
KARTA DISPLEJ | Na dotaz | Zadat poptávku | |
| 023 E74091-3 |
C00144293
482000082141 |
CONTROL PANEL## | Na dotaz | Zadat poptávku | |
| 024 E74091-3 |
C00144294
482000082142 |
PROGRAMMER COVER | Na dotaz | Zadat poptávku | |
| 025 E74091-3 |
C00144295
488000144295 |
PROGRAMMER COVER SEAL | Na dotaz | Zadat poptávku | |
| 026 E74091-3 |
C00144296
482000082143 |
MICROSWITCHES COVER | Na dotaz | Zadat poptávku | |
| 027 E74091-3 |
C00144297
482000082144 |
PUSH-PUSH CATCH | Na dotaz | Zadat poptávku | |
| 028 E74091-3 |
C00144298
482000029885 |
DASHBOARD LOCK SUPPORT | Na dotaz | Zadat poptávku | |
| 029 E74091-3 |
C00144299 | DASHBOARD SUPPORT | Na dotaz | Zadat poptávku | |
| 030 E74091-3 |
C00144301
488000144301 |
DASHBOARD SUPPORT SEAL | Na dotaz | Zadat poptávku | |
| 031 E74091-3 |
C00145393
482000030018 |
2 FLAT-CABLE ASSEMBLY+SEAL | Na dotaz | Zadat poptávku | |
| 032 E74091-3 |
C00144303
482000029886 |
BI-POLAR MICROSWITCH | Na dotaz | Zadat poptávku | |
| 032 E74091-3 |
C00289188
488000289188 |
ASSEMBLY CABLE + SWITCH P0055 | Na dotaz | Zadat poptávku | |
| 033 E74091-3 |
C00264153
482000071018 |
DISPLEJ 20X2 LCD P055 | Na dotaz | Zadat poptávku | |
| 034 E74091-3 |
C00264319
488000264319 |
PODLOŽKA RICHCO MSPM-2-01 | Na dotaz | Zadat poptávku | |
| 002 E74091-4 |
C00145396
482000063136 |
TURBINE SUPPORT | Na dotaz | Zadat poptávku | |
| 003 E74091-4 |
C00144306
488000144306 |
MICROSWITCH PIN SPRING | Na dotaz | Zadat poptávku | |
| 004 E74091-4 |
C00145397
482000082368 |
ROTATION DASHBOARD PIN | Na dotaz | Zadat poptávku | |
| 005 E74091-4 |
C00144312
482000082147 |
REAR COVER FOR WATER CONTAINER | Na dotaz | Zadat poptávku | |
| 006 E74091-4 |
C00144317
482000082148 |
COVER FOR WATER CONTAINER | Na dotaz | Zadat poptávku | |
| 007 E74091-4 |
C00144318
482000082149 |
FRONT COVER FOR WATER CONTAINER | Na dotaz | Zadat poptávku | |
| 008 E74091-4 |
C00144322
482000029891 |
Plovák - s magnetem | 1 824 Kč
€ 74.10 |
||
| 009 E74091-4 |
C00144324
482000029893 |
FLOAT - OVERFLOW UNIT SUPPORT | Na dotaz | Zadat poptávku | |
| 010 E74091-4 |
C00144325
482000082150 |
WATER VALVE CONNECTION | Na dotaz | Zadat poptávku | |
| 011 E74091-4 |
C00144344
482000082155 |
TEFLON HOSE 5X7 L=60 MM | Na dotaz | Zadat poptávku | |
| 012 E74091-4 |
C00144345
482000072464 |
EXTERNAL FILTER ASS.Y WATER CONTAINER | Na dotaz | Zadat poptávku | |
| 013 E74091-4 |
C00144346
482000082156 |
OR METRIC 0019-10 | Na dotaz | Zadat poptávku | |
| 014 E74091-4 |
C00144347
482000082157 |
WATER FILTER SUPPORT | Na dotaz | Zadat poptávku | |
| 015 E74091-4 |
C00144348
482000082158 |
CONNECTION FOR WATER FILTER SUPPORT | Na dotaz | Zadat poptávku | |
| 016 E74091-4 |
C00144349
482000082159 |
WATER CONTAINER | Na dotaz | Zadat poptávku | |
| 017 E74091-4 |
C00144350
482000082160 |
OR METRIC 0060-30 | Na dotaz | Zadat poptávku | |
| 018 E74091-4 |
C00144351
482000082161 |
CONTAINER WATER PISTON | Na dotaz | Zadat poptávku | |
| 019 E74091-4 |
C00144352
482000082162 |
WATER VALVE SEAL | Na dotaz | Zadat poptávku | |
| 020 E74091-4 |
C00144353
482000082163 |
WATER CONTAINER VALVE SPRING | Na dotaz | Zadat poptávku | |
| 000 E74091-5 |
C00194634
488000194634 |
BOILER ASS.Y (NO HEATER) 230V | Na dotaz | Zadat poptávku | |
| 001 E74091-5 |
C00144355
482000082164 |
PUMP INLET CONNECTION 90° | Na dotaz | Zadat poptávku | |
| 002 E74091-5 |
C00144357
488000144357 |
CLIP D=9,5MM | Na dotaz | Zadat poptávku | |
| 003 E74091-5 |
C00144358
482000033730 |
SILICON HOSE 5X8 70SR | Na dotaz | Zadat poptávku | |
| 004 E74091-5 |
C00144359
488000144359 |
PUMP SUPPORT EATON MAGIC | Na dotaz | Zadat poptávku | |
| 005 E74091-5 |
C00144360
482000082166 |
PUMP EP5/S GW 230V-50HZ | Na dotaz | Zadat poptávku | |
| 006 E74091-5 |
C00144364
482000082167 |
PUMP CONNECTOR 2 POLES | Na dotaz | Zadat poptávku | |
| 007 E74091-5 |
C00144365
482000082168 |
OR 2031 | Na dotaz | Zadat poptávku | |
| 008 E74091-5 |
C00144366
482000029895 |
SECURITY VALVE ASS.Y 16BAR | Na dotaz | Zadat poptávku | |
| 009 E74091-5 |
C00144367
482000029896 |
CLIP D=4 | Na dotaz | Zadat poptávku | |
| 010 E74091-5 |
C00144368
482000029897 |
OR 2015 IN SILICON | Na dotaz | Zadat poptávku | |
| 012 E74091-5 |
C00144369
488000144369 |
PUMP SUPPORT | Na dotaz | Zadat poptávku | |
| 013 E74091-5 |
C00144370
482000082169 |
SILICON HOSE 5X10 60 SHORE | Na dotaz | Zadat poptávku | |
| 014 E74091-5 |
C00144371
482000029898 |
CONNECTION NUT+PROTECTION ASS.Y 200MM | Na dotaz | Zadat poptávku | |
| 015 E74091-5 |
C00144372
488000144372 |
SCREW TCB M4X8 UNI 7687 | Na dotaz | Zadat poptávku | |
| 016 E74091-5 |
C00144373
482000082170 |
THERMOFUSIBLE SUPPORT | Na dotaz | Zadat poptávku | |
| 017 E74091-5 |
C00144375
488000144375 |
WIRE BLUE AWG16 100 MM | Na dotaz | Zadat poptávku | |
| 018 E74091-5 |
C00144376
482000082172 |
HEATER ELEMENT PROTECTION | Na dotaz | Zadat poptávku | |
| 019 E74091-5 |
C00144377
482000082173 |
THERMOSTAT 175° | Na dotaz | Zadat poptávku | |
| 020 E74091-5 |
C00144378
482000029899 |
RESISTENZA BLECKMAN 230V | Na dotaz | Zadat poptávku | |
| 024 E74091-5 |
C00144380
488000144380 |
CONNECTION NUT+PROTECTION ASS.Y 120MM | Na dotaz | Zadat poptávku | |
| 025 E74091-5 |
C00144381
488000144381 |
ŠROUB TCB PH/TT 4X8 UNI 8112 | Na dotaz | Zadat poptávku | |
| 026 E74091-5 |
C00144382
482000082174 |
HOSE CONNECTION D=4 1/8 | Na dotaz | Zadat poptávku | |
| 027 E74091-5 |
C00145404
482000030019 |
ELECTROVALVE 2 WAYS 24V 19W | Na dotaz | Zadat poptávku | |
| 028 E74091-5 |
C00144384
482000082175 |
BLACK SILICON HOSE 7,5X9,3 | Na dotaz | Zadat poptávku | |
| 029 E74091-5 |
C00144385
488000144385 |
ŠROUB TORX K 35X12 WN 1423 | Na dotaz | Zadat poptávku | |
| 030 E74091-5 |
C00144386
482000082176 |
BLACK STRAIGHT JOINT WITH SUPPORT | Na dotaz | Zadat poptávku | |
| 031 E74091-5 |
C00144387
488000144387 |
BRASS STRAIGHT JOINT FOR HOSE PANEL/DOOR | Na dotaz | Zadat poptávku | |
| 032 E74091-5 |
C00144388
482000082177 |
FIX CLIP HOSE | Na dotaz | Zadat poptávku | |
| 033 E74091-5 |
C00144389
488000144389 |
SPRING D=7,5 | Na dotaz | Zadat poptávku | |
| 034 E74091-5 |
C00144390
488000144390 |
SILICON HOSE | Na dotaz | Zadat poptávku | |
| 035 E74091-5 |
C00144391
482000082178 |
HOSE CONNECTION | Na dotaz | Zadat poptávku | |
| 037 E74091-5 |
C00144392
482000082179 |
METALBLOC M5X0,8 NUT | Na dotaz | Zadat poptávku | |
| 038 E74091-5 |
C00144393
488000144393 |
WIRING+MICRO | Na dotaz | Zadat poptávku | |
| 039 E74091-5 |
C00144394
482000082180 |
ŠROUB 10.9 M5X20 | Na dotaz | Zadat poptávku | |
| 040 E74091-5 |
C00144395
482000029900 |
TURBINE | Na dotaz | Zadat poptávku | |
| 041 E74091-5 |
C00144396
488000144396 |
FIXING BRACKET + PIN ASS.Y | Na dotaz | Zadat poptávku | |
| 042 E74091-5 |
C00144397
488000144397 |
PLUG FOR BOILER PIN | Na dotaz | Zadat poptávku | |
| 043 E74091-5 |
C00144398
482000082181 |
OR METRIC 0060-20 SILICON | Na dotaz | Zadat poptávku | |
| 044 E74091-5 |
C00144399
482000082182 |
PIN SPRING | Na dotaz | Zadat poptávku | |
| 045 E74091-5 |
C00144400
482000055901 |
PISTON L=20,9 | Na dotaz | Zadat poptávku | |
| 046 E74091-5 |
C00144404
482000063135 |
SILICON HOSE 5X8 | Na dotaz | Zadat poptávku | |
| 048 E74091-5 |
C00144405
482000055899 |
BOILER PIN | Na dotaz | Zadat poptávku | |
| 049 E74091-5 |
C00144406
482000082184 |
OR ORM 0090-20 | Na dotaz | Zadat poptávku | |
| 050 E74091-5 |
C00144407
482000082185 |
OR ORM 0050-20 | Na dotaz | Zadat poptávku | |
| 051 E74091-5 |
C00144408
482000082186 |
BOILER VALVE CURSOR | Na dotaz | Zadat poptávku | |
| 052 E74091-5 |
C00144409
482000082187 |
THERMOSTAT SPRING | Na dotaz | Zadat poptávku | |
| 053 E74091-5 |
C00145402 | SPRING PROTECTION | Na dotaz | Zadat poptávku | |
| 054 E74091-5 |
C00144411
482000082189 |
THERMOSTAT 175° | Na dotaz | Zadat poptávku | |
| 056 E74091-5 |
C00144412
482000029901 |
CONNECTION NUT+PROTECTION ASS.Y 220MM | Na dotaz | Zadat poptávku | |
| 057 E74091-5 |
C00145405
482000030020 |
BOILER ASSEMBLY (WITH HEATER) 230V | Na dotaz | Zadat poptávku | |
| 058 E74091-5 |
C00144415
482000082191 |
T CONNECTION D8 | Na dotaz | Zadat poptávku | |
| 059 E74091-5 |
C00144416
482000082192 |
BOILER SUPPORT | Na dotaz | Zadat poptávku | |
| 060 E74091-5 |
C00144417
482000029902 |
CONNECTION NUT+PROTECTION ASS.Y 120MM | Na dotaz | Zadat poptávku | |
| 061 E74091-5 |
C00144419
482000082194 |
BOILER SUPPORT BRACKET | Na dotaz | Zadat poptávku | |
| 062 E74091-5 |
C00144420
482000082195 |
TEMPERATURE SENSOR - NTC | Na dotaz | Zadat poptávku | |
| 063 E74091-5 |
C00144422
482000029903 |
BOILER PIN CONNECTION | Na dotaz | Zadat poptávku | |
| 001 E74091-8 |
C00144424 | SCREW | Na dotaz | Zadat poptávku | |
| 002 E74091-8 |
C00144425
488000144425 |
COFFEEMILL UPPER SUPPORT | Na dotaz | Zadat poptávku | |
| 003 E74091-8 |
C00144427
488000144427 |
OR 0530-15 | Na dotaz | Zadat poptávku | |
| 004 E74091-8 |
C00144428
482000029905 |
CERAMIC MILL 48X28 | Na dotaz | Zadat poptávku | |
| 005 E74091-8 |
C00144429 | PIN FOR SCREW | Na dotaz | Zadat poptávku | |
| 006 E74091-8 |
C00144430
482000029906 |
CERAMIC MILL LOWER SUPPORT | Na dotaz | Zadat poptávku | |
| 007 E74091-8 |
C00144432
482000082197 |
BEARING | Na dotaz | Zadat poptávku | |
| 008 E74091-8 |
C00144433
482000082198 |
RING DE=45,4 DI=39,4 H=4 | Na dotaz | Zadat poptávku | |
| 009 E74091-8 |
C00144434
488000144434 |
UPPER PART FOR MILLED COFFEE EXIT | Na dotaz | Zadat poptávku | |
| 010 E74091-8 |
C00144435
488000144435 |
BALANCEMENT WASHER 21,8X14X0,25 | Na dotaz | Zadat poptávku | |
| 011 E74091-8 |
C00144436
488000144436 |
RADIAL BEARING | Na dotaz | Zadat poptávku | |
| 012 E74091-8 |
C00144437
482000082199 |
MOVING GEAR GRINDER WITH MAGNET | Na dotaz | Zadat poptávku | |
| 013 E74091-8 |
C00144273
482000037714 |
IMPULSE SENSOR COFFEMAKER | Na dotaz | Zadat poptávku | |
| 014 E74091-8 |
C00145406
482000037705 |
COFFEEMILL ASSEMBLY MOTOR 120V | Na dotaz | Zadat poptávku | |
| 015 E74091-8 |
C00144441
482000082200 |
THERMIC SENSOR SUPPORT | Na dotaz | Zadat poptávku | |
| 016 E74091-8 |
C00144443 | M4 DIN982 NUT | Na dotaz | Zadat poptávku | |
| 017 E74091-8 |
C00144444
488000144444 |
WASHER 14 X 1,5 | Na dotaz | Zadat poptávku | |
| 018 E74091-8 |
C00144456
482000082203 |
ŠROUB PANELVIT TCB 3,5X30 D.7505 | Na dotaz | Zadat poptávku | |
| 019 E74091-8 |
C00144457 | SCREW PLUG | Na dotaz | Zadat poptávku | |
| 020 E74091-8 |
C00144459
482000082204 |
COVER CONVEYOR | Na dotaz | Zadat poptávku | |
| 021 E74091-8 |
C00144460
482000082205 |
CONVEYOR ASSEMBLY | Na dotaz | Zadat poptávku | |
| 023 E74091-8 |
C00144461
488000144461 |
MILLCOFFEE KNOB REGULATION | Na dotaz | Zadat poptávku | |
| 024 E74091-8 |
C00144462
488000144462 |
REGULATION PIN | Na dotaz | Zadat poptávku | |
| 025 E74091-8 |
C00144463
488000144463 |
SPRING | Na dotaz | Zadat poptávku | |
| 026 E74091-8 |
C00144464
488000144464 |
SPHERE D=3,2MM INOX | Na dotaz | Zadat poptávku | |
| 027 E74091-8 |
C00144465
488000144465 |
LOWER SUPPORT | Na dotaz | Zadat poptávku | |
| 028 E74091-8 |
C00144466
488000144466 |
CONICAL ENTRANCE | Na dotaz | Zadat poptávku | |
| 029 E74091-8 |
C00144467 | RING D=3,2 | Na dotaz | Zadat poptávku | |
| 030 E74091-8 |
C00144468
488000144468 |
RING 4 UNI 7434 | Na dotaz | Zadat poptávku | |
| 031 E74091-8 |
C00144469 | SCREW | Na dotaz | Zadat poptávku | |
| 033 E74091-8 |
C00144470
488000144470 |
CONICAL PIN | Na dotaz | Zadat poptávku | |
| 034 E74091-8 |
C00144471
488000144471 |
MOTOR FLANGE | Na dotaz | Zadat poptávku | |
| 035 E74091-8 |
C00144472
488000144472 |
MOTOR SUPPORT SEAL | Na dotaz | Zadat poptávku | |
| 036 E74091-8 |
C00144473
488000144473 |
MILLCOFFEE SEAL | Na dotaz | Zadat poptávku | |
| 037 E74091-8 |
C00144481
482000082206 |
MOTOR MILLCOFFEE 230V | Na dotaz | Zadat poptávku | |
| 038 E74091-8 |
C00144484
488000144484 |
MOTOR SEAL | Na dotaz | Zadat poptávku | |
| 039 E74091-8 |
C00144485
488000144485 |
MOTOR SUPPORT | Na dotaz | Zadat poptávku | |
| 043 E74091-8 |
C00144487
482000082207 |
MOUNTING PLATE MECHANISM | Na dotaz | Zadat poptávku | |
| 044 E74091-8 |
C00144488
482000082208 |
MECHANISM | Na dotaz | Zadat poptávku | |
| 045 E74091-8 |
C00144493
482000082210 |
WASHER FOR REDUCER MOTOR | Na dotaz | Zadat poptávku | |
| 046 E74091-8 |
C00144489
488000144489 |
WASHER BAKELIZ. D=5,5 | Na dotaz | Zadat poptávku | |
| 047 E74091-8 |
C00144490
488000144490 |
BUSH FOR REDUCER MOTOR | Na dotaz | Zadat poptávku | |
| 048 E74091-8 |
C00144491
482000082209 |
MOUNTING PLATE COVER | Na dotaz | Zadat poptávku | |
| 049 E74091-8 |
C00144492
488000144492 |
MICROSWITCH SUPPORT | Na dotaz | Zadat poptávku | |
| 051 E74091-8 |
C00144494
482000082211 |
REDUCER MOTOR | Na dotaz | Zadat poptávku | |
| 052 E74091-8 |
C00144495
488000144495 |
ANTIVIBRATING FOR MOTOR | Na dotaz | Zadat poptávku | |
| 053 E74091-8 |
C00144496
482000082212 |
MICROSWITCH | Na dotaz | Zadat poptávku | |
| 054 E74091-8 |
C00144497
482000082213 |
BOILER HOLLOW COVER | Na dotaz | Zadat poptávku | |
| 055 E74091-8 |
C00145408
482000030022 |
SMART COFFEE GROUP | Na dotaz | Zadat poptávku | |
