| Komerční kód: | GAS HOB |
| Kód 12NC: | 852762108010 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

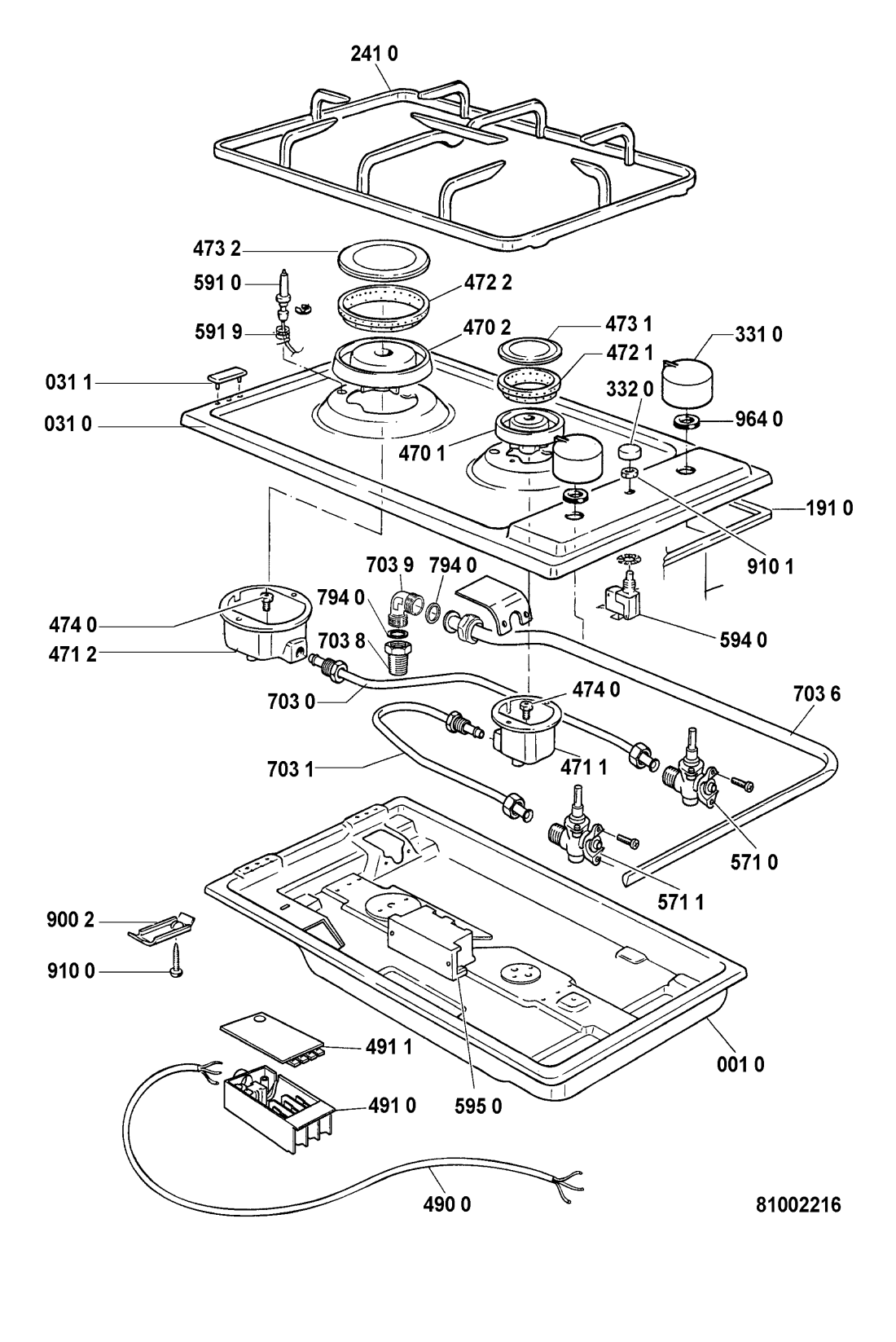

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR105700 |
C00582699
481244068919 |
Hob lower part. | Na dotaz | Zadat poptávku | |
| 002 0 WHR105700 |
C00484571
481208128006 |
Lid glass | Na dotaz | Zadat poptávku | |
| 002 1 WHR105700 |
C00488928
481241718886 |
Hinge right glass lid | Na dotaz | Zadat poptávku | |
| 002 2 WHR105700 |
C00488929
481241718887 |
Hinge left glass lid | Na dotaz | Zadat poptávku | |
| 002 3 WHR105700 |
C00636438
481241718339 |
Damper. | Na dotaz | Zadat poptávku | |
| 002 9 WHR105700 |
C00500432
481231018711 |
Lid ,HOBS DOM.AMH875 | Na dotaz | Zadat poptávku | |
| 025 0 WHR105700 |
C00481531
481231018552 |
AMH719 SADA NA ZABUDOVANIE N | Na dotaz | Zadat poptávku | |
| 031 0 WHR105700 |
C00582690
481244039051 |
Hob lower part. | Na dotaz | Zadat poptávku | |
| 031 1 WHR105700 |
C00582687
481244019607 |
krytka | 78 Kč
€ 3.40 |
||
| 043 2 WHR105700 |
C00582683
481241718884 |
Hinge right. | Na dotaz | Zadat poptávku | |
| 043 3 WHR105700 |
C00488927
481241718885 |
Hinge left | Na dotaz | Zadat poptávku | |
| 043 5 WHR105700 |
C00484475
481946689386 |
Plate | Na dotaz | Zadat poptávku | |
| 191 0 WHR105700 |
C00582980
481946818209 |
tesneni varne desky | 383 Kč
€ 16.80 |
||
| 241 0 WHR105700 |
C00582978
481946689363 |
GRID FOR HOB. | Na dotaz | Zadat poptávku | |
| 331 0 WHR105700 |
C00553419
481241128642 |
KNOB | Na dotaz | Zadat poptávku | |
| 332 0 WHR105700 |
C00582871
481941028876 |
BUTTON. | Na dotaz | Zadat poptávku | |
| 470 1 WHR105700 |
C00484386
481940479237 |
Support SR | Na dotaz | Zadat poptávku | |
| 470 2 WHR105700 |
C00582859
481940479236 |
Support R. | Na dotaz | Zadat poptávku | |
| 471 1 WHR105700 |
C00556979
481936069621 |
Burner.. | Na dotaz | Zadat poptávku | |
| 471 2 WHR105700 |
C00582832
481936069619 |
Burner. | Na dotaz | Zadat poptávku | |
| 472 1 WHR105700 |
C00582830
481936069609 |
Spreader,burner SR. | Na dotaz | Zadat poptávku | |
| 472 2 WHR105700 |
C00582829
481936069608 |
Spreader,burner R. | Na dotaz | Zadat poptávku | |
| 473 1 WHR105700 |
C00481858
481936069612 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 473 2 WHR105700 |
C00582831
481936069611 |
Burner cap R.. | Na dotaz | Zadat poptávku | |
| 474 0 WHR105700 |
C00582611
481231038673 |
Nozzle kit G30. | Na dotaz | Zadat poptávku | |
| 490 0 WHR105700 |
C00582623
481232118076 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 491 0 WHR105700 |
C00582605
481229088062 |
TERMINAL BLOCK. | Na dotaz | Zadat poptávku | |
| 491 1 WHR105700 |
C00582606
481229088063 |
LID. | Na dotaz | Zadat poptávku | |
| 571 0 WHR105700 |
C00621556
481936058704 |
Tap R D=0.39. | Na dotaz | Zadat poptávku | |
| 571 1 WHR105700 |
C00621555
481936058703 |
Tap SR D=0.29. | Na dotaz | Zadat poptávku | |
| 591 0 WHR105700 |
C00486905
481985023107 |
SPARK PLUG 400 MM | Na dotaz | Zadat poptávku | |
| 591 9 WHR105700 |
C00492728
481985013322 |
SPRING | Na dotaz | Zadat poptávku | |
| 594 0 WHR105700 |
C00621540
481927138172 |
MICROSWITCH | Na dotaz | Zadat poptávku | |
| 595 0 WHR105700 |
C00486358
481290508001 |
GENERATOR | Na dotaz | Zadat poptávku | |
| 703 0 WHR105700 |
C00583154
481236068216 |
Gas pipe R. | Na dotaz | Zadat poptávku | |
| 703 1 WHR105700 |
C00527408
481236068217 |
Gas pipe SR | Na dotaz | Zadat poptávku | |
| 703 6 WHR105700 |
C00583473
481253048207 |
Gas pipe. | Na dotaz | Zadat poptávku | |
| 703 8 WHR105700 |
C00583499
481952648327 |
GAS CONNECTION. | Na dotaz | Zadat poptávku | |
| 703 9 WHR105700 |
C00583019
481985013334 |
Gas connection elbow. | Na dotaz | Zadat poptávku | |
| 794 0 WHR105700 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.70 |
||
| 900 2 WHR105700 |
C00582857
481940478845 |
DRZIAK | Na dotaz | Zadat poptávku | |
| 910 0 WHR105700 |
C00582997
481950218442 |
SKRUTKA | Na dotaz | Zadat poptávku | |
| 910 1 WHR105700 |
C00583242
481240478298 |
Bracket. | Na dotaz | Zadat poptávku | |
| 964 0 WHR105700 |
C00583068
481212608003 |
Gasket. | Na dotaz | Zadat poptávku | |
