BAUKNECHT IV 3047/2 CH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | IV 3047/2 CH |
| Kód 12NC/I.C. kód: | 855010416060 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice |
Potřebujete servis? Jsme tady pro Vás

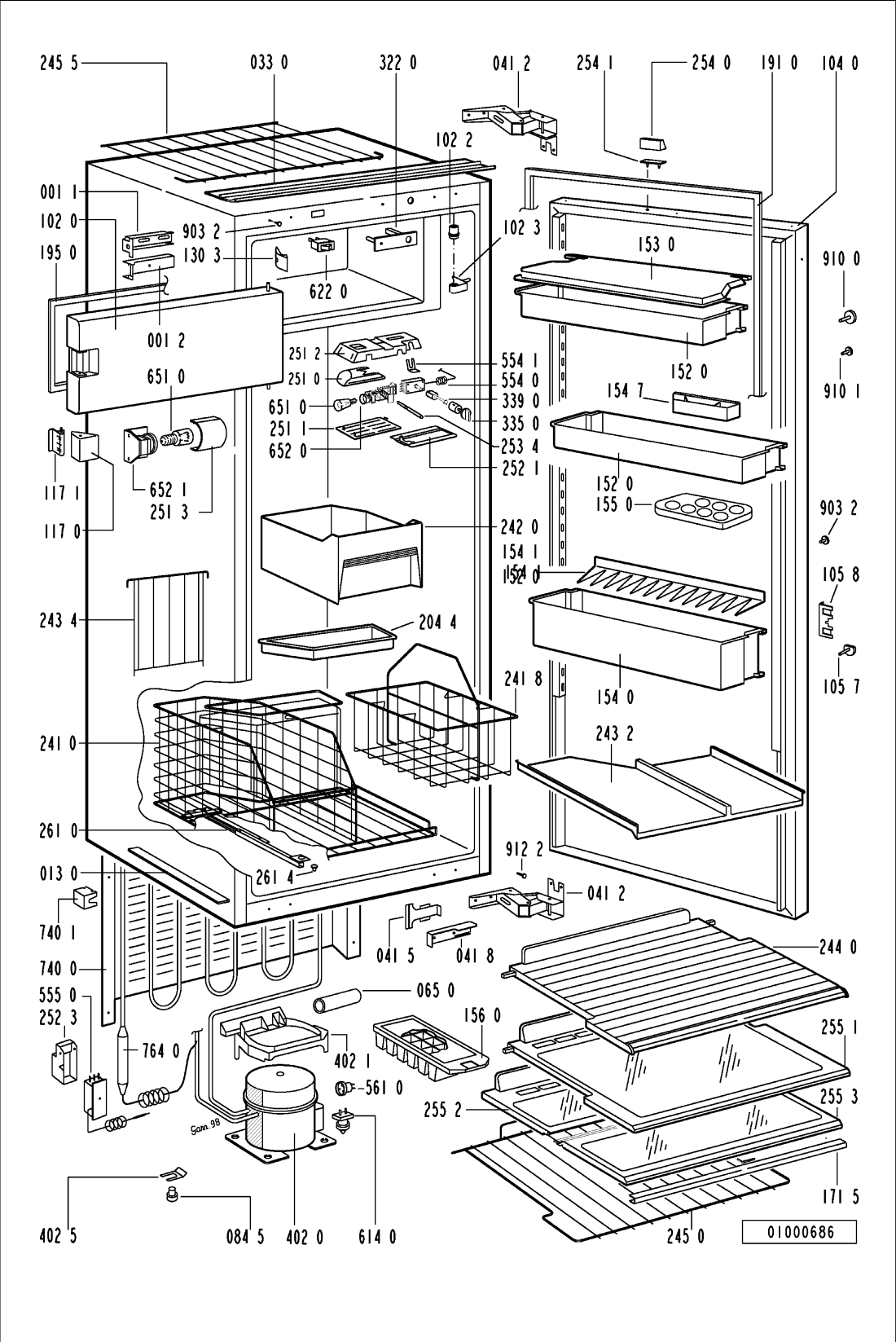

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR98053 |
C00329697
481241718765 |
PRICHYTKA | Na dotaz | Zadat poptávku | |
| 001 2 WHR98053 |
C00553724
481246278324 |
Cover f. fastener square.. | Na dotaz | Zadat poptávku | |
| 003 0 WHR98053 |
C00585020
481246088148 |
Trim cover fixation.. | Na dotaz | Zadat poptávku | |
| 013 0 WHR98053 |
C00491936
481246278222 |
Foot trim | Na dotaz | Zadat poptávku | |
| 013 0 WHR98053 |
C00590013
481246278187 |
Foot trim, hingeside. | Na dotaz | Zadat poptávku | |
| 041 2 WHR98053 |
C00555197
481241718169 |
Hinge kit.. | Na dotaz | Zadat poptávku | |
| 041 5 WHR98053 |
C00491658
481241728017 |
DRZIAK OVLADACA AWM N | Na dotaz | Zadat poptávku | |
| 041 8 WHR98053 |
C00486047
481246278199 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 065 0 WHR98053 |
C00585179
481946698521 |
Insulation ,white.. | Na dotaz | Zadat poptávku | |
| 084 5 WHR98053 |
C00585214
481953268362 |
DORAZ AMB590 N | Na dotaz | Zadat poptávku | |
| 102 0 WHR98053 |
C00555326
481244078253 |
Door,flap.. | Na dotaz | Zadat poptávku | |
| 102 2 WHR98053 |
C00318944
481946698901 |
Podložka distanční | 265 Kč
€ 10.90 |
||
| 102 3 WHR98053 |
C00635643
481940478482 |
NAHRADENE 481240478335 N | Na dotaz | Zadat poptávku | |
| 104 0 WHR98053 |
C00528022
481244028503 |
Door foamed | Na dotaz | Zadat poptávku | |
| 105 7 WHR98053 |
C00344332
481952838149 |
kolik | 39 Kč
€ 1.60 |
||
| 105 8 WHR98053 |
C00337758
481940449351 |
prichytka plech | Na dotaz | Zadat poptávku | |
| 117 0 WHR98053 |
C00340215
481949869426 |
Grip | Na dotaz | Zadat poptávku | |
| 117 1 WHR98053 |
C00621140
481949268646 |
nahradene 481249298033 | Na dotaz | Zadat poptávku | |
| 130 3 WHR98053 |
C00636261
481946698723 |
HAK PLAST N | Na dotaz | Zadat poptávku | |
| 152 0 WHR98053 |
C00555242
481241848282 |
Door,dairy.. | Na dotaz | Zadat poptávku | |
| 153 0 WHR98053 |
C00555337
481244098023 |
LID.. | Na dotaz | Zadat poptávku | |
| 154 0 WHR98053 |
C00555244
481241848324 |
Bottle shelf.. | Na dotaz | Zadat poptávku | |
| 154 1 WHR98053 |
C00589828
481241848204 |
Bottle holder. | Na dotaz | Zadat poptávku | |
| 154 7 WHR98053 |
C00527896
481241878005 |
Separator | Na dotaz | Zadat poptávku | |
| 155 0 WHR98053 |
C00339533
481946088503 |
Holder, eggs f. 7 eggs | Na dotaz | Zadat poptávku | |
| 156 0 WHR98053 |
C00287849
481941878977 |
miska na led | 180 Kč
€ 7.40 |
||
| 171 5 WHR98053 |
C00752808
481246048056 |
Trim | Na dotaz | Zadat poptávku | |
| 191 0 WHR98053 |
C00752918
481246668441 |
Gasket door | Na dotaz | Zadat poptávku | |
| 195 0 WHR98053 |
C00555532
481246668412 |
GASKET.. | Na dotaz | Zadat poptávku | |
| 204 4 WHR98053 |
C00752919
481250248343 |
Tray | Na dotaz | Zadat poptávku | |
| 241 0 WHR98053 |
C00752920
481245818223 |
Basket | Na dotaz | Zadat poptávku | |
| 241 8 WHR98053 |
C00752921
481245818224 |
Basket f.Bottles | Na dotaz | Zadat poptávku | |
| 242 0 WHR98053 |
C00555245
481241848339 |
CRISPER.. | Na dotaz | Zadat poptávku | |
| 243 2 WHR98053 |
C00752922
481244028502 |
Plate bottom | Na dotaz | Zadat poptávku | |
| 243 4 WHR98053 |
C00752923
481245858106 |
Separator | Na dotaz | Zadat poptávku | |
| 244 0 WHR98053 |
C00485813
481245818225 |
Shelf plate | Na dotaz | Zadat poptávku | |
| 245 0 WHR98053 |
C00752776
481990305725 |
Sliding shelf | Na dotaz | Zadat poptávku | |
| 245 5 WHR98053 |
C00752924
481245818218 |
Grid | Na dotaz | Zadat poptávku | |
| 251 0 WHR98053 |
C00332896
481938028002 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR98053 |
C00320080
481946279556 |
kryt dif | 434 Kč
€ 17.80 |
||
| 251 2 WHR98053 |
C00555241
481241848248 |
LAMPHOLDER.. | Na dotaz | Zadat poptávku | |
| 251 3 WHR98053 |
C00500451
481244078252 |
Diffusor | Na dotaz | Zadat poptávku | |
| 252 1 WHR98053 |
C00318922
481946279617 |
kryt | 17 Kč
€ 0.70 |
||
| 252 3 WHR98053 |
C00590012
481246278056 |
Cover thermost.. | Na dotaz | Zadat poptávku | |
| 253 4 WHR98053 |
C00344554
481953598273 |
spinac osvetl.tycka Náhrada 481227618525 |
Na dotaz | Zadat poptávku | |
| 254 0 WHR98053 |
C00555142
481240448488 |
FIXATION LIGHT SWITCH.. | Na dotaz | Zadat poptávku | |
| 254 1 WHR98053 |
C00339619
481240448545 |
Holder f. light switch | Na dotaz | Zadat poptávku | |
| 255 1 WHR98053 |
C00553693
481245818339 |
Shelf plate.. | Na dotaz | Zadat poptávku | |
| 255 2 WHR98053 |
C00485817
481245818342 |
Shelf plate rear glass | Na dotaz | Zadat poptávku | |
| 255 3 WHR98053 |
C00485816
481245818341 |
Shelf plate front glass | Na dotaz | Zadat poptávku | |
| 261 0 WHR98053 |
C00752925
481246238029 |
Guide | Na dotaz | Zadat poptávku | |
| 322 0 WHR98053 |
C00341930
481945298449 |
Panel f. thermostat | Na dotaz | Zadat poptávku | |
| 335 0 WHR98053 |
C00338417
481941249139 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 339 0 WHR98053 |
C00333350
481953598347 |
Shaft thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR98053 |
C00555856
481936038657 |
Compressor NBM 1114 Y.. | Na dotaz | Zadat poptávku | |
| 402 1 WHR98053 |
C00327895
481241878039 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 402 5 WHR98053 |
C00333135
481946689405 |
PRICHYTKA | 53 Kč
€ 2.20 |
||
| 554 0 WHR98053 |
C00548183
481227128196 |
THERMOSTAT. | Na dotaz | Zadat poptávku | |
| 554 1 WHR98053 |
C00333185
481949268723 |
pruzina | 248 Kč
€ 10.20 |
||
| 555 0 WHR98053 |
C00589722
481227128207 |
Thermostat heating. | Na dotaz | Zadat poptávku | |
| 561 0 WHR98053 |
C00586840
481928228657 |
Cut out. | Na dotaz | Zadat poptávku | |
| 614 0 WHR98053 |
C00336871
481928068359 |
Relé rozběhové | Na dotaz | Zadat poptávku | |
| 622 0 WHR98053 |
C00491143
481227718008 |
SWITCH,DOUBLE | Na dotaz | Zadat poptávku | |
| 651 0 WHR98053 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR98053 |
C00752931
481225518207 |
Holder lamp EV,IV 12/6 | Na dotaz | Zadat poptávku | |
| 652 1 WHR98053 |
C00313941
481925518199 |
spinac osvetl.+obj. | Na dotaz | Zadat poptávku | |
| 740 0 WHR98053 |
C00590076
481251148186 |
CONDENSER. | Na dotaz | Zadat poptávku | |
| 740 1 WHR98053 |
C00328255
481244048012 |
Holder condenser | Na dotaz | Zadat poptávku | |
| 764 0 WHR98053 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 903 2 WHR98053 |
C00335993
481246278201 |
Stopper with point | Na dotaz | Zadat poptávku | |
| 910 0 WHR98053 |
C00344633
481953268521 |
sroubek | Na dotaz | Zadat poptávku | |
| 910 1 WHR98053 |
C00333201
481950218219 |
VITE CP H L 8 Z M5X16X8,5 | Na dotaz | Zadat poptávku | |
| 912 2 WHR98053 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 993 0 WHR98053 |
C00488567
481231018437 |
Mounting kit door SWISSMO IV 12/6 | Na dotaz | Zadat poptávku | |
| 999 WHR98053 |
C00768788 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
