WHIRLPOOL KCR-32M
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KCR-32M |
| Kód 12NC/I.C. kód: | 852877610020 |
| Značka: | WHIRLPOOL |
| Typ produktu: | |
| Další podobné modely: | 852877610000 |
Potřebujete servis? Jsme tady pro Vás

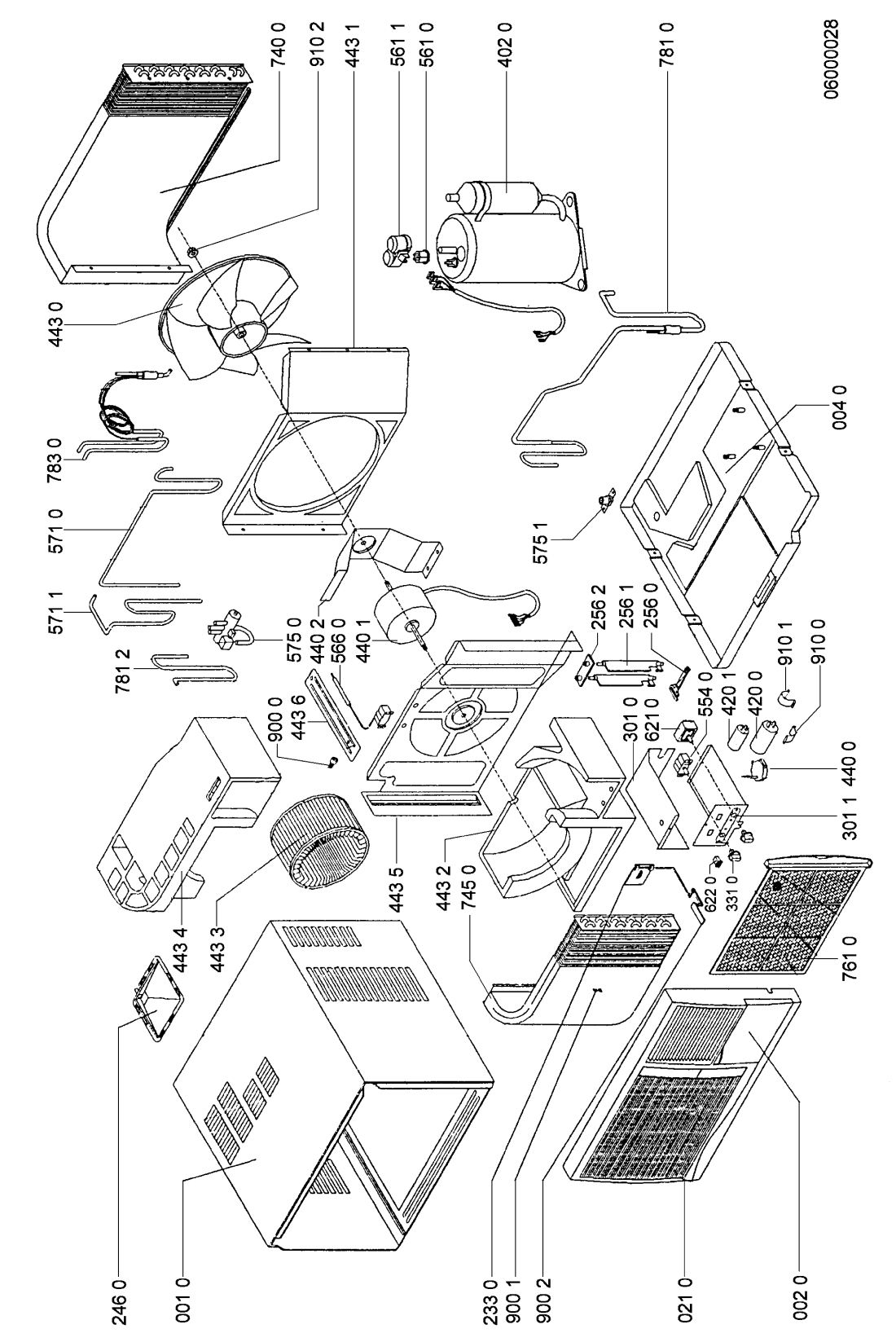

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR110253 |
C00745487
481244048241 |
Cabinet | Na dotaz | Zadat poptávku | |
| 002 0 WHR110253 |
C00746539
481244028936 |
Door | Na dotaz | Zadat poptávku | |
| 004 0 WHR110253 |
C00746540
481244028937 |
Crossbar | Na dotaz | Zadat poptávku | |
| 021 0 WHR110253 |
C00745488
481244028935 |
Front panel | Na dotaz | Zadat poptávku | |
| 233 0 WHR110253 |
C00489280
481244048242 |
Flap | Na dotaz | Zadat poptávku | |
| 246 0 WHR110253 |
C00482937
481244048238 |
Container | Na dotaz | Zadat poptávku | |
| 256 0 WHR110253 |
C00746542
481244048231 |
Flap | Na dotaz | Zadat poptávku | |
| 256 1 WHR110253 |
C00491762
481244048232 |
Nut | Na dotaz | Zadat poptávku | |
| 256 2 WHR110253 |
C00746543
481244048233 |
Plate | Na dotaz | Zadat poptávku | |
| 301 0 WHR110253 |
C00746544
481245288006 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 1 WHR110253 |
C00746545
481245288007 |
Cover ,control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR110253 |
C00487047
481241078044 |
Knob | Na dotaz | Zadat poptávku | |
| 402 0 WHR110253 |
C00746546
481236038606 |
Compressor 2K22C3R-HE | Na dotaz | Zadat poptávku | |
| 420 0 WHR110253 |
C00746547
481212028005 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 1 WHR110253 |
C00746548
481253078037 |
Capacitor | Na dotaz | Zadat poptávku | |
| 440 0 WHR110253 |
C00746549
481236138022 |
Motor | Na dotaz | Zadat poptávku | |
| 440 1 WHR110253 |
C00488663
481236138023 |
MOTORCEK VRTULKY VENTILATORA N | Na dotaz | Zadat poptávku | |
| 440 2 WHR110253 |
C00746550
481244028938 |
Bracket | Na dotaz | Zadat poptávku | |
| 443 0 WHR110253 |
C00746551
481236118278 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR110253 |
C00745489
481244048234 |
Housing ,fan | Na dotaz | Zadat poptávku | |
| 443 2 WHR110253 |
C00746553
481244048239 |
Housing | Na dotaz | Zadat poptávku | |
| 443 3 WHR110253 |
C00746554
481236118279 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 443 4 WHR110253 |
C00745476
481244048237 |
Housing | Na dotaz | Zadat poptávku | |
| 443 5 WHR110253 |
C00745477
481244048236 |
Housing | Na dotaz | Zadat poptávku | |
| 443 6 WHR110253 |
C00491763
481244048235 |
Holder | Na dotaz | Zadat poptávku | |
| 554 0 WHR110253 |
C00745490
481228248237 |
SPINAC | Na dotaz | Zadat poptávku | |
| 561 0 WHR110253 |
C00745478
481228228224 |
Protect motor | Na dotaz | Zadat poptávku | |
| 561 1 WHR110253 |
C00485123
481244068939 |
Cover | Na dotaz | Zadat poptávku | |
| 566 0 WHR110253 |
C00745491
481228238035 |
Thermostat ,defrost | Na dotaz | Zadat poptávku | |
| 571 0 WHR110253 |
C00745492
481236068102 |
Tube | Na dotaz | Zadat poptávku | |
| 571 1 WHR110253 |
C00745493
481236068103 |
Tube | Na dotaz | Zadat poptávku | |
| 575 0 WHR110253 |
C00745494
481236058165 |
Valve | Na dotaz | Zadat poptávku | |
| 575 1 WHR110253 |
C00493220
481236058163 |
Valve | Na dotaz | Zadat poptávku | |
| 621 0 WHR110253 |
C00745495
481241078045 |
SPINAC | Na dotaz | Zadat poptávku | |
| 622 0 WHR110253 |
C00745479
481241078043 |
Switch ,motor | Na dotaz | Zadat poptávku | |
| 740 0 WHR110253 |
C00745496
481251148213 |
Condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR110253 |
C00745497
481251138123 |
Evaporator | Na dotaz | Zadat poptávku | |
| 761 0 WHR110253 |
C00745482
481990750397 |
Filter | Na dotaz | Zadat poptávku | |
| 781 0 WHR110253 |
C00493238
481236068101 |
Tube | Na dotaz | Zadat poptávku | |
| 781 2 WHR110253 |
C00745498
481236068104 |
Tube | Na dotaz | Zadat poptávku | |
| 783 0 WHR110253 |
C00745499
481236058164 |
Tube | Na dotaz | Zadat poptávku | |
| 900 0 WHR110253 |
C00492136
481256018006 |
Screw | Na dotaz | Zadat poptávku | |
| 900 1 WHR110253 |
C00492098
481253078041 |
Clip | Na dotaz | Zadat poptávku | |
| 900 2 WHR110253 |
C00745485
481244048243 |
Shaft | Na dotaz | Zadat poptávku | |
| 910 0 WHR110253 |
C00492096
481253078035 |
Clip | Na dotaz | Zadat poptávku | |
| 910 1 WHR110253 |
C00492097
481253078036 |
CLIP | Na dotaz | Zadat poptávku | |
| 910 2 WHR110253 |
C00745486
481253078038 |
Nut | Na dotaz | Zadat poptávku | |
| 999 WHR110253 |
C00791054 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
