BAUKNECHT KDA 2460 A+IO
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KDA 2460 A+IO |
| Kód 12NC: | 855083901110 |
| I.C. kód: | 855083901111 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855083901110 |
Potřebujete servis? Jsme tady pro Vás

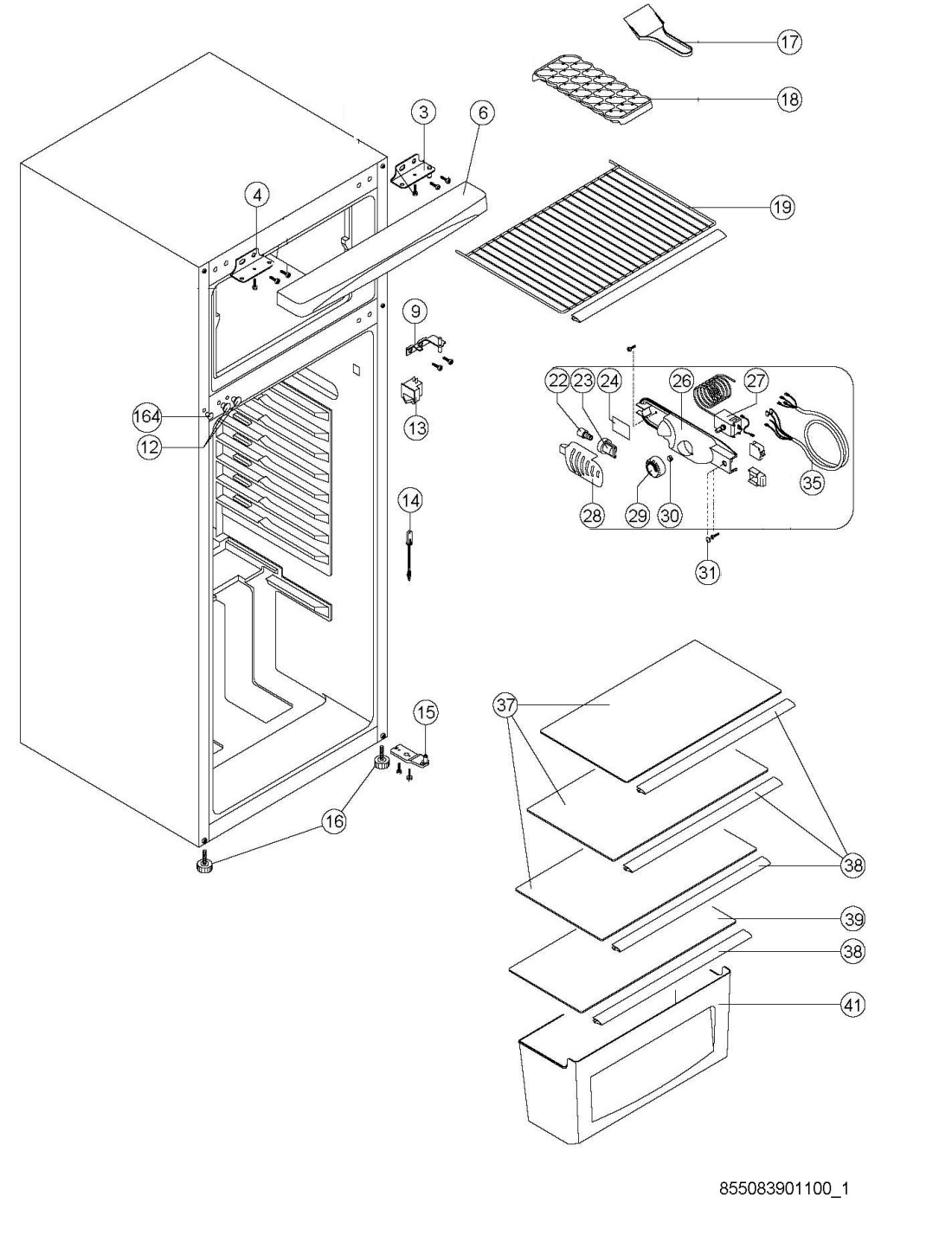

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 WHR48828 |
C00416668
482000019478 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 004 WHR48828 |
C00416669
482000019479 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 006 WHR48828 |
C00416670
482000019480 |
Panel | Na dotaz | Zadat poptávku | |
| 007 WHR48828 |
C00513148
482000018651 |
Screw M5x14 YSB-F | Na dotaz | Zadat poptávku | |
| 009 WHR48828 |
C00394351
480132102469 |
Hinge center | Na dotaz | Zadat poptávku | |
| 011 WHR48828 |
C00270034
482000002929 |
ZÁTKA KRYTKA ŠROUBU | Na dotaz | Zadat poptávku | |
| 012 WHR48828 |
C00306359
482000019481 |
Screw cap | Na dotaz | Zadat poptávku | |
| 013 WHR48828 |
C00345101
480131100418 |
Spínač dveří | Na dotaz | Zadat poptávku | |
| 014 WHR48828 |
C00416637
482000019436 |
Swab | Na dotaz | Zadat poptávku | |
| 015 WHR48828 |
C00394352
480132102471 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 016 WHR48828 |
C00345128
482000013074 |
Adjust. foot M8x35 Grey | Na dotaz | Zadat poptávku | |
| 017 WHR48828 |
C00345139
480131100433 |
Swab | Na dotaz | Zadat poptávku | |
| 019 WHR48828 |
C00416098
482000018652 |
Shelf | Na dotaz | Zadat poptávku | |
| 022 WHR48828 |
C00314888
484000000984 |
Lamp E14/220-24/15W T22 300°C | Na dotaz | Zadat poptávku | |
| 023 WHR48828 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 024 WHR48828 |
C00513139
481225568016 |
Reflector lamp | Na dotaz | Zadat poptávku | |
| 026 WHR48828 |
C00407328
482000001286 |
Thermostathous. | Na dotaz | Zadat poptávku | |
| 027 WHR48828 |
C00418770
482000024073 |
Termostat chladničky Whirlpool, Indesit | 1 379 Kč
€ 56.60 |
||
| 028 WHR48828 |
C00330535
481246228694 |
kryt | Na dotaz | Zadat poptávku | |
| 029 WHR48828 |
C00416100
482000018654 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 030 WHR48828 |
C00345850
481249258054 |
Knob thermostat spring | Na dotaz | Zadat poptávku | |
| 031 WHR48828 |
C00394357
480132102477 |
THERMOSTAT BOX SCREW CAP/140(S.W.) | Na dotaz | Zadat poptávku | |
| 035 WHR48828 |
C00328485
481232058171 |
Cable harness thermostat | Na dotaz | Zadat poptávku | |
| 037 WHR48828 |
C00331225
481245088469 |
rost skleneny | Na dotaz | Zadat poptávku | |
| 039 WHR48828 |
C00403878
481245088521 |
Cover crisper | Na dotaz | Zadat poptávku | |
| 040 WHR48828 |
C00344972
480131100417 |
Trim Glass shelf | Na dotaz | Zadat poptávku | |
| 041 WHR48828 |
C00403053
481241848934 |
Zásuvka na zeleninu | 1 335 Kč
€ 54.80 |
||
| 131 WHR48828 |
C00416978
482000020157 |
Screw KA 40x14 | Na dotaz | Zadat poptávku | |
| 135 WHR48828 |
C00417019
482000020213 |
Screw ST 4.2x13 | Na dotaz | Zadat poptávku | |
| 151 WHR48828 |
C00513152
482000019482 |
Bushing | Na dotaz | Zadat poptávku | |
| 152 WHR48828 |
C00270062
482000002930 |
BUSHING CAP | Na dotaz | Zadat poptávku | |
| 153 WHR48828 |
C00419560
482000091379 |
Door freezer | Na dotaz | Zadat poptávku | |
| 155 WHR48828 |
C00419559
482000091378 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 156 WHR48828 |
C00402872
481241820075 |
Flap f. Door dairy | Na dotaz | Zadat poptávku | |
| 157 WHR48828 |
C00402878
481241820098 |
Spodní police na lahve do dveří chladničky Ignis, Bauknecht | 804 Kč
€ 33.00 |
||
| 159 WHR48828 |
C00621637
482000019457 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 164 WHR48828 |
C00416629
482000019376 |
Cap | Na dotaz | Zadat poptávku | |
| 168 WHR48828 |
C00402799
481241778195 |
Door stopper right | Na dotaz | Zadat poptávku | |
| 169 WHR48828 |
C00416101
482000018656 |
Screw ST 2.9x9.5 YSB-R-C | Na dotaz | Zadat poptávku | |
| 170 WHR48828 |
C00402800
481241778196 |
Door stopper left | Na dotaz | Zadat poptávku | |
| 174 WHR48828 |
C00416102
482000018657 |
R BOTTOM STOPPER/140CE | Na dotaz | Zadat poptávku | |
| 175 WHR48828 |
C00402871
481241820074 |
Door dairy | Na dotaz | Zadat poptávku | |
| 190 WHR48828 |
C00416980
482000020159 |
Screw KA 35x12 | Na dotaz | Zadat poptávku | |
| 201 WHR48828 |
C00513157
482000007770 |
Condenser | Na dotaz | Zadat poptávku | |
| 203 WHR48828 |
C00345215
482000018659 |
Spacer | Na dotaz | Zadat poptávku | |
| 204 WHR48828 |
C00329057
481240448969 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 205 WHR48828 |
C00402055
481240449788 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 206 WHR48828 |
C00329058
481240448976 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 207 WHR48828 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 208 WHR48828 |
C00329065
481240448984 |
Bracket condenser | Na dotaz | Zadat poptávku | |
| 210 WHR48828 |
C00416104
482000018660 |
Mains cable | Na dotaz | Zadat poptávku | |
| 211 WHR48828 |
C00513147
482000007768 |
Overload prot. | Na dotaz | Zadat poptávku | |
| 212 WHR48828 |
C00513219
482000018661 |
Capacitor | Na dotaz | Zadat poptávku | |
| 213 WHR48828 |
C00513220
482000018662 |
Screw 4.2x9.5 YSB-C | Na dotaz | Zadat poptávku | |
| 214 WHR48828 |
C00513217
480132102475 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 215 WHR48828 |
C00416105
482000018663 |
Dryer | Na dotaz | Zadat poptávku | |
| 216 WHR48828 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
| 217 WHR48828 |
C00416674
482000019486 |
Compressor SK65CY | Na dotaz | Zadat poptávku | |
| 218 WHR48828 |
C00411840
482000010018 |
Base Compressor | Na dotaz | Zadat poptávku | |
| 223 WHR48828 |
C00330458
481246218283 |
Foot | Na dotaz | Zadat poptávku | |
| 224 WHR48828 |
C00416109
482000018669 |
Screw KA50x14 YSB-F | Na dotaz | Zadat poptávku | |
| 225 WHR48828 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
| 226 WHR48828 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
| 999 WHR48828 |
C00634397 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
