BAUKNECHT KGCE 3254/V/O
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGCE 3254/V/O |
| Kód 12NC: | 855053818010 |
| I.C. kód: | 855053818011 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice s mrazákem |
| Další podobné modely: | 855053818014, 855053818010, 855053818012, 855053818015 |
Potřebujete servis? Jsme tady pro Vás

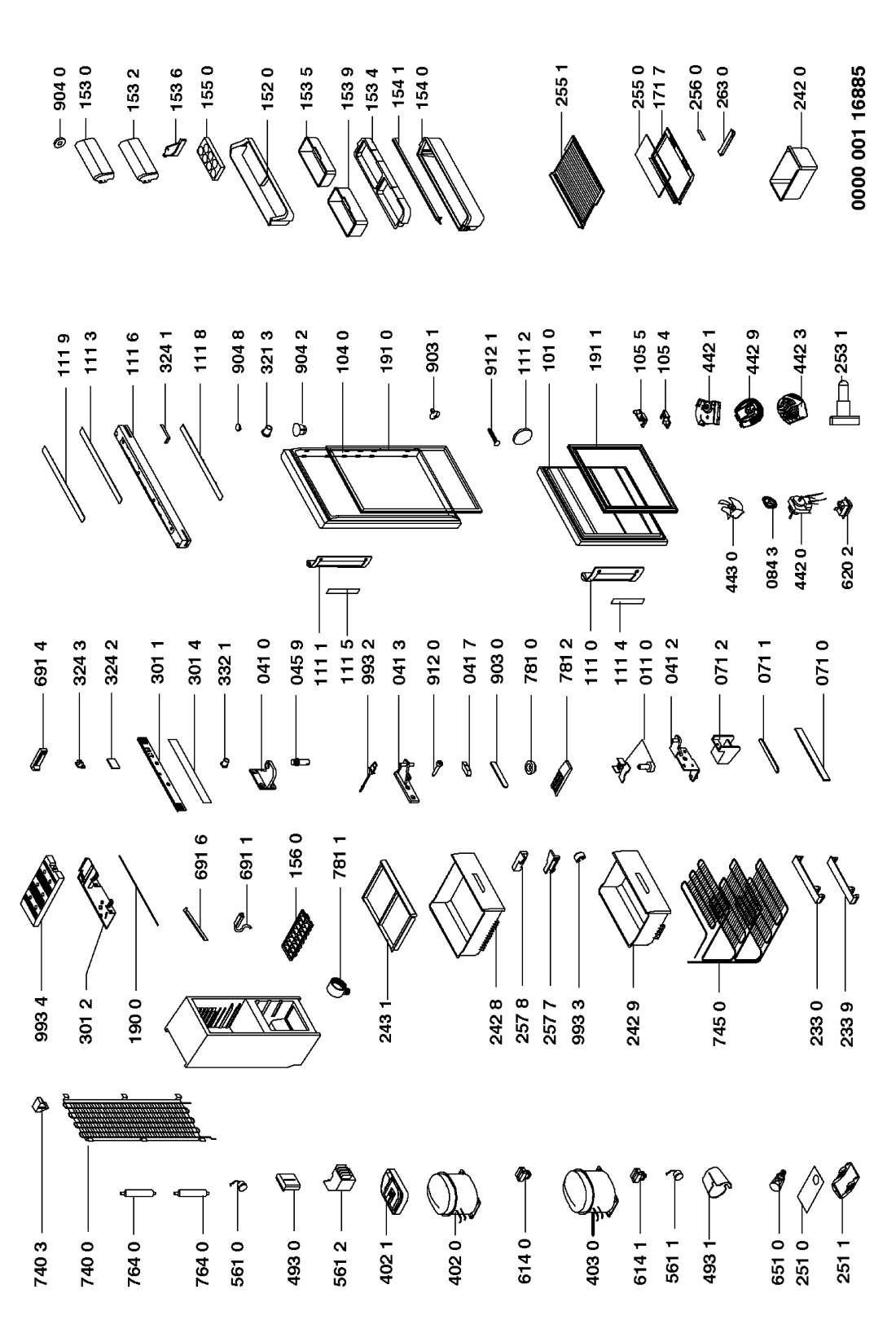

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR98147 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 041 0 WHR98147 |
C00339735
481941719408 |
Hinge,upper | Na dotaz | Zadat poptávku | |
| 041 2 WHR98147 |
C00499104
481941719411 |
Z?VES SPODN# ART836 KOV N | Na dotaz | Zadat poptávku | |
| 041 3 WHR98147 |
C00340397
481941719409 |
ge,middle | Na dotaz | Zadat poptávku | |
| 041 7 WHR98147 |
C00342482
481946258152 |
kryt zavesu | Na dotaz | Zadat poptávku | |
| 045 9 WHR98147 |
C00556353
481953598647 |
CAP ART836 N | Na dotaz | Zadat poptávku | |
| 071 0 WHR98147 |
C00337725
481944268227 |
sokl | Na dotaz | Zadat poptávku | |
| 071 1 WHR98147 |
C00499332
481946078196 |
KRYT SOKLU ART N | Na dotaz | Zadat poptávku | |
| 071 2 WHR98147 |
C00332946
481940478921 |
drzak soklu | Na dotaz | Zadat poptávku | |
| 084 3 WHR98147 |
C00333281
481952918124 |
krouzek tlumici | 292 Kč
€ 12.00 |
||
| 101 0 WHR98147 |
C00556047
481944268303 |
Door,freezer.. | Na dotaz | Zadat poptávku | |
| 104 0 WHR98147 |
C00556051
481944268448 |
DOOR RF OUTER.. | Na dotaz | Zadat poptávku | |
| 105 4 WHR98147 |
C00336035
481946689226 |
drzak dveri pravy | 24 Kč
€ 1.00 |
||
| 105 5 WHR98147 |
C00336036
481946689225 |
drzak dveri levy | 35 Kč
€ 1.40 |
||
| 111 0 WHR98147 |
C00488304
481949878045 |
Handle door | Na dotaz | Zadat poptávku | |
| 111 1 WHR98147 |
C00488318
481949878384 |
Handle door | Na dotaz | Zadat poptávku | |
| 111 2 WHR98147 |
C00336007
481946279466 |
Stopper | Na dotaz | Zadat poptávku | |
| 111 3 WHR98147 |
C00338894
481946078238 |
Insert | Na dotaz | Zadat poptávku | |
| 111 4 WHR98147 |
C00490790
481946078242 |
Handle insert | Na dotaz | Zadat poptávku | |
| 111 5 WHR98147 |
C00557545
481946078731 |
Insert.. | Na dotaz | Zadat poptávku | |
| 111 6 WHR98147 |
C00590878
481946698968 |
Profile. | Na dotaz | Zadat poptávku | |
| 111 8 WHR98147 |
C00590851
481946078318 |
Insert. | Na dotaz | Zadat poptávku | |
| 111 9 WHR98147 |
C00590854
481946078409 |
Insert. | Na dotaz | Zadat poptávku | |
| 152 0 WHR98147 |
C00557462
481941879736 |
Door,dairy.. | Na dotaz | Zadat poptávku | |
| 153 0 WHR98147 |
C00490734
481944278367 |
Door flap | Na dotaz | Zadat poptávku | |
| 153 2 WHR98147 |
C00490735
481944278368 |
Door flap | Na dotaz | Zadat poptávku | |
| 153 4 WHR98147 |
C00492358
481941879687 |
Holder contain. | Na dotaz | Zadat poptávku | |
| 153 5 WHR98147 |
C00590797
481941879317 |
Container. | Na dotaz | Zadat poptávku | |
| 153 6 WHR98147 |
C00557514
481944278094 |
Separator.. | Na dotaz | Zadat poptávku | |
| 153 9 WHR98147 |
C00590796
481941879316 |
Container. | Na dotaz | Zadat poptávku | |
| 154 0 WHR98147 |
C00557449
481941879215 |
Bottle shelf.. | Na dotaz | Zadat poptávku | |
| 154 1 WHR98147 |
C00590146
481946078303 |
Bottle holder. | Na dotaz | Zadat poptávku | |
| 155 0 WHR98147 |
C00339534
481946088408 |
drzak vajec | Na dotaz | Zadat poptávku | |
| 156 0 WHR98147 |
C00287849
481941878977 |
miska na led | 180 Kč
€ 7.40 |
||
| 171 7 WHR98147 |
C00499320
481945948721 |
R?M KRYCEJ DOSKY plast. N | Na dotaz | Zadat poptávku | |
| 190 0 WHR98147 |
C00340588
481953268737 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 0 WHR98147 |
C00338303
481946818061 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 191 1 WHR98147 |
C00338304
481946818051 |
Těsnění magnetické do dveří mrazáku chladničky Whirlpool | 615 Kč
€ 25.30 |
||
| 233 0 WHR98147 |
C00484478
481946698951 |
DRZIAK VYPARNIKA ART826/G N | Na dotaz | Zadat poptávku | |
| 233 9 WHR98147 |
C00335837
481946699082 |
Support evaporator | Na dotaz | Zadat poptávku | |
| 242 0 WHR98147 |
C00557453
481941879312 |
Crisper.. | Na dotaz | Zadat poptávku | |
| 242 8 WHR98147 |
C00556000
481941879309 |
BASKET.. | Na dotaz | Zadat poptávku | |
| 242 9 WHR98147 |
C00557452
481941879308 |
Basket.. | Na dotaz | Zadat poptávku | |
| 243 1 WHR98147 |
C00382214
481941879212 |
Drawer f.ice batteryf.ice battery | Na dotaz | Zadat poptávku | |
| 251 0 WHR98147 |
C00333062
481946078198 |
Reflector foil | Na dotaz | Zadat poptávku | |
| 251 1 WHR98147 |
C00342451
481946279771 |
kryt svetla | Na dotaz | Zadat poptávku | |
| 253 1 WHR98147 |
C00342827
481946288081 |
Cap device | Na dotaz | Zadat poptávku | |
| 255 0 WHR98147 |
C00486818
481946678364 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 255 1 WHR98147 |
C00556214
481946678365 |
CRISPER COVER.. | Na dotaz | Zadat poptávku | |
| 256 0 WHR98147 |
C00590841
481945838042 |
Air regulator. | Na dotaz | Zadat poptávku | |
| 257 7 WHR98147 |
C00314857
481946699152 |
Držák výparníku levý | 184 Kč
€ 7.60 |
||
| 257 8 WHR98147 |
C00314855
481946699151 |
Držák výparníku pravý | 184 Kč
€ 7.60 |
||
| 263 0 WHR98147 |
C00499029
481940479053 |
NOSNIK LISTY N | Na dotaz | Zadat poptávku | |
| 301 1 WHR98147 |
C00499889
481945299798 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 2 WHR98147 |
C00484233
481921478633 |
Control unit | Na dotaz | Zadat poptávku | |
| 301 4 WHR98147 |
C00556094
481945299837 |
Insert.. | Na dotaz | Zadat poptávku | |
| 321 3 WHR98147 |
C00490413
481938118226 |
Lens | Na dotaz | Zadat poptávku | |
| 324 1 WHR98147 |
C00338898
481946078239 |
krytka | Na dotaz | Zadat poptávku | |
| 324 2 WHR98147 |
C00499405
481946279767 |
krytka | Na dotaz | Zadat poptávku | |
| 324 3 WHR98147 |
C00336239
481946689233 |
krytka | Na dotaz | Zadat poptávku | |
| 332 1 WHR98147 |
C00590786
481941028815 |
Button. | Na dotaz | Zadat poptávku | |
| 402 0 WHR98147 |
C00343577
481936038679 |
COMPRESSOR EMS22HLP | Na dotaz | Zadat poptávku | |
| 402 1 WHR98147 |
C00335355
481941879552 |
miska na kondenzat | 66 Kč
€ 2.70 |
||
| 403 0 WHR98147 |
C00557409
481936038711 |
KOMPRESOR GL60AA ART836 N | Na dotaz | Zadat poptávku | |
| 442 0 WHR98147 |
C00753639
481936118456 |
Motor | Na dotaz | Zadat poptávku | |
| 442 1 WHR98147 |
C00332961
481940479433 |
Holder | Na dotaz | Zadat poptávku | |
| 442 3 WHR98147 |
C00343010
481946288074 |
Cover | Na dotaz | Zadat poptávku | |
| 442 9 WHR98147 |
C00333108
481946288073 |
kryt | Na dotaz | Zadat poptávku | |
| 443 0 WHR98147 |
C00333263
481951528289 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 493 0 WHR98147 |
C00342332
481946288043 |
Cover,conn.bloc | Na dotaz | Zadat poptávku | |
| 493 1 WHR98147 |
C00574636
481946279881 |
VEKO ART836 N | Na dotaz | Zadat poptávku | |
| 561 0 WHR98147 |
C00337119
481928228683 |
ochrana motoru | Na dotaz | Zadat poptávku | |
| 561 1 WHR98147 |
C00481324
481928068362 |
OCHRANA MOTORA ART836 N | Na dotaz | Zadat poptávku | |
| 561 2 WHR98147 |
C00587289
481929068403 |
SVORKOVNICA N | Na dotaz | Zadat poptávku | |
| 614 0 WHR98147 |
C00336871
481928068359 |
Relé rozběhové | Na dotaz | Zadat poptávku | |
| 614 1 WHR98147 |
C00336892
481928068327 |
RELE IVO-CONT | Na dotaz | Zadat poptávku | |
| 620 2 WHR98147 |
C00319478
481927618256 |
spinac rychlorozmraz | Na dotaz | Zadat poptávku | |
| 651 0 WHR98147 |
C00313818
481913488178 |
Lamp Tclick T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 691 1 WHR98147 |
C00555700
481921078088 |
Sensor temper... | Na dotaz | Zadat poptávku | |
| 691 4 WHR98147 |
C00584912
481946279846 |
KRYT ART480 N | Na dotaz | Zadat poptávku | |
| 691 6 WHR98147 |
C00499408
481946279847 |
kryt desky ovladani | Na dotaz | Zadat poptávku | |
| 740 0 WHR98147 |
C00575057
481951148608 |
CHLADIC ART831 N | Na dotaz | Zadat poptávku | |
| 740 3 WHR98147 |
C00333137
481946698259 |
Spacer | Na dotaz | Zadat poptávku | |
| 745 0 WHR98147 |
C00587455
481951138651 |
vyparnik | Na dotaz | Zadat poptávku | |
| 764 0 WHR98147 |
C00266743
481948028144 |
Filtr chladničky - patrona Náhrada C00495431 |
Na dotaz | Zadat poptávku | |
| 781 0 WHR98147 |
C00342193
481953228145 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR98147 |
C00333270
481952648307 |
priruba hadice | Na dotaz | Zadat poptávku | |
| 781 2 WHR98147 |
C00342192
481941878208 |
kanal odtokovy | Na dotaz | Zadat poptávku | |
| 903 0 WHR98147 |
C00343023
481946279769 |
zaslepka pantu | Na dotaz | Zadat poptávku | |
| 903 1 WHR98147 |
C00333338
481953518117 |
Záslepka do dveří chladničky Whirlpool | 4 Kč
€ 0.20 |
||
| 904 0 WHR98147 |
C00333158
481946818282 |
Podložka distanční | 178 Kč
€ 7.30 |
||
| 904 2 WHR98147 |
C00336022
481946278448 |
Stopper | Na dotaz | Zadat poptávku | |
| 904 8 WHR98147 |
C00336023
481946278909 |
Stopper | Na dotaz | Zadat poptávku | |
| 912 0 WHR98147 |
C00492579
481950218498 |
SKRUTKA ART785 N | Na dotaz | Zadat poptávku | |
| 912 1 WHR98147 |
C00336669
481950218338 |
Screw | Na dotaz | Zadat poptávku | |
| 993 2 WHR98147 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 180 Kč
€ 7.40 |
||
| 993 3 WHR98147 |
C00590867
481946238784 |
Slide. | Na dotaz | Zadat poptávku | |
| 993 4 WHR98147 |
C00486595
481944278082 |
Ice pack | Na dotaz | Zadat poptávku | |
| 993 9 WHR98147 |
C00555824
481931039279 |
Door revers.Kit (n.sho.. | Na dotaz | Zadat poptávku | |
| 999 WHR98147 |
C00768945 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
