BAUKNECHT KGIK 3109/A/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGIK 3109/A/1 |
| Kód 12NC: | 855069301010 |
| I.C. kód: | 855069301012 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice s mrazákem |
| Další podobné modely: | 855069301013, 855069301010, 855069301011 |
Potřebujete servis? Jsme tady pro Vás

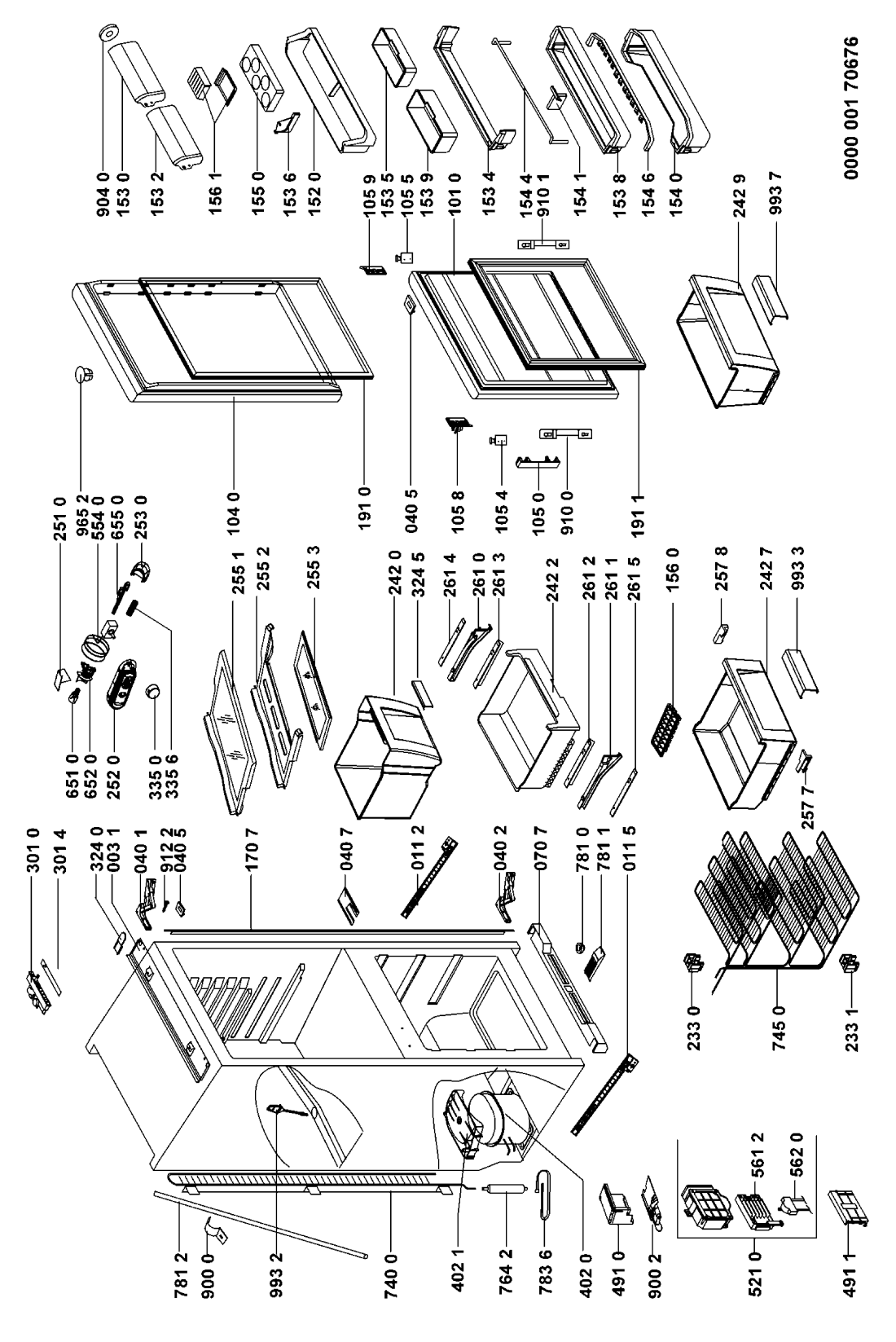

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR86420 |
C00330365
481246058388 |
Fastener | Na dotaz | Zadat poptávku | |
| 011 2 WHR86420 |
C00319497
481246248064 |
noha vest.chladnicky | 339 Kč
€ 13.90 |
||
| 011 5 WHR86420 |
C00319499
481246248065 |
noha vest.chladnicky | Na dotaz | Zadat poptávku | |
| 040 1 WHR86420 |
C00329735
481241719341 |
Hinge - HETTICH | Na dotaz | Zadat poptávku | |
| 040 2 WHR86420 |
C00329736
481241719342 |
Hinge - HETTICH | Na dotaz | Zadat poptávku | |
| 040 5 WHR86420 |
C00329177
481240478334 |
Spacer Decorplate | Na dotaz | Zadat poptávku | |
| 040 7 WHR86420 |
C00327816
481241848473 |
Záslepka | 150 Kč
€ 6.20 |
||
| 070 7 WHR86420 |
C00328392
481244089054 |
Lišta větrací | 660 Kč
€ 27.10 |
||
| 101 0 WHR86420 |
C00486581
481944269016 |
DVERE MRAZNICKA N | Na dotaz | Zadat poptávku | |
| 104 0 WHR86420 |
C00545087
481944269017 |
DOOR REFRIGER. | Na dotaz | Zadat poptávku | |
| 105 0 WHR86420 |
C00328127
481244029414 |
Kryt | 227 Kč
€ 9.30 |
||
| 105 4 WHR86420 |
C00332368
481252838057 |
Držák pravý | Na dotaz | Zadat poptávku | |
| 105 5 WHR86420 |
C00332367
481252838056 |
Držák levý | 1 279 Kč
€ 52.50 |
||
| 105 8 WHR86420 |
C00329033
481240448619 |
Držák pravý | 1 115 Kč
€ 45.80 |
||
| 105 9 WHR86420 |
C00329032
481240448618 |
Držák levý | 1 279 Kč
€ 52.50 |
||
| 152 0 WHR86420 |
C00513853
481241828295 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 153 0 WHR86420 |
C00458756
481241829688 |
Flap door dairy | Na dotaz | Zadat poptávku | |
| 153 2 WHR86420 |
C00376389
481241829689 |
Flap door dairy | Na dotaz | Zadat poptávku | |
| 153 4 WHR86420 |
C00318440
481241828136 |
Door,dairy | 964 Kč
€ 39.60 |
||
| 153 5 WHR86420 |
C00458743
481241828919 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 6 WHR86420 |
C00490729
481944278145 |
Separator | Na dotaz | Zadat poptávku | |
| 153 8 WHR86420 |
C00458759
481241829693 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 9 WHR86420 |
C00458760
481241829694 |
Door dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR86420 |
C00374074
481241829687 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR86420 |
C00458758
481241829692 |
Separator | Na dotaz | Zadat poptávku | |
| 154 4 WHR86420 |
C00458757
481241829691 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 154 6 WHR86420 |
C00374294
481946078835 |
Držák na lahve do dveří lednice Bauknecht | 821 Kč
€ 33.70 |
||
| 155 0 WHR86420 |
C00458740
481241828915 |
Rack egg | Na dotaz | Zadat poptávku | |
| 156 0 WHR86420 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 156 1 WHR86420 |
C00585138
481941879108 |
nadoba na maslo | Na dotaz | Zadat poptávku | |
| 170 7 WHR86420 |
C00590711
481246079084 |
TRIM. | Na dotaz | Zadat poptávku | |
| 191 0 WHR86420 |
C00315639
481946818321 |
Těsnění magnetické do dveří lednice chladničky Whirlpool | 1 439 Kč
€ 59.10 |
||
| 191 1 WHR86420 |
C00314263
481946818317 |
Těsnění magnetické do dveří mrazáku chladničky Whirlpool | 1 439 Kč
€ 59.10 |
||
| 233 0 WHR86420 |
C00317306
481940479432 |
prichytka vyparniku | Na dotaz | Zadat poptávku | |
| 233 1 WHR86420 |
C00316783
481940479552 |
Držák výparníku | 82 Kč
€ 3.40 |
||
| 242 0 WHR86420 |
C00379577
481241848832 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 2 WHR86420 |
C00484984
481241848429 |
DRAWER | Na dotaz | Zadat poptávku | |
| 242 7 WHR86420 |
C00458869
481241848829 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 9 WHR86420 |
C00458894
481241848872 |
Drawer | Na dotaz | Zadat poptávku | |
| 251 0 WHR86420 |
C00319193
481246048927 |
reflektor | 207 Kč
€ 8.50 |
||
| 252 0 WHR86420 |
C00312480
481244079219 |
Casing | Na dotaz | Zadat poptávku | |
| 253 0 WHR86420 |
C00311648
481246228545 |
Krytka termostatu chladničky Whirlpool | 524 Kč
€ 21.50 |
||
| 255 1 WHR86420 |
C00314156
481245088134 |
Skleněná police chladničky Whirlpool | 705 Kč
€ 29.00 |
||
| 255 2 WHR86420 |
C00331181
481245088035 |
GLASS SHELF | Na dotaz | Zadat poptávku | |
| 255 3 WHR86420 |
C00331191
481245088139 |
Shelf | Na dotaz | Zadat poptávku | |
| 257 7 WHR86420 |
C00314855
481946699151 |
Držák výparníku pravý | 184 Kč
€ 7.60 |
||
| 257 8 WHR86420 |
C00314857
481946699152 |
Držák výparníku levý | 184 Kč
€ 7.60 |
||
| 261 0 WHR86420 |
C00486300
481252518019 |
Guide right | Na dotaz | Zadat poptávku | |
| 261 1 WHR86420 |
C00486299
481252518018 |
Guide left | Na dotaz | Zadat poptávku | |
| 261 2 WHR86420 |
C00486301
481252518021 |
Guide left | Na dotaz | Zadat poptávku | |
| 261 3 WHR86420 |
C00486302
481252518022 |
Guide right | Na dotaz | Zadat poptávku | |
| 261 4 WHR86420 |
C00590706
481246058307 |
BATTEN. | Na dotaz | Zadat poptávku | |
| 261 5 WHR86420 |
C00490067
481246058308 |
BATTEN | Na dotaz | Zadat poptávku | |
| 301 0 WHR86420 |
C00331305
481245228768 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 4 WHR86420 |
C00464008
481246049732 |
Insert | Na dotaz | Zadat poptávku | |
| 324 0 WHR86420 |
C00328126
481244029413 |
zaslepka | 217 Kč
€ 8.90 |
||
| 324 5 WHR86420 |
C00318052
481245298254 |
rukojet | 99 Kč
€ 4.10 |
||
| 335 0 WHR86420 |
C00311920
481241078172 |
knoflik termostatu | 974 Kč
€ 40.00 |
||
| 335 6 WHR86420 |
C00312939
481249148014 |
pruzina | 208 Kč
€ 8.50 |
||
| 402 0 WHR86420 |
C00482710
481236038819 |
KOMPRESOR | Na dotaz | Zadat poptávku | |
| 402 1 WHR86420 |
C00327897
481241878971 |
Miska na kondezát | 153 Kč
€ 6.30 |
||
| 491 0 WHR86420 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 491 1 WHR86420 |
C00327592
481229068297 |
Cover conn.bloc | Na dotaz | Zadat poptávku | |
| 521 0 WHR86420 |
C00544910
481221778176 |
ELEKTRONICKA JEDNOTKA | Na dotaz | Zadat poptávku | |
| 554 0 WHR86420 |
C00311069
481228238175 |
Termostat K59-S278 chladničky Whirlpool, Ignis | 730 Kč
€ 30.00 |
||
| 561 2 WHR86420 |
C00327593
481229068298 |
Connect.block | Na dotaz | Zadat poptávku | |
| 562 0 WHR86420 |
C00312740
481228208646 |
Thermostat bimetall | Na dotaz | Zadat poptávku | |
| 651 0 WHR86420 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR86420 |
C00311531
481246698982 |
Držák termostatu | 484 Kč
€ 19.90 |
||
| 655 0 WHR86420 |
C00311795
481227618362 |
Táhlo, páčka osvětlení chladničky Whirlpool | 753 Kč
€ 30.90 |
||
| 740 0 WHR86420 |
C00332195
481251138171 |
Condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR86420 |
C00327329
481231018556 |
vyparnik | Na dotaz | Zadat poptávku | |
| 764 2 WHR86420 |
C00266743
481948028144 |
Filtr chladničky - patrona Náhrada C00495431 |
Na dotaz | Zadat poptávku | |
| 781 0 WHR86420 |
C00331410
481245298259 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR86420 |
C00327909
481241889008 |
kanal odtokovy | 114 Kč
€ 4.70 |
||
| 781 2 WHR86420 |
C00333294
481953029042 |
Tube | Na dotaz | Zadat poptávku | |
| 783 6 WHR86420 |
C00333293
481953029022 |
COPPER / ALUMINUM JOINT PIPE | Na dotaz | Zadat poptávku | |
| 900 0 WHR86420 |
C00333149
481946699138 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 900 2 WHR86420 |
C00330476
481246228261 |
pruchodka | Na dotaz | Zadat poptávku | |
| 904 0 WHR86420 |
C00333158
481946818282 |
Podložka distanční | 178 Kč
€ 7.30 |
||
| 910 0 WHR86420 |
C00329031
481240448617 |
Držák pravý | 62 Kč
€ 2.50 |
||
| 910 1 WHR86420 |
C00329034
481240448622 |
Držák levý | 122 Kč
€ 5.00 |
||
| 912 2 WHR86420 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 965 2 WHR86420 |
C00545039
481246228509 |
Stopper. | Na dotaz | Zadat poptávku | |
| 993 2 WHR86420 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 180 Kč
€ 7.40 |
||
| 993 3 WHR86420 |
C00319243
481246049729 |
Rukojeť koše | 240 Kč
€ 9.90 |
||
| 993 7 WHR86420 |
C00330313
481246049731 |
rukojet kose | Na dotaz | Zadat poptávku | |
| 993 9 WHR86420 |
C00456994
481231028279 |
Door revers.Kit | Na dotaz | Zadat poptávku | |
| 999 WHR86420 |
C00723997 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
