BAUKNECHT KGN 312 A+ IL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGN 312 A+ IL |
| Kód 12NC: | 855022501260 |
| I.C. kód: | 855022501262 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855022501260, 855022501261 |
Potřebujete servis? Jsme tady pro Vás

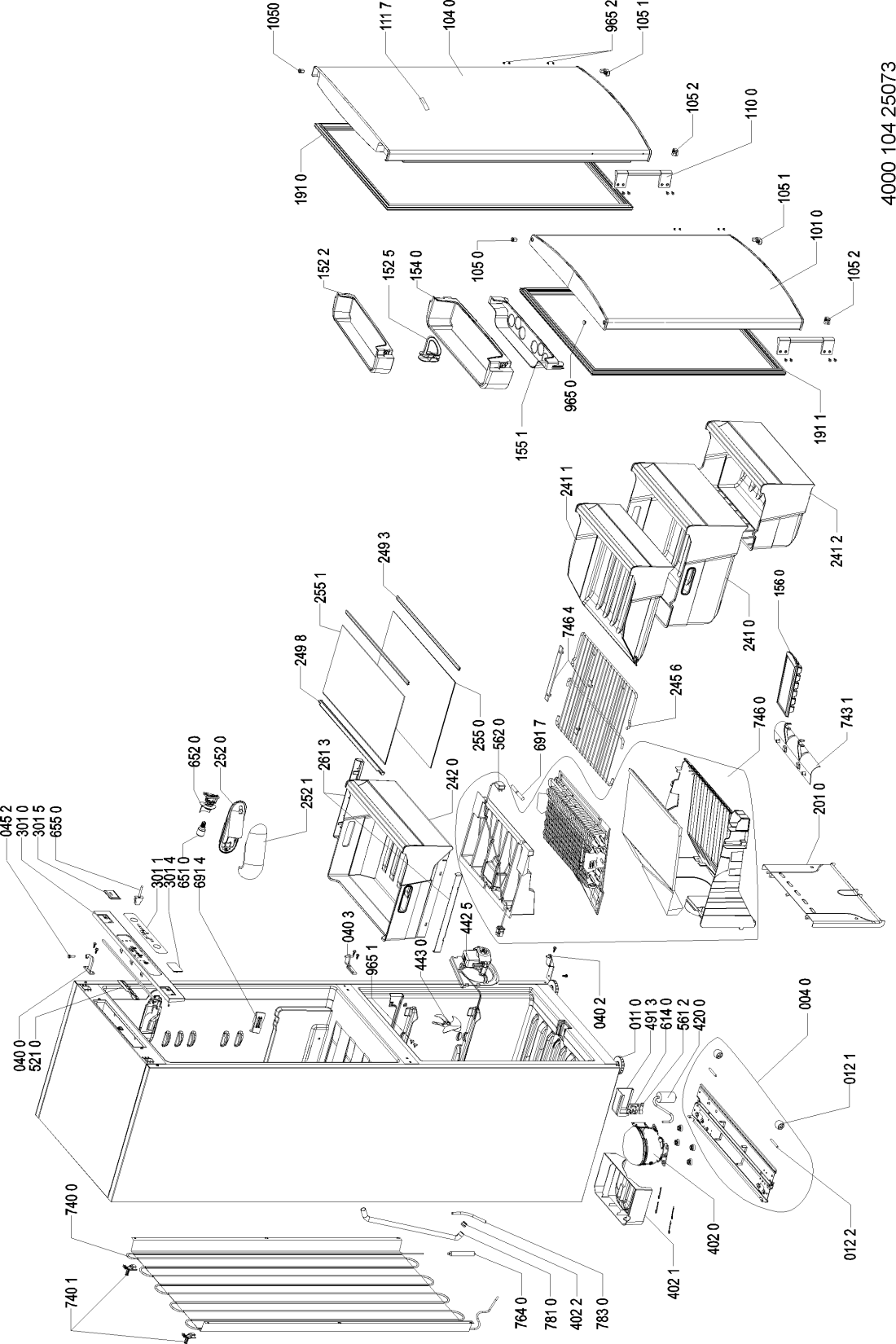

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0040 WHR26003 |
C00330828
481246428054 |
drzak kompr.a kolec | 925 Kč
€ 40.70 |
||
| 0110 WHR26003 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 6.10 |
||
| 0121 WHR26003 |
C00332373
481252878062 |
kolecko lednice | 530 Kč
€ 23.30 |
||
| 0122 WHR26003 |
C00332726
481253578074 |
osa kolecka lednice | 430 Kč
€ 18.90 |
||
| 0400 WHR26003 |
C00329779
481241719517 |
Závěs horní | 934 Kč
€ 41.10 |
||
| 0402 WHR26003 |
C00329780
481241719518 |
Závěs spodní | 976 Kč
€ 42.90 |
||
| 0403 WHR26003 |
C00319920
481241719519 |
Závěs dveří střední | 976 Kč
€ 42.90 |
||
| 0452 WHR26003 |
C00316600
481222608025 |
cep | 413 Kč
€ 18.20 |
||
| 1010 WHR26003 |
C00458434
481241610819 |
Door freezer IS 779x588 mm | Na dotaz | Zadat poptávku | |
| 1040 WHR26003 |
C00380255
481241610821 |
Dveře chladničky | Na dotaz | Zadat poptávku | |
| 1050 WHR26003 |
C00314330
481253288056 |
Pouzdro závěsu - kulaté | Na dotaz | Zadat poptávku | |
| 1051 WHR26003 |
C00317176
481253288104 |
Pouzdro závěsu - pravé | 654 Kč
€ 28.70 |
||
| 1052 WHR26003 |
C00320239
481253288105 |
Sleeve grey left | Na dotaz | Zadat poptávku | |
| 1100 WHR26003 |
C00464647
481249848056 |
Handle | Na dotaz | Zadat poptávku | |
| 1117 WHR26003 |
C00330204
481245918279 |
Nameplate BAUKNECHT | Na dotaz | Zadat poptávku | |
| 1522 WHR26003 |
C00432195
480132101234 |
police | 420 Kč
€ 18.50 |
||
| 1525 WHR26003 |
C00431912
480132100538 |
Separator 00137 transparent grey | Na dotaz | Zadat poptávku | |
| 1540 WHR26003 |
C00323429
480132101235 |
police | Na dotaz | Zadat poptávku | |
| 1551 WHR26003 |
C00323386
480132101126 |
police | 918 Kč
€ 40.40 |
||
| 1560 WHR26003 |
C00322568
480132103428 |
Miska na led | Na dotaz | Zadat poptávku | |
| 1910 WHR26003 |
C00311563
481246668941 |
Těsnění magnetické | 1 469 Kč
€ 64.60 |
||
| 1911 WHR26003 |
C00311915
481246668942 |
Těsnění magnetické - mraznička | 1 360 Kč
€ 59.80 |
||
| 2010 WHR26003 |
C00323522
480132101591 |
kryt | 341 Kč
€ 15.00 |
||
| 2410 WHR26003 |
C00376931
480132101149 |
Drawer central,transparent grey | Na dotaz | Zadat poptávku | |
| 2411 WHR26003 |
C00432344
480132101644 |
Drawer upper,transparent grey | Na dotaz | Zadat poptávku | |
| 2412 WHR26003 |
C00323396
480132101145 |
Koš mrazničky - spodní | 2 755 Kč
€ 121.10 |
||
| 2420 WHR26003 |
C00432167
480132101118 |
Crisper transparent grey+sticker | Na dotaz | Zadat poptávku | |
| 2456 WHR26003 |
C00323526
480132101613 |
police | 380 Kč
€ 16.70 |
||
| 2493 WHR26003 |
C00432174
480132101165 |
Trim Shelf front dark silver | Na dotaz | Zadat poptávku | |
| 2498 WHR26003 |
C00320108
480132101162 |
Trim Shelf rear GW | Na dotaz | Zadat poptávku | |
| 2520 WHR26003 |
C00314820
481244098377 |
Konzole světla | 1 368 Kč
€ 60.10 |
||
| 2521 WHR26003 |
C00315422
481246098137 |
Cover f. lamp white translucent | Na dotaz | Zadat poptávku | |
| 2550 WHR26003 |
C00432170
480132101131 |
GLASS SHELF CRISPER+DARK SILVER PROFILE | Na dotaz | Zadat poptávku | |
| 2551 WHR26003 |
C00432171
480132101132 |
Glass shelf +GW & dark silv.profiles | Na dotaz | Zadat poptávku | |
| 2613 WHR26003 |
C00316805
480132101137 |
pojezd | 700 Kč
€ 30.80 |
||
| 3010 WHR26003 |
C00435772
481010381491 |
CONTROL PANEL SILVER IS BK A+ | Na dotaz | Zadat poptávku | |
| 3011 WHR26003 |
C00435725
481010376871 |
Insert panel printed | Na dotaz | Zadat poptávku | |
| 3014 WHR26003 |
C00328165
481244029585 |
Cover IO control panel | Na dotaz | Zadat poptávku | |
| 3015 WHR26003 |
C00328164
481244029584 |
Cover IO,contr.panel hinge side | Na dotaz | Zadat poptávku | |
| 4020 WHR26003 |
C00313753
481236058114 |
COMPRESSOR | Na dotaz | Zadat poptávku | |
| 4021 WHR26003 |
C00319502
481241870024 |
miska na kondenzat | 388 Kč
€ 17.10 |
||
| 4022 WHR26003 |
C00318606
480132101608 |
ventil | Na dotaz | Zadat poptávku | |
| 4200 WHR26003 |
C00278650
481212018029 |
Kondenzátor 4uF | Na dotaz | Zadat poptávku | |
| 4425 WHR26003 |
C00326500
481052822191 |
ventilator mrazaku | 2 586 Kč
€ 113.70 |
||
| 4430 WHR26003 |
C00317570
481052820911 |
FAN BLADE D100 | Na dotaz | Zadat poptávku | |
| 4913 WHR26003 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 5210 WHR26003 |
C00312372
481052820921 |
Control board, Hercules 2011 | Na dotaz | Zadat poptávku | |
| 5612 WHR26003 |
C00267004
481229088112 |
konektor | 175 Kč
€ 7.70 |
||
| 5620 WHR26003 |
C00314313
481010371493 |
Thermofuse+bimetal LCNF with plug 9 pins | Na dotaz | Zadat poptávku | |
| 6140 WHR26003 |
C00327478
481228038119 |
Monoblock | Na dotaz | Zadat poptávku | |
| 6510 WHR26003 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 6520 WHR26003 |
C00313006
481225518292 |
objimka zarovky | 238 Kč
€ 10.50 |
||
| 6550 WHR26003 |
C00314174
480132100729 |
spinac svetla | 323 Kč
€ 14.20 |
||
| 6914 WHR26003 |
C00323439
480132101294 |
kryt | 569 Kč
€ 25.00 |
||
| 6917 WHR26003 |
C00314452
481231019153 |
senzor | 1 155 Kč
€ 50.80 |
||
| 7400 WHR26003 |
C00332248
481251148411 |
Condenser | Na dotaz | Zadat poptávku | |
| 7401 WHR26003 |
C00330558
481246228822 |
doraz | 150 Kč
€ 6.60 |
||
| 7431 WHR26003 |
C00317574
481052822111 |
Kryt do mrazničky | Na dotaz | Zadat poptávku | |
| 7460 WHR26003 |
C00319350
481010369508 |
Evaporator kit LCNF+bimetal+fuse+heater | Na dotaz | Zadat poptávku | |
| 7464 WHR26003 |
C00319325
481246098055 |
Podpora koše mrazničky | 181 Kč
€ 8.00 |
||
| 7640 WHR26003 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 7810 WHR26003 |
C00323524
480132101595 |
CONDENSATE DRAIN TUBE | Na dotaz | Zadat poptávku | |
| 7830 WHR26003 |
C00313237
481281719208 |
VALVE, 1/4 BODY+TUBE 100MM | Na dotaz | Zadat poptávku | |
| 9650 WHR26003 |
C00327090
481222608055 |
zaslepka | 266 Kč
€ 11.70 |
||
| 9651 WHR26003 |
C00323643
480132102378 |
zaslepka | 879 Kč
€ 38.60 |
||
| 9652 WHR26003 |
C00327083
481222608031 |
zaslepka | 285 Kč
€ 12.50 |
||
| 999 WHR26003 |
C00346098 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR26003 |
C00347090 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
