| Komerční kód: | KHPF 9010/I |
| Kód 12NC/I.C. kód: | 851345842000 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 851345838000, Q0917660000, 851345829000, 851345822000 |
Potřebujete servis? Jsme tady pro Vás

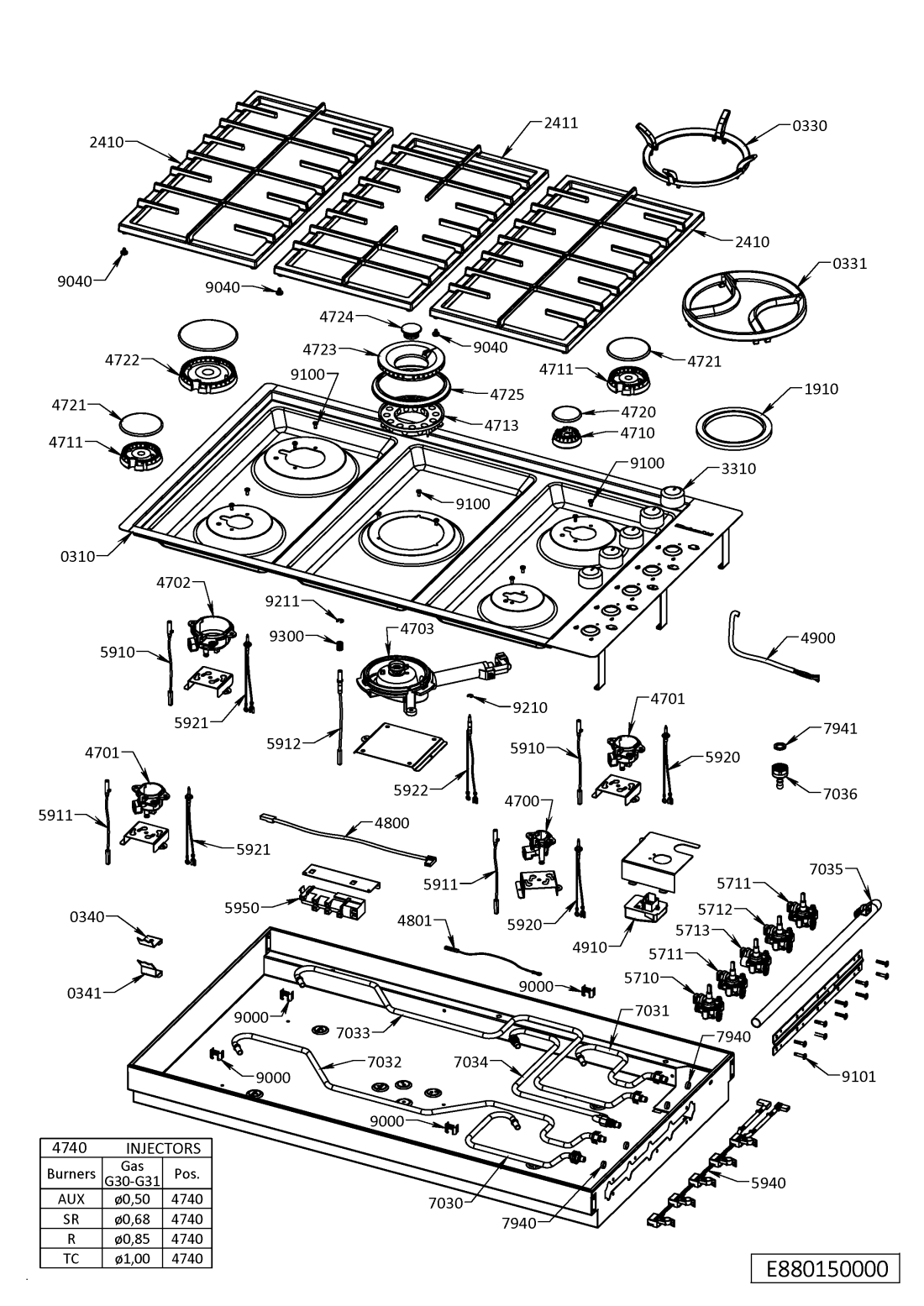

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0310 WHR39056 |
C00328248
481244039956 |
Hob top | Na dotaz | Zadat poptávku | |
| 0330 WHR39056 |
C00330129
481245828041 |
Support wok | Na dotaz | Zadat poptávku | |
| 0331 WHR39056 |
C00330130
481245828042 |
Grid small pot | Na dotaz | Zadat poptávku | |
| 0340 WHR39056 |
C00329146
481240449874 |
Bracket frame | Na dotaz | Zadat poptávku | |
| 0341 WHR39056 |
C00329147
481240449875 |
Holder frame | Na dotaz | Zadat poptávku | |
| 1910 WHR39056 |
C00331572
481246699085 |
Gasket soft | Na dotaz | Zadat poptávku | |
| 2410 WHR39056 |
C00330194
481245858536 |
Grid right | Na dotaz | Zadat poptávku | |
| 2411 WHR39056 |
C00330195
481245858537 |
Grid central | Na dotaz | Zadat poptávku | |
| 3310 WHR39056 |
C00329515
481241359226 |
Knob right | Na dotaz | Zadat poptávku | |
| 4700 WHR39056 |
C00408661
482000004245 |
Burner auxiliary | Na dotaz | Zadat poptávku | |
| 4701 WHR39056 |
C00408662
482000004246 |
Burner semirapid | Na dotaz | Zadat poptávku | |
| 4702 WHR39056 |
C00408673
482000004258 |
Burner rapid | Na dotaz | Zadat poptávku | |
| 4703 WHR39056 |
C00408663
482000004247 |
Burner triple crown | Na dotaz | Zadat poptávku | |
| 4710 WHR39056 |
C00408664
482000004248 |
Head Burner aux | Na dotaz | Zadat poptávku | |
| 4711 WHR39056 |
C00408665
482000004249 |
Head Burner semirapid | Na dotaz | Zadat poptávku | |
| 4712 WHR39056 |
C00408674
482000004259 |
Head Burner rapid | Na dotaz | Zadat poptávku | |
| 4713 WHR39056 |
C00318714
481236068993 |
Burner spreader TRC | Na dotaz | Zadat poptávku | |
| 4720 WHR39056 |
C00408666
482000004250 |
Burner cap aux | Na dotaz | Zadat poptávku | |
| 4721 WHR39056 |
C00408667
482000004251 |
Burner cap semirapid | Na dotaz | Zadat poptávku | |
| 4722 WHR39056 |
C00408675
482000004260 |
Burner cap rapid | Na dotaz | Zadat poptávku | |
| 4723 WHR39056 |
C00318706
481236068992 |
Burner cap TRC outer | Na dotaz | Zadat poptávku | |
| 4724 WHR39056 |
C00318704
481236068991 |
Burner cap TRC inner | Na dotaz | Zadat poptávku | |
| 4725 WHR39056 |
C00318686
481236068988 |
Burner cap ring TRC | Na dotaz | Zadat poptávku | |
| 4740 WHR39056 |
C00408676
482000004261 |
Set of nozzles G30-G31 | Na dotaz | Zadat poptávku | |
| 4800 WHR39056 |
C00328526
481232138044 |
Cable earth ignition generator | Na dotaz | Zadat poptávku | |
| 4801 WHR39056 |
C00327307
481229068367 |
Cable terminal board-generator | Na dotaz | Zadat poptávku | |
| 4900 WHR39056 |
C00321852
480121100326 |
Cable mains | Na dotaz | Zadat poptávku | |
| 4910 WHR39056 |
C00327308
481229068368 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 5710 WHR39056 |
C00328629
481236058607 |
Gas cock AUX | Na dotaz | Zadat poptávku | |
| 5711 WHR39056 |
C00328630
481236058608 |
Gas cock SR | Na dotaz | Zadat poptávku | |
| 5712 WHR39056 |
C00328631
481236058609 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 5713 WHR39056 |
C00328632
481236058611 |
Gas cock TRC | Na dotaz | Zadat poptávku | |
| 5910 WHR39056 |
C00327115
481225268091 |
Spark plug l=300 mm | Na dotaz | Zadat poptávku | |
| 5911 WHR39056 |
C00327116
481225268092 |
Spark plug l=675 mm | Na dotaz | Zadat poptávku | |
| 5912 WHR39056 |
C00318605
481225268093 |
Spark plug TRC | Na dotaz | Zadat poptávku | |
| 5920 WHR39056 |
C00408669
482000004253 |
Thermo couple L=410mm | Na dotaz | Zadat poptávku | |
| 5921 WHR39056 |
C00408670
482000004254 |
Thermo couple L=800mm | Na dotaz | Zadat poptávku | |
| 5922 WHR39056 |
C00408671
482000004255 |
Thermo couple triple crown | Na dotaz | Zadat poptávku | |
| 5940 WHR39056 |
C00327274
481227328293 |
Microswitch | Na dotaz | Zadat poptávku | |
| 5950 WHR39056 |
C00326875
481214528044 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 7030 WHR39056 |
C00332608
481253049361 |
Tube burner right AUX | Na dotaz | Zadat poptávku | |
| 7031 WHR39056 |
C00332607
481253049359 |
Pipe SR rear DX | Na dotaz | Zadat poptávku | |
| 7032 WHR39056 |
C00332609
481253049362 |
Pipe SR front SX | Na dotaz | Zadat poptávku | |
| 7033 WHR39056 |
C00332611
481253049364 |
Pipe R rear SX | Na dotaz | Zadat poptávku | |
| 7034 WHR39056 |
C00332610
481253049363 |
Pipe TRC central | Na dotaz | Zadat poptávku | |
| 7035 WHR39056 |
C00328746
481236068989 |
Hose gas distributor | Na dotaz | Zadat poptávku | |
| 7036 WHR39056 |
C00408672
482000004256 |
Adapter GPL | Na dotaz | Zadat poptávku | |
| 7940 WHR39056 |
C00331573
481246699086 |
Gasket pipe | Na dotaz | Zadat poptávku | |
| 7941 WHR39056 |
C00548244
482000004257 |
Gasket Adapter GPL | Na dotaz | Zadat poptávku | |
| 9000 WHR39056 |
C00329006
481240418632 |
Fixation | Na dotaz | Zadat poptávku | |
| 9040 WHR39056 |
C00330799
481246378026 |
Support grid | Na dotaz | Zadat poptávku | |
| 9100 WHR39056 |
C00317070
481250218833 |
Screw | Na dotaz | Zadat poptávku | |
| 9101 WHR39056 |
C00333428
482000000586 |
sroub | Na dotaz | Zadat poptávku | |
| 9210 WHR39056 |
C00318627
481252648269 |
Ring thermocouple | Na dotaz | Zadat poptávku | |
| 9211 WHR39056 |
C00332363
481252648271 |
Ring spark plug | Na dotaz | Zadat poptávku | |
| 9300 WHR39056 |
C00321866
480121100374 |
Spring | Na dotaz | Zadat poptávku | |
