| Komerční kód: | KOMS 6910/I |
| Kód 12NC/I.C. kód: | 851352501000 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0909740000, 851352515000, Q0909750000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

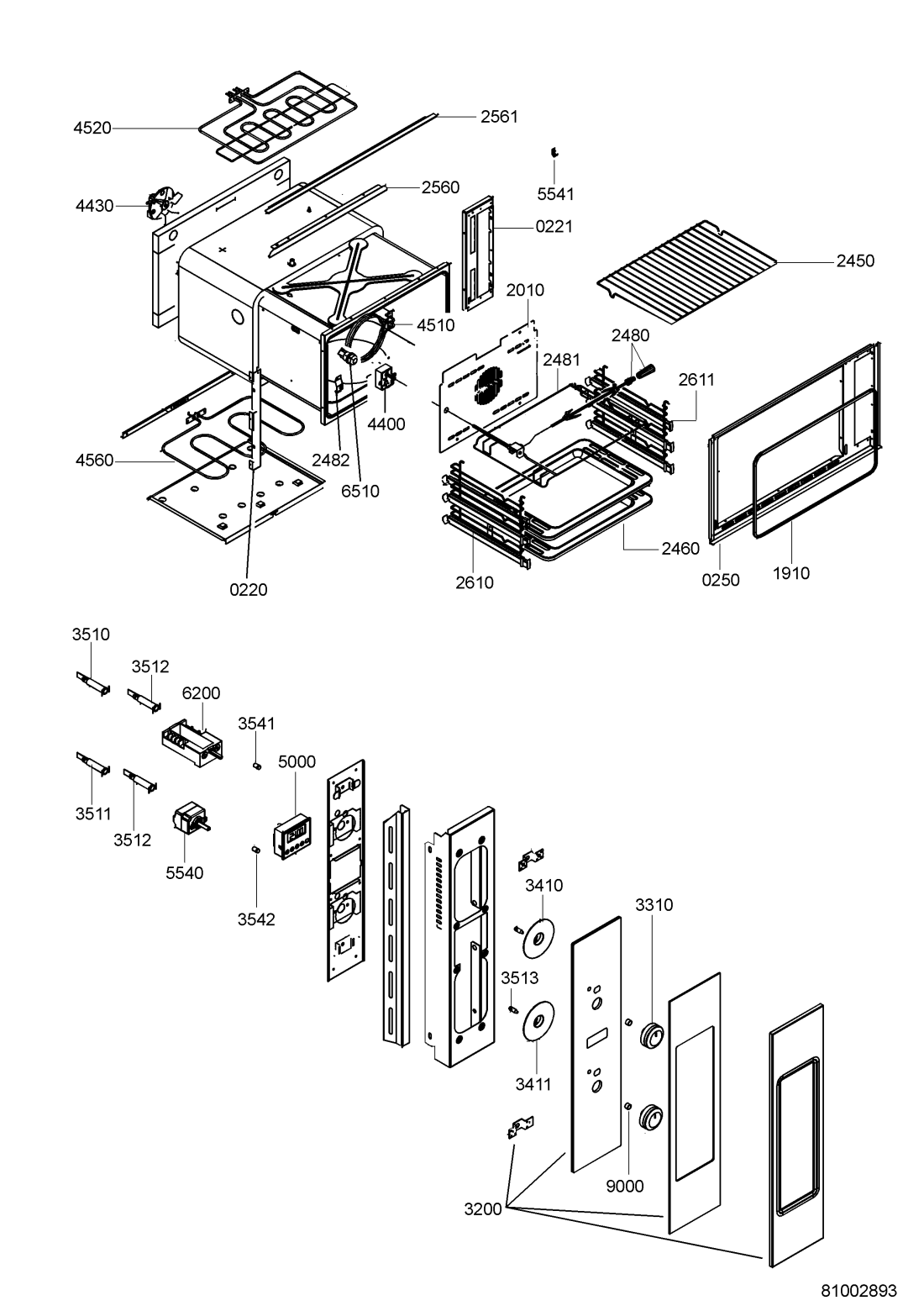

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0220 WHR00819 |
C00317543 | Hinge support left | Na dotaz | Zadat poptávku | |
| 0221 WHR00819 |
C00329795
481241758403 |
Hinge support right | Na dotaz | Zadat poptávku | |
| 0250 WHR00819 |
C00321939
480121100723 |
Frame oven front | Na dotaz | Zadat poptávku | |
| 0400 WHR00819 |
C00314475
481241719475 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 1100 WHR00819 |
C00330732
481246268993 |
Door handle | Na dotaz | Zadat poptávku | |
| 1101 WHR00819 |
C00329130
481240449831 |
Support handle | Na dotaz | Zadat poptávku | |
| 1210 WHR00819 |
C00318823
480121100724 |
Frame door glass | Na dotaz | Zadat poptávku | |
| 1410 WHR00819 |
C00321940
480121100725 |
Oven door complete glass | Na dotaz | Zadat poptávku | |
| 1420 WHR00819 |
C00321941
480121100726 |
Oven glass | Na dotaz | Zadat poptávku | |
| 1430 WHR00819 |
C00331255
481245168068 |
Glass door medium | Na dotaz | Zadat poptávku | |
| 1910 WHR00819 |
C00319993
481246688997 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 2010 WHR00819 |
C00321942
480121100727 |
Conveyor air | Na dotaz | Zadat poptávku | |
| 2450 WHR00819 |
C00321943
480121100728 |
Grid oven | Na dotaz | Zadat poptávku | |
| 2460 WHR00819 |
C00320247
480121100729 |
Baking tray | Na dotaz | Zadat poptávku | |
| 2480 WHR00819 |
C00320255
481253578062 |
gril otocny | Na dotaz | Zadat poptávku | |
| 2481 WHR00819 |
C00321944
480121100731 |
Support spit | Na dotaz | Zadat poptávku | |
| 2482 WHR00819 |
C00331102
481244528076 |
Deflector | Na dotaz | Zadat poptávku | |
| 2560 WHR00819 |
C00321945
480121100732 |
Grill protection sheet | Na dotaz | Zadat poptávku | |
| 2561 WHR00819 |
C00330442
481246098115 |
Trim upper | Na dotaz | Zadat poptávku | |
| 2610 WHR00819 |
C00321946
480121100733 |
Inset grid + sliding guide 3X left | Na dotaz | Zadat poptávku | |
| 2611 WHR00819 |
C00321947
480121100734 |
Inset grid + sliding guide 3X right | Na dotaz | Zadat poptávku | |
| 3200 WHR00819 |
C00321948
480121100735 |
Control panel | Na dotaz | Zadat poptávku | |
| 3310 WHR00819 |
C00321949
480121100736 |
Knob | Na dotaz | Zadat poptávku | |
| 3410 WHR00819 |
C00321950
480121100737 |
Indication disc | Na dotaz | Zadat poptávku | |
| 3411 WHR00819 |
C00321951
480121100738 |
Indication disc | Na dotaz | Zadat poptávku | |
| 3510 WHR00819 |
C00321952
480121100739 |
Lamp green | Na dotaz | Zadat poptávku | |
| 3511 WHR00819 |
C00321938
480121100722 |
Lamp yellow LED | Na dotaz | Zadat poptávku | |
| 3512 WHR00819 |
C00321937
480121100721 |
Lamp blue LED | Na dotaz | Zadat poptávku | |
| 3513 WHR00819 |
C00321936
480121100719 |
Lens blue | Na dotaz | Zadat poptávku | |
| 3541 WHR00819 |
C00321935
480121100718 |
Lens yellow | Na dotaz | Zadat poptávku | |
| 3542 WHR00819 |
C00321934
480121100717 |
Lens green | Na dotaz | Zadat poptávku | |
| 4400 WHR00819 |
C00328827
481236158359 |
Motor spit | Na dotaz | Zadat poptávku | |
| 4430 WHR00819 |
C00314972
481202858331 |
Motor fan fan | Na dotaz | Zadat poptávku | |
| 4431 WHR00819 |
C00328816
481236118623 |
Fan wheel fan | Na dotaz | Zadat poptávku | |
| 4510 WHR00819 |
C00327155
481225928839 |
Heating element circular 2500W | Na dotaz | Zadat poptávku | |
| 4520 WHR00819 |
C00316996
481225928948 |
topeni trouby universální 1050W/2250W 365x540 | 1 739 Kč
€ 71.40 |
||
| 4560 WHR00819 |
C00327156
481225928841 |
Heating element lower 1550W | Na dotaz | Zadat poptávku | |
| 4914 WHR00819 |
C00327591
481229068283 |
Terminal block | Na dotaz | Zadat poptávku | |
| 5000 WHR00819 |
C00321933
480121100716 |
Timer switch | Na dotaz | Zadat poptávku | |
| 5540 WHR00819 |
C00327558
481228238248 |
Thermostat | Na dotaz | Zadat poptávku | |
| 5541 WHR00819 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 5610 WHR00819 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
| 5611 WHR00819 |
C00319446
481228248286 |
termostat | Na dotaz | Zadat poptávku | |
| 5612 WHR00819 |
C00327568
481228248287 |
Bezpečnostní termostat 60°C | Na dotaz | Zadat poptávku | |
| 6200 WHR00819 |
C00327278
481227618383 |
Switch selector | Na dotaz | Zadat poptávku | |
| 6510 WHR00819 |
C00327133
481225518311 |
Lamp oven 25 W | Na dotaz | Zadat poptávku | |
| 7620 WHR00819 |
C00328831
481236158396 |
Cover fan motor | Na dotaz | Zadat poptávku | |
| 9000 WHR00819 |
C00332672
481253248069 |
Sleeve for knob | Na dotaz | Zadat poptávku | |
| 9930 WHR00819 |
C00333739
482000007584 |
Panel KIT self-cleaning | Na dotaz | Zadat poptávku | |
| 999 WHR00819 |
C00351536 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00819 |
C00351537 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
