ARISTON K/UP140/D
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | K/UP140/D |
| Kód 12NC: | 869990011700 |
| I.C. kód: | 00000890553 |
| Značka: | ARISTON |
| Typ produktu: | Vestavné mrazáky |
| Další podobné modely: | 20000890680, 23000890680 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

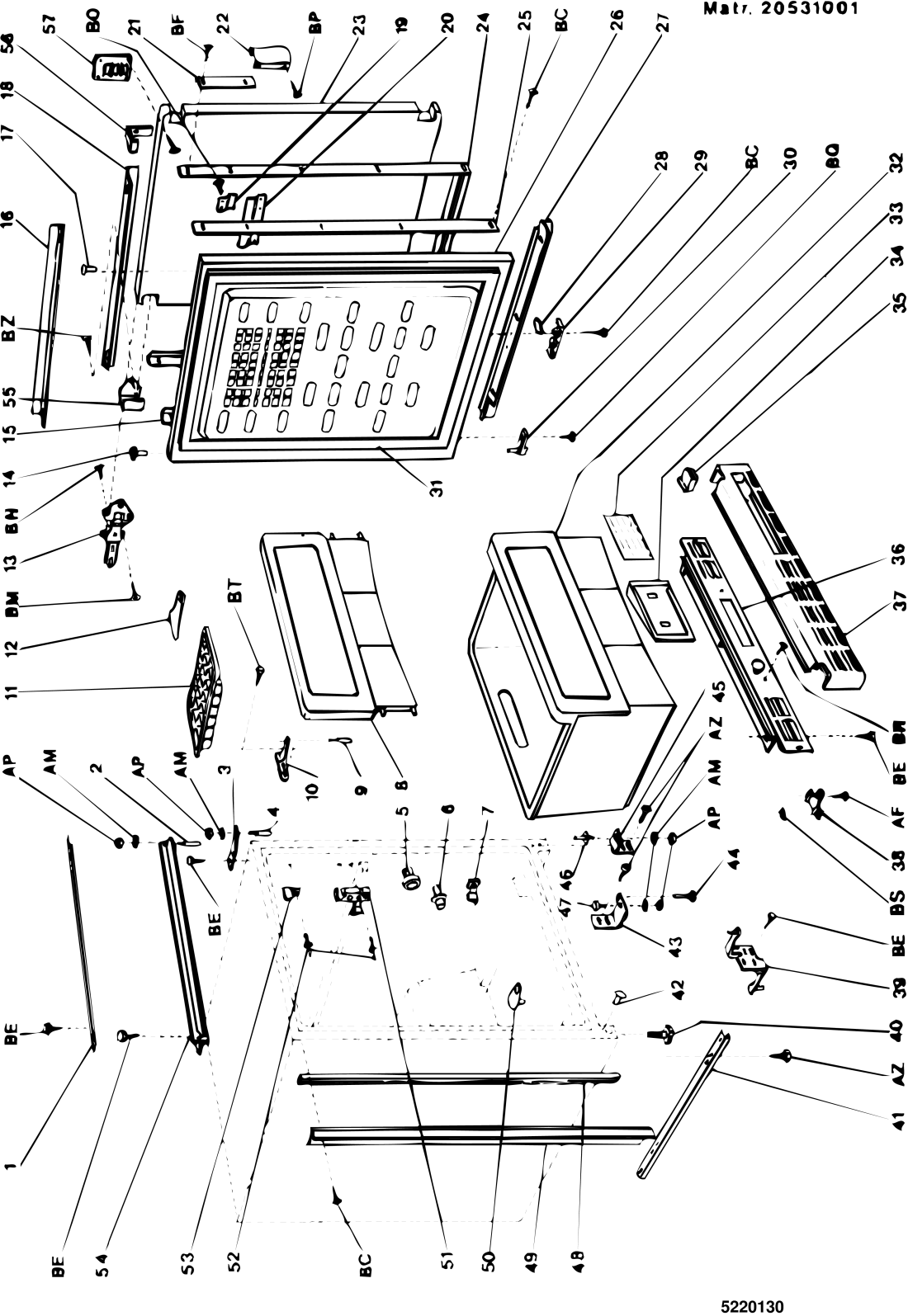

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 5220130 |
C00017857
482000044613 |
UPPER/INF COVERING PROFILE BEIGE H=12MM | Na dotaz | Zadat poptávku | |
| 001 5220130 |
C00020298 | LOWER COVERING PROFILE H=24X539 MM BEIGE | Na dotaz | Zadat poptávku | |
| 001 5220130 |
C00021869 | UPPER COVERING PROFILE BEIGE H=19X543 MM | Na dotaz | Zadat poptávku | |
| 002 5220130 |
C00010699
482000072639 |
PIN FOR HINGE AND ROOF M5X16 MM | Na dotaz | Zadat poptávku | |
| 003 5220130 |
C00020276
482000050086 |
UPPER HINGE DX-SX | Na dotaz | Zadat poptávku | |
| 006 5220130 |
C00014397 | BEIGE HOLDER EXPANDER | Na dotaz | Zadat poptávku | |
| 006 5220130 |
C00020277 | BEIGE EXPANDER DRAWER UPPER 'UP1400D' | Na dotaz | Zadat poptávku | |
| 007 5220130 |
C00009354
482000050020 |
EVAPORATOR PLATE STOP DX (014551) | Na dotaz | Zadat poptávku | |
| 007 5220130 |
C00009357
482000050019 |
EVAPORATOR STOP SX (014551) | Na dotaz | Zadat poptávku | |
| 012 5220130 |
C00003261
482000025912 |
ŠKRABKA LEDU (730412) | Na dotaz | Zadat poptávku | |
| 014 5220130 |
C00011529 | CENTRAL-UPPER HINGE BUSH 3MM | Na dotaz | Zadat poptávku | |
| 019 5220130 |
C00013118
482000044475 |
SMALL DOOR RAIL BEIGE | Na dotaz | Zadat poptávku | |
| 020 5220130 |
C00013119
482000043512 |
DOOR RAIL BEIGE | Na dotaz | Zadat poptávku | |
| 026 5220130 |
C00020281
482000050124 |
BEIGE SET DOOR SALVAGNINI 534X785X17'KUP' | Na dotaz | Zadat poptávku | |
| 031 5220130 |
C00020279
482000050159 |
MAGNETIC GASKET BROWNE DOOR SALVAGNINI | Na dotaz | Zadat poptávku | |
| 032 5220130 |
C00014408
482000044519 |
LOWER DRAWER BEIGE 550 | Na dotaz | Zadat poptávku | |
| 032 5220130 |
C00014409
482000044520 |
MIDDLE DRAWER 62 BEIGE 550 | Na dotaz | Zadat poptávku | |
| 032 5220130 |
C00020278 | UPPER DRAWER SUPERFREEZE | Na dotaz | Zadat poptávku | |
| 033 5220130 |
C00014378 | BEIGE-BROWN CALENDAR FREEZER | Na dotaz | Zadat poptávku | |
| 034 5220130 |
C00014381
482000044515 |
BROWN FREEZER-CALENDER HOLDER | Na dotaz | Zadat poptávku | |
| 041 5220130 |
C00017901 | LATERAL BASE DX-SX H=24 MM'I-K-KC160-220' | Na dotaz | Zadat poptávku | |
| 042 5220130 |
C00017613 | HOLE COVER HINGE NEUTRAL COLOR D.4,6MM | Na dotaz | Zadat poptávku | |
| 045 5220130 |
C00014968
482000044552 |
LOWER HINGE (1981) | Na dotaz | Zadat poptávku | |
| 048 5220130 |
C00021590
482000072886 |
PROFIL SVISLÝ BÍLÝ PVC SAMOLEP.1540-1856 | Na dotaz | Zadat poptávku | |
| 048 5220130 |
C00020280 | BEIGE VERTICAL PROFIL ADHESIVE | Na dotaz | Zadat poptávku | |
| 052 5220130 |
C00014612
482000025956 |
ROZPĚRNÝ KROUŽEK | Na dotaz | Zadat poptávku | |
| 053 5220130 |
C00014395 | EVAPORATOR PLATE STOP UPPER DX | Na dotaz | Zadat poptávku | |
| 053 5220130 |
C00014396 | EVAPORATOR PLATE STOP UPPER SX | Na dotaz | Zadat poptávku | |
| 006 5220210 |
C00015563 | BULB PLATE THERMOSTAT WHEEL BASE 45 MM | Na dotaz | Zadat poptávku | |
| 006 5220210 |
C00018904 | THERMOSTAT SENSOR PLATE CONDENSER | Na dotaz | Zadat poptávku | |
| 010 5220210 |
C00014696 | FILTER 12GR(D.4,9-2,1) | Na dotaz | Zadat poptávku | |
| 012 5220210 |
C00011992 | EARTH LEAD (80608) | Na dotaz | Zadat poptávku | |
| 017 5220210 |
C00020283 | COMPRESSOR CROSS-PIECE MOD.543 MM | Na dotaz | Zadat poptávku | |
| 019 5220210 |
C00010385
482000044432 |
COMPRESSOR A1075A-B1075A 220-240/50 +FLAS | Na dotaz | Zadat poptávku | |
| 020 5220210 |
C00009046 | RUBBER SHOCK ABSORBER DI.10/DE.22-25/H=16 | Na dotaz | Zadat poptávku | |
| 022 5220210 |
C00008471
482000041838 |
FIXING PLATE COMPRESSOR | Na dotaz | Zadat poptávku | |
| 023 5220210 |
C00008727
482000025926 |
TRUBKA NAPOUŠTĚNÍ DE.5,8X180MM BEZ VALVE | Na dotaz | Zadat poptávku | |
| 023 5220210 |
C00043021
482000074099 |
TRUBKA LOKRING S VENTILEM A (6 NFMSSV) | Na dotaz | Zadat poptávku | |
| 027 5220210 |
C00020282 | CONDENSER | Na dotaz | Zadat poptávku | |
| 028 5220210 |
C00018574
482000050136 |
EVAPORATOR CONDENSER | Na dotaz | Zadat poptávku | |
| 032 5220210 |
C00010517 | SCREW M6 | Na dotaz | Zadat poptávku | |
| 001 5220320 |
C00008598
482000025924 |
NAPÁJECÍ KABEL 3X0,75 EU MM 2500 | Na dotaz | Zadat poptávku | |
| 002 5220320 |
C00010375 | RELAY 9660-437-095 'ZEM E36101 220V' | Na dotaz | Zadat poptávku | |
| 004 5220320 |
C00010374
482000052044 |
THERMOPROTECTOR MRP412HZL3119 | Na dotaz | Zadat poptávku | |
| 005 5220320 |
C00008586 | TERMINAL BOARD ASPERA (750509) | Na dotaz | Zadat poptávku | |
| 007 5220320 |
C00008590 | TERMINAL BOARD COVER ASPERA (750509) | Na dotaz | Zadat poptávku | |
| 008 5220320 |
C00008589 | COVER SPRING ASPERA/ZEM (750509) | Na dotaz | Zadat poptávku | |
| 010 5220320 |
C00020284 | WIRING | Na dotaz | Zadat poptávku | |
| 011 5220320 |
C00015359 | THERMOSTAT BOX | Na dotaz | Zadat poptávku | |
| 012 5220320 |
C00017878 | PLATE THERMOSTAT | Na dotaz | Zadat poptávku | |
| 012 5220320 |
C00018780 | PLATE THERMOSTAT ARISTON 'UP210C' | Na dotaz | Zadat poptávku | |
| 016 5220320 |
C00011337 | THERMOSTAT KNOB FREEZER | Na dotaz | Zadat poptávku | |
| 017 5220320 |
C00017887 | THERMOSTAT ATEA L3C-0139 | Na dotaz | Zadat poptávku | |
| 017 5220320 |
C00021268 | THERMOSTAT L3C-0153 ATEA | Na dotaz | Zadat poptávku | |
| 018 5220320 |
C00011358 | BULB PROTECTIVE THERMOSTAT 4X950MM | Na dotaz | Zadat poptávku | |
| 027 5220320 |
C00017885
482000072762 |
OVLÁDACÍ JEDNOTKA | Na dotaz | Zadat poptávku | |
| 028 5220320 |
C00017890 | CONTROL SWITCH COVER | Na dotaz | Zadat poptávku | |
| 001 5221020 |
C00023256 | WHITE UPPER COVERING PROFILE H=19 MM | Na dotaz | Zadat poptávku | |
| 002 5221020 |
C00023737 | WHITE UPPER DX LOWER SX HINGE'SKMU130' | Na dotaz | Zadat poptávku | |
| 002 5221020 |
C00022495 | WHITE UPPER HINGE | Na dotaz | Zadat poptávku | |
| 002 5221020 |
C00028925 | UPPER/LOWER HINGE (DOOR 17MM)-WHITE | Na dotaz | Zadat poptávku | |
| 003 5221020 |
C00017812
482000042643 |
HINGE PIN (M8X5-20) | Na dotaz | Zadat poptávku | |
| 003 5221020 |
C00022764 | HINGE PIN - (M5X16MM) ZNCR | Na dotaz | Zadat poptávku | |
| 008 5221020 |
C00022161
482000026029 |
Pouzdro dveří 4X15 MM | 222 Kč
€ 9.10 |
||
| 008 5221020 |
C00021257
482000026019 |
POUZDÉRKO BÍLÉ 3 MM | Na dotaz | Zadat poptávku | |
| 010 5221020 |
C00021255
482000072866 |
KRYT OTVORU ZÁVĚS BÍLÝ PRŮM.8,5MM | Na dotaz | Zadat poptávku | |
| 013 5221020 |
C00021258
482000041487 |
SKLUZ BÍLÝ + ČEPIČKA | Na dotaz | Zadat poptávku | |
| 014 5221020 |
C00021259
482000072868 |
SKLUZ BÍLÝ | Na dotaz | Zadat poptávku | |
| 016 5221020 |
C00022898
482000072938 |
GREY MAGNETIC GASKET DOOR SALVAGNINI | Na dotaz | Zadat poptávku | |
| 017 5221020 |
C00023232
482000044808 |
SET WHITE-GREY DOOR SALVAGNINI 534X758X17 | Na dotaz | Zadat poptávku | |
| 019 5221020 |
C00022857
482000043872 |
WHITE LOWER DRAWER MOD.550'UP80S' | Na dotaz | Zadat poptávku | |
| 019 5221020 |
C00022858
482000050260 |
WHITE-GREY 58 MIDDLE DRAWER'RF290SMOD.550 | Na dotaz | Zadat poptávku | |
| 019 5221020 |
C00023255 | WHITE-GREY58 UPPER DRAWERSUPERFREEZER 550 | Na dotaz | Zadat poptávku | |
| 020 5221020 |
C00022762 | WHITE-GREY CALENDER HOLDER | Na dotaz | Zadat poptávku | |
| 021 5221020 |
C00022574 | WHITE FREEZER CALENDAR | Na dotaz | Zadat poptávku | |
| 022 5221020 |
C00021254 | UNDER COVERING PROFILE WHITE H=24 MM | Na dotaz | Zadat poptávku | |
| 023 5221020 |
C00022496
482000050125 |
WHITE LOWER HINGE (DOOR 17 MM) | Na dotaz | Zadat poptávku | |
| 025 5221020 |
C00017038
482000051059 |
WHITE HINGE PIPE D.4,6 MM'MG1650-215' | Na dotaz | Zadat poptávku | |
| 026 5221020 |
C00011788
482000042111 |
PAWEL H=12MM (80729) | Na dotaz | Zadat poptávku | |
| 030 5221020 |
C00022470 | WHITE EVAPORATOR PLATE STOP DX | Na dotaz | Zadat poptávku | |
| 030 5221020 |
C00022471 | WHITE EVAPORATOR STOP SX | Na dotaz | Zadat poptávku | |
| 031 5221020 |
C00022468
482000026035 |
ZÁPADKA ZÁSUVKY BÍLÁ'UP130' | Na dotaz | Zadat poptávku | |
| 032 5221020 |
C00023229 | WHITE EXPANDER DRAUER UPPER'KUP140D' | Na dotaz | Zadat poptávku | |
| 035 5221020 |
C00021256
482000072867 |
SIDE FILLER STRIP ADHESIVE - WHITE | Na dotaz | Zadat poptávku | |
| 036 5221020 |
C00022474
482000064953 |
EVAPORATOR SHELF SUPPORT - UPPER RH WHITE | Na dotaz | Zadat poptávku | |
| 036 5221020 |
C00022475
482000051187 |
EVAPORATOR SHELF SUPPORT - UPPER LH WHITE | Na dotaz | Zadat poptávku | |
| 003 5221210 |
C00022577 | WHITE SECTION PVC EVAPORATOR | Na dotaz | Zadat poptávku | |
| 004 5221210 |
C00028907 | CLIP STAINLESS-T/STAT SENSOR/EVAPORATOR | Na dotaz | Zadat poptávku | |
| 005 5221210 |
C00022497
482000050072 |
WHITE EVAPORATOR CONDENSER | Na dotaz | Zadat poptávku | |
| 012 5221210 |
C00020295
482000043831 |
COMPRESSOR EMBRACO PW4,5K9-PW4,5A | Na dotaz | Zadat poptávku | |
| 013 5221210 |
C00006495
482000041919 |
RUBBER SHOCK ABSORBER - COMPRESSOR | Na dotaz | Zadat poptávku | |
| 015 5221210 |
C00021839 | LOADING PIPE 6,35X150 (EMBRACO) | Na dotaz | Zadat poptávku | |
| 016 5221210 |
C00008591 | EARTH PLATE COMPRESSOR ASPERA-MATSUSHITA | Na dotaz | Zadat poptávku | |
| 001 5221310 |
C00010097
482000042688 |
SUPPLY CABLE 3X0,75 | Na dotaz | Zadat poptávku | |
| 002 5221310 |
C00022892 | WIRING EMBRACO-ELECTRO GIBI | Na dotaz | Zadat poptávku | |
| 003 5221310 |
C00021302 | TERMINAL BOARD COVER ELECTRO GIBI GREY | Na dotaz | Zadat poptávku | |
| 004 5221310 |
C00018748
482000072810 |
CABLE CLAMP | Na dotaz | Zadat poptávku | |
| 004 5221310 |
C00022278 | CABLE CLAMP | Na dotaz | Zadat poptávku | |
| 006 5221310 |
C00021301 | SET TERMINAL BOARD ELECTRO GIBI 4 WAY | Na dotaz | Zadat poptávku | |
| 007 5221310 |
C00021303 | CABLE TERMINAL BOX ELECTRO GIBI-EMBRACO | Na dotaz | Zadat poptávku | |
| 007 5221310 |
C00021739 | CABLE TERMINAL BOX ELECTRO GIBI-ASPERA(UL | Na dotaz | Zadat poptávku | |
| 008 5221310 |
C00003164 | CABLE CLAMP GB | Na dotaz | Zadat poptávku | |
| 011 5221310 |
C00038700 | THERMOSTAT BOX CENTER-POST | Na dotaz | Zadat poptávku | |
| 012 5221310 |
C00022891 | WHITE-GREY PLATE THERMOSTAT ARISTON | Na dotaz | Zadat poptávku | |
