IGNIS LOE 1007
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | LOE 1007 |
| Kód 12NC: | 854044138000 |
| I.C. kód: | 854044138001 |
| Značka: | IGNIS |
| Typ produktu: | Pračky |
| Další podobné modely: | 858011638010, 858011638013, 854044138000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 WHR23629 |
C00425895
480111101108 |
Table top | Na dotaz | Zadat poptávku | |
| 003 WHR23629 |
C00428082
480111104539 |
Front panel | Na dotaz | Zadat poptávku | |
| 005 WHR23629 |
C00318055
481202308004 |
noha | 806 Kč
€ 35.40 |
||
| 007 WHR23629 |
C00428084
480111104542 |
Door glas | Na dotaz | Zadat poptávku | |
| 008 WHR23629 |
C00428085
480111104543 |
Frame back support | Na dotaz | Zadat poptávku | |
| 009 WHR23629 |
C00428086
480111104544 |
Spring door seal outer | Na dotaz | Zadat poptávku | |
| 010 WHR23629 |
C00338989
480111101045 |
Blokování dveří | 504 Kč
€ 22.20 |
||
| 012 WHR23629 |
C00428087
480111104545 |
Hinge door | Na dotaz | Zadat poptávku | |
| 013 WHR23629 |
C00428088
480111104546 |
Bush hinge | Na dotaz | Zadat poptávku | |
| 014 WHR23629 |
C00428089
480111104547 |
Door handle | Na dotaz | Zadat poptávku | |
| 015 WHR23629 |
C00326634
481202308013 |
pruzina | 131 Kč
€ 5.80 |
||
| 016 WHR23629 |
C00326635
481202308014 |
Pin | Na dotaz | Zadat poptávku | |
| 017 WHR23629 |
C00426447
480111102063 |
Hook | Na dotaz | Zadat poptávku | |
| 020 WHR23629 |
C00319944
481202308018 |
hadice | 987 Kč
€ 43.40 |
||
| 022 WHR23629 |
C00337705
480111101047 |
Plinth | Na dotaz | Zadat poptávku | |
| 023 WHR23629 |
C00342376
480111101048 |
Cover plinth | Na dotaz | Zadat poptávku | |
| 024 WHR23629 |
C00335890
480111101089 |
Support | Na dotaz | Zadat poptávku | |
| 026 WHR23629 |
C00428090
480111104548 |
Spring handle | Na dotaz | Zadat poptávku | |
| 028 WHR23629 |
C00326640
481202308021 |
sroub | 83 Kč
€ 3.60 |
||
| 032 WHR23629 |
C00428083
480111104541 |
Frame outer | Na dotaz | Zadat poptávku | |
| 033 WHR23629 |
C00428091
480111104549 |
Support hinge | Na dotaz | Zadat poptávku | |
| 050 WHR23629 |
C00428092
480111104551 |
Door complete | Na dotaz | Zadat poptávku | |
| 100 WHR23629 |
C00428118
480111104583 |
Belt | Na dotaz | Zadat poptávku | |
| 101 WHR23629 |
C00326643
481202308025 |
pulley | Na dotaz | Zadat poptávku | |
| 102 WHR23629 |
C00428119
480111104584 |
Motor | Na dotaz | Zadat poptávku | |
| 103 WHR23629 |
C00428109
480111104573 |
Tub rear part | Na dotaz | Zadat poptávku | |
| 104 WHR23629 |
C00428110
480111104574 |
Damper | Na dotaz | Zadat poptávku | |
| 105 WHR23629 |
C00326646
481202308029 |
Pin Shockabsorber | 187 Kč
€ 8.20 |
||
| 112 WHR23629 |
C00326647
481202308031 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 113 WHR23629 |
C00326648
481202308032 |
tesneni nadrze | 423 Kč
€ 18.60 |
||
| 115 WHR23629 |
C00326649
481202308033 |
Clip heating | Na dotaz | Zadat poptávku | |
| 117 WHR23629 |
C00428111
480111104575 |
Tub front part | Na dotaz | Zadat poptávku | |
| 118 WHR23629 |
C00428094
480111104555 |
Door bellow | Na dotaz | Zadat poptávku | |
| 119 WHR23629 |
C00428095
480111104556 |
Spring bellow rear fixation | Na dotaz | Zadat poptávku | |
| 120 WHR23629 |
C00428096
480111104557 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 122 WHR23629 |
C00336685
480111101027 |
Screw | Na dotaz | Zadat poptávku | |
| 124 WHR23629 |
C00326653
481202308041 |
Screw M8*25 | Na dotaz | Zadat poptávku | |
| 126 WHR23629 |
C00345176
482000005862 |
Screw 6 x 30 | Na dotaz | Zadat poptávku | |
| 126 WHR23629 |
C00466537
482000006037 |
Screw M 6x22 | Na dotaz | Zadat poptávku | |
| 132 WHR23629 |
C00466475
482000005863 |
Cable earth/tub | Na dotaz | Zadat poptávku | |
| 160 WHR23629 |
C00428112
480111104576 |
Drum | Na dotaz | Zadat poptávku | |
| 200 WHR23629 |
C00425857
480111101053 |
Drawer | Na dotaz | Zadat poptávku | |
| 202 WHR23629 |
C00425858
480111101054 |
Cover siphon | Na dotaz | Zadat poptávku | |
| 203 WHR23629 |
C00425859
480111101055 |
Cover dispenser | Na dotaz | Zadat poptávku | |
| 205 WHR23629 |
C00425861
480111101057 |
Dispenser housing | Na dotaz | Zadat poptávku | |
| 206 WHR23629 |
C00317529
481202308052 |
Bellows | Na dotaz | Zadat poptávku | |
| 207 WHR23629 |
C00326660
481202308054 |
Hose | Na dotaz | Zadat poptávku | |
| 208 WHR23629 |
C00428113
480111104577 |
Hose valve/box | Na dotaz | Zadat poptávku | |
| 209 WHR23629 |
C00326661
481202308055 |
ventil | 1 416 Kč
€ 62.20 |
||
| 210 WHR23629 |
C00466512
482000006001 |
Ball | Na dotaz | Zadat poptávku | |
| 211 WHR23629 |
C00326662
481202308056 |
Hose pressure switch | Na dotaz | Zadat poptávku | |
| 212 WHR23629 |
C00326663
481202308057 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 213 WHR23629 |
C00428099
480111104561 |
Hose tub/ pump | Na dotaz | Zadat poptávku | |
| 215 WHR23629 |
C00340962
480111101028 |
Odrušovací filtr pračky Whirlpool, Ignis | 920 Kč
€ 40.40 |
||
| 219 WHR23629 |
C00326665
481202308061 |
Hose drain | Na dotaz | Zadat poptávku | |
| 220 WHR23629 |
C00326666
481202308062 |
koleno | 124 Kč
€ 5.50 |
||
| 222 WHR23629 |
C00326668
481202308064 |
drzak presostatu | Na dotaz | Zadat poptávku | |
| 225 WHR23629 |
C00318079
481202308065 |
presostat | 1 027 Kč
€ 45.10 |
||
| 228 WHR23629 |
C00326669
481202308066 |
Clamp | Na dotaz | Zadat poptávku | |
| 234 WHR23629 |
C00326671
481202308068 |
Clamp | Na dotaz | Zadat poptávku | |
| 235 WHR23629 |
C00326672
481202308069 |
Holder hose | Na dotaz | Zadat poptávku | |
| 238 WHR23629 |
C00326675
481202308073 |
kryt | 134 Kč
€ 5.90 |
||
| 239 WHR23629 |
C00342894
481202308122 |
kabelaz | 1 309 Kč
€ 57.50 |
||
| 244 WHR23629 |
C00326681
481202308079 |
Clamp | Na dotaz | Zadat poptávku | |
| 285 WHR23629 |
C00312887
480111101853 |
Čerpadlo vypouštěcí | 1 917 Kč
€ 84.30 |
||
| 290 WHR23629 |
C00326684
481202308085 |
Lever,security cpl. | Na dotaz | Zadat poptávku | |
| 296 WHR23629 |
C00467188
482000009990 |
Cable Kit | Na dotaz | Zadat poptávku | |

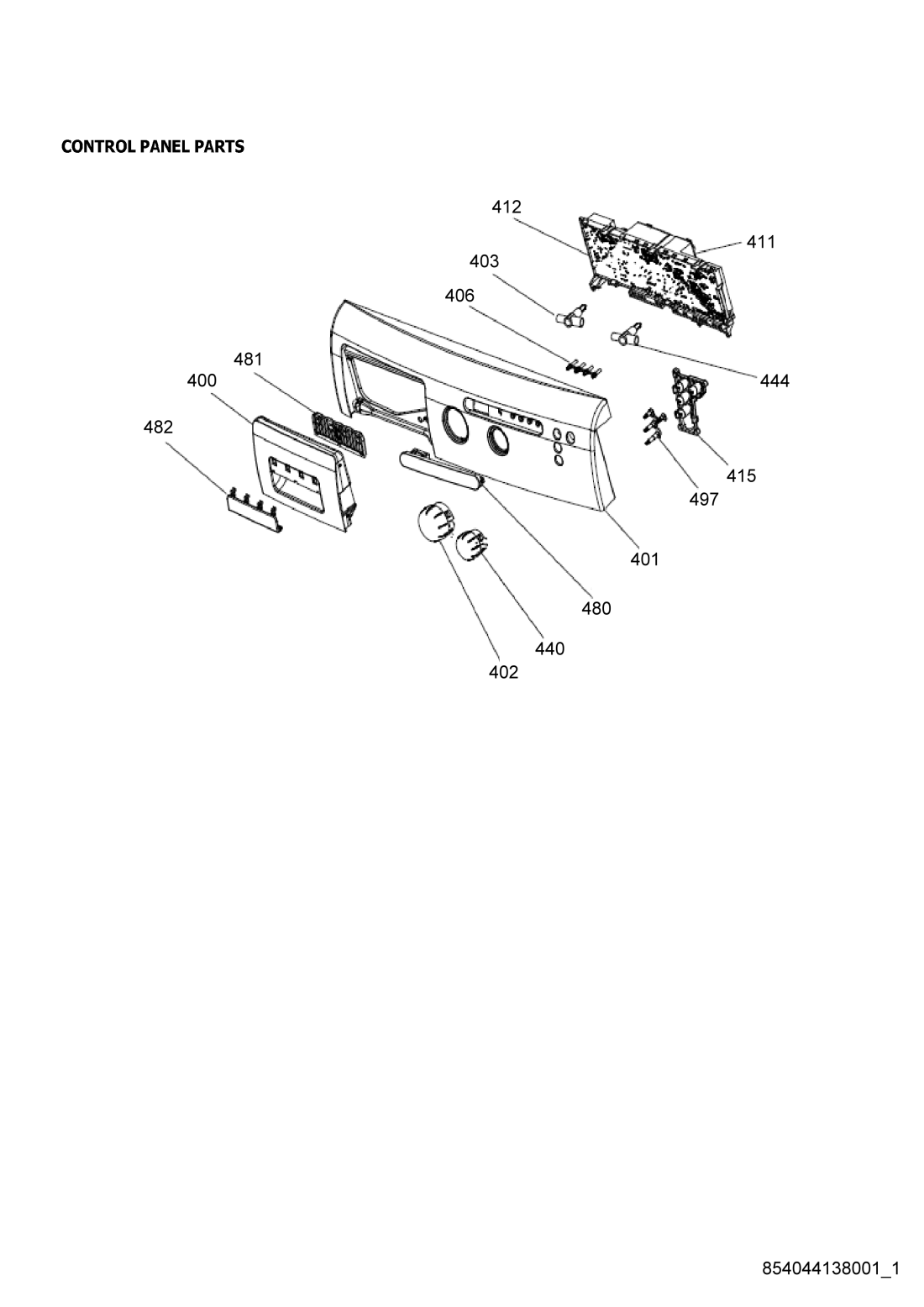

| 400 WHR23629 |
C00428121
480111104586 |
Handle drawer | Na dotaz | Zadat poptávku | |
| 401 WHR23629 |
C00428122
480111104587 |
Control panel | Na dotaz | Zadat poptávku | |
| 402 WHR23629 |
C00428104
480111104566 |
Knob timer | Na dotaz | Zadat poptávku | |
| 403 WHR23629 |
C00336453
481202308189 |
Shaft adapter | Na dotaz | Zadat poptávku | |
| 406 WHR23629 |
C00338351
480111101094 |
Light guide | Na dotaz | Zadat poptávku | |
| 410 WHR23629 |
C00326690
481202308094 |
sroub | 56 Kč
€ 2.50 |
||
| 410 WHR23629 |
C00467039
482000009030 |
Screw 4x12 | Na dotaz | Zadat poptávku | |
| 411 WHR23629 |
C00426292
480111101855 |
Holder | Na dotaz | Zadat poptávku | |
| 412 WHR23629 |
C00428123
480111104588 |
Control board V-598B46F20800 | Na dotaz | Zadat poptávku | |
| 415 WHR23629 |
C00378478
480111104568 |
Switch unit 4X | Na dotaz | Zadat poptávku | |
| 440 WHR23629 |
C00428106
480111104569 |
Knob temp/spin | Na dotaz | Zadat poptávku | |
| 444 WHR23629 |
C00344642
480111101098 |
Adapter for knob | Na dotaz | Zadat poptávku | |
| 480 WHR23629 |
C00342161
480111101099 |
Display | Na dotaz | Zadat poptávku | |
| 481 WHR23629 |
C00338833
480111101101 |
Insert handle | Na dotaz | Zadat poptávku | |
| 482 WHR23629 |
C00428107
480111104571 |
Button logo | Na dotaz | Zadat poptávku | |
| 497 WHR23629 |
C00338345
480111101103 |
Light guide timer knob | Na dotaz | Zadat poptávku | |
| 700 WHR23629 |
C00326699
481202308107 |
pruzina | 174 Kč
€ 7.60 |
||
| 800 WHR23629 |
C00428108
480111104572 |
Spring tub | Na dotaz | Zadat poptávku | |
| 806 WHR23629 |
C00326702
481202308111 |
Washer 8,4*28*3 | Na dotaz | Zadat poptávku | |
| 808 WHR23629 |
C00425873
480111101071 |
Screw | Na dotaz | Zadat poptávku | |
| 811 WHR23629 |
C00326704
481202308113 |
Support | Na dotaz | Zadat poptávku | |
| 812 WHR23629 |
C00326705
481202308114 |
Nut M 8 | Na dotaz | Zadat poptávku | |
| 813 WHR23629 |
C00467145
482000009864 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 895 WHR23629 |
C00326670
481202308067 |
Crossbar spring | Na dotaz | Zadat poptávku | |
| 899 WHR23629 |
C00428097
480111104558 |
Heating element | Na dotaz | Zadat poptávku | |
| 919 WHR23629 |
C00466519
482000006008 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 920 WHR23629 |
C00466520
482000006009 |
Fastener front panel, plastic | Na dotaz | Zadat poptávku | |
| 998 WHR23629 |
C00326674
481202308072 |
Lever,security | Na dotaz | Zadat poptávku | |
| 999 WHR23629 |
C00466487
482000005876 |
Sensor temper. NTC | Na dotaz | Zadat poptávku | |
