IGNIS LOP 6050
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | LOP 6050 |
| Kód 12NC: | 854044386000 |
| Značka: | IGNIS |
| Typ produktu: | Pračky |
| Další podobné modely: | 854044386001 |
Potřebujete servis? Jsme tady pro Vás

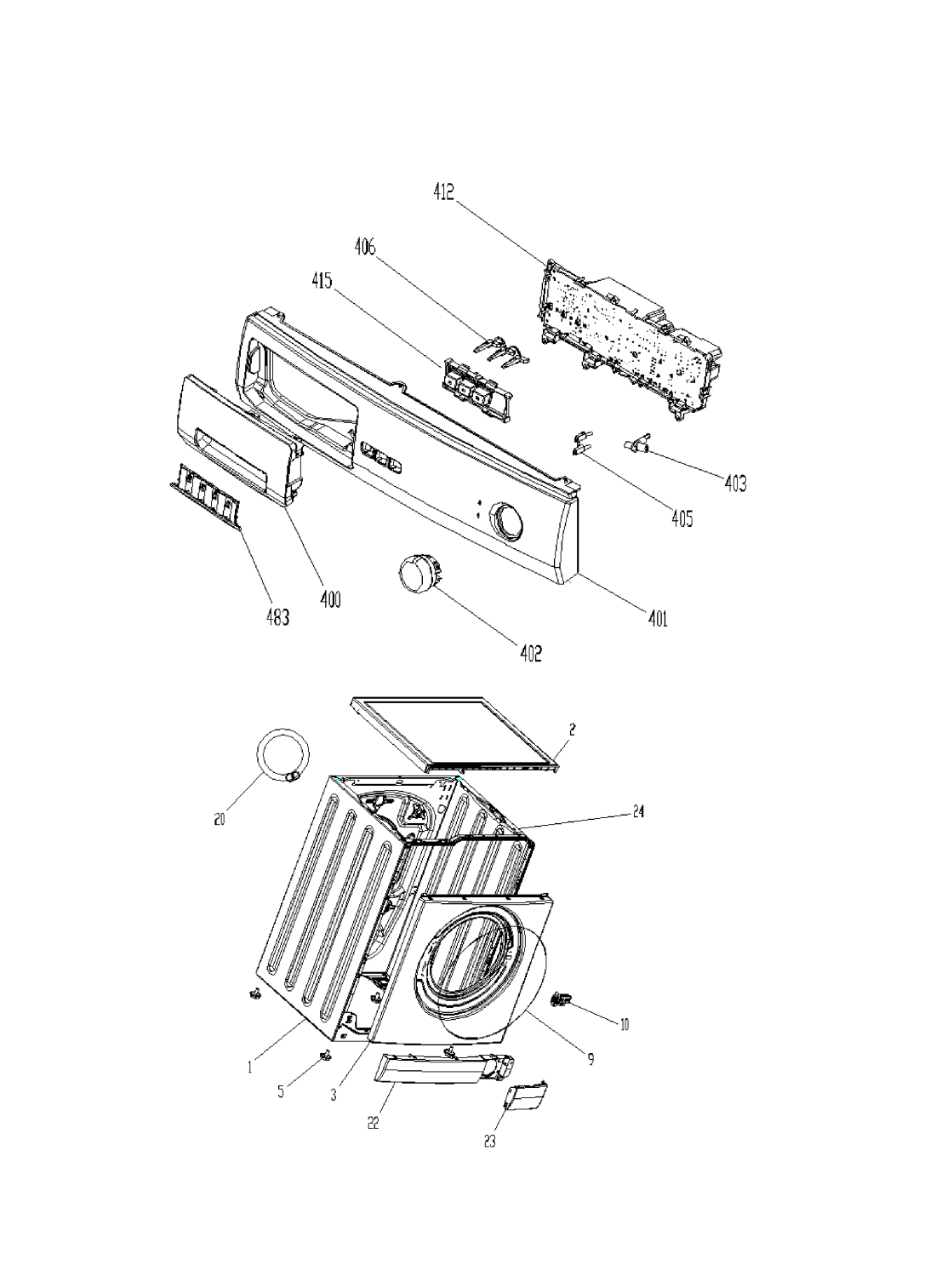

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0001 WHR23636 |
C00425845
480111101023 |
Cabinet | Na dotaz | Zadat poptávku | |
| 0002 WHR23636 |
C00425854
480111101041 |
Table top | Na dotaz | Zadat poptávku | |
| 0003 WHR23636 |
C00428268
480111104812 |
Front panel | Na dotaz | Zadat poptávku | |
| 0004 WHR23636 |
C00427020
480111102825 |
Plinth complete | Na dotaz | Zadat poptávku | |
| 0005 WHR23636 |
C00318055
481202308004 |
noha | 806 Kč
€ 35.40 |
||
| 0006 WHR23636 |
C00339291
480111101043 |
Door frame outer | Na dotaz | Zadat poptávku | |
| 0007 WHR23636 |
C00454880
481202308134 |
Door glass | Na dotaz | Zadat poptávku | |
| 0008 WHR23636 |
C00339295
480111101044 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 0009 WHR23636 |
C00343394
480111101025 |
spona predni | 175 Kč
€ 7.70 |
||
| 0010 WHR23636 |
C00338989
480111101045 |
Blokování dveří | 504 Kč
€ 22.20 |
||
| 0012 WHR23636 |
C00326632
481202308011 |
zaves dveri AWG5124C | 897 Kč
€ 39.40 |
||
| 0014 WHR23636 |
C00426052
480111101335 |
Handle door | Na dotaz | Zadat poptávku | |
| 0015 WHR23636 |
C00326634
481202308013 |
pruzina | 131 Kč
€ 5.80 |
||
| 0016 WHR23636 |
C00326635
481202308014 |
Pin | Na dotaz | Zadat poptávku | |
| 0017 WHR23636 |
C00339496
480111101046 |
Hák dveří | 245 Kč
€ 10.80 |
||
| 0020 WHR23636 |
C00319944
481202308018 |
hadice | 987 Kč
€ 43.40 |
||
| 0022 WHR23636 |
C00337705
480111101047 |
Plinth | Na dotaz | Zadat poptávku | |
| 0023 WHR23636 |
C00342376
480111101048 |
Cover plinth | Na dotaz | Zadat poptávku | |
| 0024 WHR23636 |
C00425856
480111101049 |
Support | Na dotaz | Zadat poptávku | |
| 0026 WHR23636 |
C00336108
480111101051 |
Spring | Na dotaz | Zadat poptávku | |
| 0027 WHR23636 |
C00341461
480111101052 |
Pin | Na dotaz | Zadat poptávku | |
| 0028 WHR23636 |
C00326640
481202308021 |
sroub | 83 Kč
€ 3.60 |
||
| 0050 WHR23636 |
C00426321
480111101892 |
Door compl. | Na dotaz | Zadat poptávku | |
| 0100 WHR23636 |
C00344358
481202308116 |
remen vicekl.1228H8 | 716 Kč
€ 31.50 |
||
| 0101 WHR23636 |
C00326643
481202308025 |
pulley | Na dotaz | Zadat poptávku | |
| 0102 WHR23636 |
C00426047
480111101322 |
Motor | 4 093 Kč
€ 179.90 |
||
| 0103 WHR23636 |
C00454891
481202308152 |
Tub rear 42 liter 1000rpm | Na dotaz | Zadat poptávku | |
| 0104 WHR23636 |
C00326645
481202308028 |
tlumic | 861 Kč
€ 37.80 |
||
| 0105 WHR23636 |
C00326646
481202308029 |
Pin Shockabsorber | 187 Kč
€ 8.20 |
||
| 0112 WHR23636 |
C00326647
481202308031 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 0113 WHR23636 |
C00326648
481202308032 |
tesneni nadrze | 423 Kč
€ 18.60 |
||
| 0115 WHR23636 |
C00326649
481202308033 |
Clip heating | Na dotaz | Zadat poptávku | |
| 0117 WHR23636 |
C00326708
481202308136 |
Tub front part | Na dotaz | Zadat poptávku | |
| 0118 WHR23636 |
C00314811
481202308153 |
Gasket door 42 li 1000 rpm | Na dotaz | Zadat poptávku | |
| 0119 WHR23636 |
C00345144
480111101026 |
spona zadni | 672 Kč
€ 29.50 |
||
| 0120 WHR23636 |
C00326709
481202308137 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 0121 WHR23636 |
C00312953
481202308038 |
Heating element | Na dotaz | Zadat poptávku | |
| 0122 WHR23636 |
C00336685
480111101027 |
Screw | Na dotaz | Zadat poptávku | |
| 0124 WHR23636 |
C00326653
481202308041 |
Screw M8*25 | Na dotaz | Zadat poptávku | |
| 0126 WHR23636 |
C00326654
481202308042 |
sroub | 178 Kč
€ 7.80 |
||
| 0160 WHR23636 |
C00454892
481202308154 |
Drum 42 li 1000rpm | Na dotaz | Zadat poptávku | |
| 0206 WHR23636 |
C00317529
481202308052 |
Bellows | Na dotaz | Zadat poptávku | |
| 0207 WHR23636 |
C00326711
481202308139 |
Hose inlet valve / box | Na dotaz | Zadat poptávku | |
| 0208 WHR23636 |
C00326659
481202308053 |
Hose valve / deterg. box | Na dotaz | Zadat poptávku | |
| 0209 WHR23636 |
C00326661
481202308055 |
ventil | 1 416 Kč
€ 62.20 |
||
| 0211 WHR23636 |
C00326662
481202308056 |
Hose pressure switch | Na dotaz | Zadat poptávku | |
| 0212 WHR23636 |
C00326663
481202308057 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 0213 WHR23636 |
C00318077
481202308058 |
hadice | 408 Kč
€ 17.90 |
||
| 0215 WHR23636 |
C00340962
480111101028 |
Odrušovací filtr pračky Whirlpool, Ignis | 920 Kč
€ 40.40 |
||
| 0219 WHR23636 |
C00326665
481202308061 |
Hose drain | Na dotaz | Zadat poptávku | |
| 0220 WHR23636 |
C00326666
481202308062 |
koleno | 124 Kč
€ 5.50 |
||
| 0221 WHR23636 |
C00326667
481202308063 |
Suspension hook | Na dotaz | Zadat poptávku | |
| 0222 WHR23636 |
C00326668
481202308064 |
drzak presostatu | Na dotaz | Zadat poptávku | |
| 0225 WHR23636 |
C00318079
481202308065 |
presostat | 1 027 Kč
€ 45.10 |
||
| 0228 WHR23636 |
C00326669
481202308066 |
Clamp | Na dotaz | Zadat poptávku | |
| 0231 WHR23636 |
C00326670
481202308067 |
Crossbar spring | Na dotaz | Zadat poptávku | |
| 0234 WHR23636 |
C00326671
481202308068 |
Clamp | Na dotaz | Zadat poptávku | |
| 0235 WHR23636 |
C00326672
481202308069 |
Holder hose | Na dotaz | Zadat poptávku | |
| 0236 WHR23636 |
C00326673
481202308071 |
Holder | Na dotaz | Zadat poptávku | |
| 0237 WHR23636 |
C00326674
481202308072 |
Lever,security | Na dotaz | Zadat poptávku | |
| 0238 WHR23636 |
C00326675
481202308073 |
kryt | 134 Kč
€ 5.90 |
||
| 0239 WHR23636 |
C00342894
481202308122 |
kabelaz | 1 309 Kč
€ 57.50 |
||
| 0244 WHR23636 |
C00326681
481202308079 |
Clamp | Na dotaz | Zadat poptávku | |
| 0250 WHR23636 |
C00326683
481202308082 |
svorka | 111 Kč
€ 4.90 |
||
| 0270 WHR23636 |
C00425862
480111101058 |
Dispenser complete | Na dotaz | Zadat poptávku | |
| 0285 WHR23636 |
C00312887
480111101853 |
Čerpadlo vypouštěcí | 1 917 Kč
€ 84.30 |
||
| 0290 WHR23636 |
C00326684
481202308085 |
Lever,security cpl. | Na dotaz | Zadat poptávku | |
| 0400 WHR23636 |
C00428269
480111104813 |
Handle detergent drawer | Na dotaz | Zadat poptávku | |
| 0401 WHR23636 |
C00428270
480111104814 |
Control panel | Na dotaz | Zadat poptávku | |
| 0402 WHR23636 |
C00426054
480111101337 |
Knob timer | Na dotaz | Zadat poptávku | |
| 0403 WHR23636 |
C00425866
480111101063 |
Adapter | Na dotaz | Zadat poptávku | |
| 0405 WHR23636 |
C00426055
480111101338 |
Light guide 2X | Na dotaz | Zadat poptávku | |
| 0406 WHR23636 |
C00426056
480111101339 |
Light guide 3X | Na dotaz | Zadat poptávku | |
| 0412 WHR23636 |
C00428271
480111104815 |
Control board | Na dotaz | Zadat poptávku | |
| 0415 WHR23636 |
C00426057
480111101341 |
Button 3X | Na dotaz | Zadat poptávku | |
| 0483 WHR23636 |
C00426058
480111101342 |
Insert handle | Na dotaz | Zadat poptávku | |
| 0700 WHR23636 |
C00326699
481202308107 |
pruzina | 174 Kč
€ 7.60 |
||
| 0800 WHR23636 |
C00318947
480111100019 |
Spring | Na dotaz | Zadat poptávku | |
| 0805 WHR23636 |
C00326701
481202308109 |
Screw PT 8*40 | Na dotaz | Zadat poptávku | |
| 0806 WHR23636 |
C00326702
481202308111 |
Washer 8,4*28*3 | Na dotaz | Zadat poptávku | |
| 0807 WHR23636 |
C00425872
480111101069 |
Screw | Na dotaz | Zadat poptávku | |
| 0808 WHR23636 |
C00425873
480111101071 |
Screw | Na dotaz | Zadat poptávku | |
| 0811 WHR23636 |
C00326704
481202308113 |
Support | Na dotaz | Zadat poptávku | |
| 0812 WHR23636 |
C00326705
481202308114 |
Nut M 8 | Na dotaz | Zadat poptávku | |
| 0813 WHR23636 |
C00312961
481202308115 |
Drum lifter | Na dotaz | Zadat poptávku | |
