| Komerční kód: | MBA 2185 X (LZ) |
| Kód 12NC: | 869990322980 |
| I.C. kód: | 58322980000 |
| Značka: | ARISTON |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

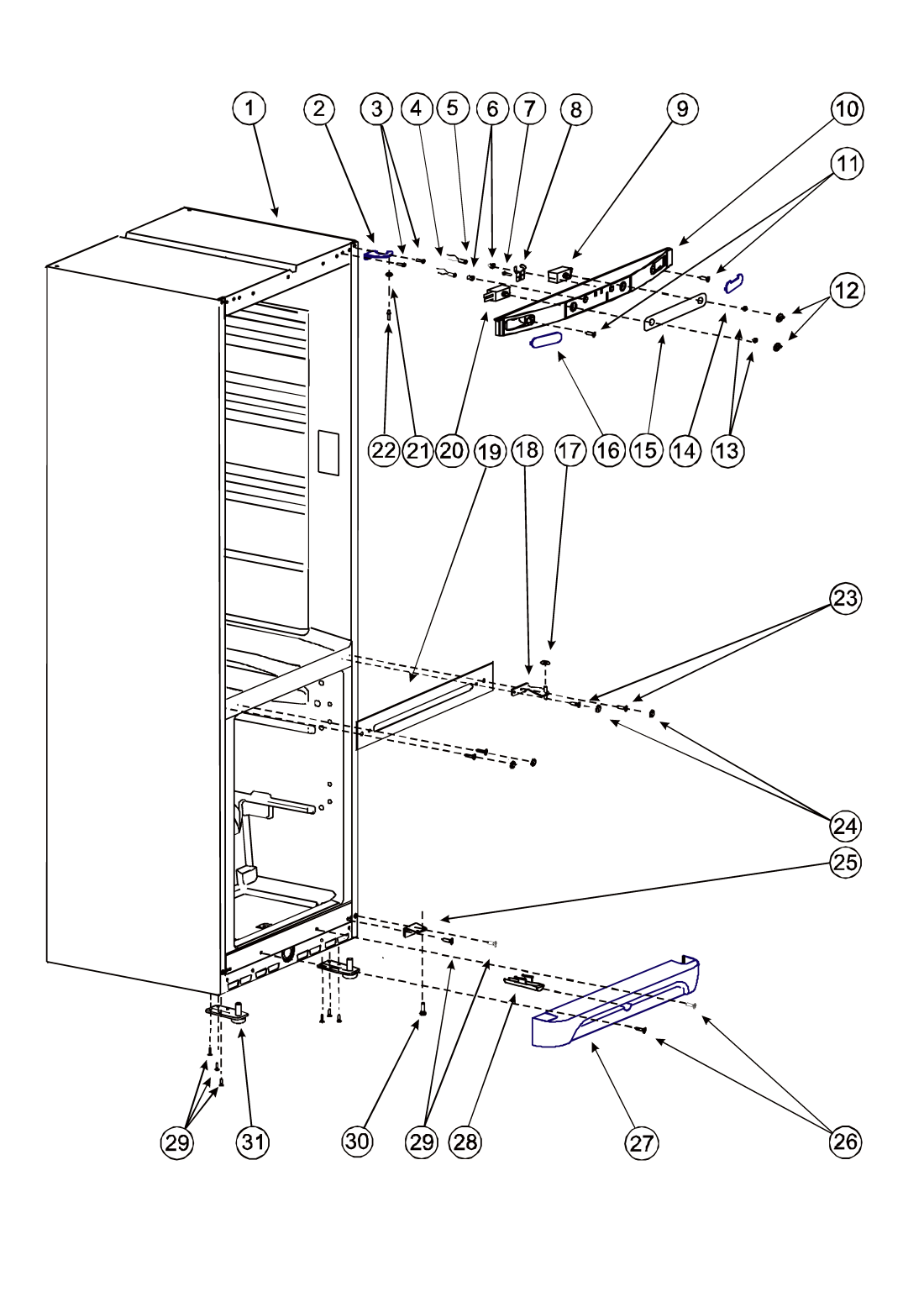

| 001 LIP0166b |
C00854230
482000048807 |
CABINET ASSEMBLY | Na dotaz | Zadat poptávku | |
| 002 LIP0166b |
C00855029
482000041883 |
Hinge | Na dotaz | Zadat poptávku | |
| 003 LIP0166b |
C00855008 | S-TAPP. SCREW WITH WASHER ТЕ 4,8x32 | Na dotaz | Zadat poptávku | |
| 004 LIP0166b |
C00851057 | INDICATOR LAMP | Na dotaz | Zadat poptávku | |
| 005 LIP0166b |
C00851116 | INDICATOR LAMP ASSEMBLY | Na dotaz | Zadat poptávku | |
| 006 LIP0166b |
C00857017
488000857017 |
Light Holder | Na dotaz | Zadat poptávku | |
| 007 LIP0166b |
C00855010
488000855010 |
SELF-TAPP. SCREW Т1/2Т 4,2х15,87 | Na dotaz | Zadat poptávku | |
| 008 LIP0166b |
C00857163
488000857163 |
Bracket Support for Harness PW | Na dotaz | Zadat poptávku | |
| 009 LIP0166b |
C00851095
488000851095 |
THERMOSTAT K 57 - L2829 | Na dotaz | Zadat poptávku | |
| 010 LIP0166b |
C00856081
482000048818 |
CONTROL PANEL HOUSING | Na dotaz | Zadat poptávku | |
| 011 LIP0166b |
C00855016
488000855016 |
SELF-TAPP. SCREW ТСВ 4,8x22,22 | Na dotaz | Zadat poptávku | |
| 012 LIP0166b |
C00856070 | TERMOSTAT SWITCH KNOB PAINTED | Na dotaz | Zadat poptávku | |
| 013 LIP0166b |
C00855021
488000855021 |
CLEMPING COLLAR | Na dotaz | Zadat poptávku | |
| 014 LIP0166b |
C00856079
488000856079 |
RIGHT BIBB OF BOARD | Na dotaz | Zadat poptávku | |
| 015 LIP0166b |
C00856075 | DECORATIVE PANEL | Na dotaz | Zadat poptávku | |
| 016 LIP0166b |
C00856080
482000042296 |
LEFT BIBB OF BOARD | Na dotaz | Zadat poptávku | |
| 017 LIP0166b |
C00857199
488000857199 |
ADJUSTMENT WASHER PW | Na dotaz | Zadat poptávku | |
| 018 LIP0166b |
C00855044 | Complete Hinge | Na dotaz | Zadat poptávku | |
| 019 LIP0166b |
C00855051 | PLATE CENTRAL PAINTED | Na dotaz | Zadat poptávku | |
| 020 LIP0166b |
C00851117 | THERMOSTAT | Na dotaz | Zadat poptávku | |
| 023 LIP0166b |
C00855006
488000855006 |
SCREW SТ 4,8x22 | Na dotaz | Zadat poptávku | |
| 024 LIP0166b |
C00857057
488000857057 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 025 LIP0166b |
C00855026
488000855026 |
Lower Hinge Kit | Na dotaz | Zadat poptávku | |
| 026 LIP0166b |
C00855015
488000855015 |
SELF-TAPP. SCREW ТСВ 4,2x22,22 | Na dotaz | Zadat poptávku | |
| 027 LIP0166b |
C00856086
488000856086 |
SOCLE | Na dotaz | Zadat poptávku | |
| 028 LIP0166b |
C00856093 | CONDENSATE DREIN PIPE | Na dotaz | Zadat poptávku | |
| 029 LIP0166b |
C00855007
488000855007 |
S-TAPP. SCREW WITH WASHER ТЕ 4,8x16 | Na dotaz | Zadat poptávku | |
| 030 LIP0166b |
C00855046
488000855046 |
BOTTOM HINGE PIN | Na dotaz | Zadat poptávku | |
| 031 LIP0166b |
C00855072 | FOOT AND SUPPORT | Na dotaz | Zadat poptávku | |
| 001 LIP0266 |
C00857109
488000857109 |
Ceiling Light Fixture | Na dotaz | Zadat poptávku | |
| 002 LIP0266 |
C00856029
488000856029 |
Light Heat Protection | Na dotaz | Zadat poptávku | |
| 003 LIP0266 |
C00857027
488000857027 |
PLUG FOR BUSH | Na dotaz | Zadat poptávku | |
| 005 LIP0266 |
C00857046 | THERMOSTAT BOX PW | Na dotaz | Zadat poptávku | |
| 006 LIP0266 |
C00859993
488000859993 |
LAMP HOUSING | Na dotaz | Zadat poptávku | |
| 007 LIP0266 |
C00857174
488000857174 |
Pouzdro lednice | 43 Kč
€ 1.80 |
||
| 008 LIP0266 |
C00857190
488000857190 |
FLEXIBLE COUPLING PW | Na dotaz | Zadat poptávku | |
| 010 LIP0266 |
C00857052
488000857052 |
LIGHTING BOX FIXTURE | Na dotaz | Zadat poptávku | |
| 011 LIP0266 |
C00851049
482000049300 |
LAMP SWITCH | Na dotaz | Zadat poptávku | |
| 012 LIP0266 |
C00857170
488000857170 |
PUSHER PW | Na dotaz | Zadat poptávku | |
| 013 LIP0266 |
C00850914 | REFRIGERATOR SHELF | Na dotaz | Zadat poptávku | |
| 014 LIP0266 |
C00855084 | bottle wire shelf | Na dotaz | Zadat poptávku | |
| 015 LIP0266 |
C00856069 | Chiller Tray Flap | Na dotaz | Zadat poptávku | |
| 015 LIP0266 |
C00857210 | Chiller Tray | Na dotaz | Zadat poptávku | |
| 016 LIP0266 |
C00850912 | GLASS TRAY | Na dotaz | Zadat poptávku | |
| 017 LIP0266 |
C00857225
482000052491 |
Vegetable Tray Divider | Na dotaz | Zadat poptávku | |
| 018 LIP0266 |
C00857206 | Vegetable Tray | Na dotaz | Zadat poptávku | |
| 018 LIP0266 |
C00516551
488000516551 |
Vegetable Tray | Na dotaz | Zadat poptávku | |
| 019 LIP0266 |
C00857208
482000048829 |
Vegetable Tray Front | Na dotaz | Zadat poptávku | |
| 019 LIP0266 |
C00856068 | PLATE | Na dotaz | Zadat poptávku | |
| 020 LIP0266 |
C00856067 | PLATE ARISTON | Na dotaz | Zadat poptávku | |
| 020 LIP0266 |
C00857249 | Drawer Front | Na dotaz | Zadat poptávku | |
| 021 LIP0266 |
C00857245 | FREEZER DRAWER 456X112 | Na dotaz | Zadat poptávku | |
| 022 LIP0266 |
C00857211
482000042280 |
Drawer Front | Na dotaz | Zadat poptávku | |
| 023 LIP0266 |
C00857048
488000857048 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 024 LIP0266 |
C00857049
488000857049 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 025 LIP0266 |
C00857074
488000857074 |
ICE SCRAPER | Na dotaz | Zadat poptávku | |
| 026 LIP0266 |
C00857102
488000857102 |
SHELF REST PIN PW | Na dotaz | Zadat poptávku | |
| 027 LIP0266 |
C00853015 | Evaporator assembly | Na dotaz | Zadat poptávku | |
| 028 LIP0266 |
C00857031 | CLAMP FOR PIPE | Na dotaz | Zadat poptávku | |
| 029 LIP0266 |
C00857085 | GUIDE OF DRAWER | Na dotaz | Zadat poptávku | |
| 030 LIP0266 |
C00857164 | CONDENSATE DRAIN PIPE PLUG | Na dotaz | Zadat poptávku | |
| 031 LIP0266 |
C00857119
488000857119 |
TUBE COVER | Na dotaz | Zadat poptávku | |
| 032 LIP0266 |
C00857094 | SHELF REST | Na dotaz | Zadat poptávku | |
| 033 LIP0266 |
C00857025
488000857025 |
BRUSH | Na dotaz | Zadat poptávku | |
| 034 LIP0266 |
C00855014 | SELF-TAPP. SCREW ТСВ 4,2x19,05 | Na dotaz | Zadat poptávku | |
| 001 LIP0366b |
C00855013
488000855013 |
SELF-TAPP. SCREW Т1/2Т 3,5x12,7 | Na dotaz | Zadat poptávku | |
| 002 LIP0366b |
C00855040 | TOP COLOURED | Na dotaz | Zadat poptávku | |
| 003 LIP0366b |
C00857182 | Closure Aid | Na dotaz | Zadat poptávku | |
| 004 LIP0366b |
C00857178 | REAR REST | Na dotaz | Zadat poptávku | |
| 005 LIP0366b |
C00853014 | CONDENSATOR | Na dotaz | Zadat poptávku | |
| 006 LIP0366b |
C00857013 | DAMPER | Na dotaz | Zadat poptávku | |
| 007 LIP0366b |
C00851048 | WIRING BOX ASSY | Na dotaz | Zadat poptávku | |
| 008 LIP0366b |
C00857068 | JUNCTION BOX COVER | Na dotaz | Zadat poptávku | |
| 010 LIP0366b |
C00855023
488000855023 |
PROCESS TUBE DIAM. 6 | Na dotaz | Zadat poptávku | |
| 011,016 LIP0366b |
C00851121
482000048792 |
COMPRESSOR TLES4F ASSEMBLY | Na dotaz | Zadat poptávku | |
| 012 LIP0366b |
C00855064 | CROSS PIECE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 013 LIP0366b |
C00855047
488000855047 |
ROLLER PIN | Na dotaz | Zadat poptávku | |
| 014 LIP0366b |
C00857146
488000857146 |
ROLLER | Na dotaz | Zadat poptávku | |
| 015 LIP0366b |
C00855058
488000855058 |
PLATE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 017 LIP0366b |
C00857114
488000857114 |
CONDENDSATE TRAY ASSEMBLY | Na dotaz | Zadat poptávku | |
| 018 LIP0366b |
C00855077
488000855077 |
FILTER WITH MOLECULAR SIEVES COMPLETE | Na dotaz | Zadat poptávku | |
| 020 LIP0366b |
C00855078 | WASHER 4.01.016 | Na dotaz | Zadat poptávku | |
| 021 LIP0366b |
C00857231
482000049134 |
PLUG | Na dotaz | Zadat poptávku | |
| 001 LIP0466b |
C00856078 | FALSE CONTROL PANEL | Na dotaz | Zadat poptávku | |
| 002 LIP0466b |
C00855011
488000855011 |
SELF-TAPP. SCREW 3,5x13 | Na dotaz | Zadat poptávku | |
| 003,014 LIP0466b |
C00857127 | GREY PLUG | Na dotaz | Zadat poptávku | |
| 004 LIP0466b |
C00257611 | RIGHT BIBB OF BOARD | Na dotaz | Zadat poptávku | |
| 005 LIP0466b |
C00257612 | LEFT BIBB OF BOARD | Na dotaz | Zadat poptávku | |
| 006 LIP0466b |
C00854009
488000854009 |
Magnet Gasket 1009x571 | Na dotaz | Zadat poptávku | |
| 006 LIP0466b |
C00853165 | DOOR OF REFRIGIRATOR FOAMED | Na dotaz | Zadat poptávku | |
| 007 LIP0466b |
C00857229
482000042501 |
HANGING RACK FOLDING COVER | Na dotaz | Zadat poptávku | |
| 009 LIP0466b |
C00857230 | BOX FOR BUTTER | Na dotaz | Zadat poptávku | |
| 010 LIP0466b |
C00857228
482000048831 |
HANGING RACK MIDDLE | Na dotaz | Zadat poptávku | |
| 011 LIP0466b |
C00857226 | Egg Holder | Na dotaz | Zadat poptávku | |
| 012 LIP0466b |
C00857213
482000049147 |
Bottle Holder PW | Na dotaz | Zadat poptávku | |
| 013 LIP0466b |
C00857227
482000048830 |
HANGING RACK BOTTOM | Na dotaz | Zadat poptávku | |
| 016 LIP0466b |
C00859994 | ice bucket assembly | Na dotaz | Zadat poptávku | |
| 018 LIP0466b |
C00857185 | Closure Aid | Na dotaz | Zadat poptávku | |
| 019 LIP0466b |
C00854010
488000854010 |
Magnet Gasket 654x571 | Na dotaz | Zadat poptávku | |
| 019 LIP0466b |
C00853163 | DOOR OF FREEZER FOAMD | Na dotaz | Zadat poptávku | |
| 020 LIP0466b |
C00857187 | Closure Aid | Na dotaz | Zadat poptávku | |
| 021 LIP0466b |
C00857189 | Closure Aid | Na dotaz | Zadat poptávku | |
| 022 LIP0466b |
C00857007 | DOOR HINGE BUSH | Na dotaz | Zadat poptávku | |
