WHIRLPOOL MD 112 YELLOW MICROWAVE OVENS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MD 112 YELLOW MICROWAVE OVENS WP |
| Kód 12NC: | 853842101510 |
| I.C. kód: | 853842101512 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 853842101511 |
Potřebujete servis? Jsme tady pro Vás

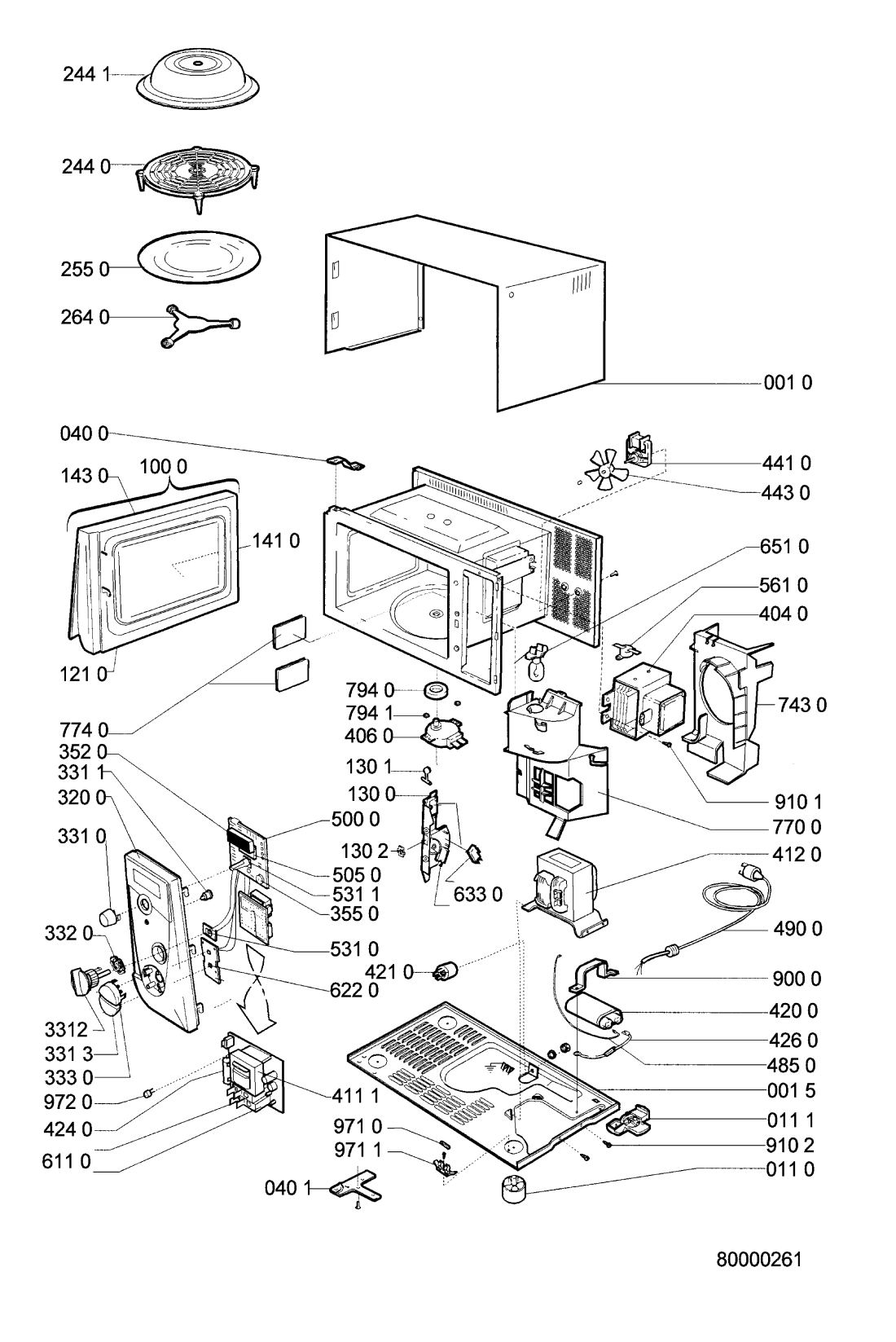

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR78673 |
C00586300
481944239314 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 001 5 WHR78673 |
C00337781
481946279937 |
Plate Bottom | Na dotaz | Zadat poptávku | |
| 011 0 WHR78673 |
C00340808
481946279423 |
noha | Na dotaz | Zadat poptávku | |
| 011 1 WHR78673 |
C00340780
481946279938 |
noha | Na dotaz | Zadat poptávku | |
| 040 0 WHR78673 |
C00339764
481941719514 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 1 WHR78673 |
C00339804
481941719248 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 100 0 WHR78673 |
C00586299
481944239313 |
Door cpl.. | Na dotaz | Zadat poptávku | |
| 121 0 WHR78673 |
C00339298
481945948654 |
ram dveri vnitrni | Na dotaz | Zadat poptávku | |
| 130 0 WHR78673 |
C00319704
481927138148 |
Unit,pushbutton | Na dotaz | Zadat poptávku | |
| 130 1 WHR78673 |
C00338407
481940478492 |
Lever for microswitch | Na dotaz | Zadat poptávku | |
| 130 2 WHR78673 |
C00343271
481946689172 |
Clip Slide block | Na dotaz | Zadat poptávku | |
| 141 0 WHR78673 |
C00586308
481945058455 |
sklo dveri vnejsi | Na dotaz | Zadat poptávku | |
| 143 0 WHR78673 |
C00586360
481945948886 |
Door frame outer. | Na dotaz | Zadat poptávku | |
| 244 0 WHR78673 |
C00336054
481946698731 |
Stand optional | Na dotaz | Zadat poptávku | |
| 244 1 WHR78673 |
C00556126
481945868284 |
KRYT TANIERA AVM421 N | Na dotaz | Zadat poptávku | |
| 255 0 WHR78673 |
C00337373
481946678218 |
Skleněný otočný talíř VIP 20; průměr 28 cm | 866 Kč
€ 35.50 |
||
| 264 0 WHR78673 |
C00556347
481953578166 |
NAHRADENE 481953578156 N | Na dotaz | Zadat poptávku | |
| 320 0 WHR78673 |
C00586327
481945359025 |
Panel control. | Na dotaz | Zadat poptávku | |
| 331 0 WHR78673 |
C00586270
481941129485 |
GOMBIK NASTAVOVACI YE PLAST. N | Na dotaz | Zadat poptávku | |
| 331 1 WHR78673 |
C00620879
481941029092 |
Button clock-set. | Na dotaz | Zadat poptávku | |
| 331 2 WHR78673 |
C00621032
481941258745 |
Button power. | Na dotaz | Zadat poptávku | |
| 331 3 WHR78673 |
C00620854
481941029091 |
Button stop. | Na dotaz | Zadat poptávku | |
| 332 0 WHR78673 |
C00586032
481949268818 |
SPONA | Na dotaz | Zadat poptávku | |
| 333 0 WHR78673 |
C00586260
481941029089 |
Button start. | Na dotaz | Zadat poptávku | |
| 352 0 WHR78673 |
C00342163
481913038081 |
Displej | Na dotaz | Zadat poptávku | |
| 355 0 WHR78673 |
C00343956
481928018034 |
Buzzer | Na dotaz | Zadat poptávku | |
| 404 0 WHR78673 |
C00311859
481913158019 |
Magnetron | Na dotaz | Zadat poptávku | |
| 406 0 WHR78673 |
C00341664
481936118292 |
Motor for rotary plate | Na dotaz | Zadat poptávku | |
| 411 1 WHR78673 |
C00335381
481914868085 |
Transformer | Na dotaz | Zadat poptávku | |
| 412 0 WHR78673 |
C00555692
481914578197 |
NAHRADENE 481214538026 N | Na dotaz | Zadat poptávku | |
| 420 0 WHR78673 |
C00317238
481912148016 |
Capacitor | Na dotaz | Zadat poptávku | |
| 421 0 WHR78673 |
C00340941
481912118197 |
Filtr odrušovací | Na dotaz | Zadat poptávku | |
| 424 0 WHR78673 |
C00336867
481911388001 |
Odpor 100 Ohm 7W | Na dotaz | Zadat poptávku | |
| 426 0 WHR78673 |
C00314565
481921838038 |
Diode HV | Na dotaz | Zadat poptávku | |
| 441 0 WHR78673 |
C00341665
481936118313 |
motor ventilatoru | 1 954 Kč
€ 80.10 |
||
| 443 0 WHR78673 |
C00498913
481931039025 |
vrtule ventilatoru | Na dotaz | Zadat poptávku | |
| 485 0 WHR78673 |
C00498928
481932028037 |
Cable HT | Na dotaz | Zadat poptávku | |
| 490 0 WHR78673 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 500 0 WHR78673 |
C00586226
481921478685 |
elektronika | Na dotaz | Zadat poptávku | |
| 505 0 WHR78673 |
C00338117
481920988069 |
Microprocessor | Na dotaz | Zadat poptávku | |
| 531 0 WHR78673 |
C00586209
481910148146 |
Potentiometer. | Na dotaz | Zadat poptávku | |
| 531 1 WHR78673 |
C00337600
481910148142 |
potenciometr | Na dotaz | Zadat poptávku | |
| 561 0 WHR78673 |
C00319764
481928248281 |
termostat 125 C | Na dotaz | Zadat poptávku | |
| 611 0 WHR78673 |
C00336891
481928068321 |
rele mikr.trouby | Na dotaz | Zadat poptávku | |
| 622 0 WHR78673 |
C00335715
481927618273 |
mikrospinac | Na dotaz | Zadat poptávku | |
| 633 0 WHR78673 |
C00338098
481927138145 |
mikrospinac | 428 Kč
€ 17.60 |
||
| 651 0 WHR78673 |
C00555686
481913488202 |
ZIAROVKA OSVETLENIA AVM421 N | Na dotaz | Zadat poptávku | |
| 743 0 WHR78673 |
C00499371
481946238841 |
NAVADZAA VZDUCHU AVM401 N | Na dotaz | Zadat poptávku | |
| 770 0 WHR78673 |
C00499370
481946238839 |
USMERNOVAA VZDUCHU AVM401 N | Na dotaz | Zadat poptávku | |
| 774 0 WHR78673 |
C00373304
481946279939 |
Krytka slídová | 368 Kč
€ 15.10 |
||
| 794 0 WHR78673 |
C00314548
481953268686 |
tesneni motorku | 189 Kč
€ 7.80 |
||
| 794 1 WHR78673 |
C00336584
481950218372 |
Screw for TT-Motor | Na dotaz | Zadat poptávku | |
| 900 0 WHR78673 |
C00339611
481940479272 |
Holder for capacitor | Na dotaz | Zadat poptávku | |
| 910 1 WHR78673 |
C00336721
481950218499 |
Screw | Na dotaz | Zadat poptávku | |
| 910 2 WHR78673 |
C00336585
481950238274 |
Screw for trafo M4x16St | Na dotaz | Zadat poptávku | |
| 971 0 WHR78673 |
C00311937
481925228125 |
Pojistka 10A L | 152 Kč
€ 6.20 |
||
| 971 1 WHR78673 |
C00332822
481925638016 |
Držák pojistky | Na dotaz | Zadat poptávku | |
| 972 0 WHR78673 |
C00317905
481925228132 |
pojistka 160 mA | 158 Kč
€ 6.50 |
||
