PHILIPS-WHIRLPOOL MKR 105 E
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MKR 105 E |
| Kód 12NC: | 855130117020 |
| I.C. kód: | 855130117021 |
| Značka: | PHILIPS-WHIRLPOOL |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 855130117020 |
Potřebujete servis? Jsme tady pro Vás

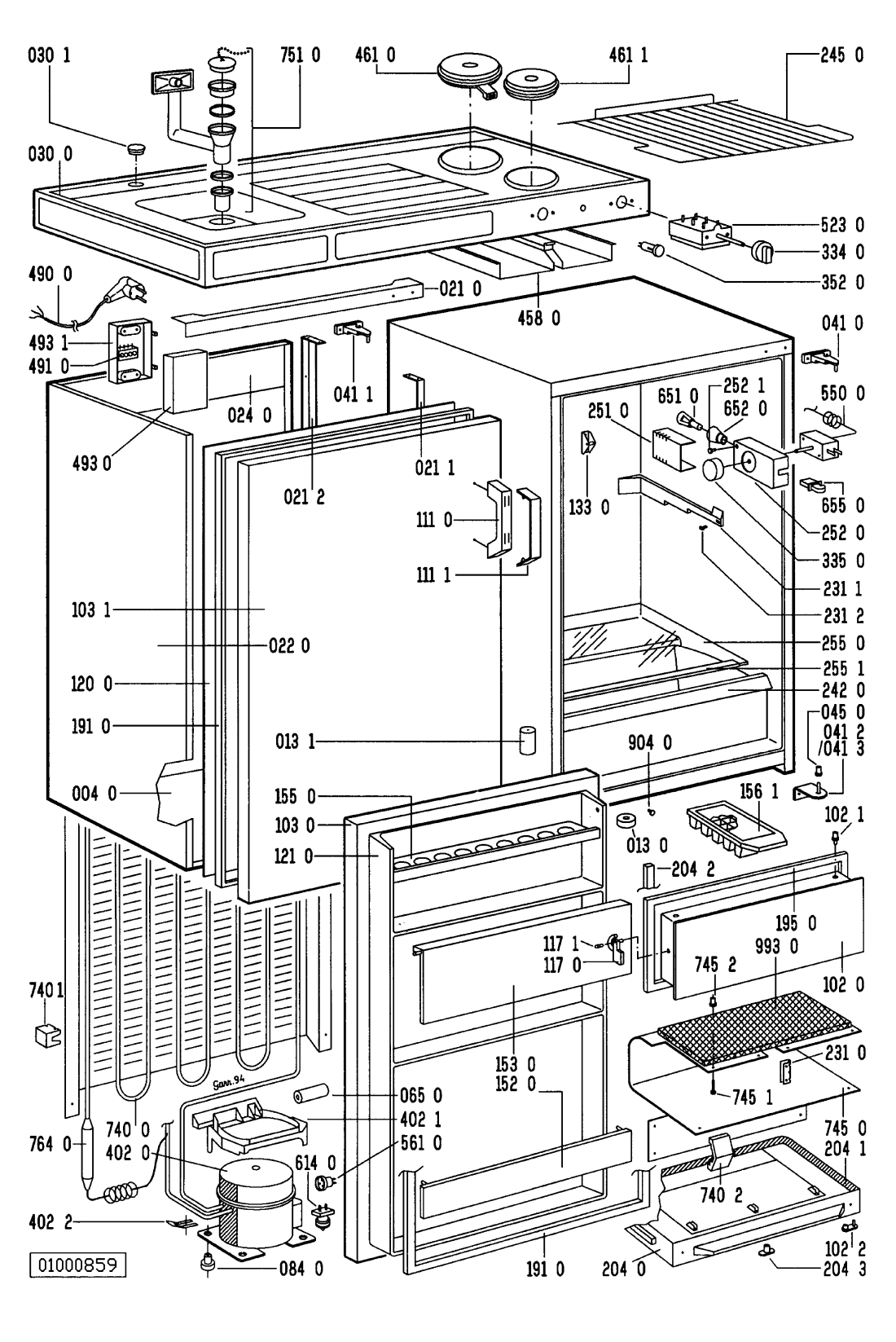

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR98449 |
C00746416
481246688024 |
Plate bottom | Na dotaz | Zadat poptávku | |
| 013 0 WHR98449 |
C00590161
481946278651 |
NČYKA N | Na dotaz | Zadat poptávku | |
| 013 1 WHR98449 |
C00746417
481250018056 |
Foot MK 100 | Na dotaz | Zadat poptávku | |
| 021 0 WHR98449 |
C00746418
481940478109 |
Batten | Na dotaz | Zadat poptávku | |
| 021 1 WHR98449 |
C00527582
481240478093 |
Angle iron front front | Na dotaz | Zadat poptávku | |
| 021 2 WHR98449 |
C00527583
481240478094 |
Angle iron rear rear | Na dotaz | Zadat poptávku | |
| 022 0 WHR98449 |
C00746419
481944228945 |
Panel side f. cupboard | Na dotaz | Zadat poptávku | |
| 024 0 WHR98449 |
C00746420
481245288001 |
Panel rear lower | Na dotaz | Zadat poptávku | |
| 030 0 WHR98449 |
C00746421
481246278312 |
Sink right | Na dotaz | Zadat poptávku | |
| 030 1 WHR98449 |
C00333072
481946248178 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 041 0 WHR98449 |
C00490562
481941719137 |
ZAVES (PRAV#) KOV. N | Na dotaz | Zadat poptávku | |
| 041 1 WHR98449 |
C00490563
481941719138 |
HORNŚ Z?VES (UAVŚ) KOV. *** N | Na dotaz | Zadat poptávku | |
| 041 2 WHR98449 |
C00590122
481941718765 |
Z?VES SPODNŚ PRAVŚ KOV | Na dotaz | Zadat poptávku | |
| 041 3 WHR98449 |
C00490552
481941718764 |
Z?VES SPODNŚ LAVŚ *** N | Na dotaz | Zadat poptávku | |
| 045 0 WHR98449 |
C00492685
481953278052 |
PUZDRO Z?VESU DVER? N | Na dotaz | Zadat poptávku | |
| 065 0 WHR98449 |
C00752963
481252918006 |
Rubber | Na dotaz | Zadat poptávku | |
| 084 0 WHR98449 |
C00585214
481953268362 |
DORAZ AMB590 N | Na dotaz | Zadat poptávku | |
| 102 0 WHR98449 |
C00753189
481244078216 |
Evapor.door | Na dotaz | Zadat poptávku | |
| 102 1 WHR98449 |
C00488919
481241718189 |
HINGE | Na dotaz | Zadat poptávku | |
| 102 2 WHR98449 |
C00492103
481253258003 |
Bolt | Na dotaz | Zadat poptávku | |
| 103 0 WHR98449 |
C00621109
481944228949 |
PREDN? AASU DVER? LAKOV-PRAV? *** N | Na dotaz | Zadat poptávku | |
| 103 1 WHR98449 |
C00486559
481944228951 |
predni cast dveri | Na dotaz | Zadat poptávku | |
| 111 0 WHR98449 |
C00753175
481249868038 |
Handle door | Na dotaz | Zadat poptávku | |
| 111 1 WHR98449 |
C00753176
481946049493 |
Insert | Na dotaz | Zadat poptávku | |
| 117 0 WHR98449 |
C00490853
481990304216 |
Hook Door right | Na dotaz | Zadat poptávku | |
| 117 1 WHR98449 |
C00752910
481253268026 |
Bushing | Na dotaz | Zadat poptávku | |
| 120 0 WHR98449 |
C00746422
481246278989 |
Door inner f. cupboard | Na dotaz | Zadat poptávku | |
| 121 0 WHR98449 |
C00590810
481944228952 |
VN?TRO DVER? CHLADNIAKY N | Na dotaz | Zadat poptávku | |
| 133 0 WHR98449 |
C00636433
481240118067 |
Door latch. | Na dotaz | Zadat poptávku | |
| 152 0 WHR98449 |
C00374315
481941878508 |
kryt police | Na dotaz | Zadat poptávku | |
| 153 0 WHR98449 |
C00746423
481946279751 |
Lid | Na dotaz | Zadat poptávku | |
| 155 0 WHR98449 |
C00491893
481246058289 |
DRZIAK VAJEC AMB590 N | Na dotaz | Zadat poptávku | |
| 156 1 WHR98449 |
C00287849
481941878977 |
miska na led | 500 Kč
€ 20.30 |
||
| 191 0 WHR98449 |
C00746425
481946669781 |
Gasket door | Na dotaz | Zadat poptávku | |
| 195 0 WHR98449 |
C00752911
481946669646 |
Gasket | Na dotaz | Zadat poptávku | |
| 204 0 WHR98449 |
C00590540
481241848034 |
Tray drip. | Na dotaz | Zadat poptávku | |
| 204 1 WHR98449 |
C00752913
481246668193 |
Gasket | Na dotaz | Zadat poptávku | |
| 204 2 WHR98449 |
C00752912
481990302033 |
Gasket | Na dotaz | Zadat poptávku | |
| 204 3 WHR98449 |
C00590728
481246248018 |
STOPPER. | Na dotaz | Zadat poptávku | |
| 231 0 WHR98449 |
C00752860
481240118038 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| 231 1 WHR98449 |
C00590760
481252928001 |
KRYT SN?MAAA N | Na dotaz | Zadat poptávku | |
| 231 2 WHR98449 |
C00590753
481250218009 |
CAP N | Na dotaz | Zadat poptávku | |
| 242 0 WHR98449 |
C00753177
481241848275 |
Crisper | Na dotaz | Zadat poptávku | |
| 245 0 WHR98449 |
C00752914
481945819636 |
Refrigerat.grid | Na dotaz | Zadat poptávku | |
| 251 0 WHR98449 |
C00492457
481946418123 |
LAMPHOLDER | Na dotaz | Zadat poptávku | |
| 252 0 WHR98449 |
C00486045
481246278055 |
KRYT TERMOSTATU N | Na dotaz | Zadat poptávku | |
| 252 1 WHR98449 |
C00555565
481246698354 |
NAHRADENE 481946698354 N | Na dotaz | Zadat poptávku | |
| 255 0 WHR98449 |
C00379141
481946678167 |
Glass shelf 437x260437x260 | Na dotaz | Zadat poptávku | |
| 255 1 WHR98449 |
C00486697
481946088776 |
Trim f. shelf plate glass | Na dotaz | Zadat poptávku | |
| 334 0 WHR98449 |
C00487469
481241358784 |
Knoflík | 356 Kč
€ 14.40 |
||
| 335 0 WHR98449 |
C00488209
481941358446 |
GOMB?K TERMOSTATU KOMPLET PLAST.*** | Na dotaz | Zadat poptávku | |
| 352 0 WHR98449 |
C00752957
481913448225 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 402 0 WHR98449 |
C00319816
481936038523 |
Compressor H12AF67 | Na dotaz | Zadat poptávku | |
| 402 1 WHR98449 |
C00335354
481941879181 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 402 2 WHR98449 |
C00333135
481946689405 |
PRICHYTKA | 53 Kč
€ 2.10 |
||
| 458 0 WHR98449 |
C00332939
481940449868 |
Crossbar cooking plates | Na dotaz | Zadat poptávku | |
| 461 0 WHR98449 |
C00746429
481925998188 |
Cooking plate | Na dotaz | Zadat poptávku | |
| 461 1 WHR98449 |
C00752958
481225928241 |
Cooking plate | Na dotaz | Zadat poptávku | |
| 490 0 WHR98449 |
C00493116
481232118041 |
ŠNÚRA PRIVODOVA | Na dotaz | Zadat poptávku | |
| 491 0 WHR98449 |
C00332850
481929068266 |
Terminal strip | Na dotaz | Zadat poptávku | |
| 493 0 WHR98449 |
C00333093
481946279145 |
Bonnet top | Na dotaz | Zadat poptávku | |
| 493 1 WHR98449 |
C00746431
481929068265 |
Connect.block bottom | Na dotaz | Zadat poptávku | |
| 523 0 WHR98449 |
C00327269
481227328013 |
spinac - 7 polohovy | 305 Kč
€ 12.40 |
||
| 550 0 WHR98449 |
C00620484
481927128427 |
TERMOSTAT BIMET | Na dotaz | Zadat poptávku | |
| 561 0 WHR98449 |
C00337118
481928228549 |
Protect motor AD24FU4 | Na dotaz | Zadat poptávku | |
| 614 0 WHR98449 |
C00336886
481928068313 |
Relay | Na dotaz | Zadat poptávku | |
| 651 0 WHR98449 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR98449 |
C00636112
481925518062 |
OBJ?MKA YIAROVKY *** N | Na dotaz | Zadat poptávku | |
| 655 0 WHR98449 |
C00491074
481227618017 |
SPINAC OSVETLENIA N | Na dotaz | Zadat poptávku | |
| 740 0 WHR98449 |
C00752858
481251148069 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR98449 |
C00590116
481940449864 |
Fastener condenser. | Na dotaz | Zadat poptávku | |
| 740 2 WHR98449 |
C00752964
481990302973 |
Gasket | Na dotaz | Zadat poptávku | |
| 745 0 WHR98449 |
C00590755
481251138039 |
EVAPORATOR. | Na dotaz | Zadat poptávku | |
| 745 1 WHR98449 |
C00636264
481949268468 |
CLIP,FIX. | Na dotaz | Zadat poptávku | |
| 745 2 WHR98449 |
C00590762
481253598034 |
Bushing. | Na dotaz | Zadat poptávku | |
| 751 0 WHR98449 |
C00332854
481931018251 |
sifon drezu | Na dotaz | Zadat poptávku | |
| 764 0 WHR98449 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 904 0 WHR98449 |
C00590734
481246278096 |
Stopper. | Na dotaz | Zadat poptávku | |
| 993 0 WHR98449 |
C00636327
481244098007 |
ICE PACK. | Na dotaz | Zadat poptávku | |
| 999 WHR98449 |
C00769566 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
