MT 263 WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—18:00
Pá 8:00—15:00
| Model: | 853826330291 |
| Značka: | WHIRLPOOL |
| Typ produktu: | unknown |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

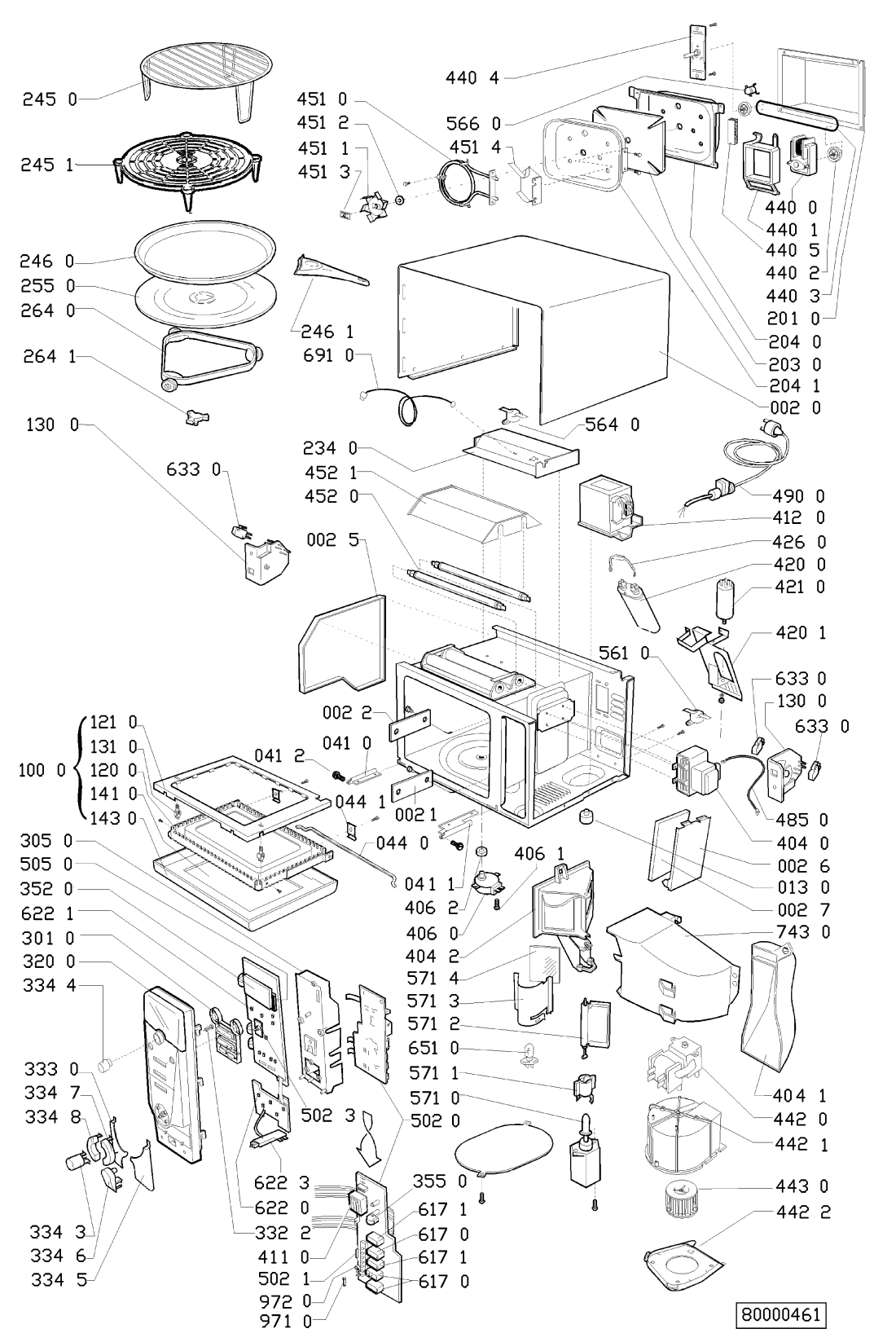

| Číslo | Model | Název | Cena CZK | Cena EUR | ||
|---|---|---|---|---|---|---|
| 002 0 | 481944238912 | skrin WH | 1 830 Kč | € 69,00 | ||
| 002 1 | 481946288031 | Plate mica large lower | Na dotaz | Na dotaz | Zadat poptávku | |
| 002 2 | 481944238914 | Krytka slídová - horní | 364 Kč | € 13,70 | ||
| 002 5 | 481932528031 | Insulator plate left | Na dotaz | Na dotaz | Zadat poptávku | |
| 002 6 | 481932528032 | Insulator plate right | Na dotaz | Na dotaz | Zadat poptávku | |
| 002 7 | 481932528033 | Insulator right | Na dotaz | Na dotaz | Zadat poptávku | |
| 013 0 | 481946279423 | noha | 204 Kč | € 7,70 | ||
| 041 0 | 481941719547 | Hinge left | Na dotaz | Na dotaz | Zadat poptávku | |
| 041 1 | 481941719548 | Hinge right | Na dotaz | Na dotaz | Zadat poptávku | |
| 041 2 | 481953598354 | Shaft | Na dotaz | Na dotaz | Zadat poptávku | |
| 044 0 | 481949248168 | Spring | Na dotaz | Na dotaz | Zadat poptávku | |
| 044 1 | 481940479353 | Support | Na dotaz | Na dotaz | Zadat poptávku | |
| 100 0 | 481944238973 | Door compl. WH | Na dotaz | Na dotaz | Zadat poptávku | |
| 120 0 | 481944238917 | dvere-vnitrni cast | 1 870 Kč | € 70,50 | ||
| 121 0 | 481945948832 | Frame door inner | Na dotaz | Na dotaz | Zadat poptávku | |
| 130 0 | 481940479332 | Unit,pushbutton for doorswitch | Na dotaz | Na dotaz | Zadat poptávku | |
| 131 0 | 481953538153 | kolik dver. spinacu | 83 Kč | € 3,20 | ||
| 131 1 | 481950218402 | Screw | Na dotaz | Na dotaz | Zadat poptávku | |
| 141 0 | 481945058203 | sklo dveri vnejsi | 1 491 Kč | € 56,30 | ||
| 143 0 | 481945948847 | Frame outer WH | Na dotaz | Na dotaz | Zadat poptávku | |
| 201 0 | 481944238974 | Panel rear | Na dotaz | Na dotaz | Zadat poptávku | |
| 203 0 | 481932528029 | Insulator | Na dotaz | Na dotaz | Zadat poptávku | |
| 204 0 | 481946258337 | Heat shield | Na dotaz | Na dotaz | Zadat poptávku | |
| 204 1 | 481941879676 | Separator set | Na dotaz | Na dotaz | Zadat poptávku | |
| 234 0 | 481932518122 | Plate protection | Na dotaz | Na dotaz | Zadat poptávku | |
| 245 0 | 481945868122 | Grid | Na dotaz | Na dotaz | Zadat poptávku | |
| 246 0 | 481931018538 | Crisp plate VIP27 | Na dotaz | Na dotaz | Zadat poptávku | |
| 246 1 | 481949878193 | Handle crisp | Na dotaz | Na dotaz | Zadat poptávku | |
| 255 0 | 481946678408 | Turntable | Na dotaz | Na dotaz | Zadat poptávku | |
| 264 0 | 481953579159 | Rail | Na dotaz | Na dotaz | Zadat poptávku | |
| 264 1 | 481946238828 | Guide for Crosspiece | Na dotaz | Na dotaz | Zadat poptávku | |
| 301 0 | 481927638355 | Switch,pushbut. WH | Na dotaz | Na dotaz | Zadat poptávku | |
| 305 0 | 481940479333 | Holder | Na dotaz | Na dotaz | Zadat poptávku | |
| 320 0 | 481945358785 | panel ovladaci WH | 1 104 Kč | € 41,60 | ||
| 332 2 | 481941028924 | Button clockset | Na dotaz | Na dotaz | Zadat poptávku | |
| 333 0 | 481941028932 | tlacitko start WH | 247 Kč | € 9,30 | ||
| 334 3 | 481941028929 | Button power | Na dotaz | Na dotaz | Zadat poptávku | |
| 334 4 | 481941258619 | knoflik | 232 Kč | € 8,80 | ||
| 334 5 | 481941028934 | tlacitko stop WH | 261 Kč | € 9,90 | ||
| 334 6 | 481941028936 | Button tt-stop WH | Na dotaz | Na dotaz | Zadat poptávku | |
| 334 7 | 481941028927 | Button plus | Na dotaz | Na dotaz | Zadat poptávku | |
| 334 8 | 481941028925 | Button minus | Na dotaz | Na dotaz | Zadat poptávku | |
| 352 0 | 481913038083 | Display | Na dotaz | Na dotaz | Zadat poptávku | |
| 355 0 | 481928018029 | Buzzer | Na dotaz | Na dotaz | Zadat poptávku | |
| 404 0 | 481913158019 | Magnetron | 2 287 Kč | € 86,30 | ||
| 404 1 | 481946238875 | Conveyor magnetron | Na dotaz | Na dotaz | Zadat poptávku | |
| 404 2 | 481946238874 | Air guide cavity | Na dotaz | Na dotaz | Zadat poptávku | |
| 406 0 | 481936118381 | Motor TT | Na dotaz | Na dotaz | Zadat poptávku | |
| 406 1 | 481950218372 | Screw for TT-Motor | Na dotaz | Na dotaz | Zadat poptávku | |
| 406 2 | 481953268686 | tesneni motorku | 137 Kč | € 5,20 | ||
| 411 0 | 481914868081 | Transformer | Na dotaz | Na dotaz | Zadat poptávku | |
| 412 0 | 481914578207 | Transformer,HT 230V | Na dotaz | Na dotaz | Zadat poptávku | |
| 420 0 | 481912138012 | Capacitor HT 240V | Na dotaz | Na dotaz | Zadat poptávku | |
| 420 1 | 481940478839 | Bracket capacitor | Na dotaz | Na dotaz | Zadat poptávku | |
| 421 0 | 481912118162 | Filter,mains KPL3009 16A 10N GW850 ISKRA | Na dotaz | Na dotaz | Zadat poptávku | |
| 426 0 | 481912118265 | Diode HV 12KV/500MA | Na dotaz | Na dotaz | Zadat poptávku | |
| 440 0 | 481936118439 | motor ventilatoru | 1 200 Kč | € 45,30 | ||
| 440 1 | 481936118438 | Holder motor | Na dotaz | Na dotaz | Zadat poptávku | |
| 440 2 | 481935818151 | remenice | 457 Kč | € 17,30 | ||
| 440 3 | 481952238025 | remen | 494 Kč | € 18,60 | ||
| 440 4 | 481952018035 | lozisko s nosnikem | 1 181 Kč | € 44,60 | ||
| 440 5 | 481952918121 | Shock absorber | Na dotaz | Na dotaz | Zadat poptávku | |
| 442 0 | 481936118361 | motor ventilatoru | 1 634 Kč | € 61,60 | ||
| 442 1 | 481946238876 | skrinka ventilatoru | 615 Kč | € 23,20 | ||
| 442 2 | 481946238877 | kryt ventilatoru | 97 Kč | € 3,70 | ||
| 443 0 | 481951528224 | vrtule ventilatoru | 698 Kč | € 26,30 | ||
| 451 0 | 481925928908 | topeni horkovzduchu | 1 191 Kč | € 44,90 | ||
| 451 1 | 481951528282 | Fan wheel | Na dotaz | Na dotaz | Zadat poptávku | |
| 451 2 | 481953228256 | podlozka mot.ventil. | 133 Kč | € 5,00 | ||
| 451 3 | 481949268802 | Spring | Na dotaz | Na dotaz | Zadat poptávku | |
| 451 4 | 481946258336 | OCHRANA | 252 Kč | € 9,50 | ||
| 452 0 | 481925998557 | Infraredelement quartz | Na dotaz | Na dotaz | Zadat poptávku | |
| 452 1 | 481932518123 | Reflector | Na dotaz | Na dotaz | Zadat poptávku | |
| 485 0 | 481932028025 | Cable HT | Na dotaz | Na dotaz | Zadat poptávku | |
| 490 0 | 481932118231 | Cable mains complete with clamp | Na dotaz | Na dotaz | Zadat poptávku | |
| 502 0 | 481921478611 | elektronika | 3 430 Kč | € 129,40 | ||
| 502 1 | 481911388001 | Odpor 100 Ohm 7W | 111 Kč | € 4,20 | ||
| 502 3 | 481910148142 | potenciometr | 223 Kč | € 8,40 | ||
| 505 0 | 481920988058 | Microprocessor | Na dotaz | Na dotaz | Zadat poptávku | |
| 561 0 | 481928248281 | termostat 125 C | 758 Kč | € 28,60 | ||
| 564 0 | 481928248275 | Termostat 165°C | 817 Kč | € 30,80 | ||
| 566 0 | 481928248247 | termostat 145 C | 538 Kč | € 20,30 | ||
| 571 0 | 481936058589 | motorek klapky horkovzduchu | 601 Kč | € 22,70 | ||
| 571 1 | 481940479354 | Holder | Na dotaz | Na dotaz | Zadat poptávku | |
| 571 2 | 481944278326 | Flap | Na dotaz | Na dotaz | Zadat poptávku | |
| 571 3 | 481946258335 | ochrana zarovky | 305 Kč | € 11,50 | ||
| 571 4 | 481945058233 | Glass lamp | Na dotaz | Na dotaz | Zadat poptávku | |
| 617 0 | 481928068363 | rele | 290 Kč | € 11,00 | ||
| 617 1 | 481928068321 | rele mikr.trouby | 310 Kč | € 11,70 | ||
| 622 0 | 481927618349 | Switch VKS | Na dotaz | Na dotaz | Zadat poptávku | |
| 622 1 | 481927618273 | mikrospinac | 97 Kč | € 3,70 | ||
| 622 3 | 481927138256 | Switch | Na dotaz | Na dotaz | Zadat poptávku | |
| 633 0 | 481927618336 | Mikrospínač | 452 Kč | € 17,10 | ||
| 651 0 | 481913428029 | Lamp cavity 240V - 25W | Na dotaz | Na dotaz | Zadat poptávku | |
| 691 0 | 481921078081 | senzor teploty PTM | 760 Kč | € 28,70 | ||
| 743 0 | 481944278327 | Conveyor | Na dotaz | Na dotaz | Zadat poptávku | |
| 971 0 | 481925228125 | Pojistka 10A L | 122 Kč | € 4,60 | ||
| 972 0 | 481925228121 | Fuse T100mA | Na dotaz | Na dotaz | Zadat poptávku | |
