WHIRLPOOL MT 764/2 IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MT 764/2 IX |
| Kód 12NC: | 853876415760 |
| I.C. kód: | 853876415761 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | Q0921620001 |
Potřebujete servis? Jsme tady pro Vás

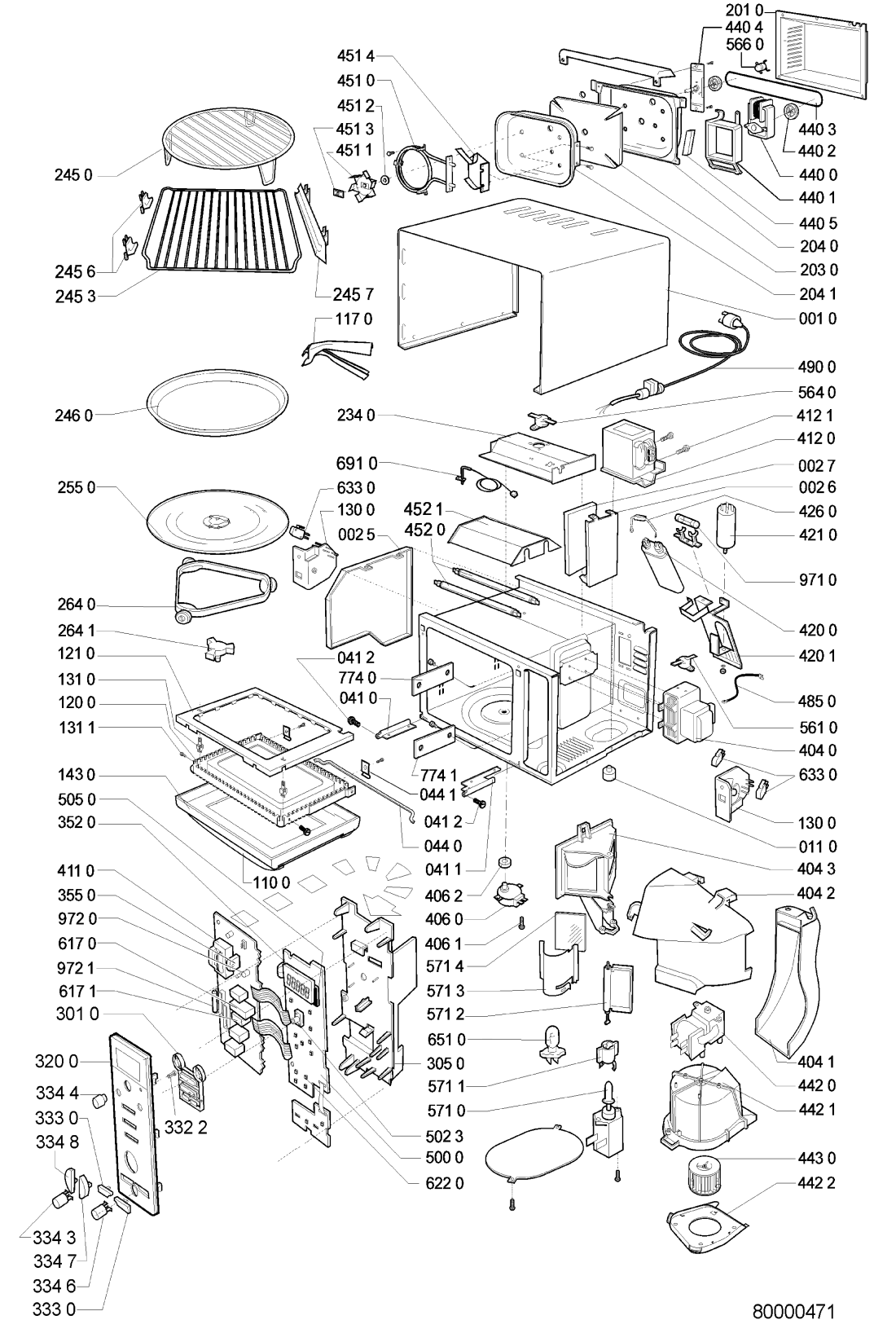

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR04602 |
C00343921
481244269198 |
Cabinet AL | Na dotaz | Zadat poptávku | |
| 002 5 WHR04602 |
C00338682 | Insulator plate left | Na dotaz | Zadat poptávku | |
| 002 6 WHR04602 |
C00338681
481932528032 |
Insulator plate right | Na dotaz | Zadat poptávku | |
| 002 7 WHR04602 |
C00338680 | Insulator right; V2000 | Na dotaz | Zadat poptávku | |
| 010 0 WHR04602 |
C00341644 | Mounting frame IN | Na dotaz | Zadat poptávku | |
| 011 0 WHR04602 |
C00340808
481946279423 |
noha | Na dotaz | Zadat poptávku | |
| 041 0 WHR04602 |
C00339819
481941719547 |
Hinge left | Na dotaz | Zadat poptávku | |
| 041 1 WHR04602 |
C00339782
481941719548 |
Hinge right | Na dotaz | Zadat poptávku | |
| 041 2 WHR04602 |
C00336447
481253598059 |
SHAFT | 393 Kč
€ 17.30 |
||
| 044 0 WHR04602 |
C00336124
481949268886 |
Spring | Na dotaz | Zadat poptávku | |
| 044 1 WHR04602 |
C00335900
481940479353 |
Support | Na dotaz | Zadat poptávku | |
| 110 0 WHR04602 |
C00340028 | Handle INOX | Na dotaz | Zadat poptávku | |
| 110 1 WHR04602 |
C00339654
481940479556 |
Holder (not shown) | Na dotaz | Zadat poptávku | |
| 117 0 WHR04602 |
C00318974
481949878366 |
Handle crisp plate | Na dotaz | Zadat poptávku | |
| 120 0 WHR04602 |
C00339003 | Door inner metal part | Na dotaz | Zadat poptávku | |
| 121 0 WHR04602 |
C00339294
481945948932 |
ram dveri vnitrni | 2 040 Kč
€ 89.70 |
||
| 130 0 WHR04602 |
C00337339
481931039783 |
spinac bezp.sestava | 492 Kč
€ 21.60 |
||
| 131 0 WHR04602 |
C00338334 | Lock door | Na dotaz | Zadat poptávku | |
| 131 1 WHR04602 |
C00336580
481950218403 |
Screw locking hook | Na dotaz | Zadat poptávku | |
| 143 0 WHR04602 |
C00339287 | Door frame outer inox | Na dotaz | Zadat poptávku | |
| 201 0 WHR04602 |
C00341558 | Panel rear | Na dotaz | Zadat poptávku | |
| 203 0 WHR04602 |
C00338690 | Insulator | Na dotaz | Zadat poptávku | |
| 204 0 WHR04602 |
C00339961 | Heat shield | Na dotaz | Zadat poptávku | |
| 204 1 WHR04602 |
C00336503
481941879676 |
Separator set | Na dotaz | Zadat poptávku | |
| 234 0 WHR04602 |
C00337762
481932518122 |
Plate protection | Na dotaz | Zadat poptávku | |
| 245 0 WHR04602 |
C00340288 | Grid | Na dotaz | Zadat poptávku | |
| 245 3 WHR04602 |
C00340233 | Grill grid Talent2 | Na dotaz | Zadat poptávku | |
| 245 6 WHR04602 |
C00340164
481240478545 |
Držák roštu | Na dotaz | Zadat poptávku | |
| 245 7 WHR04602 |
C00340165
481240478544 |
Držák | Na dotaz | Zadat poptávku | |
| 246 0 WHR04602 |
C00335349
481941879915 |
Tray crispcrisp | Na dotaz | Zadat poptávku | |
| 255 0 WHR04602 |
C00320106
481946678405 |
turnable glass | Na dotaz | Zadat poptávku | |
| 264 0 WHR04602 |
C00336955
481953579159 |
Rail | Na dotaz | Zadat poptávku | |
| 264 1 WHR04602 |
C00312137
481946238767 |
Crosspiece | Na dotaz | Zadat poptávku | |
| 301 0 WHR04602 |
C00335684
481227638063 |
Switch,pushbut. | Na dotaz | Zadat poptávku | |
| 305 0 WHR04602 |
C00339685 | Holder | Na dotaz | Zadat poptávku | |
| 320 0 WHR04602 |
C00341941 | Panel control Inox+AL | Na dotaz | Zadat poptávku | |
| 332 2 WHR04602 |
C00344026 | Button clock-set | Na dotaz | Zadat poptávku | |
| 333 0 WHR04602 |
C00343981
481241028663 |
tlacitko | 1 407 Kč
€ 61.80 |
||
| 334 3 WHR04602 |
C00338515 | Knob defrost | Na dotaz | Zadat poptávku | |
| 334 4 WHR04602 |
C00341902
481941129817 |
Knoflík | 373 Kč
€ 16.40 |
||
| 334 6 WHR04602 |
C00343975
481941029171 |
Button tt-stop | Na dotaz | Zadat poptávku | |
| 334 7 WHR04602 |
C00343994
481241228022 |
Button plus BL | Na dotaz | Zadat poptávku | |
| 334 8 WHR04602 |
C00344016
481241228019 |
Button minus BL | Na dotaz | Zadat poptávku | |
| 352 0 WHR04602 |
C00342162 | Display | Na dotaz | Zadat poptávku | |
| 355 0 WHR04602 |
C00343955
481928018029 |
Buzzer | Na dotaz | Zadat poptávku | |
| 404 0 WHR04602 |
C00311859
481913158019 |
Magnetron | Na dotaz | Zadat poptávku | |
| 404 1 WHR04602 |
C00343124
481946238875 |
Conveyor magnetron | Na dotaz | Zadat poptávku | |
| 404 2 WHR04602 |
C00343135 | Conveyor | Na dotaz | Zadat poptávku | |
| 404 3 WHR04602 |
C00344584
481946238874 |
Air guide cavity | Na dotaz | Zadat poptávku | |
| 406 0 WHR04602 |
C00341656
481936118381 |
Motor TT | Na dotaz | Zadat poptávku | |
| 406 1 WHR04602 |
C00336584
481950218372 |
Screw for TT-Motor | Na dotaz | Zadat poptávku | |
| 406 2 WHR04602 |
C00314548
481953268686 |
tesneni motorku | 305 Kč
€ 13.40 |
||
| 411 0 WHR04602 |
C00335382
481914868081 |
Transformer | Na dotaz | Zadat poptávku | |
| 412 0 WHR04602 |
C00313724
481214538034 |
TRANSFORMATOR VN | 4 079 Kč
€ 179.30 |
||
| 412 1 WHR04602 |
C00336585
481950238274 |
Screw for trafo M4x16St | Na dotaz | Zadat poptávku | |
| 420 0 WHR04602 |
C00342799
481912118299 |
kondenzator VN 1.15 | Na dotaz | Zadat poptávku | |
| 420 1 WHR04602 |
C00344204
481940478839 |
Bracket capacitorCAP. HOLDER VIP 34 | Na dotaz | Zadat poptávku | |
| 421 0 WHR04602 |
C00320874
481912118162 |
Filter,mains KPL3009 16A 10N GW850 ISKRA | Na dotaz | Zadat poptávku | |
| 426 0 WHR04602 |
C00312562
481912118265 |
Diode HV 12KV/500MA | Na dotaz | Zadat poptávku | |
| 440 0 WHR04602 |
C00317495
481936118439 |
motor ventilatoru | 2 449 Kč
€ 107.60 |
||
| 440 1 WHR04602 |
C00339569
481936118438 |
Holder motor | Na dotaz | Zadat poptávku | |
| 440 2 WHR04602 |
C00315573
481935818151 |
remenice | 784 Kč
€ 34.50 |
||
| 440 3 WHR04602 |
C00344357 | Belt drive | Na dotaz | Zadat poptávku | |
| 440 4 WHR04602 |
C00344530
481952018035 |
Ložisko s nosnikem | Na dotaz | Zadat poptávku | |
| 440 5 WHR04602 |
C00336356
481952918121 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 442 0 WHR04602 |
C00316775
481936118361 |
motor ventilatoru | 2 355 Kč
€ 103.50 |
||
| 442 1 WHR04602 |
C00342824
481946238876 |
skrinka ventilatoru | 468 Kč
€ 20.60 |
||
| 442 2 WHR04602 |
C00338941
481946238877 |
kryt ventilatoru | 221 Kč
€ 9.70 |
||
| 443 0 WHR04602 |
C00317388
481951528224 |
vrtule ventilatoru | 1 082 Kč
€ 47.60 |
||
| 451 0 WHR04602 |
C00339904
481925928908 |
topeni horkovzduchu | Na dotaz | Zadat poptávku | |
| 451 1 WHR04602 |
C00318172
481951528223 |
Vrtule ventilátoru horkovzduchu | 1 487 Kč
€ 65.40 |
||
| 451 2 WHR04602 |
C00333312
481953228256 |
podlozka mot.ventil. | 271 Kč
€ 11.90 |
||
| 451 3 WHR04602 |
C00333189
481949268802 |
Spring | Na dotaz | Zadat poptávku | |
| 451 4 WHR04602 |
C00340191 | Guard heating element | Na dotaz | Zadat poptávku | |
| 452 0 WHR04602 |
C00339122
481225998413 |
Infraredelement GB | Na dotaz | Zadat poptávku | |
| 452 1 WHR04602 |
C00336915
481932518123 |
Reflector | Na dotaz | Zadat poptávku | |
| 485 0 WHR04602 |
C00343754
481932028025 |
Cable HT | Na dotaz | Zadat poptávku | |
| 490 0 WHR04602 |
C00342886 | Cable mains GB | Na dotaz | Zadat poptávku | |
| 500 0 WHR04602 |
C00343183 | Control unit | Na dotaz | Zadat poptávku | |
| 502 3 WHR04602 |
C00337600
481910148142 |
potenciometr | Na dotaz | Zadat poptávku | |
| 505 0 WHR04602 |
C00338143 | Microprocessor | Na dotaz | Zadat poptávku | |
| 561 0 WHR04602 |
C00319764
481928248281 |
termostat 125 C | 1 064 Kč
€ 46.80 |
||
| 564 0 WHR04602 |
C00335518
481928248275 |
Termostat 165°C | 1 306 Kč
€ 57.40 |
||
| 566 0 WHR04602 |
C00335522
481928248247 |
termostat 145 C | 1 214 Kč
€ 53.40 |
||
| 571 0 WHR04602 |
C00314701
481936058589 |
motorek klapky horkovzduchu | 1 004 Kč
€ 44.10 |
||
| 571 1 WHR04602 |
C00339682
481940479354 |
Holder | Na dotaz | Zadat poptávku | |
| 571 2 WHR04602 |
C00340872
481944278326 |
Flap | Na dotaz | Zadat poptávku | |
| 571 3 WHR04602 |
C00333084
481946258335 |
ochrana zarovky | 547 Kč
€ 24.00 |
||
| 571 4 WHR04602 |
C00340376
481945058233 |
Glass lamp | Na dotaz | Zadat poptávku | |
| 617 0 WHR04602 |
C00336878
481928068363 |
rele | 573 Kč
€ 25.20 |
||
| 617 1 WHR04602 |
C00336891
481928068321 |
rele mikr.trouby | 339 Kč
€ 14.90 |
||
| 622 0 WHR04602 |
C00335715
481927618273 |
mikrospinac | Na dotaz | Zadat poptávku | |
| 630 0 WHR04602 |
C00312719
481927618336 |
Mikrospínač - náhrada 480120101578 | 688 Kč
€ 30.20 |
||
| 651 0 WHR04602 |
C00341817
481913488199 |
Lamp oven | Na dotaz | Zadat poptávku | |
| 691 0 WHR04602 |
C00336520
481921078081 |
senzor teploty PTM | 1 158 Kč
€ 50.90 |
||
| 774 0 WHR04602 |
C00319998
481944238914 |
Krytka slídová - horní | 679 Kč
€ 29.80 |
||
| 774 1 WHR04602 |
C00315288
481946288031 |
Plate mica large lower 136.6x45mm | Na dotaz | Zadat poptávku | |
| 971 0 WHR04602 |
C00311937
481925228125 |
Pojistka 10A L | 256 Kč
€ 11.30 |
||
| 972 0 WHR04602 |
C00317905
481925228132 |
pojistka 160 mA | 291 Kč
€ 12.80 |
||
| 972 1 WHR04602 |
C00336867
481911388001 |
Odpor 100 Ohm 7W | 235 Kč
€ 10.30 |
||
| 999 WHR04602 |
C00360164 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04602 |
C00360165 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04602 |
C00360166 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04602 |
C00360167 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04602 |
C00360168 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
