IKEA OBI 101 W 945 268 10
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | OBI 101 W 945 268 10 |
| Kód 12NC: | 854144701000 |
| Značka: | IKEA |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

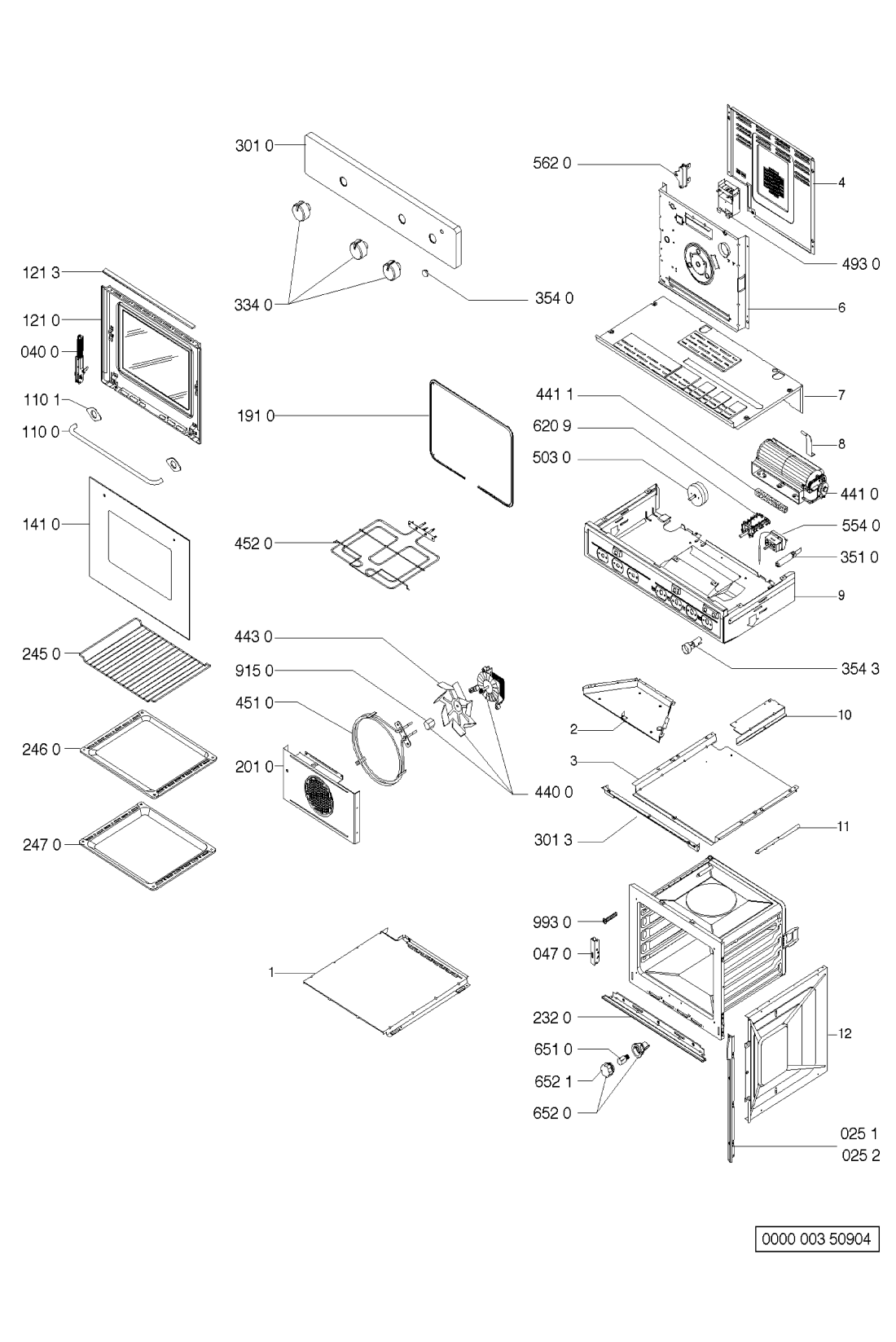

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 025 1 WHR111662 |
C00337481
481946078448 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 2 WHR111662 |
C00335196
481946078449 |
Trim side left | Na dotaz | Zadat poptávku | |
| 040 0 WHR111662 |
C00312950
481941719457 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR111662 |
C00313848
481946689197 |
Hinge running mechanism | Na dotaz | Zadat poptávku | |
| 110 0 WHR111662 |
C00333194
481949858534 |
Handle door | Na dotaz | Zadat poptávku | |
| 110 1 WHR111662 |
C00333076
481946248456 |
Rubber ringring | Na dotaz | Zadat poptávku | |
| 121 0 WHR111662 |
C00338915
481944238091 |
Innerdoor,oven + glass | Na dotaz | Zadat poptávku | |
| 121 3 WHR111662 |
C00315286
481946089431 |
Lišta vnitřní části dveří | 421 Kč
€ 18.50 |
||
| 141 0 WHR111662 |
C00378086
481945058311 |
Oven glass | Na dotaz | Zadat poptávku | |
| 191 0 WHR111662 |
C00311333
481946818109 |
Těsnění dveří trouby 1045mm | 391 Kč
€ 17.20 |
||
| 201 0 WHR111662 |
C00341560
481944238092 |
Panel rear | Na dotaz | Zadat poptávku | |
| 232 0 WHR111662 |
C00335269
481946089445 |
Trim, lower | Na dotaz | Zadat poptávku | |
| 245 0 WHR111662 |
C00333048
481945819991 |
Oven grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR111662 |
C00344538
481941838366 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR111662 |
C00382943
481941838367 |
Fat pan | Na dotaz | Zadat poptávku | |
| 301 0 WHR111662 |
C00587892
481945358953 |
CONTROL PANEL. | Na dotaz | Zadat poptávku | |
| 301 3 WHR111662 |
C00335219
481946078628 |
Trim lower | Na dotaz | Zadat poptávku | |
| 334 0 WHR111662 |
C00373363
481941129481 |
knoflik ovladaci WH | 175 Kč
€ 7.70 |
||
| 351 0 WHR111662 |
C00497246
481213448021 |
ZIAROVKA SIGN?LNA AKP724 *** N | Na dotaz | Zadat poptávku | |
| 354 0 WHR111662 |
C00314833
481946279749 |
kryt signalky cerv. | 298 Kč
€ 13.10 |
||
| 354 3 WHR111662 |
C00340161
481946238759 |
Guide pilot lamp | Na dotaz | Zadat poptávku | |
| 440 0 WHR111662 |
C00313957
481936178242 |
Motor | Na dotaz | Zadat poptávku | |
| 441 0 WHR111662 |
C00341675
481936118427 |
MOTOR COOLING FAN | Na dotaz | Zadat poptávku | |
| 441 1 WHR111662 |
C00318948
481946818099 |
tesneni ventilatoru | 401 Kč
€ 17.60 |
||
| 443 0 WHR111662 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR111662 |
C00555736
481925928822 |
NAHRADENE 481225998406 | Na dotaz | Zadat poptávku | |
| 452 0 WHR111662 |
C00490336
481925928936 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 493 0 WHR111662 |
C00335587
481929068363 |
Terminal block | Na dotaz | Zadat poptávku | |
| 503 0 WHR111662 |
C00313281
481934948019 |
programator - minutka | 1 049 Kč
€ 46.10 |
||
| 554 0 WHR111662 |
C00313893
481928228603 |
Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR111662 |
C00335569
481925228078 |
pojistka tepelna 167 | 993 Kč
€ 43.60 |
||
| 620 9 WHR111662 |
C00316131
481927328401 |
spinac vackovy | 2 118 Kč
€ 93.10 |
||
| 651 0 WHR111662 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR111662 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 652 1 WHR111662 |
C00315126
481945069844 |
Lamp screen rear | Na dotaz | Zadat poptávku | |
| 915 0 WHR111662 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 993 0 WHR111662 |
C00341627
481931039087 |
Mounting kit | Na dotaz | Zadat poptávku | |
