IKEA 50065616 OBI B10 W INTEGRATABLE OVENSIK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 50065616 OBI B10 W INTEGRATABLE OVENSIK |
| Kód 12NC: | 857915415000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857915415001, 857915415002 |
Potřebujete servis? Jsme tady pro Vás

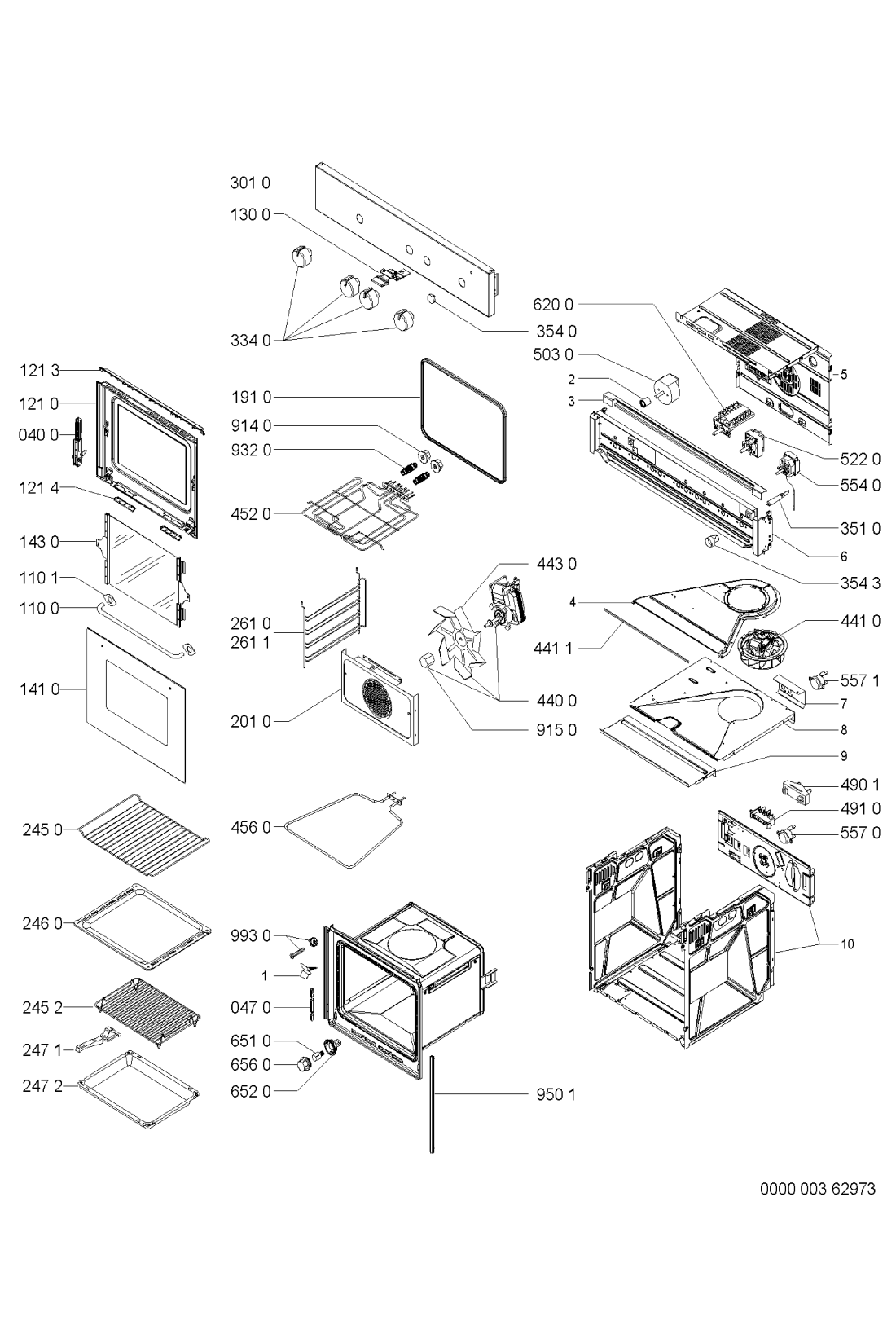

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 040 0 WHR75413 |
C00314413
481241719148 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR75413 |
C00315492
481241719137 |
MECHANISMUS ZAVESU | 978 Kč
€ 43.00 |
||
| 110 0 WHR75413 |
C00340088
481949878066 |
rukojet dveri WH | 2 438 Kč
€ 107.20 |
||
| 110 1 WHR75413 |
C00333076
481946248456 |
Rubber ringring | Na dotaz | Zadat poptávku | |
| 121 0 WHR75413 |
C00316204
481244039326 |
vnitrek dveri | 5 945 Kč
€ 261.30 |
||
| 121 3 WHR75413 |
C00337532
481246078913 |
Profile | Na dotaz | Zadat poptávku | |
| 121 4 WHR75413 |
C00342200
481246098069 |
Deflector | Na dotaz | Zadat poptávku | |
| 130 0 WHR75413 |
C00338995
481241728088 |
pojistka dveri UZ NEBUDE !!!! | Na dotaz | Zadat poptávku | |
| 141 0 WHR75413 |
C00337872
481245058779 |
sklo dveri vnejsi WH | 1 818 Kč
€ 79.90 |
||
| 143 0 WHR75413 |
C00498086
481245078018 |
SKLENENY KRYT CHLANICKY | Na dotaz | Zadat poptávku | |
| 191 0 WHR75413 |
C00315210
481246688684 |
Gasket | Na dotaz | Zadat poptávku | |
| 201 0 WHR75413 |
C00341526
481244269022 |
stena trouby zadni | Na dotaz | Zadat poptávku | |
| 245 0 WHR75413 |
C00333048
481945819991 |
Oven grid | Na dotaz | Zadat poptávku | |
| 245 2 WHR75413 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR75413 |
C00344538
481941838366 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 1 WHR75413 |
C00317859
481939548003 |
Handle grid | 541 Kč
€ 23.80 |
||
| 247 2 WHR75413 |
C00327785
481241838056 |
FAT PAN | Na dotaz | Zadat poptávku | |
| 261 0 WHR75413 |
C00338733
481945868266 |
mrizka leva NÁHRADA 481010412913 | Na dotaz | Zadat poptávku | |
| 261 1 WHR75413 |
C00338730
481945868265 |
mrizka prava | Na dotaz | Zadat poptávku | |
| 301 0 WHR75413 |
C00604427
481245248713 |
Panel control. | Na dotaz | Zadat poptávku | |
| 334 0 WHR75413 |
C00373363
481941129481 |
knoflik ovladaci WH | 175 Kč
€ 7.70 |
||
| 351 0 WHR75413 |
C00341479
481913448424 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR75413 |
C00314833
481946279749 |
kryt signalky cerv. | 298 Kč
€ 13.10 |
||
| 354 3 WHR75413 |
C00340181
481240438607 |
signalka | Na dotaz | Zadat poptávku | |
| 440 0 WHR75413 |
C00315311
481236118399 |
Motor,fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR75413 |
C00320423
481236118393 |
Ventilatorcooling | Na dotaz | Zadat poptávku | |
| 441 1 WHR75413 |
C00333162
481946818387 |
tesneni-náhrada C00522524 | Na dotaz | Zadat poptávku | |
| 443 0 WHR75413 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR75413 |
C00311864
481925928937 |
Topné těleso trouby – horní + dual grill trouby Bauknecht, Ignis | 981 Kč
€ 43.10 |
||
| 456 0 WHR75413 |
C00313096
481225998432 |
Heating element lower 1000W | Na dotaz | Zadat poptávku | |
| 490 1 WHR75413 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 491 0 WHR75413 |
C00318185
481229068273 |
svorkovnice | 201 Kč
€ 8.80 |
||
| 503 0 WHR75413 |
C00335445
481928218675 |
Timer | Na dotaz | Zadat poptávku | |
| 522 0 WHR75413 |
C00336896
481927328321 |
REGULATOR | Na dotaz | Zadat poptávku | |
| 554 0 WHR75413 |
C00312087
481228208627 |
termostat kapilarni | 2 302 Kč
€ 101.20 |
||
| 557 0 WHR75413 |
C00317687
481228228271 |
termostat | 349 Kč
€ 15.30 |
||
| 557 1 WHR75413 |
C00497364
481228228284 |
Temper.limiter | Na dotaz | Zadat poptávku | |
| 620 0 WHR75413 |
C00335701
481927328414 |
SWITCH,OVEN | Na dotaz | Zadat poptávku | |
| 651 0 WHR75413 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR75413 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR75413 |
C00315126
481945069844 |
Lamp screen rear | Na dotaz | Zadat poptávku | |
| 914 0 WHR75413 |
C00333243
481950518323 |
Nut | Na dotaz | Zadat poptávku | |
| 915 0 WHR75413 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 932 0 WHR75413 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 950 1 WHR75413 |
C00331007
481246688685 |
Gasket | Na dotaz | Zadat poptávku | |
| 993 0 WHR75413 |
C00341625
481231048185 |
sada montazni | 380 Kč
€ 16.70 |
||
| 993 1 WHR75413 |
C00335227
481246079074 |
Trim kit optional Black | Na dotaz | Zadat poptávku | |
