| Komerční kód: | 80079297 OBI D30 S OVENS IK |
| Kód 12NC: | 854188129000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 854188129003, 854188129001, 854188129002 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

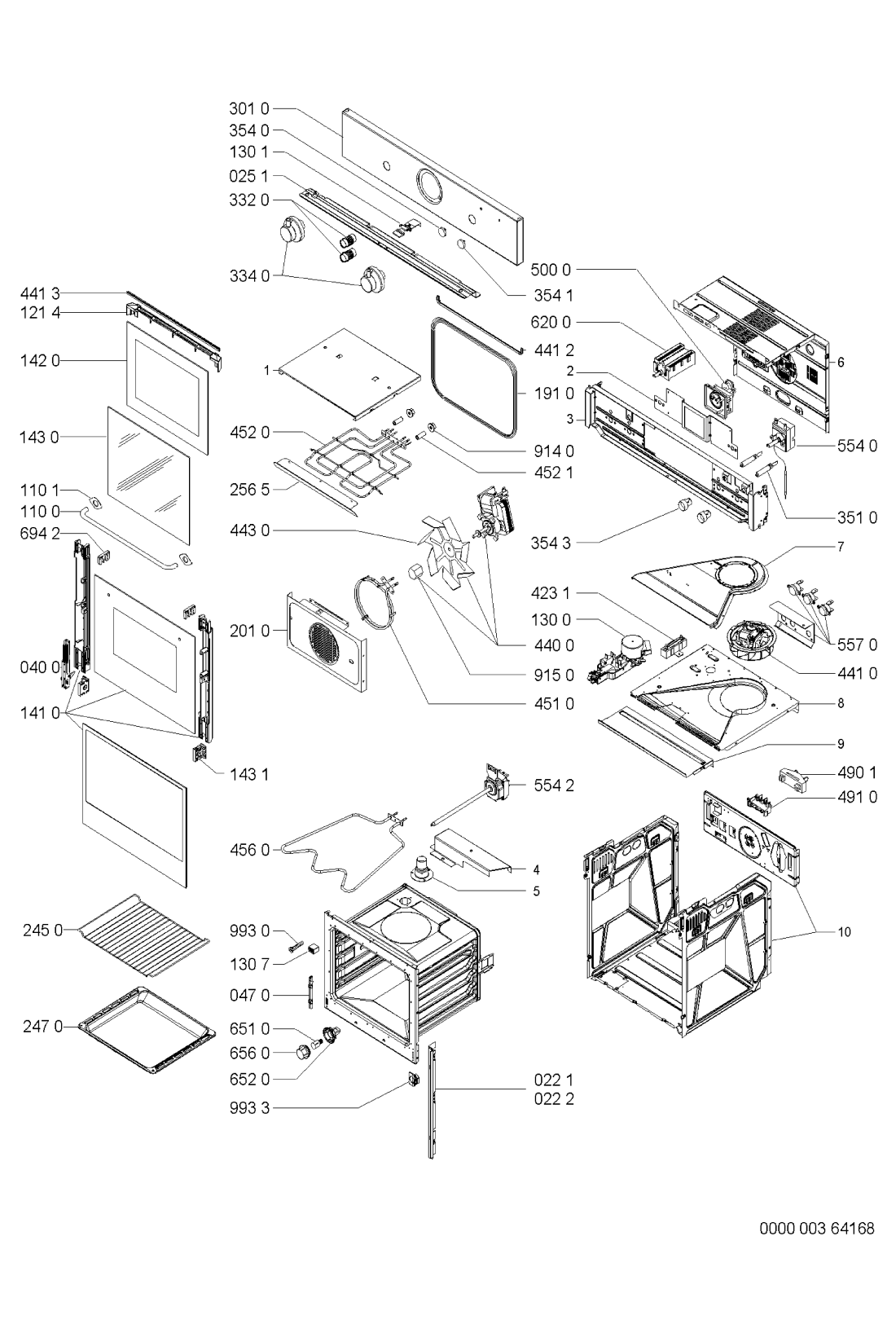

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR43404 |
C00498337
481246049548 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR43404 |
C00330292
481246049547 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR43404 |
C00330287
481246049522 |
Trim lower part | Na dotaz | Zadat poptávku | |
| 040 0 WHR43404 |
C00329719
481241719276 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR43404 |
C00498391
481246228608 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR43404 |
C00317380
481949878005 |
Madlo dveří trouby Whirlpool, Bauknecht | 2 097 Kč
€ 92.20 |
||
| 110 1 WHR43404 |
C00333076
481946248456 |
Rubber ringring | Na dotaz | Zadat poptávku | |
| 121 4 WHR43404 |
C00331099
481244528037 |
Deflector | Na dotaz | Zadat poptávku | |
| 130 0 WHR43404 |
C00548537
481241738024 |
Door lock. | Na dotaz | Zadat poptávku | |
| 130 1 WHR43404 |
C00493532
481241738025 |
Child-proof lock | Na dotaz | Zadat poptávku | |
| 130 7 WHR43404 |
C00330935
481246668813 |
Rubber | 204 Kč
€ 9.00 |
||
| 141 0 WHR43404 |
C00485328
481245058969 |
Oven glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR43404 |
C00587605
481245058909 |
Inner glass. | Na dotaz | Zadat poptávku | |
| 143 0 WHR43404 |
C00331122
481245058942 |
Glas cover | Na dotaz | Zadat poptávku | |
| 143 1 WHR43404 |
C00317299
481245058908 |
Spacer door glass | Na dotaz | Zadat poptávku | |
| 191 0 WHR43404 |
C00331500
481246688768 |
Gasket door | Na dotaz | Zadat poptávku | |
| 201 0 WHR43404 |
C00491794
481244269446 |
Panel rear | Na dotaz | Zadat poptávku | |
| 245 0 WHR43404 |
C00333048
481945819991 |
Oven grid | Na dotaz | Zadat poptávku | |
| 247 0 WHR43404 |
C00587555
481241838119 |
PLECH NA PECENIE | Na dotaz | Zadat poptávku | |
| 256 5 WHR43404 |
C00316686
481240488073 |
Plate protection grill | Na dotaz | Zadat poptávku | |
| 301 0 WHR43404 |
C00483693
481245249035 |
Panel control | Na dotaz | Zadat poptávku | |
| 332 0 WHR43404 |
C00313150
481241128033 |
Knoflík hodin | 733 Kč
€ 32.20 |
||
| 334 0 WHR43404 |
C00312840
481241278977 |
knoflik rustikalni | 984 Kč
€ 43.30 |
||
| 351 0 WHR43404 |
C00327370
481231028093 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR43404 |
C00314833
481946279749 |
kryt signalky cerv. | 298 Kč
€ 13.10 |
||
| 354 1 WHR43404 |
C00341772
481946279748 |
kryt signalky zluty | 277 Kč
€ 12.20 |
||
| 354 3 WHR43404 |
C00340181
481240438607 |
signalka | Na dotaz | Zadat poptávku | |
| 423 1 WHR43404 |
C00326735
481211518038 |
Resistor 470 ohm | Na dotaz | Zadat poptávku | |
| 440 0 WHR43404 |
C00319514
481236118447 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR43404 |
C00328803
481236118435 |
Ventilator | 1 774 Kč
€ 78.00 |
||
| 441 2 WHR43404 |
C00315028
481246688784 |
Těsnění dveří trouby | 958 Kč
€ 42.10 |
||
| 441 3 WHR43404 |
C00331506
481246688785 |
Gasket deflector | Na dotaz | Zadat poptávku | |
| 443 0 WHR43404 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR43404 |
C00313065
481225998406 |
Heating element forced-air 2000W 230V | Na dotaz | Zadat poptávku | |
| 452 0 WHR43404 |
C00317185
481225998456 |
Topné těleso trouby – horní + gril 2500W | 3 298 Kč
€ 145.00 |
||
| 452 1 WHR43404 |
C00328909
481240118665 |
Spacer heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR43404 |
C00316553
481225998421 |
Topné těleso trouby - spodní Whirlpool 1150 W | 398 Kč
€ 17.50 |
||
| 490 1 WHR43404 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 491 0 WHR43404 |
C00318185
481229068273 |
svorkovnice | 201 Kč
€ 8.80 |
||
| 500 0 WHR43404 |
C00500760
481228219756 |
Autotimer analogue | Na dotaz | Zadat poptávku | |
| 554 0 WHR43404 |
C00335485
481228238155 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 554 2 WHR43404 |
C00314927
481228228289 |
termostat | 2 639 Kč
€ 116.00 |
||
| 557 0 WHR43404 |
C00587520
481228228288 |
Temper.limiter | Na dotaz | Zadat poptávku | |
| 620 0 WHR43404 |
C00587515
481227318066 |
Switch,oven. | Na dotaz | Zadat poptávku | |
| 651 0 WHR43404 |
C00326815
481213418028 |
Lamp Oven 235V 25W 500# E14 | Na dotaz | Zadat poptávku | |
| 652 0 WHR43404 |
C00327138
481225528021 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 656 0 WHR43404 |
C00331110
481245028009 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 694 2 WHR43404 |
C00345200
481246368023 |
Resonator. | Na dotaz | Zadat poptávku | |
| 914 0 WHR43404 |
C00333243
481950518323 |
Nut | Na dotaz | Zadat poptávku | |
| 915 0 WHR43404 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 993 0 WHR43404 |
C00327633
481231038844 |
Mounting kit | Na dotaz | Zadat poptávku | |
| 993 3 WHR43404 |
C00329202
481240478699 |
Spacer | Na dotaz | Zadat poptávku | |
