| Komerční kód: | 901 087 32 |
| Kód 12NC: | 857918216000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

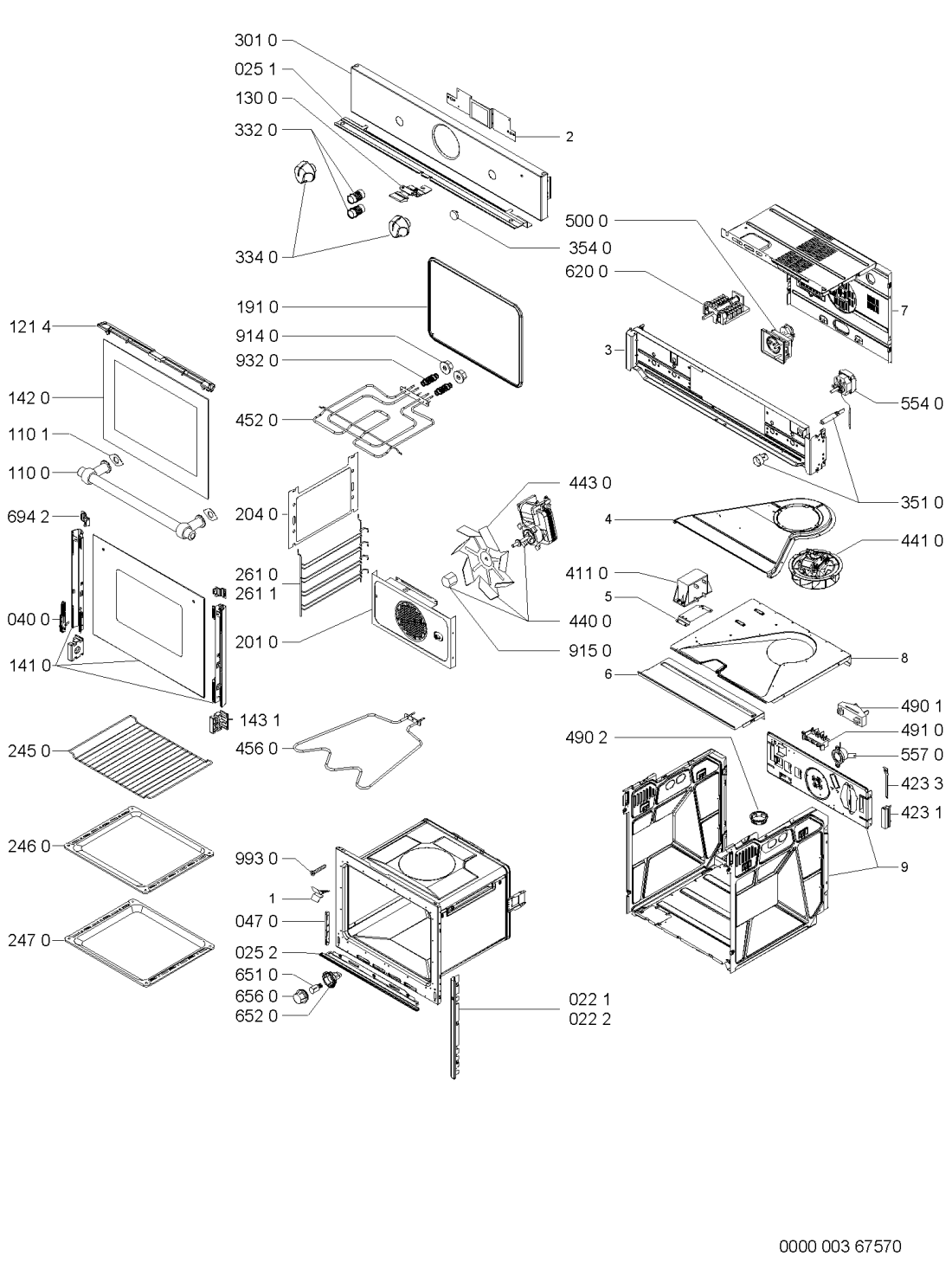

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR32461 |
C00404563
481246049759 |
výplň | 337 Kč
€ 14.80 |
||
| 022 2 WHR32461 |
C00404562
481246049758 |
výplň | 337 Kč
€ 14.80 |
||
| 025 1 WHR32461 |
C00330421
481246088314 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR32461 |
C00330314
481246049735 |
Profile | Na dotaz | Zadat poptávku | |
| 040 0 WHR32461 |
C00312986
481241719339 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR32461 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR32461 |
C00464658
481249868271 |
Door handle Rustic | Na dotaz | Zadat poptávku | |
| 110 1 WHR32461 |
C00313127
481246668858 |
Podložka madla dveří trouby | 52 Kč
€ 2.30 |
||
| 121 4 WHR32461 |
C00311312
481246098095 |
Lišta dveří | 1 446 Kč
€ 63.60 |
||
| 130 0 WHR32461 |
C00342734
481241728105 |
Child-proof lock Ikea | Na dotaz | Zadat poptávku | |
| 141 0 WHR32461 |
C00459822
481245050023 |
Oven glass FGVD | Na dotaz | Zadat poptávku | |
| 142 0 WHR32461 |
C00312228
481245059576 |
Sklo dveří vnitřní | 2 937 Kč
€ 129.10 |
||
| 143 1 WHR32461 |
C00319015
481240418455 |
Support | Na dotaz | Zadat poptávku | |
| 191 0 WHR32461 |
C00311697
481246688912 |
Těsnění dveří trouby náhrada C00311697 | Na dotaz | Zadat poptávku | |
| 201 0 WHR32461 |
C00317281
481244269504 |
Katalitický plech zadní | 2 047 Kč
€ 90.00 |
||
| 204 0 WHR32461 |
C00328118
481244019702 |
stěna boční | Na dotaz | Zadat poptávku | |
| 245 0 WHR32461 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 246 0 WHR32461 |
C00318818
481241838128 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR32461 |
C00318822
481241838138 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR32461 |
C00315829
481245819304 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 261 1 WHR32461 |
C00315827
481245819303 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 301 0 WHR32461 |
C00462222
481245249779 |
Panel control | Na dotaz | Zadat poptávku | |
| 332 0 WHR32461 |
C00377615
481241128607 |
knoflik | 481 Kč
€ 21.10 |
||
| 334 0 WHR32461 |
C00457883
481241279289 |
Knoflík | 390 Kč
€ 17.10 |
||
| 351 0 WHR32461 |
C00327370
481231028093 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR32461 |
C00314833
481946279749 |
kryt signalky cerv. | 298 Kč
€ 13.10 |
||
| 411 0 WHR32461 |
C00399886
481214288032 |
Transformer 400V/230V | Na dotaz | Zadat poptávku | |
| 423 1 WHR32461 |
C00486409
481911518002 |
RESISTOR 1560 OHM, 18 W | Na dotaz | Zadat poptávku | |
| 423 3 WHR32461 |
C00484377
481940478981 |
Bracket | Na dotaz | Zadat poptávku | |
| 440 0 WHR32461 |
C00491454
481236118403 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR32461 |
C00484749
481236118404 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR32461 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR32461 |
C00488551
481225998493 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR32461 |
C00381151
481225998427 |
Topné těleso trouby – spodní 1150 W | 2 325 Kč
€ 102.20 |
||
| 490 1 WHR32461 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR32461 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR32461 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 8.60 |
||
| 500 0 WHR32461 |
C00313123
481228218706 |
Timer | Na dotaz | Zadat poptávku | |
| 554 0 WHR32461 |
C00312087
481228208627 |
termostat kapilarni | 2 302 Kč
€ 101.20 |
||
| 557 0 WHR32461 |
C00311539
481228228315 |
Termostat 130 °C | 1 278 Kč
€ 56.20 |
||
| 620 0 WHR32461 |
C00319731
481227328151 |
spinac vackovy | 2 043 Kč
€ 89.80 |
||
| 651 0 WHR32461 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR32461 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR32461 |
C00311267
481245028007 |
Kryt žárovky do trouby Whirlpool | 145 Kč
€ 6.40 |
||
| 694 2 WHR32461 |
C00313557
481246228736 |
držák montážní | 121 Kč
€ 5.30 |
||
| 914 0 WHR32461 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR32461 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 932 0 WHR32461 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR32461 |
C00327666
481231039079 |
Mounting kit | Na dotaz | Zadat poptávku | |
