IKEA 300 947 33
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 300 947 33 |
| Kód 12NC: | 857917516010 |
| I.C. kód: | 857917516013 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857917516012, 857917516010, 857917516011 |
Potřebujete servis? Jsme tady pro Vás

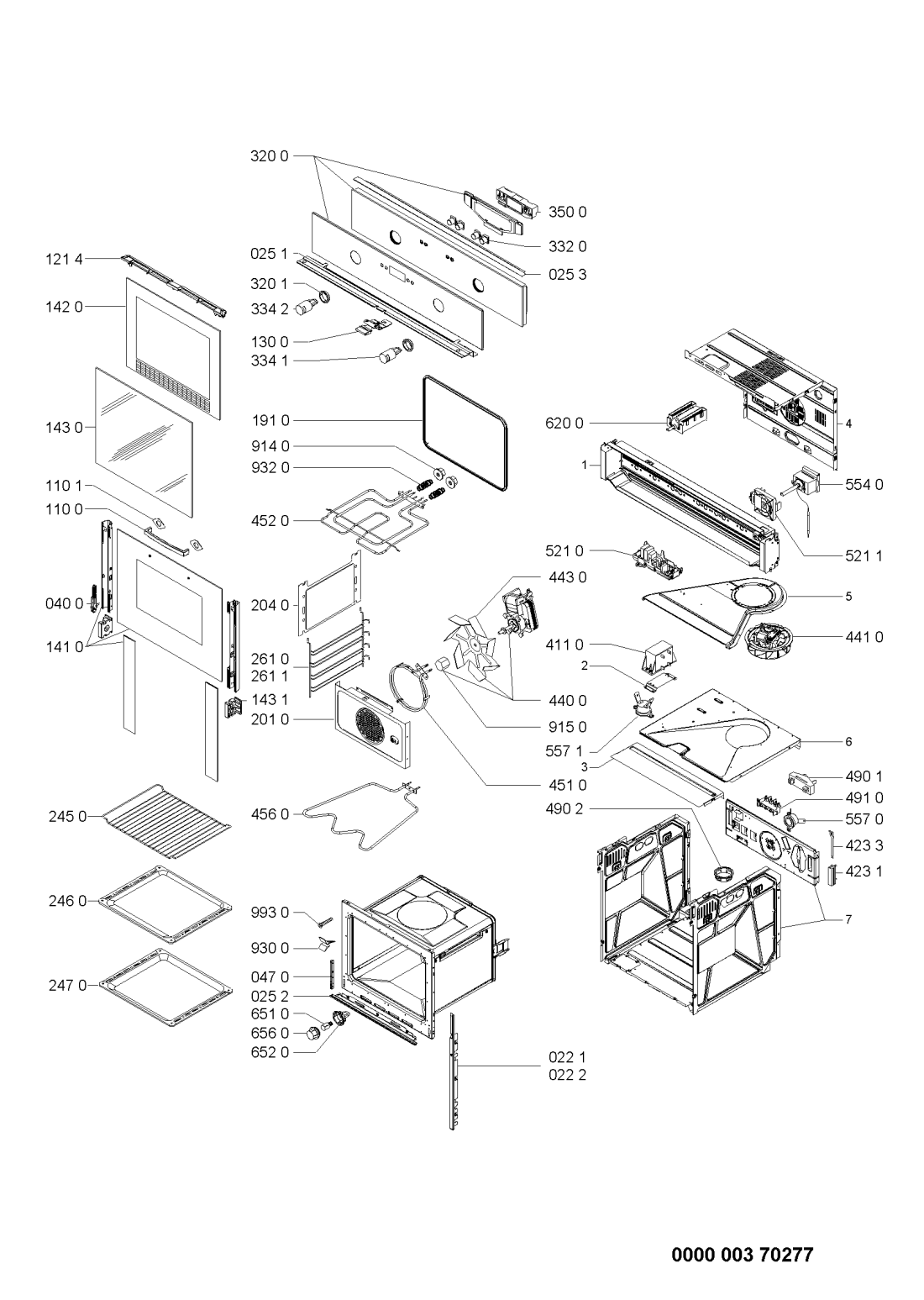

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR32436 |
C00404567
481246049774 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR32436 |
C00404566
481246049773 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR32436 |
C00330416
481246079229 |
panel | Na dotaz | Zadat poptávku | |
| 025 2 WHR32436 |
C00319309
481246068641 |
Lišta spodní trouby NB | 1 507 Kč
€ 66.20 |
||
| 025 3 WHR32436 |
C00485928
481246079128 |
Trim upper | Na dotaz | Zadat poptávku | |
| 040 0 WHR32436 |
C00312864
481241719437 |
Hinge 3 V | Na dotaz | Zadat poptávku | |
| 047 0 WHR32436 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR32436 |
C00339046
481249868169 |
Madlo dveří trouby Whirlpool | 2 335 Kč
€ 102.60 |
||
| 110 1 WHR32436 |
C00313127
481246668858 |
Podložka madla dveří trouby | 52 Kč
€ 2.30 |
||
| 121 4 WHR32436 |
C00311312
481246098095 |
Lišta dveří | 1 446 Kč
€ 63.60 |
||
| 130 0 WHR32436 |
C00342734
481241728105 |
Child-proof lock Ikea | Na dotaz | Zadat poptávku | |
| 141 0 WHR32436 |
C00430296
480121100275 |
oven glass + supports | Na dotaz | Zadat poptávku | |
| 142 0 WHR32436 |
C00389605
480121100274 |
SKLO DVERI VNUTORNE | Na dotaz | Zadat poptávku | |
| 143 0 WHR32436 |
C00314136
481245059488 |
Sklo dveří - střední | 2 877 Kč
€ 126.50 |
||
| 143 1 WHR32436 |
C00314180
481240438808 |
Podpěra | 422 Kč
€ 18.50 |
||
| 191 0 WHR32436 |
C00311697
481246688912 |
Těsnění dveří trouby náhrada C00311697 | Na dotaz | Zadat poptávku | |
| 201 0 WHR32436 |
C00317281
481244269504 |
Katalitický plech zadní | 2 047 Kč
€ 90.00 |
||
| 204 0 WHR32436 |
C00328118
481244019702 |
stěna boční | Na dotaz | Zadat poptávku | |
| 245 0 WHR32436 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 246 0 WHR32436 |
C00318818
481241838128 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR32436 |
C00318822
481241838138 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR32436 |
C00315829
481245819304 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 261 1 WHR32436 |
C00315827
481245819303 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 320 0 WHR32436 |
C00462041
481245249186 |
panel ovladaci | 4 445 Kč
€ 195.40 |
||
| 320 1 WHR32436 |
C00332632
481253058163 |
Kroužek knoflíku | 552 Kč
€ 24.30 |
||
| 332 0 WHR32436 |
C00312301
480121100151 |
Tlačítka-sestava | Na dotaz | Zadat poptávku | |
| 334 1 WHR32436 |
C00487408
481241279172 |
knoflik termostatu | 570 Kč
€ 25.10 |
||
| 334 2 WHR32436 |
C00402346
481241279223 |
knoflik trouby NB | 684 Kč
€ 30.10 |
||
| 350 0 WHR32436 |
C00311625
480121100276 |
Displej trouby IKEA/Whirlpool | 1 097 Kč
€ 48.20 |
||
| 411 0 WHR32436 |
C00399886
481214288032 |
Transformer 400V/230V | Na dotaz | Zadat poptávku | |
| 423 1 WHR32436 |
C00486409
481911518002 |
RESISTOR 1560 OHM, 18 W | Na dotaz | Zadat poptávku | |
| 423 3 WHR32436 |
C00484377
481940478981 |
Bracket | Na dotaz | Zadat poptávku | |
| 440 0 WHR32436 |
C00491454
481236118403 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR32436 |
C00484749
481236118404 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR32436 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR32436 |
C00376486
481925928839 |
Heating element forced air 2000W | Na dotaz | Zadat poptávku | |
| 452 0 WHR32436 |
C00488551
481225998493 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR32436 |
C00381151
481225998427 |
Topné těleso trouby – spodní 1150 W | 2 325 Kč
€ 102.20 |
||
| 490 1 WHR32436 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR32436 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR32436 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 8.60 |
||
| 521 0 WHR32436 |
C00310987
480121104103 |
Modul trouby | 3 679 Kč
€ 161.70 |
||
| 521 1 WHR32436 |
C00311584
481221458616 |
prepinac | 1 345 Kč
€ 59.10 |
||
| 554 0 WHR32436 |
C00335556
481228238163 |
TERMOSTAT | 2 128 Kč
€ 93.50 |
||
| 557 0 WHR32436 |
C00311539
481228228315 |
Termostat 130 °C | 1 278 Kč
€ 56.20 |
||
| 557 1 WHR32436 |
C00335509
481228228323 |
termostat 75 C | Na dotaz | Zadat poptávku | |
| 620 0 WHR32436 |
C00400900
481227318084 |
spinac | 1 199 Kč
€ 52.70 |
||
| 651 0 WHR32436 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR32436 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR32436 |
C00311267
481245028007 |
Kryt žárovky do trouby Whirlpool | 145 Kč
€ 6.40 |
||
| 914 0 WHR32436 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR32436 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 930 0 WHR32436 |
C00312854
481240418649 |
Držák NTC | 376 Kč
€ 16.50 |
||
| 932 0 WHR32436 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR32436 |
C00316311
481231039078 |
Mounting kit | Na dotaz | Zadat poptávku | |
