| Komerční kód: | 30015043 OBU 207 S INTEGRATABLE OVENSIK |
| Kód 12NC: | 854148601010 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

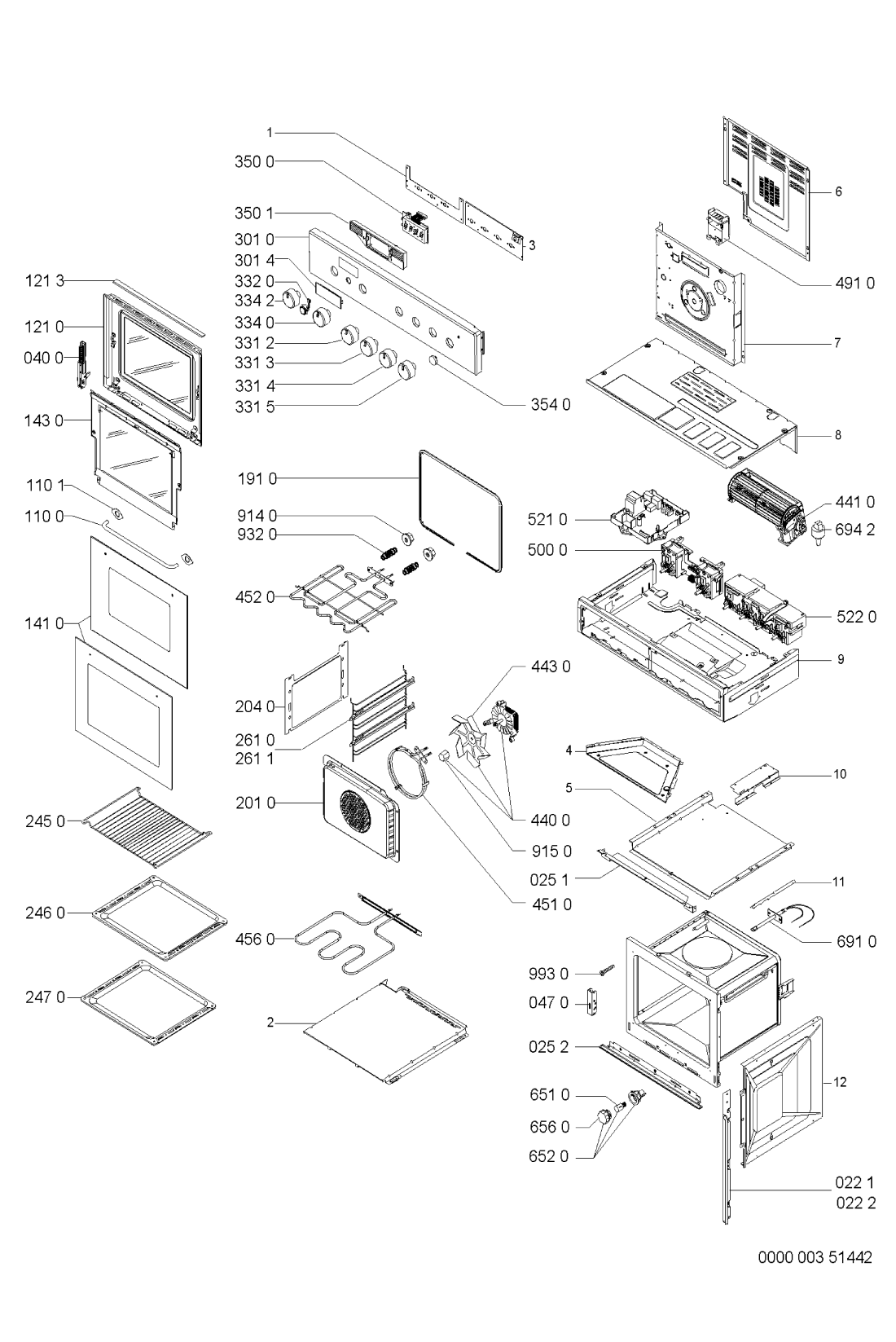

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR56232 |
C00337469
481946078452 |
Trim, side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR56232 |
C00337468
481946078451 |
Trim, side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR56232 |
C00335219
481946078628 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR56232 |
C00335220
481946078851 |
Trim lower | Na dotaz | Zadat poptávku | |
| 040 0 WHR56232 |
C00316862
481241718903 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR56232 |
C00312362
481241718837 |
zaves dveri | 756 Kč
€ 33.20 |
||
| 110 0 WHR56232 |
C00340086
481949858536 |
Handle door | Na dotaz | Zadat poptávku | |
| 110 1 WHR56232 |
C00333076
481946248456 |
Rubber ringring | Na dotaz | Zadat poptávku | |
| 121 0 WHR56232 |
C00587873
481944239198 |
DVERE VNUTORNE | Na dotaz | Zadat poptávku | |
| 121 3 WHR56232 |
C00315286
481946089431 |
Lišta vnitřní části dveří | 421 Kč
€ 18.50 |
||
| 141 0 WHR56232 |
C00337888
481245059376 |
sklo dveri vnejsi IX | Na dotaz | Zadat poptávku | |
| 143 0 WHR56232 |
C00499311
481945928301 |
ram stredni + sklo | 2 947 Kč
€ 129.50 |
||
| 191 0 WHR56232 |
C00311333
481946818109 |
Těsnění dveří trouby 1045mm | 391 Kč
€ 17.20 |
||
| 201 0 WHR56232 |
C00342044
481944239496 |
Panel | Na dotaz | Zadat poptávku | |
| 204 0 WHR56232 |
C00336341
481944238201 |
Side panel | Na dotaz | Zadat poptávku | |
| 245 0 WHR56232 |
C00333048
481945819991 |
Oven grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR56232 |
C00344538
481941838366 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR56232 |
C00382943
481941838367 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR56232 |
C00587900
481945858532 |
rost levy | 1 663 Kč
€ 73.10 |
||
| 261 1 WHR56232 |
C00587901
481945858533 |
rost pravy | 1 663 Kč
€ 73.10 |
||
| 301 0 WHR56232 |
C00497079
481245319379 |
Panel control | Na dotaz | Zadat poptávku | |
| 301 4 WHR56232 |
C00333045
481945359373 |
Glass panel timer | Na dotaz | Zadat poptávku | |
| 331 2 WHR56232 |
C00487067
481241128532 |
knoflik ovladaci IX | 1 696 Kč
€ 74.50 |
||
| 331 3 WHR56232 |
C00487068
481241128533 |
knoflik ovladaci IX | 243 Kč
€ 10.70 |
||
| 331 4 WHR56232 |
C00487069
481241128534 |
knoflik ovladaci IX | 193 Kč
€ 8.50 |
||
| 331 5 WHR56232 |
C00487070
481241128535 |
knoflik ovladaci IX | 518 Kč
€ 22.80 |
||
| 332 0 WHR56232 |
C00315559
481927618435 |
tlacitko+mikrospinac | 1 164 Kč
€ 51.20 |
||
| 334 0 WHR56232 |
C00338555
481241278527 |
knoflik ovladaci IX | 143 Kč
€ 6.30 |
||
| 334 2 WHR56232 |
C00587776
481241278528 |
Knob | Na dotaz | Zadat poptávku | |
| 350 0 WHR56232 |
C00311885
481913038087 |
Display | Na dotaz | Zadat poptávku | |
| 350 1 WHR56232 |
C00339655
481940479544 |
Holder | Na dotaz | Zadat poptávku | |
| 354 0 WHR56232 |
C00314833
481946279749 |
kryt signalky cerv. | 298 Kč
€ 13.10 |
||
| 440 0 WHR56232 |
C00313957
481936178242 |
Motor | Na dotaz | Zadat poptávku | |
| 441 0 WHR56232 |
C00378059
481936118475 |
Motor 230 V 22W230 V 22W | Na dotaz | Zadat poptávku | |
| 443 0 WHR56232 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR56232 |
C00312422
481925928823 |
Heating element circular 2000W 240V | Na dotaz | Zadat poptávku | |
| 452 0 WHR56232 |
C00339897
481925928992 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR56232 |
C00313943
481925928989 |
Topné těleso trouby - spodní 1450W | 2 294 Kč
€ 100.80 |
||
| 491 0 WHR56232 |
C00555820
481929068364 |
NAHRADENE 481229068166 N | Na dotaz | Zadat poptávku | |
| 500 0 WHR56232 |
C00314561
481921478691 |
Unit control switch + timer G2A 11 pos | Na dotaz | Zadat poptávku | |
| 521 0 WHR56232 |
C00498921
481931039791 |
JEDNOTKA KONTROLNA AKZ130 elektro N | Na dotaz | Zadat poptávku | |
| 522 0 WHR56232 |
C00378005
481921478702 |
jednotka kontrolni | Na dotaz | Zadat poptávku | |
| 651 0 WHR56232 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR56232 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR56232 |
C00315126
481945069844 |
Lamp screen rear | Na dotaz | Zadat poptávku | |
| 691 0 WHR56232 |
C00314559
481921078097 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 694 2 WHR56232 |
C00336020
481946669505 |
Stopper | Na dotaz | Zadat poptávku | |
| 914 0 WHR56232 |
C00333243
481950518323 |
Nut | Na dotaz | Zadat poptávku | |
| 915 0 WHR56232 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 932 0 WHR56232 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR56232 |
C00341627
481931039087 |
Mounting kit | Na dotaz | Zadat poptávku | |
