IKEA 40016184 OBU 247 W INTEGRATABLE OVENSIK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 40016184 OBU 247 W INTEGRATABLE OVENSIK |
| Kód 12NC: | 854149616000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

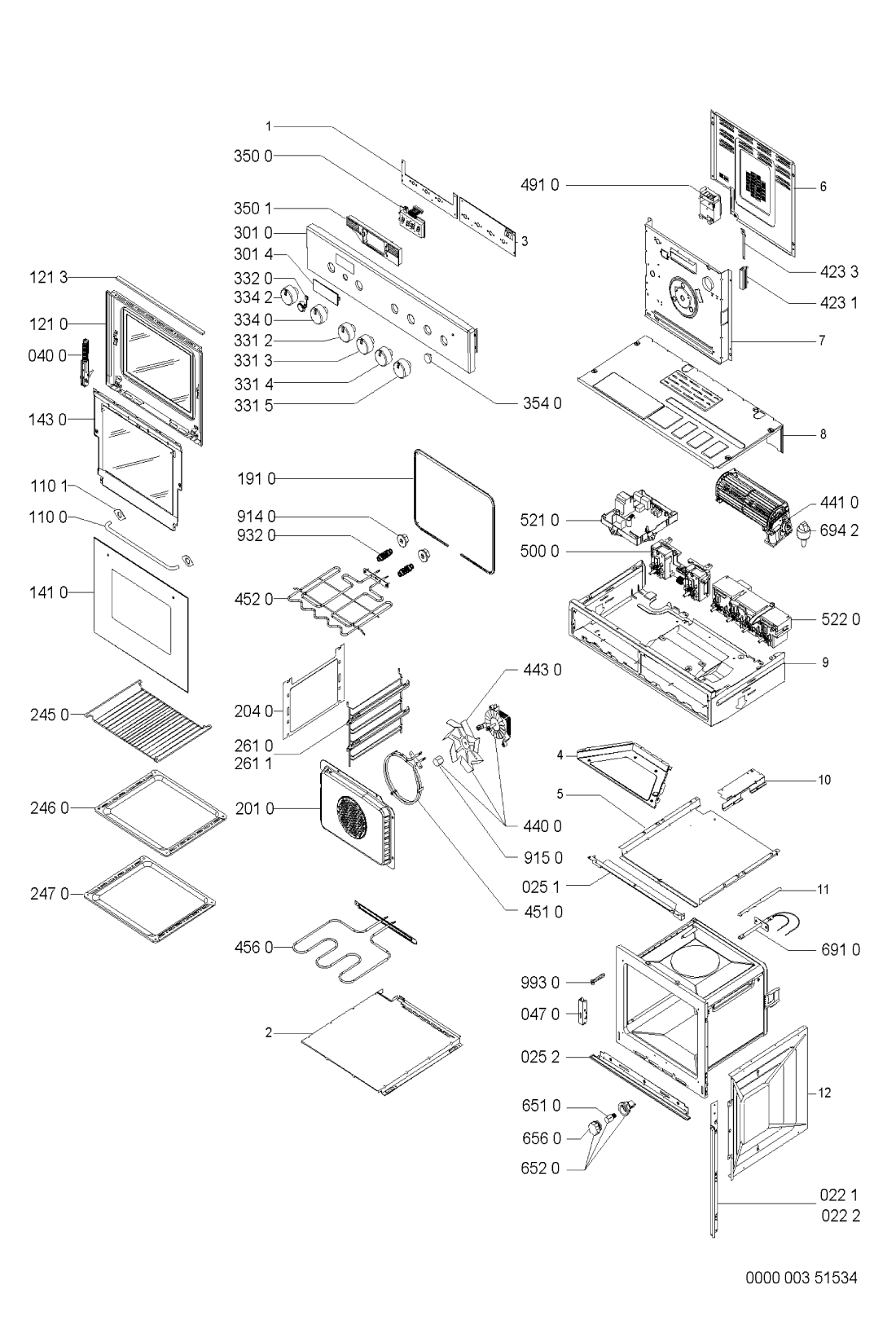

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR68126 |
C00335196
481946078449 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR68126 |
C00337481
481946078448 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR68126 |
C00335219
481946078628 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR68126 |
C00486692
481946078849 |
LISTA SPODNA AKZ130 N | Na dotaz | Zadat poptávku | |
| 040 0 WHR68126 |
C00312978
481241718839 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR68126 |
C00312362
481241718837 |
zaves dveri | 756 Kč
€ 33.20 |
||
| 110 0 WHR68126 |
C00333194
481949858534 |
Handle door | Na dotaz | Zadat poptávku | |
| 110 1 WHR68126 |
C00333076
481946248456 |
Rubber ringring | Na dotaz | Zadat poptávku | |
| 121 0 WHR68126 |
C00312076
481944239501 |
Vnitřní část dveří trouby | Na dotaz | Zadat poptávku | |
| 121 3 WHR68126 |
C00315286
481946089431 |
Lišta vnitřní části dveří | 421 Kč
€ 18.50 |
||
| 141 0 WHR68126 |
C00378086
481945058311 |
Oven glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR68126 |
C00499311
481945928301 |
ram stredni + sklo | 2 947 Kč
€ 129.50 |
||
| 191 0 WHR68126 |
C00311333
481946818109 |
Těsnění dveří trouby 1045mm | 391 Kč
€ 17.20 |
||
| 201 0 WHR68126 |
C00342044
481944239496 |
Panel | Na dotaz | Zadat poptávku | |
| 204 0 WHR68126 |
C00336341
481944238201 |
Side panel | Na dotaz | Zadat poptávku | |
| 245 0 WHR68126 |
C00333048
481945819991 |
Oven grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR68126 |
C00344538
481941838366 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR68126 |
C00382943
481941838367 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR68126 |
C00587900
481945858532 |
rost levy | 1 663 Kč
€ 73.10 |
||
| 261 1 WHR68126 |
C00587901
481945858533 |
rost pravy | 1 663 Kč
€ 73.10 |
||
| 301 0 WHR68126 |
C00587626
481245319378 |
Panel control. | Na dotaz | Zadat poptávku | |
| 301 4 WHR68126 |
C00333045
481945359373 |
Glass panel timer | Na dotaz | Zadat poptávku | |
| 331 2 WHR68126 |
C00587538
481241128527 |
Knob. | Na dotaz | Zadat poptávku | |
| 331 3 WHR68126 |
C00487064
481241128528 |
Knob | Na dotaz | Zadat poptávku | |
| 331 4 WHR68126 |
C00487065
481241128529 |
Knob | Na dotaz | Zadat poptávku | |
| 331 5 WHR68126 |
C00487066
481241128531 |
Knob | Na dotaz | Zadat poptávku | |
| 332 0 WHR68126 |
C00314022
481927618434 |
Microswitch | Na dotaz | Zadat poptávku | |
| 334 0 WHR68126 |
C00338571
481241278525 |
KNOB | Na dotaz | Zadat poptávku | |
| 334 2 WHR68126 |
C00487217
481241278526 |
KNOB | Na dotaz | Zadat poptávku | |
| 350 0 WHR68126 |
C00311885
481913038087 |
Display | Na dotaz | Zadat poptávku | |
| 350 1 WHR68126 |
C00339655
481940479544 |
Holder | Na dotaz | Zadat poptávku | |
| 354 0 WHR68126 |
C00314833
481946279749 |
kryt signalky cerv. | 298 Kč
€ 13.10 |
||
| 423 1 WHR68126 |
C00486409
481911518002 |
RESISTOR 1560 OHM, 18 W | Na dotaz | Zadat poptávku | |
| 423 3 WHR68126 |
C00484377
481940478981 |
Bracket | Na dotaz | Zadat poptávku | |
| 440 0 WHR68126 |
C00555900
481936178243 |
VENTILATOR 400 W.. | Na dotaz | Zadat poptávku | |
| 441 0 WHR68126 |
C00587855
481936118477 |
Motor 400V 20W | Na dotaz | Zadat poptávku | |
| 443 0 WHR68126 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR68126 |
C00376486
481925928839 |
Heating element forced air 2000W | Na dotaz | Zadat poptávku | |
| 452 0 WHR68126 |
C00496248
481225928702 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR68126 |
C00587843
481925928991 |
Heating element lower. | Na dotaz | Zadat poptávku | |
| 491 0 WHR68126 |
C00377554
481229068166 |
svorkovnice | 581 Kč
€ 25.50 |
||
| 500 0 WHR68126 |
C00314561
481921478691 |
Unit control switch + timer G2A 11 pos | Na dotaz | Zadat poptávku | |
| 521 0 WHR68126 |
C00526839
481221478309 |
Module C2 400V KIT | Na dotaz | Zadat poptávku | |
| 522 0 WHR68126 |
C00496864
481221458045 |
Module electronic | Na dotaz | Zadat poptávku | |
| 651 0 WHR68126 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR68126 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR68126 |
C00315126
481945069844 |
Lamp screen rear | Na dotaz | Zadat poptávku | |
| 691 0 WHR68126 |
C00314559
481921078097 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 694 2 WHR68126 |
C00336020
481946669505 |
Stopper | Na dotaz | Zadat poptávku | |
| 914 0 WHR68126 |
C00333243
481950518323 |
Nut | Na dotaz | Zadat poptávku | |
| 915 0 WHR68126 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 932 0 WHR68126 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR68126 |
C00344663
481931039036 |
Accessory fitting | Na dotaz | Zadat poptávku | |
