IKEA OV 9M1 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | OV 9M1 S |
| Kód 12NC: | 857926315000 |
| I.C. kód: | 857926315001 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857926315000 |
Potřebujete servis? Jsme tady pro Vás

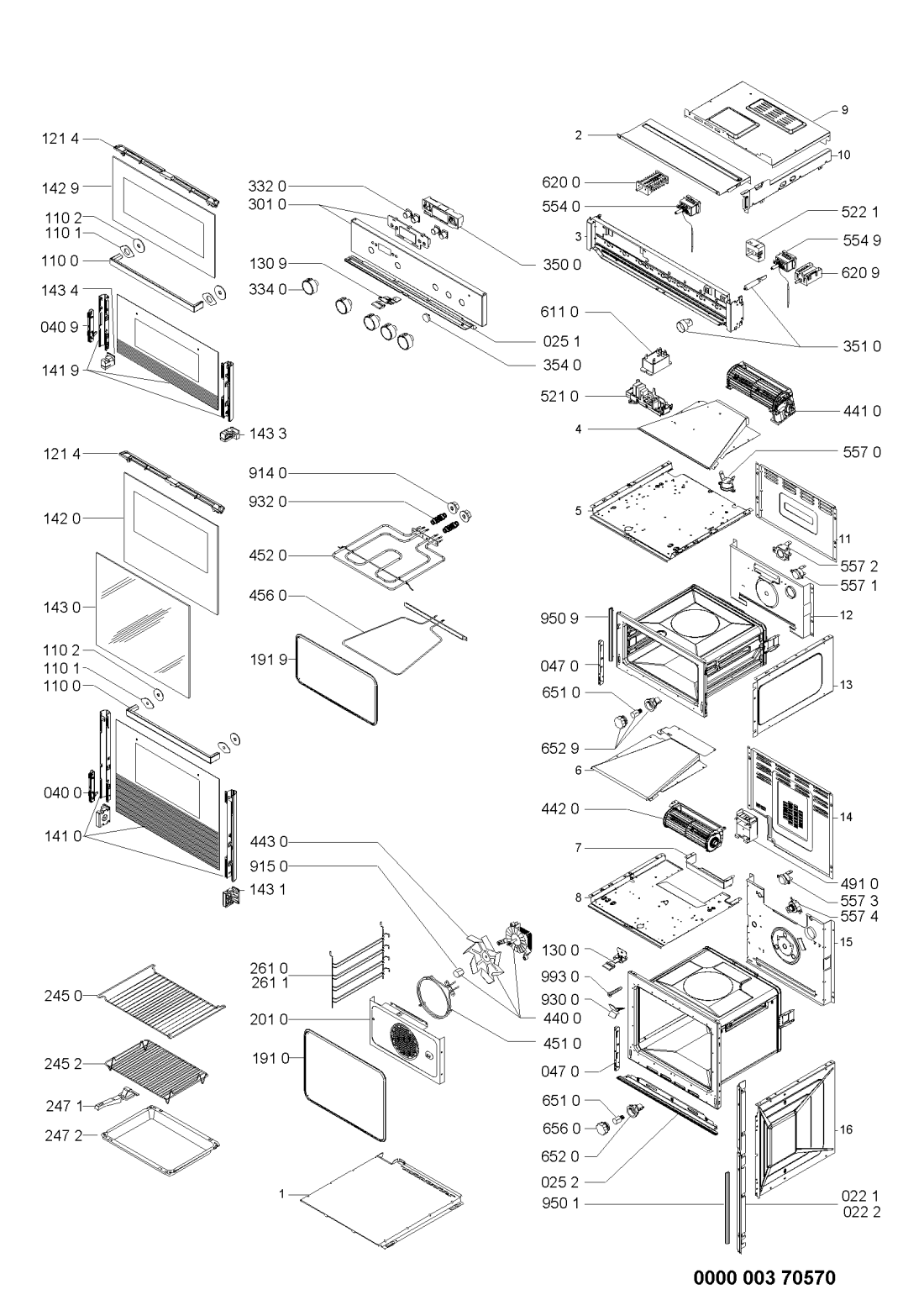

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR32703 |
C00330395
481246068629 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR32703 |
C00330394
481246068628 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR32703 |
C00330416
481246079229 |
panel | Na dotaz | Zadat poptávku | |
| 025 2 WHR32703 |
C00319309
481246068641 |
Lišta spodní trouby NB | 1 047 Kč
€ 43.00 |
||
| 040 0 WHR32703 |
C00313184
480121100252 |
Závěs dveří trouby Whirlpool, Bauknecht, Ignis | 944 Kč
€ 38.80 |
||
| 040 9 WHR32703 |
C00314640
480121100257 |
Hinge 2glass 3M | Na dotaz | Zadat poptávku | |
| 047 0 WHR32703 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR32703 |
C00312070
481241279412 |
Madlo dveří trouby Whirlpool, Indesit | 2 299 Kč
€ 94.50 |
||
| 110 1 WHR32703 |
C00312913
481246668928 |
Podložka gumová | 50 Kč
€ 2.10 |
||
| 110 2 WHR32703 |
C00311265
481246248451 |
Podložka madla dveří trouby | 50 Kč
€ 2.10 |
||
| 121 4 WHR32703 |
C00311312
481246098095 |
Deflektor, lišta dveří trouby Whirlpool | 1 231 Kč
€ 50.60 |
||
| 130 0 WHR32703 |
C00338991
480121100223 |
Door lock 9M | Na dotaz | Zadat poptávku | |
| 130 9 WHR32703 |
C00338995
481241728088 |
pojistka dveri UZ NEBUDE !!!! | Na dotaz | Zadat poptávku | |
| 141 0 WHR32703 |
C00314872
480121100224 |
Sklo dveří vnější | 4 990 Kč
€ 205.10 |
||
| 141 9 WHR32703 |
C00314144
481245059882 |
VMOven glass 3M | Na dotaz | Zadat poptávku | |
| 142 0 WHR32703 |
C00318333
480121100074 |
Inner glass | Na dotaz | Zadat poptávku | |
| 142 9 WHR32703 |
C00317706
481245059881 |
Inner glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR32703 |
C00314136
481245059488 |
Sklo dveří - střední trouby Whirlpool, Ignis | 2 553 Kč
€ 105.00 |
||
| 143 1 WHR32703 |
C00314180
481240438808 |
Podpěra | 793 Kč
€ 32.60 |
||
| 143 3 WHR32703 |
C00315911
481246258102 |
Support door glass right | Na dotaz | Zadat poptávku | |
| 143 4 WHR32703 |
C00315913
481246258103 |
Support door glass left | Na dotaz | Zadat poptávku | |
| 191 0 WHR32703 |
C00311361
481246668922 |
Gasket door 6M | Na dotaz | Zadat poptávku | |
| 191 9 WHR32703 |
C00313145
481246668923 |
Gasket door 3M | Na dotaz | Zadat poptávku | |
| 201 0 WHR32703 |
C00317281
481244269504 |
Katalitický plech zadní | 1 768 Kč
€ 72.70 |
||
| 245 0 WHR32703 |
C00312479
481245819334 |
Grilovací mřížka/Rošt vestavné trouby Whirlpool | 396 Kč
€ 16.30 |
||
| 245 2 WHR32703 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 247 1 WHR32703 |
C00317859
481939548003 |
Handle grid | 319 Kč
€ 13.10 |
||
| 247 2 WHR32703 |
C00317041
481241838149 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR32703 |
C00315829
481245819304 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 261 1 WHR32703 |
C00315827
481245819303 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 301 0 WHR32703 |
C00341994
481245240097 |
Panel control | Na dotaz | Zadat poptávku | |
| 332 0 WHR32703 |
C00312301
480121100151 |
Tlačítka-sestava | Na dotaz | Zadat poptávku | |
| 334 0 WHR32703 |
C00314590
481241279401 |
knoflik ovladaci | Na dotaz | Zadat poptávku | |
| 350 0 WHR32703 |
C00310969
481213018696 |
Display Ampere | Na dotaz | Zadat poptávku | |
| 351 0 WHR32703 |
C00327370
481231028093 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR32703 |
C00314833
481946279749 |
LENS RED | Na dotaz | Zadat poptávku | |
| 440 0 WHR32703 |
C00311117
481236118466 |
Ventilátor / Motor s vrtulí vestavné horkovzdušné trouby Whirlpool | 1 373 Kč
€ 56.40 |
||
| 441 0 WHR32703 |
C00313235
481236118497 |
motor ventilatoru | 1 936 Kč
€ 79.60 |
||
| 442 0 WHR32703 |
C00313124
481236118496 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR32703 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR32703 |
C00311124
481225998405 |
Kruhové topné těleso 2000W, 240V vestavné trouby Whirlpool | 976 Kč
€ 40.10 |
||
| 452 0 WHR32703 |
C00312148
481225998495 |
Heating element upper/grill assembly | Na dotaz | Zadat poptávku | |
| 456 0 WHR32703 |
C00313157
481925928847 |
Heating element lower 1000W 240V | Na dotaz | Zadat poptávku | |
| 491 0 WHR32703 |
C00313581
481229068168 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 521 0 WHR32703 |
C00311720
481221458615 |
Power unit | Na dotaz | Zadat poptávku | |
| 522 1 WHR32703 |
C00311263
481927328135 |
Regulator 1 zone | Na dotaz | Zadat poptávku | |
| 554 0 WHR32703 |
C00314784
480121101445 |
thermostat | Na dotaz | Zadat poptávku | |
| 554 9 WHR32703 |
C00310964
480121100077 |
Kapilární termostat vestavné trouby Whirlpool | 1 445 Kč
€ 59.40 |
||
| 557 0 WHR32703 |
C00311539
481228228315 |
Termostat 130 °C | 1 019 Kč
€ 41.90 |
||
| 557 1 WHR32703 |
C00313355
481228228316 |
Thermostat 70#C | Na dotaz | Zadat poptávku | |
| 557 2 WHR32703 |
C00312142
481228228317 |
Thermostat 250°C | Na dotaz | Zadat poptávku | |
| 557 3 WHR32703 |
C00312038
481228228346 |
termostat | 932 Kč
€ 38.30 |
||
| 557 4 WHR32703 |
C00314943
481228228331 |
Thermostat | Na dotaz | Zadat poptávku | |
| 611 0 WHR32703 |
C00326811
481213328002 |
Relay 240V | Na dotaz | Zadat poptávku | |
| 620 0 WHR32703 |
C00319683
481227318109 |
Oven switch | Na dotaz | Zadat poptávku | |
| 620 9 WHR32703 |
C00314533
481227318073 |
Oven switch | Na dotaz | Zadat poptávku | |
| 651 0 WHR32703 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR32703 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 652 9 WHR32703 |
C00311901
481225518213 |
Osvětlení trouby Whirlpool, Bauknecht , Ignis - komplet | 1 099 Kč
€ 45.20 |
||
| 656 0 WHR32703 |
C00311267
481245028007 |
Kryt žárovky vestavné trouby Whirlpool | 188 Kč
€ 7.70 |
||
| 914 0 WHR32703 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR32703 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 930 0 WHR32703 |
C00312854
481240418649 |
Držák NTC | 229 Kč
€ 9.40 |
||
| 932 0 WHR32703 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 950 1 WHR32703 |
C00316025
481246688773 |
tesneni postranni | 152 Kč
€ 6.20 |
||
| 950 9 WHR32703 |
C00331529
481246688951 |
Gasket lateral | Na dotaz | Zadat poptávku | |
| 993 0 WHR32703 |
C00327655
481231038988 |
Mounting kit | Na dotaz | Zadat poptávku | |
