IKEA OV B10 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | OV B10 S |
| Kód 12NC: | 857921115500 |
| I.C. kód: | 857921115501 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857921115500, Q0925150000, Q0925150001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

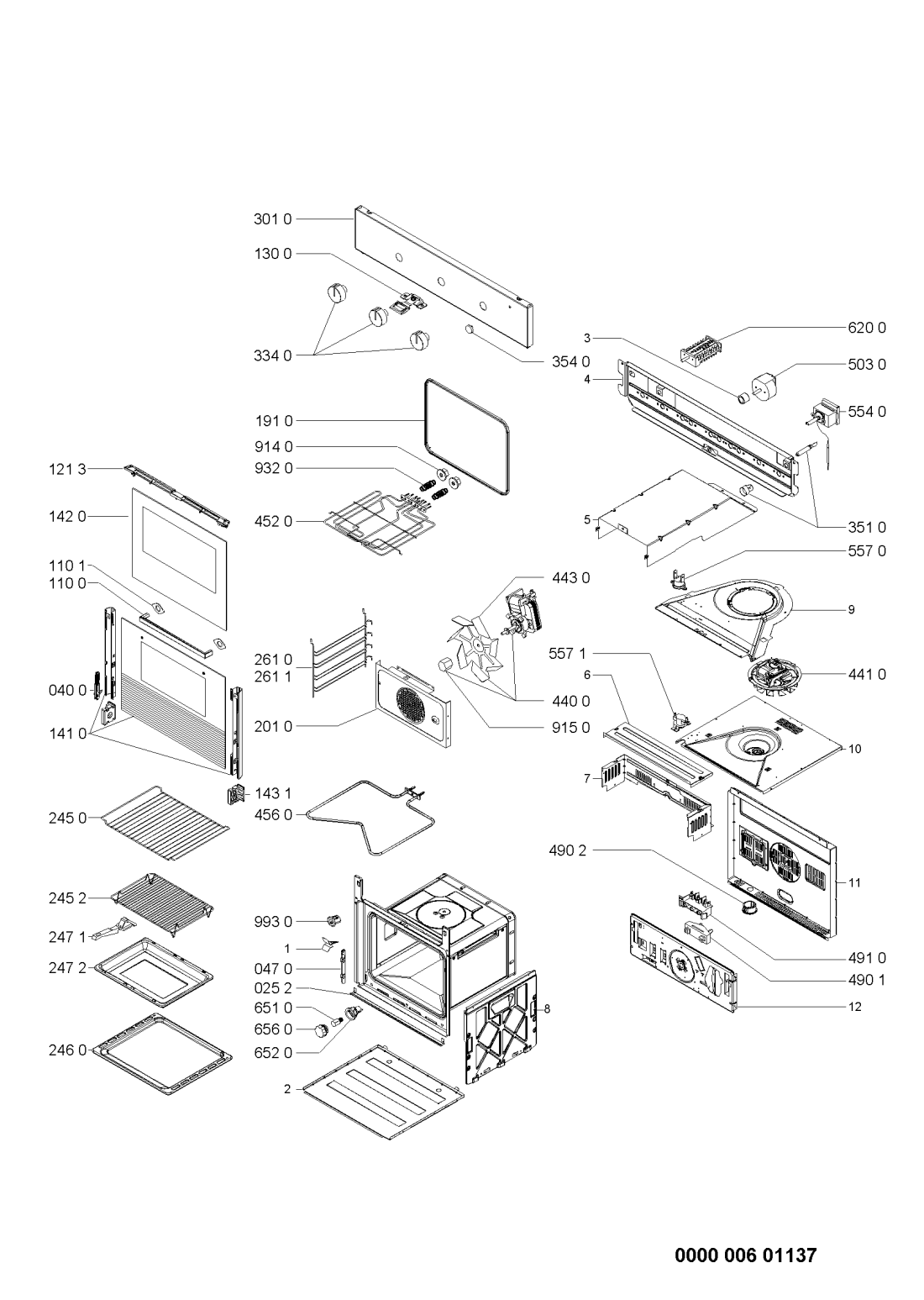

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 025 2 WHR05113 |
C00335224
481246079187 |
Lišta odvodu vody - černá | 169 Kč
€ 7.40 |
||
| 040 0 WHR05113 |
C00312986
481241719339 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR05113 |
C00315492
481241719137 |
MECHANISMUS ZAVESU | 978 Kč
€ 43.00 |
||
| 110 0 WHR05113 |
C00312070
481241279412 |
Madlo dveří trouby Whirlpool, Indesit | 2 704 Kč
€ 118.90 |
||
| 110 1 WHR05113 |
C00313127
481246668858 |
Podložka madla dveří trouby | 52 Kč
€ 2.30 |
||
| 121 3 WHR05113 |
C00311312
481246098095 |
Lišta dveří | 1 446 Kč
€ 63.60 |
||
| 130 0 WHR05113 |
C00315516
481241728106 |
pojistka dveri | 776 Kč
€ 34.10 |
||
| 141 0 WHR05113 |
C00317337
481245059965 |
sklo vnejsi | 4 408 Kč
€ 193.80 |
||
| 142 0 WHR05113 |
C00338931
481245059786 |
sklo dveri vnitrni | Na dotaz | Zadat poptávku | |
| 143 1 WHR05113 |
C00311828
481240449841 |
Držák skla | 410 Kč
€ 18.00 |
||
| 191 0 WHR05113 |
C00311110
481246688874 |
Gasket door | Na dotaz | Zadat poptávku | |
| 201 0 WHR05113 |
C00312074
481244269486 |
stena trouby zadni | 2 047 Kč
€ 90.00 |
||
| 245 0 WHR05113 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 245 2 WHR05113 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR05113 |
C00318818
481241838128 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 1 WHR05113 |
C00317859
481939548003 |
Handle grid | 541 Kč
€ 23.80 |
||
| 247 2 WHR05113 |
C00317041
481241838149 |
Fat pan | 2 342 Kč
€ 102.90 |
||
| 261 0 WHR05113 |
C00315829
481245819304 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 261 1 WHR05113 |
C00315827
481245819303 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 301 0 WHR05113 |
C00312859
481245240303 |
Panel control | Na dotaz | Zadat poptávku | |
| 334 0 WHR05113 |
C00338609
481241279396 |
knoflik ovladaci | 741 Kč
€ 32.60 |
||
| 351 0 WHR05113 |
C00327370
481231028093 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR05113 |
C00314833
481946279749 |
kryt signalky cerv. | 298 Kč
€ 13.10 |
||
| 440 0 WHR05113 |
C00311259
481236118604 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR05113 |
C00313086
481236118527 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR05113 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR05113 |
C00311864
481925928937 |
Topné těleso trouby – horní + dual grill trouby Bauknecht, Ignis | 981 Kč
€ 43.10 |
||
| 456 0 WHR05113 |
C00313278
481225998521 |
Heating element lower 1000W | Na dotaz | Zadat poptávku | |
| 490 1 WHR05113 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR05113 |
C00328481
481231618036 |
CABLE PROTECTION | Na dotaz | Zadat poptávku | |
| 491 0 WHR05113 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 8.60 |
||
| 503 0 WHR05113 |
C00335445
481928218675 |
Timer | Na dotaz | Zadat poptávku | |
| 554 0 WHR05113 |
C00312746
481228208669 |
TERMOSTAT TROUBY | Na dotaz | Zadat poptávku | |
| 557 0 WHR05113 |
C00313116
481228228209 |
Pojistka tepelná 105C | 1 306 Kč
€ 57.40 |
||
| 557 1 WHR05113 |
C00313075
481228228329 |
Termostat 3cestný | 1 230 Kč
€ 54.10 |
||
| 620 0 WHR05113 |
C00335703
481227318083 |
Switch,oven. | Na dotaz | Zadat poptávku | |
| 651 0 WHR05113 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR05113 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR05113 |
C00311267
481245028007 |
Kryt žárovky do trouby Whirlpool | 145 Kč
€ 6.40 |
||
| 914 0 WHR05113 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR05113 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 932 0 WHR05113 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR05113 |
C00314347
481231039061 |
Podložka plastová | 378 Kč
€ 16.60 |
||
| 999 WHR05113 |
C00371139 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05113 |
C00371140 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05113 |
C00371141 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05113 |
C00371142 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
