| Komerční kód: | OV B32 S |
| Kód 12NC: | 857927229000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857911129000, 857911129001 |
Potřebujete servis? Jsme tady pro Vás

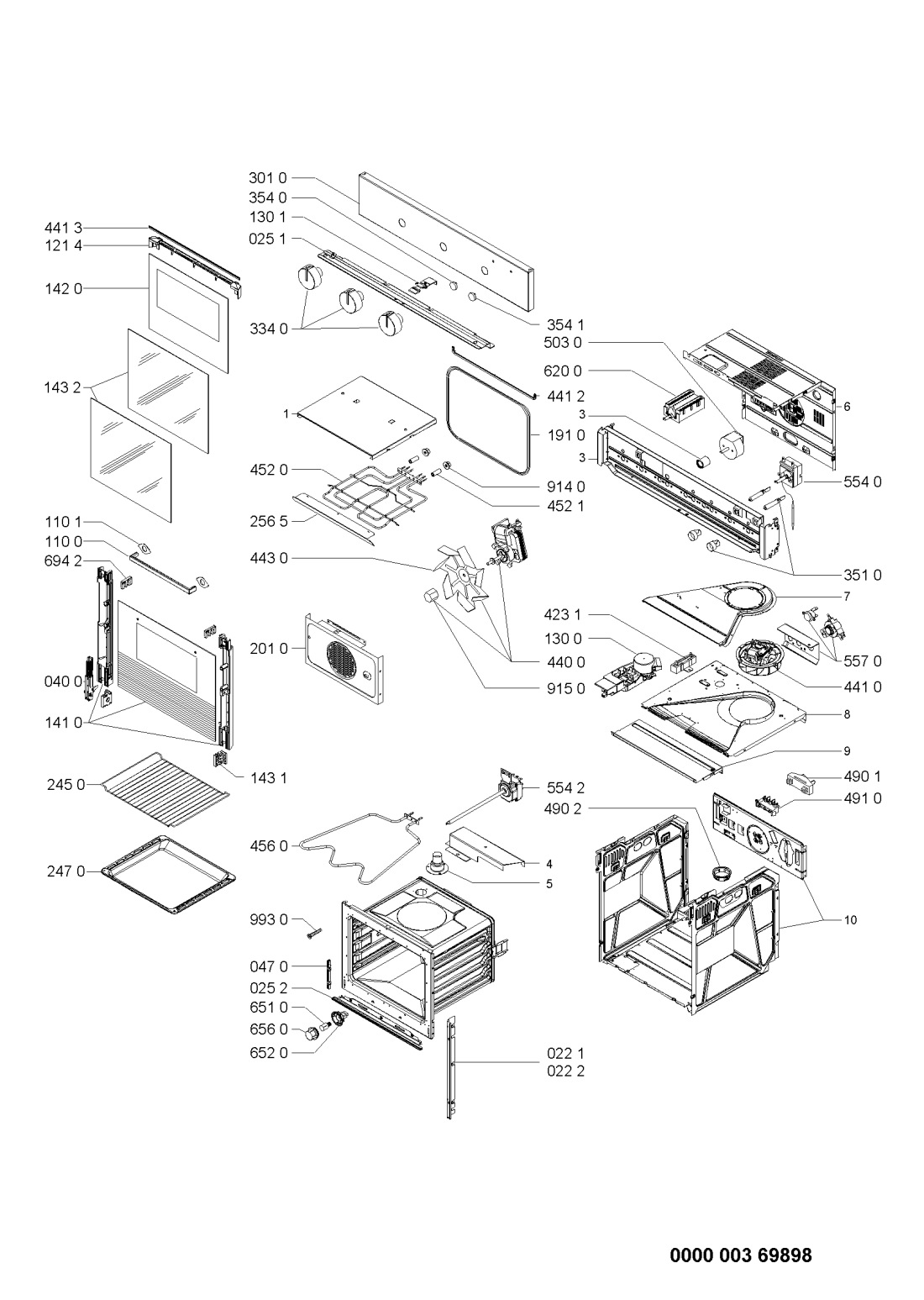

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR40881 |
C00330329
481246049794 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR40881 |
C00330328
481246049793 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR40881 |
C00330392
481246068624 |
panel | 393 Kč
€ 17.30 |
||
| 025 2 WHR40881 |
C00337534
480121100336 |
Profile | Na dotaz | Zadat poptávku | |
| 040 0 WHR40881 |
C00312801
481241719467 |
Závěs dveří | 1 478 Kč
€ 65.00 |
||
| 047 0 WHR40881 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR40881 |
C00312070
481241279412 |
Madlo dveří trouby Whirlpool, Indesit | 2 704 Kč
€ 118.90 |
||
| 110 1 WHR40881 |
C00312913
481246668928 |
Podložka gumová | 91 Kč
€ 4.00 |
||
| 121 4 WHR40881 |
C00316606
481238028034 |
Deflector door | Na dotaz | Zadat poptávku | |
| 130 0 WHR40881 |
C00313264
480121100021 |
Zámek dveří pro pyrolytické trouby Whirlpool | 1 299 Kč
€ 57.10 |
||
| 130 1 WHR40881 |
C00493532
481241738025 |
Child-proof lock | Na dotaz | Zadat poptávku | |
| 141 0 WHR40881 |
C00430228
480121100025 |
Oven glass + supports | Na dotaz | Zadat poptávku | |
| 142 0 WHR40881 |
C00373902
480121100024 |
Inner glass | Na dotaz | Zadat poptávku | |
| 143 1 WHR40881 |
C00317299
481245058908 |
Spacer door glass | Na dotaz | Zadat poptávku | |
| 143 2 WHR40881 |
C00312271
481245059599 |
sklo dveri | 2 947 Kč
€ 129.50 |
||
| 191 0 WHR40881 |
C00312929
481246689042 |
Těsnění dveří trouby | 1 235 Kč
€ 54.30 |
||
| 201 0 WHR40881 |
C00341539
481244269515 |
Panel rear pyro | Na dotaz | Zadat poptávku | |
| 245 0 WHR40881 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 247 0 WHR40881 |
C00318822
481241838138 |
Fat pan | Na dotaz | Zadat poptávku | |
| 256 5 WHR40881 |
C00316686
481240488073 |
Plate protection grill | Na dotaz | Zadat poptávku | |
| 301 0 WHR40881 |
C00430227
480121100023 |
Panel control | Na dotaz | Zadat poptávku | |
| 334 0 WHR40881 |
C00338609
481241279396 |
knoflik ovladaci | 741 Kč
€ 32.60 |
||
| 351 0 WHR40881 |
C00327370
481231028093 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR40881 |
C00314833
481946279749 |
kryt signalky cerv. | 298 Kč
€ 13.10 |
||
| 354 1 WHR40881 |
C00341772
481946279748 |
kryt signalky zluty | 277 Kč
€ 12.20 |
||
| 423 1 WHR40881 |
C00326735
481211518038 |
Resistor 470 ohm | Na dotaz | Zadat poptávku | |
| 440 0 WHR40881 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 441 0 WHR40881 |
C00312506
481236118511 |
ventilator | 2 888 Kč
€ 126.90 |
||
| 441 2 WHR40881 |
C00315028
481246688784 |
Těsnění dveří trouby | 958 Kč
€ 42.10 |
||
| 441 3 WHR40881 |
C00331562
481246699047 |
tesneni dveri trouby | 466 Kč
€ 20.50 |
||
| 443 0 WHR40881 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR40881 |
C00317185
481225998456 |
Topné těleso trouby – horní + gril 2500W | 3 298 Kč
€ 145.00 |
||
| 452 1 WHR40881 |
C00328909
481240118665 |
Spacer heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR40881 |
C00316553
481225998421 |
Topné těleso trouby - spodní Whirlpool 1150 W | 398 Kč
€ 17.50 |
||
| 490 1 WHR40881 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR40881 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR40881 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 8.60 |
||
| 503 0 WHR40881 |
C00587518
481228219755 |
Timer automatic-off. | Na dotaz | Zadat poptávku | |
| 554 0 WHR40881 |
C00335485
481228238155 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 554 2 WHR40881 |
C00314927
481228228289 |
termostat | 2 639 Kč
€ 116.00 |
||
| 557 0 WHR40881 |
C00316903
481228228305 |
Pojistka tepelná | Na dotaz | Zadat poptávku | |
| 620 0 WHR40881 |
C00342074
481227318064 |
Oven selector switch | Na dotaz | Zadat poptávku | |
| 651 0 WHR40881 |
C00326815
481213418028 |
Lamp Oven 235V 25W 500# E14 | Na dotaz | Zadat poptávku | |
| 652 0 WHR40881 |
C00327138
481225528021 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 656 0 WHR40881 |
C00331110
481245028009 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 694 2 WHR40881 |
C00315933
481246368024 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 914 0 WHR40881 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR40881 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 993 0 WHR40881 |
C00327632
481231038843 |
sada montazni | 194 Kč
€ 8.50 |
||
