IKEA OV C00 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | OV C00 S |
| Kód 12NC: | 857921301500 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857921301501, 857921301502, 857921301503, 857921301504, 857921301505, 857921301506, 857924201500, 857924201501 |
Potřebujete servis? Jsme tady pro Vás

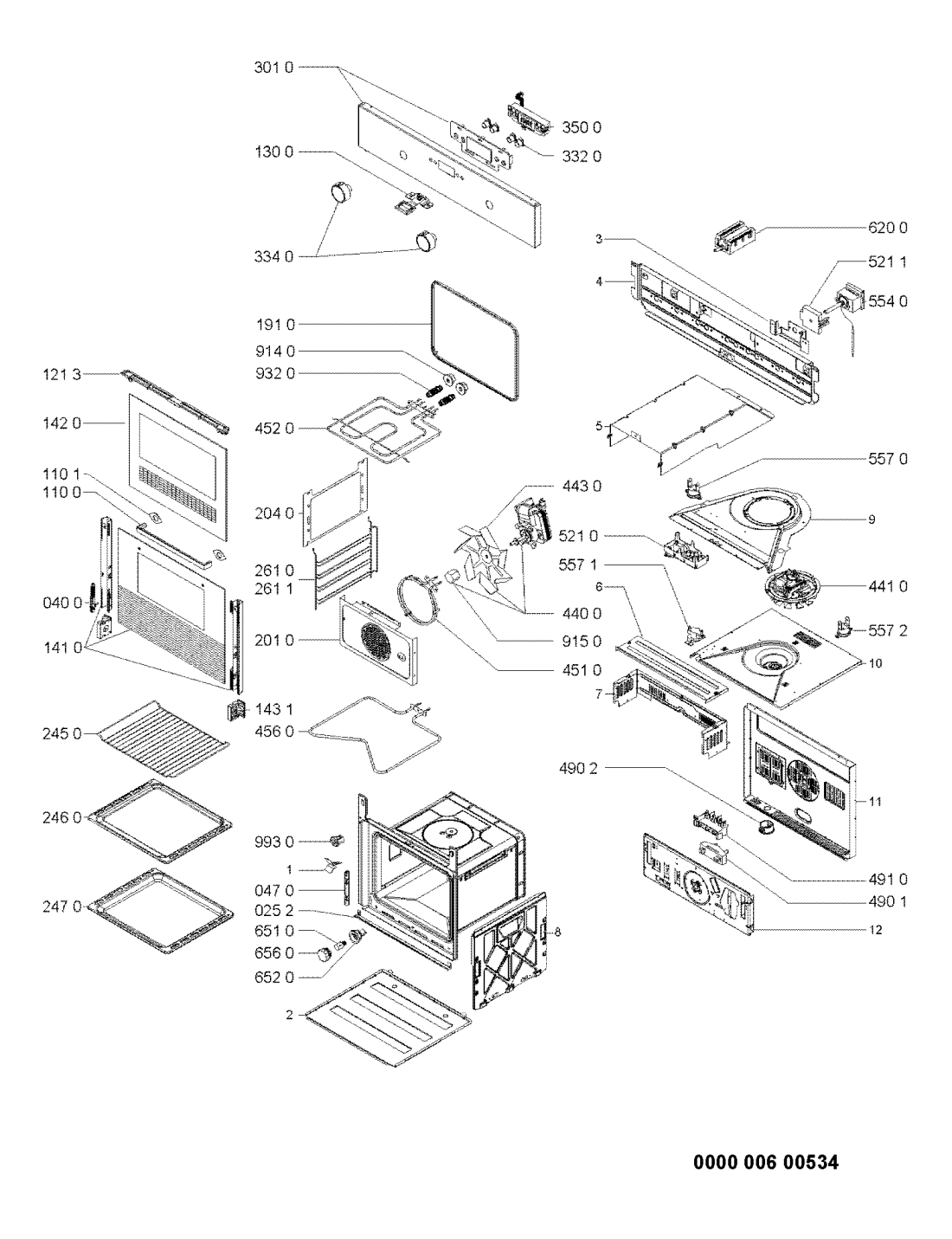

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 025 2 WHR32537 |
C00335224
481246079187 |
Lišta odvodu vody - černá | 169 Kč
€ 7.40 |
||
| 040 0 WHR32537 |
C00312986
481241719339 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR32537 |
C00315492
481241719137 |
MECHANISMUS ZAVESU | 978 Kč
€ 43.00 |
||
| 110 0 WHR32537 |
C00312070
481241279412 |
Madlo dveří trouby Whirlpool, Indesit | 2 704 Kč
€ 118.90 |
||
| 110 1 WHR32537 |
C00313127
481246668858 |
Podložka madla dveří trouby | 52 Kč
€ 2.30 |
||
| 121 3 WHR32537 |
C00311312
481246098095 |
Lišta dveří | 1 446 Kč
€ 63.60 |
||
| 130 0 WHR32537 |
C00315516
481241728106 |
pojistka dveri | 776 Kč
€ 34.10 |
||
| 141 0 WHR32537 |
C00459828
481245050031 |
Oven glass | Na dotaz | Zadat poptávku | |
| 141 0 WHR32537 |
C00460072
481245059783 |
SKLO DVERI VNEJSI | Na dotaz | Zadat poptávku | |
| 142 0 WHR32537 |
C00338925
481245059801 |
Inner glass | Na dotaz | Zadat poptávku | |
| 143 1 WHR32537 |
C00319015
481240418455 |
Support | Na dotaz | Zadat poptávku | |
| 191 0 WHR32537 |
C00311110
481246688874 |
Gasket door | Na dotaz | Zadat poptávku | |
| 201 0 WHR32537 |
C00317281
481244269504 |
Katalitický plech zadní | 2 047 Kč
€ 90.00 |
||
| 204 0 WHR32537 |
C00336335
481244269782 |
Side panel enameled catalytic | Na dotaz | Zadat poptávku | |
| 245 0 WHR32537 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 246 0 WHR32537 |
C00318818
481241838128 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR32537 |
C00318822
481241838138 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR32537 |
C00315829
481245819304 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 261 1 WHR32537 |
C00315827
481245819303 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 301 0 WHR32537 |
C00461782
481245240024 |
PANEL KONTROLNY | Na dotaz | Zadat poptávku | |
| 332 0 WHR32537 |
C00329353
481241078186 |
knoflik mw | 176 Kč
€ 7.70 |
||
| 334 0 WHR32537 |
C00314590
481241279401 |
knoflik ovladaci | Na dotaz | Zadat poptávku | |
| 350 0 WHR32537 |
C00315300
481213008763 |
Display Ampere | Na dotaz | Zadat poptávku | |
| 440 0 WHR32537 |
C00311259
481236118604 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR32537 |
C00313086
481236118527 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR32537 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR32537 |
C00313065
481225998406 |
Heating element forced-air 2000W 230V | Na dotaz | Zadat poptávku | |
| 452 0 WHR32537 |
C00456514
481225998519 |
Heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR32537 |
C00456512
481225998517 |
OHRIEVACIE TELESO SPODNE | Na dotaz | Zadat poptávku | |
| 490 1 WHR32537 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR32537 |
C00328481
481231618036 |
CABLE PROTECTION | Na dotaz | Zadat poptávku | |
| 491 0 WHR32537 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 8.60 |
||
| 521 0 WHR32537 |
C00311441
481221458345 |
Power unit Ampere | Na dotaz | Zadat poptávku | |
| 521 1 WHR32537 |
C00315999
481227328279 |
Přepínač AMPERE !!! | Na dotaz | Zadat poptávku | |
| 554 0 WHR32537 |
C00318904
481228238174 |
TERMOSTAT TROUBY | Na dotaz | Zadat poptávku | |
| 557 0 WHR32537 |
C00313116
481228228209 |
Pojistka tepelná 105C | 1 306 Kč
€ 57.40 |
||
| 557 1 WHR32537 |
C00313075
481228228329 |
Termostat 3cestný | 1 230 Kč
€ 54.10 |
||
| 557 2 WHR32537 |
C00311589
481228228282 |
Termostat 50±5/40±5 °C | 1 109 Kč
€ 48.70 |
||
| 620 0 WHR32537 |
C00456562
481227318107 |
prepinac trouby | 1 619 Kč
€ 71.20 |
||
| 651 0 WHR32537 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR32537 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR32537 |
C00311267
481245028007 |
Kryt žárovky do trouby Whirlpool | 145 Kč
€ 6.40 |
||
| 914 0 WHR32537 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR32537 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 932 0 WHR32537 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR32537 |
C00314347
481231039061 |
Podložka plastová | 378 Kč
€ 16.60 |
||
