IKEA OV C40 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | OV C40 S |
| Kód 12NC: | 857921316000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857911416000, 857911416001, 857921316001, 857924216000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

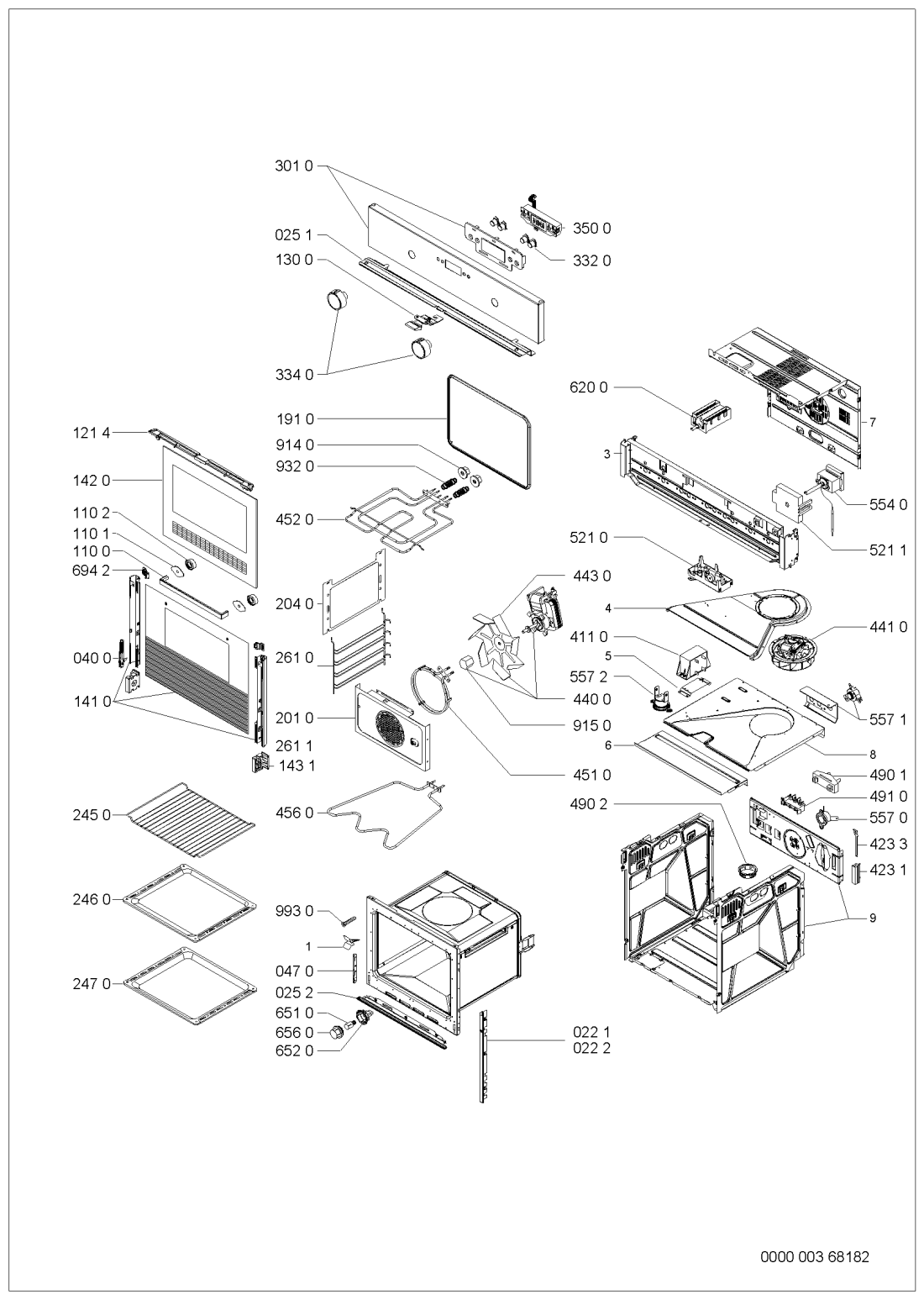

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0221 WHR32544 |
C00404563
481246049759 |
výplň | 337 Kč
€ 14.80 |
||
| 0222 WHR32544 |
C00404562
481246049758 |
výplň | 337 Kč
€ 14.80 |
||
| 0251 WHR32544 |
C00330421
481246088314 |
Trim lower | Na dotaz | Zadat poptávku | |
| 0252 WHR32544 |
C00330324
481246049775 |
Profile | Na dotaz | Zadat poptávku | |
| 0400 WHR32544 |
C00329764
481241719471 |
Hinge | Na dotaz | Zadat poptávku | |
| 0470 WHR32544 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 1100 WHR32544 |
C00312070
481241279412 |
Madlo dveří trouby Whirlpool, Indesit | 2 704 Kč
€ 118.90 |
||
| 1101 WHR32544 |
C00312913
481246668928 |
Podložka gumová | 91 Kč
€ 4.00 |
||
| 1102 WHR32544 |
C00329018
481240438747 |
podlozka | 332 Kč
€ 14.60 |
||
| 1214 WHR32544 |
C00311312
481246098095 |
Lišta dveří | 1 446 Kč
€ 63.60 |
||
| 1300 WHR32544 |
C00342734
481241728105 |
Child-proof lock Ikea | Na dotaz | Zadat poptávku | |
| 1410 WHR32544 |
C00377751
481245059989 |
sklo dveri | 5 813 Kč
€ 255.50 |
||
| 1410 WHR32544 |
C00460086
481245059813 |
Oven glass complete | Na dotaz | Zadat poptávku | |
| 1420 WHR32544 |
C00338925
481245059801 |
Inner glass | Na dotaz | Zadat poptávku | |
| 1431 WHR32544 |
C00314180
481240438808 |
Podpěra | 422 Kč
€ 18.50 |
||
| 1910 WHR32544 |
C00311697
481246688912 |
Těsnění dveří trouby náhrada C00311697 | Na dotaz | Zadat poptávku | |
| 2010 WHR32544 |
C00317281
481244269504 |
Katalitický plech zadní | 2 047 Kč
€ 90.00 |
||
| 2040 WHR32544 |
C00328118
481244019702 |
stěna boční | Na dotaz | Zadat poptávku | |
| 2450 WHR32544 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 2460 WHR32544 |
C00318818
481241838128 |
Baking tray | Na dotaz | Zadat poptávku | |
| 2470 WHR32544 |
C00318822
481241838138 |
Fat pan | Na dotaz | Zadat poptávku | |
| 2610 WHR32544 |
C00315829
481245819304 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 2611 WHR32544 |
C00315827
481245819303 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 3010 WHR32544 |
C00462398
481245249991 |
Panel control + support | Na dotaz | Zadat poptávku | |
| 3320 WHR32544 |
C00329353
481241078186 |
knoflik mw | 176 Kč
€ 7.70 |
||
| 3340 WHR32544 |
C00314590
481241279401 |
knoflik ovladaci | Na dotaz | Zadat poptávku | |
| 3500 WHR32544 |
C00315300
481213008763 |
Display Ampere | Na dotaz | Zadat poptávku | |
| 4110 WHR32544 |
C00399886
481214288032 |
Transformer 400V/230V | Na dotaz | Zadat poptávku | |
| 4231 WHR32544 |
C00486409
481911518002 |
RESISTOR 1560 OHM, 18 W | Na dotaz | Zadat poptávku | |
| 4233 WHR32544 |
C00484377
481940478981 |
Bracket | Na dotaz | Zadat poptávku | |
| 4400 WHR32544 |
C00491454
481236118403 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4410 WHR32544 |
C00484749
481236118404 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 4430 WHR32544 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 4510 WHR32544 |
C00376486
481925928839 |
Heating element forced air 2000W | Na dotaz | Zadat poptávku | |
| 4520 WHR32544 |
C00488551
481225998493 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 4560 WHR32544 |
C00381151
481225998427 |
Topné těleso trouby – spodní 1150 W | 2 325 Kč
€ 102.20 |
||
| 4901 WHR32544 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 4902 WHR32544 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 4910 WHR32544 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 8.60 |
||
| 5210 WHR32544 |
C00311441
481221458345 |
Power unit Ampere | Na dotaz | Zadat poptávku | |
| 5211 WHR32544 |
C00315999
481227328279 |
Přepínač AMPERE !!! | Na dotaz | Zadat poptávku | |
| 5540 WHR32544 |
C00335556
481228238163 |
TERMOSTAT | 2 128 Kč
€ 93.50 |
||
| 5570 WHR32544 |
C00311539
481228228315 |
Termostat 130 °C | 1 278 Kč
€ 56.20 |
||
| 5571 WHR32544 |
C00335557
481228228322 |
Thermostat | Na dotaz | Zadat poptávku | |
| 5572 WHR32544 |
C00335509
481228228323 |
termostat 75 C | Na dotaz | Zadat poptávku | |
| 6200 WHR32544 |
C00456562
481227318107 |
prepinac trouby | 1 619 Kč
€ 71.20 |
||
| 6510 WHR32544 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 6520 WHR32544 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 6560 WHR32544 |
C00311267
481245028007 |
Kryt žárovky do trouby Whirlpool | 145 Kč
€ 6.40 |
||
| 9140 WHR32544 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 9150 WHR32544 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 9320 WHR32544 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 9930 WHR32544 |
C00327666
481231039079 |
Mounting kit | Na dotaz | Zadat poptávku | |
