IKEA OVN 910 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | OVN 910 S |
| Kód 12NC: | 857922015000 |
| I.C. kód: | 857922015001 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857922015000, Q0925180000, Q0925180001 |
Potřebujete servis? Jsme tady pro Vás

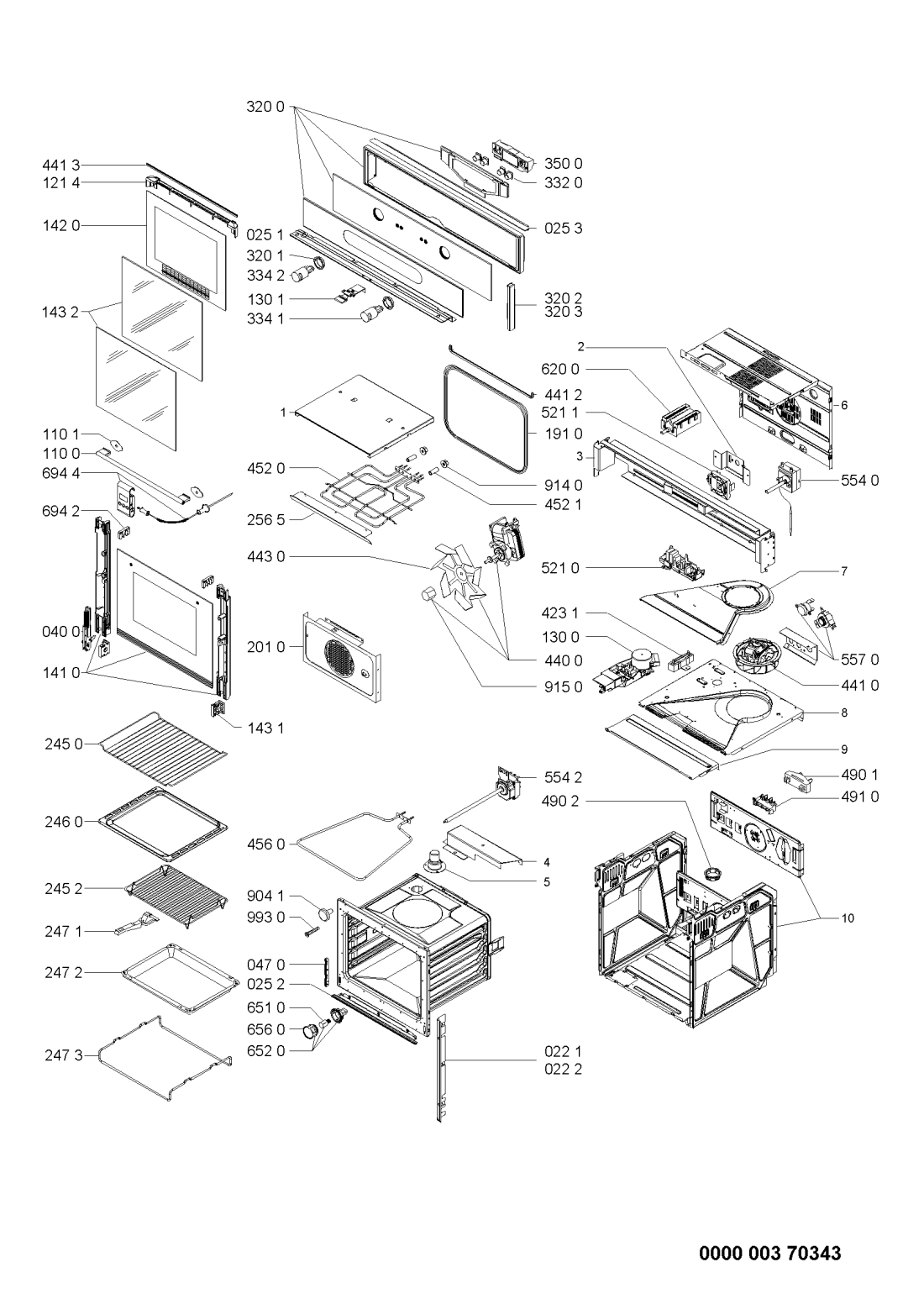

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR05174 |
C00330329
481246049794 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR05174 |
C00330328
481246049793 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR05174 |
C00330392
481246068624 |
panel | Na dotaz | Zadat poptávku | |
| 025 2 WHR05174 |
C00337534
480121100336 |
Profile | Na dotaz | Zadat poptávku | |
| 025 3 WHR05174 |
C00330284
481246049499 |
Trim upper | Na dotaz | Zadat poptávku | |
| 040 0 WHR05174 |
C00312801
481241719467 |
Závěs dveří | 1 040 Kč
€ 42.80 |
||
| 047 0 WHR05174 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR05174 |
C00345779
481249868298 |
Madlo dveří trouby Náhrada 480121100147 |
Na dotaz | Zadat poptávku | |
| 110 1 WHR05174 |
C00312913
481246668928 |
Podložka gumová | 50 Kč
€ 2.10 |
||
| 121 4 WHR05174 |
C00316606
481238028034 |
Deflector door | Na dotaz | Zadat poptávku | |
| 130 0 WHR05174 |
C00313264
480121100021 |
Zámek dveří pro pyrolytické trouby Whirlpool | 2 036 Kč
€ 83.70 |
||
| 130 1 WHR05174 |
C00316914
481241728115 |
pojistka dveri UZ NEBUDE !!!! | Na dotaz | Zadat poptávku | |
| 141 0 WHR05174 |
C00337911
481245059893 |
sklo dveri vnejsi | Na dotaz | Zadat poptávku | |
| 142 0 WHR05174 |
C00338933
481245059892 |
Inner glass | Na dotaz | Zadat poptávku | |
| 143 1 WHR05174 |
C00317299
481245058908 |
Spacer door glass | Na dotaz | Zadat poptávku | |
| 143 2 WHR05174 |
C00312271
481245059599 |
sklo dveří | 2 275 Kč
€ 93.50 |
||
| 191 0 WHR05174 |
C00312929
481246689042 |
Těsnění dveří trouby | 1 279 Kč
€ 52.60 |
||
| 201 0 WHR05174 |
C00341539
481244269515 |
Panel rear pyro | Na dotaz | Zadat poptávku | |
| 245 0 WHR05174 |
C00312479
481245819334 |
Grilovací mřížka/Rošt vestavné trouby Whirlpool | 396 Kč
€ 16.30 |
||
| 245 2 WHR05174 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR05174 |
C00318818
481241838128 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 1 WHR05174 |
C00317859
481939548003 |
Handle grid | 319 Kč
€ 13.10 |
||
| 247 2 WHR05174 |
C00317041
481241838149 |
Fat pan | Na dotaz | Zadat poptávku | |
| 247 3 WHR05174 |
C00335833
481240449863 |
Support fat pan | Na dotaz | Zadat poptávku | |
| 256 5 WHR05174 |
C00316686
481240488073 |
Plate protection grill | Na dotaz | Zadat poptávku | |
| 320 0 WHR05174 |
C00340368
481245240232 |
panel | Na dotaz | Zadat poptávku | |
| 320 1 WHR05174 |
C00313222
481252888106 |
Kroužek knoflíku | 309 Kč
€ 12.70 |
||
| 320 2 WHR05174 |
C00329216
481240478755 |
End block left | Na dotaz | Zadat poptávku | |
| 320 3 WHR05174 |
C00329217
481240478756 |
End block right | Na dotaz | Zadat poptávku | |
| 332 0 WHR05174 |
C00311793
480121100272 |
Tlačítko trouby Whirlpool | 348 Kč
€ 14.30 |
||
| 334 1 WHR05174 |
C00338450
481241279428 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 334 2 WHR05174 |
C00338493
481241279427 |
Knob oven | Na dotaz | Zadat poptávku | |
| 350 0 WHR05174 |
C00312364
480121100337 |
Displej trouby | 1 818 Kč
€ 74.70 |
||
| 423 1 WHR05174 |
C00326735
481211518038 |
Resistor 470 ohm | Na dotaz | Zadat poptávku | |
| 440 0 WHR05174 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 441 0 WHR05174 |
C00312506
481236118511 |
ventilator | 2 202 Kč
€ 90.50 |
||
| 441 2 WHR05174 |
C00315028
481246688784 |
Těsnění dveří trouby | 613 Kč
€ 25.20 |
||
| 441 3 WHR05174 |
C00331562
481246699047 |
tesneni dveri trouby | 269 Kč
€ 11.10 |
||
| 443 0 WHR05174 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR05174 |
C00312486
481225928962 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 452 1 WHR05174 |
C00328909
481240118665 |
Spacer heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR05174 |
C00313096
481225998432 |
Heating element lower 1000W | Na dotaz | Zadat poptávku | |
| 490 1 WHR05174 |
C00327588
481229068255 |
CABLE CLAMP | Na dotaz | Zadat poptávku | |
| 490 2 WHR05174 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR05174 |
C00313503
481229068329 |
svorkovnice | 99 Kč
€ 4.10 |
||
| 521 0 WHR05174 |
C00315654
480121100339 |
Power unit | Na dotaz | Zadat poptávku | |
| 521 1 WHR05174 |
C00311584
481221458616 |
prepinac | 960 Kč
€ 39.50 |
||
| 554 0 WHR05174 |
C00313423
481228208673 |
termostat | Na dotaz | Zadat poptávku | |
| 554 2 WHR05174 |
C00314927
481228228289 |
termostat | Na dotaz | Zadat poptávku | |
| 557 0 WHR05174 |
C00316903
481228228305 |
Pojistka tepelná | Na dotaz | Zadat poptávku | |
| 620 0 WHR05174 |
C00313693
480121100338 |
spinac vackovy | Na dotaz | Zadat poptávku | |
| 651 0 WHR05174 |
C00318382
481213428101 |
Oven lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR05174 |
C00316065
481231039167 |
Lamp oven rear assembly | Na dotaz | Zadat poptávku | |
| 656 0 WHR05174 |
C00328845
481238028042 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 694 2 WHR05174 |
C00315933
481246368024 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 694 4 WHR05174 |
C00344672
481231039219 |
Accessory | Na dotaz | Zadat poptávku | |
| 904 1 WHR05174 |
C00331589 | Spacer | Na dotaz | Zadat poptávku | |
| 914 0 WHR05174 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR05174 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 993 0 WHR05174 |
C00327632
481231038843 |
sada montazni | Na dotaz | Zadat poptávku | |
| 999 WHR05174 |
C00371230 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05174 |
C00371231 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05174 |
C00371233 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05174 |
C00371234 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
