IKEA 001 230 15
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 001 230 15 |
| Kód 12NC: | 857921516000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

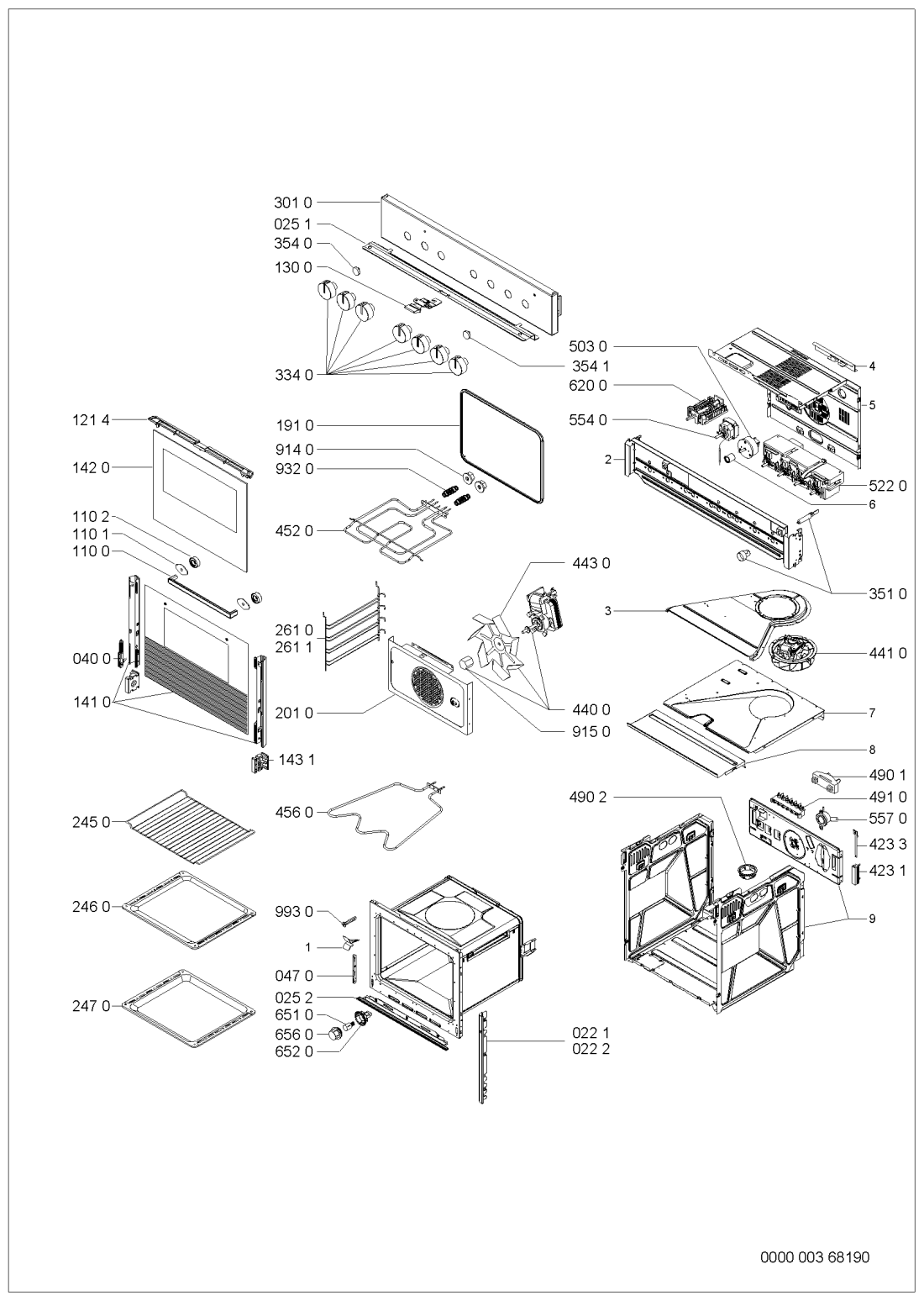

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0221 WHR32556 |
C00404563
481246049759 |
výplň | 337 Kč
€ 14.80 |
||
| 0222 WHR32556 |
C00404562
481246049758 |
výplň | 337 Kč
€ 14.80 |
||
| 0251 WHR32556 |
C00330421
481246088314 |
Trim lower | Na dotaz | Zadat poptávku | |
| 0252 WHR32556 |
C00330324
481246049775 |
Profile | Na dotaz | Zadat poptávku | |
| 0400 WHR32556 |
C00329764
481241719471 |
Hinge | Na dotaz | Zadat poptávku | |
| 0470 WHR32556 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 1100 WHR32556 |
C00312070
481241279412 |
Madlo dveří trouby Whirlpool, Indesit | 2 704 Kč
€ 118.90 |
||
| 1101 WHR32556 |
C00312913
481246668928 |
Podložka gumová | 91 Kč
€ 4.00 |
||
| 1102 WHR32556 |
C00329018
481240438747 |
podlozka | 332 Kč
€ 14.60 |
||
| 1214 WHR32556 |
C00311312
481246098095 |
Lišta dveří | 1 446 Kč
€ 63.60 |
||
| 1300 WHR32556 |
C00342734
481241728105 |
Child-proof lock Ikea | Na dotaz | Zadat poptávku | |
| 1410 WHR32556 |
C00377750
481245059988 |
Oven glass FGVD | Na dotaz | Zadat poptávku | |
| 1420 WHR32556 |
C00338926
481245059782 |
sklo dveri vnitrni | 1 774 Kč
€ 78.00 |
||
| 1431 WHR32556 |
C00314180
481240438808 |
Podpěra | 422 Kč
€ 18.50 |
||
| 1910 WHR32556 |
C00311697
481246688912 |
Těsnění dveří trouby náhrada C00311697 | Na dotaz | Zadat poptávku | |
| 2010 WHR32556 |
C00312074
481244269486 |
stena trouby zadni | 2 047 Kč
€ 90.00 |
||
| 2450 WHR32556 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 2460 WHR32556 |
C00318818
481241838128 |
Baking tray | Na dotaz | Zadat poptávku | |
| 2470 WHR32556 |
C00318822
481241838138 |
Fat pan | Na dotaz | Zadat poptávku | |
| 2610 WHR32556 |
C00315829
481245819304 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 2611 WHR32556 |
C00315827
481245819303 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 3010 WHR32556 |
C00462393
481245249984 |
Panel control | Na dotaz | Zadat poptávku | |
| 3340 WHR32556 |
C00338609
481241279396 |
knoflik ovladaci | 741 Kč
€ 32.60 |
||
| 3510 WHR32556 |
C00327370
481231028093 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 3540 WHR32556 |
C00314833
481946279749 |
kryt signalky cerv. | 298 Kč
€ 13.10 |
||
| 3541 WHR32556 |
C00341772
481946279748 |
kryt signalky zluty | 277 Kč
€ 12.20 |
||
| 4231 WHR32556 |
C00486409
481911518002 |
RESISTOR 1560 OHM, 18 W | Na dotaz | Zadat poptávku | |
| 4233 WHR32556 |
C00484377
481940478981 |
Bracket | Na dotaz | Zadat poptávku | |
| 4400 WHR32556 |
C00491454
481236118403 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4410 WHR32556 |
C00401691
481236118609 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 4430 WHR32556 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 4520 WHR32556 |
C00488551
481225998493 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 4560 WHR32556 |
C00381151
481225998427 |
Topné těleso trouby – spodní 1150 W | 2 325 Kč
€ 102.20 |
||
| 4901 WHR32556 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 4902 WHR32556 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 4910 WHR32556 |
C00316243
481229068333 |
Connectionblock 5-way + earth | Na dotaz | Zadat poptávku | |
| 5030 WHR32556 |
C00335445
481928218675 |
Timer | Na dotaz | Zadat poptávku | |
| 5220 WHR32556 |
C00399992
481221458312 |
Unit control hob SC1 | Na dotaz | Zadat poptávku | |
| 5540 WHR32556 |
C00384898
481228208626 |
Termostat - kapilární | 1 946 Kč
€ 85.50 |
||
| 5570 WHR32556 |
C00311539
481228228315 |
Termostat 130 °C | 1 278 Kč
€ 56.20 |
||
| 6200 WHR32556 |
C00491059
481227328164 |
prepinac trouby | 2 133 Kč
€ 93.80 |
||
| 6510 WHR32556 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 6520 WHR32556 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 6560 WHR32556 |
C00311267
481245028007 |
Kryt žárovky do trouby Whirlpool | 145 Kč
€ 6.40 |
||
| 9140 WHR32556 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 9150 WHR32556 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 9320 WHR32556 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 9930 WHR32556 |
C00327666
481231039079 |
Mounting kit | Na dotaz | Zadat poptávku | |
