| Komerční kód: | 801 230 16 |
| Kód 12NC: | 857921516010 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

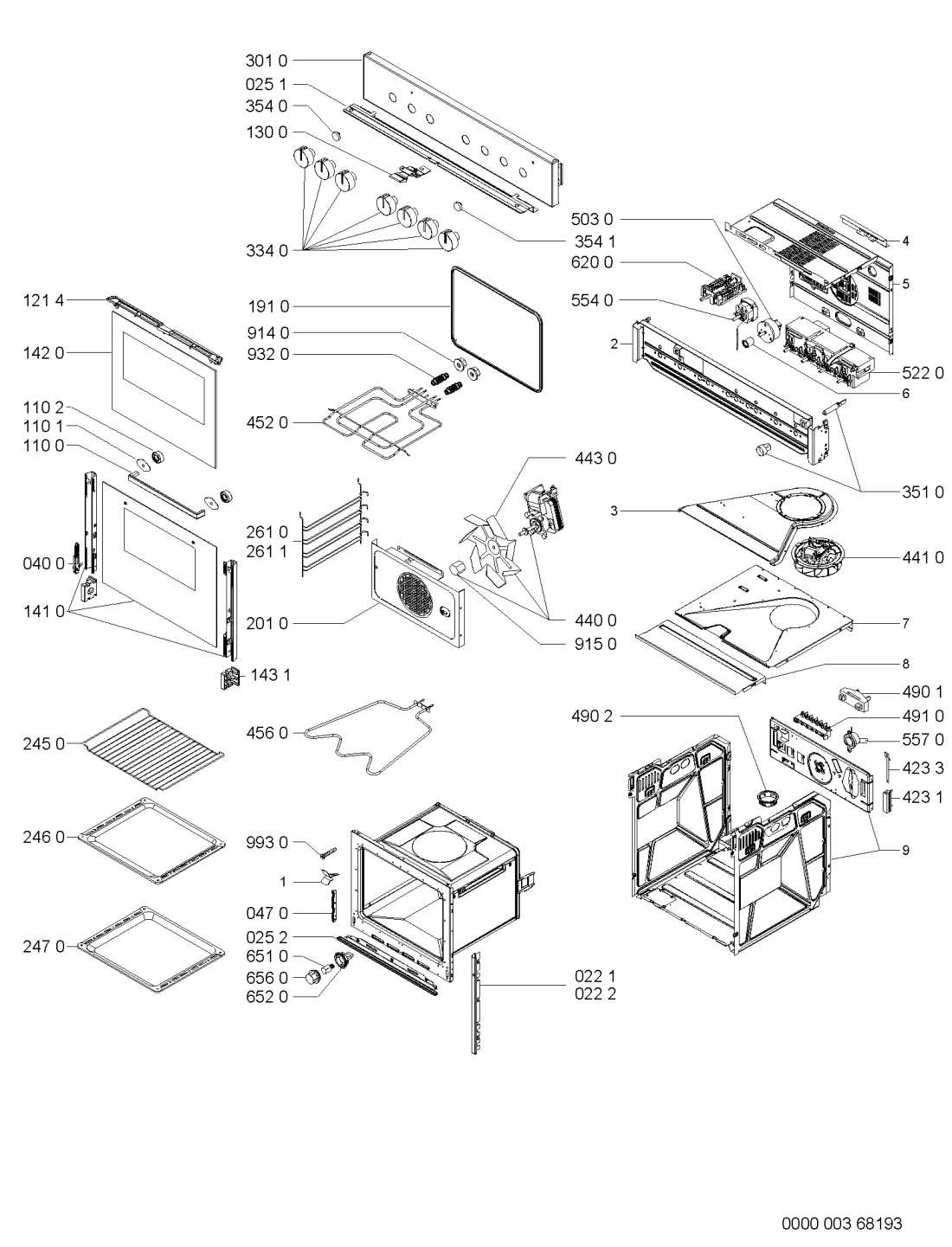

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR32557 |
C00404563
481246049759 |
výplň | 337 Kč
€ 14.80 |
||
| 022 2 WHR32557 |
C00404562
481246049758 |
výplň | 337 Kč
€ 14.80 |
||
| 025 1 WHR32557 |
C00330416
481246079229 |
panel | Na dotaz | Zadat poptávku | |
| 025 2 WHR32557 |
C00330324
481246049775 |
Profile | Na dotaz | Zadat poptávku | |
| 040 0 WHR32557 |
C00329764
481241719471 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR32557 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR32557 |
C00405391
481249868289 |
Door handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR32557 |
C00313127
481246668858 |
Podložka madla dveří trouby | 52 Kč
€ 2.30 |
||
| 110 2 WHR32557 |
C00329018
481240438747 |
podlozka | 332 Kč
€ 14.60 |
||
| 121 4 WHR32557 |
C00311312
481246098095 |
Lišta dveří | 1 446 Kč
€ 63.60 |
||
| 130 0 WHR32557 |
C00342734
481241728105 |
Child-proof lock Ikea | Na dotaz | Zadat poptávku | |
| 141 0 WHR32557 |
C00377731
481245050029 |
sklo dveri vnejsi | 4 273 Kč
€ 187.80 |
||
| 141 0 WHR32557 |
C00460073
481245059784 |
sklo dveri vnejsi WH | 7 615 Kč
€ 334.70 |
||
| 142 0 WHR32557 |
C00315361
480121101495 |
Vnitřní sklo dveří pro trouby Ikea/Whirlpool | 3 160 Kč
€ 138.90 |
||
| 143 1 WHR32557 |
C00314180
481240438808 |
Podpěra | 422 Kč
€ 18.50 |
||
| 191 0 WHR32557 |
C00311697
481246688912 |
Těsnění dveří trouby náhrada C00311697 | Na dotaz | Zadat poptávku | |
| 201 0 WHR32557 |
C00317281
481244269504 |
Katalitický plech zadní | 2 047 Kč
€ 90.00 |
||
| 245 0 WHR32557 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 246 0 WHR32557 |
C00318818
481241838128 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR32557 |
C00318822
481241838138 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR32557 |
C00315829
481245819304 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 261 1 WHR32557 |
C00315827
481245819303 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 301 0 WHR32557 |
C00462068
481245249511 |
Panel,control | Na dotaz | Zadat poptávku | |
| 334 0 WHR32557 |
C00338609
481241279396 |
knoflik ovladaci | 741 Kč
€ 32.60 |
||
| 351 0 WHR32557 |
C00312890
480131000099 |
Signalka | 435 Kč
€ 19.10 |
||
| 354 0 WHR32557 |
C00314833
481946279749 |
kryt signalky cerv. | 298 Kč
€ 13.10 |
||
| 354 1 WHR32557 |
C00341772
481946279748 |
kryt signalky zluty | 277 Kč
€ 12.20 |
||
| 423 1 WHR32557 |
C00486409
481911518002 |
RESISTOR 1560 OHM, 18 W | Na dotaz | Zadat poptávku | |
| 423 3 WHR32557 |
C00484377
481940478981 |
Bracket | Na dotaz | Zadat poptávku | |
| 440 0 WHR32557 |
C00491454
481236118403 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR32557 |
C00401691
481236118609 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR32557 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR32557 |
C00488551
481225998493 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR32557 |
C00381151
481225998427 |
Topné těleso trouby – spodní 1150 W | 2 325 Kč
€ 102.20 |
||
| 490 1 WHR32557 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR32557 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR32557 |
C00316243
481229068333 |
Connectionblock 5-way + earth | Na dotaz | Zadat poptávku | |
| 503 0 WHR32557 |
C00335445
481928218675 |
Timer | Na dotaz | Zadat poptávku | |
| 522 0 WHR32557 |
C00399992
481221458312 |
Unit control hob SC1 | Na dotaz | Zadat poptávku | |
| 554 0 WHR32557 |
C00384898
481228208626 |
Termostat - kapilární | 1 946 Kč
€ 85.50 |
||
| 557 0 WHR32557 |
C00311539
481228228315 |
Termostat 130 °C | 1 278 Kč
€ 56.20 |
||
| 620 0 WHR32557 |
C00491059
481227328164 |
prepinac trouby | 2 133 Kč
€ 93.80 |
||
| 651 0 WHR32557 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR32557 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR32557 |
C00311267
481245028007 |
Kryt žárovky do trouby Whirlpool | 145 Kč
€ 6.40 |
||
| 914 0 WHR32557 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR32557 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 932 0 WHR32557 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR32557 |
C00327666
481231039079 |
Mounting kit | Na dotaz | Zadat poptávku | |
