| Komerční kód: | 50118648 PRO A 80 S FS COOKER IK |
| Kód 12NC: | 852398953000 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

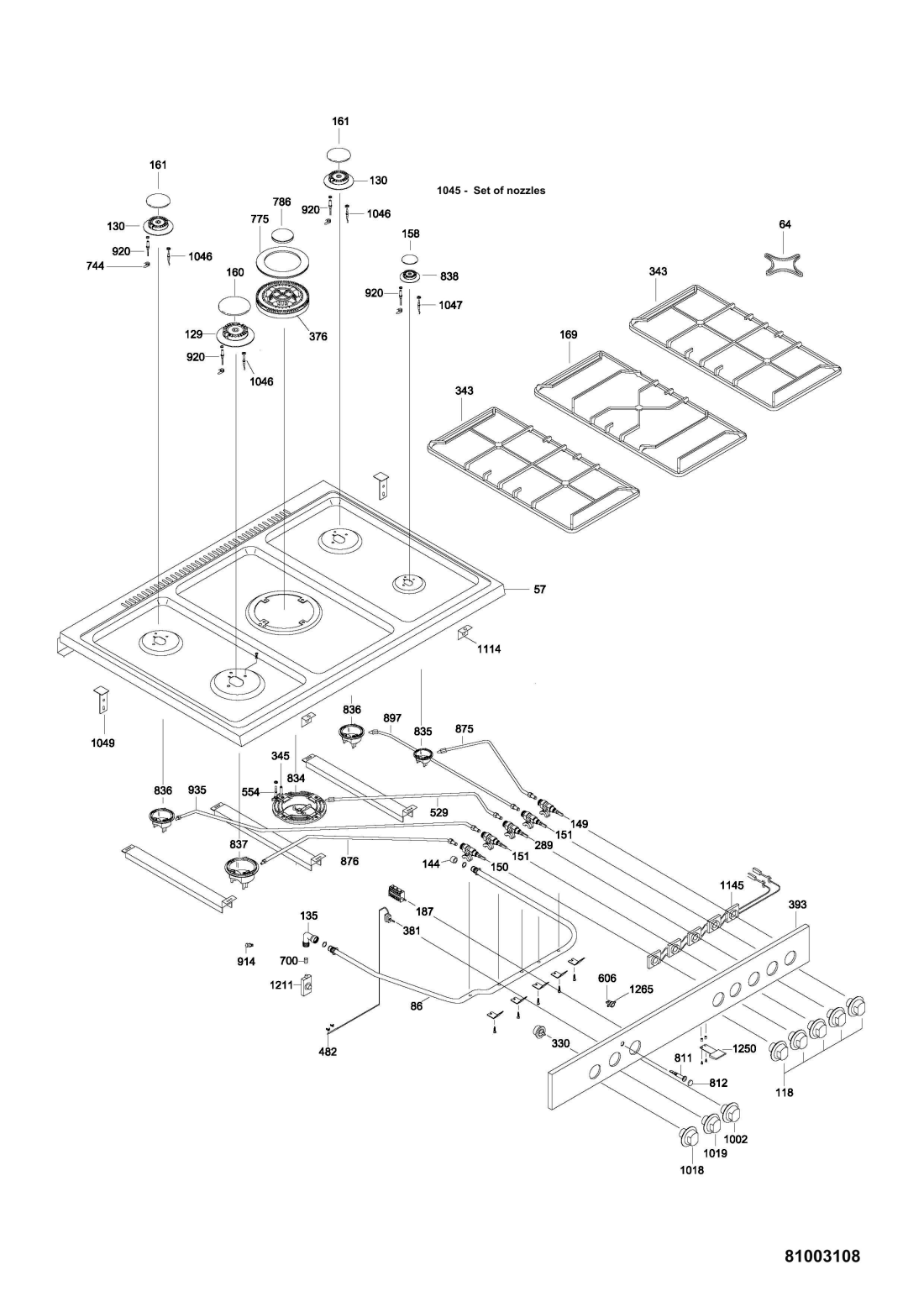

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1002 WHR20640 |
C00316720
481241129099 |
Knob oven | Na dotaz | Zadat poptávku | |
| 1018 WHR20640 |
C00315415
481241129101 |
Knob timer | Na dotaz | Zadat poptávku | |
| 1019 WHR20640 |
C00316718
481241129098 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 1045 WHR20640 |
C00466020
482000001699 |
Set of nozzles LPG | Na dotaz | Zadat poptávku | |
| 1046 WHR20640 |
C00317875
481225268038 |
termoclanek | 1 462 Kč
€ 64.30 |
||
| 1046 WHR20640 |
C00327110
481225268072 |
Safety device left/right rear SR burner | Na dotaz | Zadat poptávku | |
| 1047 WHR20640 |
C00318339
481225268039 |
termoclanek | 1 254 Kč
€ 55.10 |
||
| 1049 WHR20640 |
C00328996
481240418593 |
Bracket Hob | Na dotaz | Zadat poptávku | |
| 1114 WHR20640 |
C00328997
481240418594 |
Bracket right lock work top | Na dotaz | Zadat poptávku | |
| 1114 WHR20640 |
C00328998
481240418595 |
Bracket left lock for work top | Na dotaz | Zadat poptávku | |
| 1145 WHR20640 |
C00316177
480121101038 |
Switch ignition | Na dotaz | Zadat poptávku | |
| 118 WHR20640 |
C00314552
481241129097 |
Knob gas | Na dotaz | Zadat poptávku | |
| 1196 WHR20640 |
C00332715
481253538111 |
Support foot | Na dotaz | Zadat poptávku | |
| 1211 WHR20640 |
C00456425
481222318449 |
Manometer | Na dotaz | Zadat poptávku | |
| 123 WHR20640 |
C00457692
481240478904 |
Foot high regulator | Na dotaz | Zadat poptávku | |
| 1250 WHR20640 |
C00344969
481249148048 |
Spring door fixing | Na dotaz | Zadat poptávku | |
| 1250 WHR20640 |
C00345742
481249148047 |
Spring door fixing black | Na dotaz | Zadat poptávku | |
| 1251 WHR20640 |
C00327637
481231038873 |
Door lock | Na dotaz | Zadat poptávku | |
| 1265 WHR20640 |
C00330343
481246049825 |
Plate for thermoswitch | Na dotaz | Zadat poptávku | |
| 129 WHR20640 |
C00328643
481236068273 |
ROZPTYLOVAC PLA | 935 Kč
€ 41.10 |
||
| 130 WHR20640 |
C00328642
481236068272 |
ROZPTYLOVAC PLA | 921 Kč
€ 40.50 |
||
| 135 WHR20640 |
C00457468
481236068912 |
Nipple 1/2 conical | Na dotaz | Zadat poptávku | |
| 1378 WHR20640 |
C00330352
481246049864 |
Profile | Na dotaz | Zadat poptávku | |
| 144 WHR20640 |
C00328695
481236068796 |
Tube connector | Na dotaz | Zadat poptávku | |
| 149 WHR20640 |
C00321975
480121101036 |
Ventil plynu | 1 549 Kč
€ 68.10 |
||
| 150 WHR20640 |
C00321973
480121101034 |
Valve gas R | Na dotaz | Zadat poptávku | |
| 151 WHR20640 |
C00321974
480121101035 |
Valve gas SR | Na dotaz | Zadat poptávku | |
| 158 WHR20640 |
C00318332
481236068657 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 160 WHR20640 |
C00318348
481236068658 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 161 WHR20640 |
C00313783
481236068659 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 165 WHR20640 |
C00321912
480121100571 |
Hinge | Na dotaz | Zadat poptávku | |
| 169 WHR20640 |
C00330157
481245848389 |
Grid for hob centre | Na dotaz | Zadat poptávku | |
| 173 WHR20640 |
C00345741
481249148045 |
Spring for double glass | Na dotaz | Zadat poptávku | |
| 177 WHR20640 |
C00330058
481245819227 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 180 WHR20640 |
C00321911
480121100569 |
Rail Frame | Na dotaz | Zadat poptávku | |
| 186 WHR20640 |
C00465908
482000000781 |
Cable mains | Na dotaz | Zadat poptávku | |
| 187 WHR20640 |
C00494308
481927328485 |
prepinac trouby | 1 942 Kč
€ 85.40 |
||
| 191 WHR20640 |
C00326871
481214528025 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 197 WHR20640 |
C00322338
480121103605 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 201 WHR20640 |
C00320079
481229068226 |
Terminal block | Na dotaz | Zadat poptávku | |
| 212 WHR20640 |
C00430405
480121100666 |
Oven door complete | Na dotaz | Zadat poptávku | |
| 28 WHR20640 |
C00329129
481240449818 |
Support upper grill heating elem | Na dotaz | Zadat poptávku | |
| 289 WHR20640 |
C00431300
480122101035 |
Valve TC | Na dotaz | Zadat poptávku | |
| 290 WHR20640 |
C00321924
480121100667 |
Inner glass | Na dotaz | Zadat poptávku | |
| 312 WHR20640 |
C00331043
481244229266 |
Cover oven fan | Na dotaz | Zadat poptávku | |
| 318 WHR20640 |
C00330735
481246269008 |
Handle oven door | Na dotaz | Zadat poptávku | |
| 322 WHR20640 |
C00328973
481240418454 |
Bracket oven shelf | Na dotaz | Zadat poptávku | |
| 326 WHR20640 |
C00311613
480121101033 |
Heating element circular | Na dotaz | Zadat poptávku | |
| 329 WHR20640 |
C00457527
481236178044 |
Motor oven fan cpl. | Na dotaz | Zadat poptávku | |
| 330 WHR20640 |
C00332848
481928218475 |
Time switch | Na dotaz | Zadat poptávku | |
| 337 WHR20640 |
C00327169
481225948167 |
Topné těleso trouby – spodní | 2 711 Kč
€ 119.20 |
||
| 338 WHR20640 |
C00327170
481225948168 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 343 WHR20640 |
C00319151
481245848391 |
Grid for hob right/left | Na dotaz | Zadat poptávku | |
| 345 WHR20640 |
C00327107
481225268068 |
Spark plug triple crown | Na dotaz | Zadat poptávku | |
| 376 WHR20640 |
C00328672
481236068665 |
Burner ring triple crown | Na dotaz | Zadat poptávku | |
| 381 WHR20640 |
C00312002
481228238149 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 390 WHR20640 |
C00333193
481949858528 |
Handle drip tray | Na dotaz | Zadat poptávku | |
| 393 WHR20640 |
C00318941
481245350403 |
Control panel | Na dotaz | Zadat poptávku | |
| 395 WHR20640 |
C00330059
481245819228 |
Grid wire grid | Na dotaz | Zadat poptávku | |
| 444 WHR20640 |
C00322462
480121104457 |
Support handle | Na dotaz | Zadat poptávku | |
| 449 WHR20640 |
C00333316
481953238099 |
RING | Na dotaz | Zadat poptávku | |
| 47 WHR20640 |
C00466036
482000002633 |
Frame | Na dotaz | Zadat poptávku | |
| 482 WHR20640 |
C00345740
481249148007 |
Clip fix thermostat | Na dotaz | Zadat poptávku | |
| 50 WHR20640 |
C00331772
482000002634 |
Baking tray | Na dotaz | Zadat poptávku | |
| 508 WHR20640 |
C00328395
481244089076 |
Drawer counter door | Na dotaz | Zadat poptávku | |
| 529 WHR20640 |
C00322346
480121103634 |
Pipe | Na dotaz | Zadat poptávku | |
| 535 WHR20640 |
C00332989
481941719425 |
Hinge drawer | Na dotaz | Zadat poptávku | |
| 55 WHR20640 |
C00431207
480121104458 |
Side panel | Na dotaz | Zadat poptávku | |
| 554 WHR20640 |
C00327108
481225268069 |
Safety device TC | Na dotaz | Zadat poptávku | |
| 57 WHR20640 |
C00430368
480121100567 |
Hob | Na dotaz | Zadat poptávku | |
| 59 WHR20640 |
C00328416
481244089174 |
Drawer door | Na dotaz | Zadat poptávku | |
| 59 WHR20640 |
C00463645
481245373479 |
Panel drawer door | Na dotaz | Zadat poptávku | |
| 606 WHR20640 |
C00327235
481227128588 |
Temper.limiter | Na dotaz | Zadat poptávku | |
| 625 WHR20640 |
C00330709
481246268901 |
Spacer tubular handle nirosta | Na dotaz | Zadat poptávku | |
| 625 WHR20640 |
C00333333
481953268891 |
Spacer glass/tubular handle | Na dotaz | Zadat poptávku | |
| 625 WHR20640 |
C00330728
481246268987 |
Spacer handle support | Na dotaz | Zadat poptávku | |
| 632 WHR20640 |
C00327517
481228158001 |
Magnet | 674 Kč
€ 29.60 |
||
| 64 WHR20640 |
C00331773
482000002635 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 662 WHR20640 |
C00315662
480121100568 |
Těsnění | 1 596 Kč
€ 70.20 |
||
| 700 WHR20640 |
C00457466
481236068909 |
Pipe connection-female-F.1/2 | Na dotaz | Zadat poptávku | |
| 744 WHR20640 |
C00332673
481253258016 |
Spring | Na dotaz | Zadat poptávku | |
| 775 WHR20640 |
C00317625
481236068667 |
Burner cap triple crown outer | Na dotaz | Zadat poptávku | |
| 786 WHR20640 |
C00328674
481236068668 |
Burner cap triple crown inner | Na dotaz | Zadat poptávku | |
| 811 WHR20640 |
C00326838
481213448353 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 812 WHR20640 |
C00317822
481238118258 |
kryt signalky oranz. | 289 Kč
€ 12.70 |
||
| 834 WHR20640 |
C00430406
480121100668 |
Burner body | Na dotaz | Zadat poptávku | |
| 835 WHR20640 |
C00457462
481236068903 |
Burner body AUX | Na dotaz | Zadat poptávku | |
| 836 WHR20640 |
C00457463
481236068904 |
Burner body SR | Na dotaz | Zadat poptávku | |
| 837 WHR20640 |
C00457464
481236068906 |
Burner body R | Na dotaz | Zadat poptávku | |
| 838 WHR20640 |
C00328641
481236068271 |
ROZPTYLOVAC PLA | 863 Kč
€ 37.90 |
||
| 850 WHR20640 |
C00333001
481941758151 |
Hinge run.mech. | Na dotaz | Zadat poptávku | |
| 86 WHR20640 |
C00321971
480121101028 |
Pipe | Na dotaz | Zadat poptávku | |
| 875 WHR20640 |
C00322345
480121103633 |
Tube front right | Na dotaz | Zadat poptávku | |
| 876 WHR20640 |
C00322344
480121103632 |
Tube front left | Na dotaz | Zadat poptávku | |
| 897 WHR20640 |
C00321970
480121101023 |
Pipe rear right | Na dotaz | Zadat poptávku | |
| 914 WHR20640 |
C00430407
480121100669 |
Cursor Pressure regul. | Na dotaz | Zadat poptávku | |
| 920 WHR20640 |
C00327105
481225268019 |
Spark plug semi rapid | Na dotaz | Zadat poptávku | |
| 920 WHR20640 |
C00327109
481225268071 |
Spark plug L=900 | Na dotaz | Zadat poptávku | |
| 922 WHR20640 |
C00328941
481240118884 |
Clamp ,spacer | Na dotaz | Zadat poptávku | |
| 935 WHR20640 |
C00322342
480121103627 |
Tube rear left | Na dotaz | Zadat poptávku | |
| 999 WHR20640 |
C00317684
481245059791 |
Glass triple | Na dotaz | Zadat poptávku | |
| 999 WHR20640 |
C00560499 | Gastable WHP | Na dotaz | Zadat poptávku | |
