ARISTON PRO 95 GT.01 (T)
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | PRO 95 GT.01 (T) |
| Kód 12NC: | 869990254340 |
| I.C. kód: | 79254340000 |
| Značka: | ARISTON |
| Typ produktu: | Volně stojící sporáky a trouby |
| Další podobné modely: | 79254340100, 79254340200 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

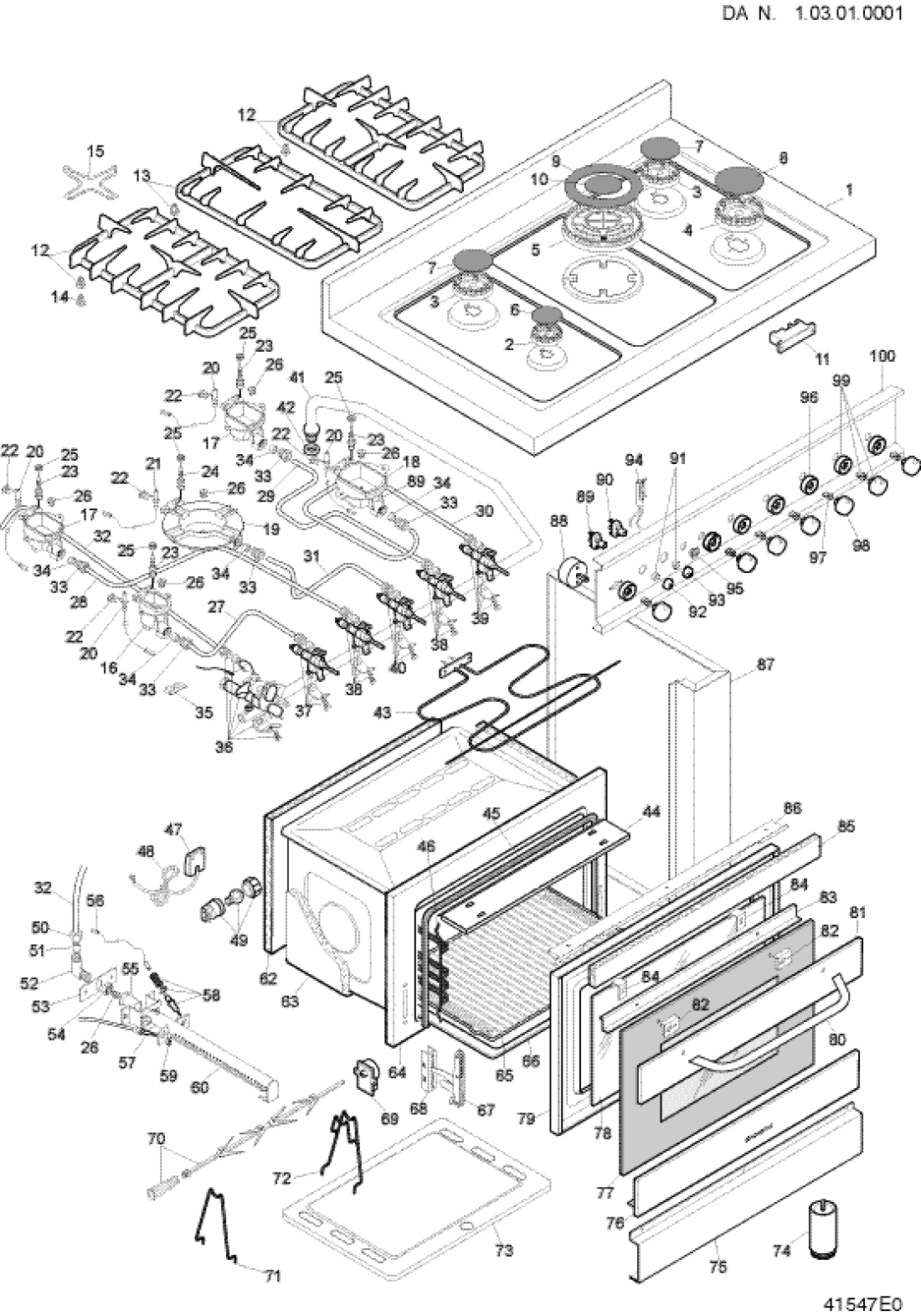

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 41547e0 |
C00083253 | USER INSTRUCTIONS | Na dotaz | Zadat poptávku | |
| 001 41547e0 |
C00083254 | WORKING TABLE | Na dotaz | Zadat poptávku | |
| 002 41547e0 |
C00052930
482000026823 |
BURNER BASE/FLAME SPLITTER - S | Na dotaz | Zadat poptávku | |
| 003 41547e0 |
C00052929
482000026822 |
Těleso hořáku polorychlé plynové varné desky Whirlpool | 506 Kč
€ 20.80 |
||
| 004 41547e0 |
C00052928
482000026821 |
Těleso hořáku velké | Na dotaz | Zadat poptávku | |
| 005 41547e0 |
C00053173
482000026841 |
HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 006 41547e0 |
C00059426
482000054861 |
BURNER CAP - AUSILIARIO BURNER | Na dotaz | Zadat poptávku | |
| 007 41547e0 |
C00059422
482000054859 |
SEMI-FAST BURNER CAP | Na dotaz | Zadat poptávku | |
| 008 41547e0 |
C00059425
482000054855 |
FAST BURNER CAP | Na dotaz | Zadat poptávku | |
| 009 41547e0 |
C00059423
482000054863 |
BURNER CAP (OUTER RING) - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 010 41547e0 |
C00059424
482000054865 |
BURNER CAP (CENTRE DISC) - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 011 41547e0 |
C00031720
482000022593 |
TRANSFORMÁTOR ZAPÁLENÍ 6P+FILTR | Na dotaz | Zadat poptávku | |
| 012 41547e0 |
C00083166
482000058186 |
GRID 2 BURNERS | Na dotaz | Zadat poptávku | |
| 013 41547e0 |
C00083167
482000053836 |
1 BURNER GRID STAR | Na dotaz | Zadat poptávku | |
| 014 41547e0 |
C00058858
482000027057 |
RUBBER BUFFER - PAN GRID | Na dotaz | Zadat poptávku | |
| 015 41547e0 |
C00047805
482000026654 |
REDUCING GRID 'STAR' | Na dotaz | Zadat poptávku | |
| 016 41547e0 |
C00052927
482000026820 |
KRYT HOŘÁK POMOC. 'SABAF' | Na dotaz | Zadat poptávku | |
| 017 41547e0 |
C00052926
482000026819 |
BURNER CUP - MEDIUM BURNER | Na dotaz | Zadat poptávku | |
| 018 41547e0 |
C00052925
482000026818 |
KRYT HOŘÁK RYCHLÝ 'SABAF' | Na dotaz | Zadat poptávku | |
| 019 41547e0 |
C00053254
482000026856 |
KRYT HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 020 41547e0 |
C00052951
482000022639 |
Svíčka zapalovací | 84 Kč
€ 3.50 |
||
| 021 41547e0 |
C00075911
482000027365 |
ELECTRODE -TRIPLE BURNER L=500 | Na dotaz | Zadat poptávku | |
| 022 41547e0 |
C00052934
482000026827 |
PRUŽINA ZAPAL.SVÍČKY HOŘÁKU 'SABAF' | Na dotaz | Zadat poptávku | |
| 023 41547e0 |
C00074279
482000027291 |
THERMOCOUPLE | Na dotaz | Zadat poptávku | |
| 024 41547e0 |
C00074280
482000027292 |
THERMOCOUPLE - TRIPLE BURNER | Na dotaz | Zadat poptávku | |
| 025 41547e0 |
C00063693
482000058036 |
IMPELLOR THERMOCOUPLE | Na dotaz | Zadat poptávku | |
| 026 41547e0 |
C00074268
482000055301 |
KIT INJECTOR GPL G30 | Na dotaz | Zadat poptávku | |
| 026 41547e0 |
C00074269
482000027289 |
KIT INJECTOR GAS METANO G20 | Na dotaz | Zadat poptávku | |
| 027 41547e0 |
C00066398 | SEMI-RAPID BURNER SUPPLY PIPE DX | Na dotaz | Zadat poptávku | |
| 028 41547e0 |
C00066400
482000075465 |
FRONT RIGHT BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 029 41547e0 |
C00066399 | SEMI-RAPID BURNER SUPPLY PIPE SX | Na dotaz | Zadat poptávku | |
| 030 41547e0 |
C00066397 | PIPE - TAP | Na dotaz | Zadat poptávku | |
| 031 41547e0 |
C00066401
482000075466 |
FRONT RIGHT BURNER SUPPLY PIPE TC | Na dotaz | Zadat poptávku | |
| 032 41547e0 |
C00083255
482000054889 |
OVEN BURNER SUPPLY PIPE | Na dotaz | Zadat poptávku | |
| 033 41547e0 |
C00060458
482000075200 |
NUT M1 3X1 | Na dotaz | Zadat poptávku | |
| 034 41547e0 |
C00058506
482000075095 |
CONE ELBOW 'STAR' | Na dotaz | Zadat poptávku | |
| 035 41547e0 |
C00049971
482000074501 |
FLAT SPRING RETAINER-THERMOS.CAPIL. MM26 | Na dotaz | Zadat poptávku | |
| 036 41547e0 |
C00056100
482000026946 |
1 WAY OVEN THERMOSTAT WITH VALVE | Na dotaz | Zadat poptávku | |
| 037 41547e0 |
C00059239
482000027071 |
GAS TAP WITH VALVE BY-PASS 0,27 | Na dotaz | Zadat poptávku | |
| 038 41547e0 |
C00059241
482000027073 |
THERMOSTAT WITH VALVE SEMIRAPIDO | Na dotaz | Zadat poptávku | |
| 039 41547e0 |
C00059240
482000027072 |
GAS TAP WITH FAST VALVE STAR | Na dotaz | Zadat poptávku | |
| 040 41547e0 |
C00059242
482000027074 |
THERMOSTAT WITH VALVE TRIPLA CORONA | Na dotaz | Zadat poptávku | |
| 041 41547e0 |
C00083258 | PIPE - TAP | Na dotaz | Zadat poptávku | |
| 042 41547e0 |
C00010506
482000025938 |
SEALING WASHER - GAS ELBOW/PIPE | Na dotaz | Zadat poptávku | |
| 043 41547e0 |
C00056108
482000026947 |
GRILL HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 044 41547e0 |
C00056377 | KNOB DEFLECTOR | Na dotaz | Zadat poptávku | |
| 045 41547e0 |
C00052152
482000026780 |
OVEN DOOR SEAL LARGE OVEN | Na dotaz | Zadat poptávku | |
| 046 41547e0 |
C00066389
482000027231 |
BOČNÍ MŘÍŽKA 'STAR' | Na dotaz | Zadat poptávku | |
| 047 41547e0 |
C00056382
482000026959 |
SVORKOVNICE 'STAR' | Na dotaz | Zadat poptávku | |
| 048 41547e0 |
C00056381 | SUPPLY CABLE 10A | Na dotaz | Zadat poptávku | |
| 049 41547e0 |
C00050003
482000074502 |
LAMP-HOLDER COMPLETE | Na dotaz | Zadat poptávku | |
| 050 41547e0 |
C00047856 | NUT | Na dotaz | Zadat poptávku | |
| 051 41547e0 |
C00047830 | CONE ELBOW 'STAR' | Na dotaz | Zadat poptávku | |
| 052 41547e0 |
C00052507 | CONNECTION STAR | Na dotaz | Zadat poptávku | |
| 053 41547e0 |
C00056388
482000057893 |
SUPPORT PLATE | Na dotaz | Zadat poptávku | |
| 054 41547e0 |
C00052508 | NUT M12X1 | Na dotaz | Zadat poptávku | |
| 055 41547e0 |
C00056103 | BUSH | Na dotaz | Zadat poptávku | |
| 056 41547e0 |
C00056161 | CABLE | Na dotaz | Zadat poptávku | |
| 057 41547e0 |
C00056104
482000054936 |
THERMOCOUPLE OVEN L-1200 | Na dotaz | Zadat poptávku | |
| 058 41547e0 |
C00056160
488000056160 |
SPARK PLUGS OVEN | Na dotaz | Zadat poptávku | |
| 059 41547e0 |
C00056374
482000054429 |
IMPELLOR NUT M8X1 | Na dotaz | Zadat poptávku | |
| 060 41547e0 |
C00056101 | COMPLETE OVEN BURNER | Na dotaz | Zadat poptávku | |
| 062 41547e0 |
C00056076 | OVEN BACK PANEL INSULATION | Na dotaz | Zadat poptávku | |
| 063 41547e0 |
C00049948 | OVEN INSULATION - TOP | Na dotaz | Zadat poptávku | |
| 064 41547e0 |
C00074246 | OVEN GAS - ENAMELLED | Na dotaz | Zadat poptávku | |
| 065 41547e0 |
C00049947
482000074499 |
(31387) MŘÍŽKA TROUBA MM26 'STAR' | Na dotaz | Zadat poptávku | |
| 066 41547e0 |
C00076073
482000027368 |
ODKAPNÍ MISKA SMALTOVANÝ | Na dotaz | Zadat poptávku | |
| 067 41547e0 |
C00065800
482000075421 |
ZÁVĚS DVEŘÍ TROUBA PEVNÝ OTOČNÝ BOD | Na dotaz | Zadat poptávku | |
| 068 41547e0 |
C00065796
482000027211 |
ROLLER SUPPORT | Na dotaz | Zadat poptávku | |
| 069 41547e0 |
C00049972
482000054557 |
MOTOR -ROTISSERIE | Na dotaz | Zadat poptávku | |
| 070 41547e0 |
C00056079
482000026945 |
JEHLA OTÁČECÍHO GRILU L-537 'STAR' | Na dotaz | Zadat poptávku | |
| 071 41547e0 |
C00049973
482000026715 |
PODPĚRA LIŠTY OTOČNÉHO GRILU MM26 'STAR' | Na dotaz | Zadat poptávku | |
| 072 41547e0 |
C00049974
482000026716 |
PODPĚRA JEHLA OTOČNÉHO GRILU MM26 'STAR | Na dotaz | Zadat poptávku | |
| 073 41547e0 |
C00056077 | OVEN BOTTOM | Na dotaz | Zadat poptávku | |
| 074 41547e0 |
C00074052
482000027272 |
FOOT INOX | Na dotaz | Zadat poptávku | |
| 075 41547e0 |
C00083266 | LOWER ROLLED PANEL INOX | Na dotaz | Zadat poptávku | |
| 076 41547e0 |
C00074047
482000064541 |
DOOR FRONT LOWER - STAINLESS | Na dotaz | Zadat poptávku | |
| 077 41547e0 |
C00058863
482000075116 |
OVEN DOOR GLASS | Na dotaz | Zadat poptávku | |
| 078 41547e0 |
C00049936
482000026710 |
OVEN DOOR GLASS - INNER (564X306X4) | Na dotaz | Zadat poptávku | |
| 079 41547e0 |
C00065799 | OVEN METAL INNER DOOR | Na dotaz | Zadat poptávku | |
| 080 41547e0 |
C00064127 | INOX OVEN DOOR HANDLE MM26 BK | Na dotaz | Zadat poptávku | |
| 081 41547e0 |
C00049983 | DOOR FRONT TOP - STAINLESS | Na dotaz | Zadat poptávku | |
| 082 41547e0 |
C00049987 | SPACER - DOOR PANEL | Na dotaz | Zadat poptávku | |
| 083 41547e0 |
C00052154 | SUPPORT CHANNEL - DOOR GLASS ME INDESIT | Na dotaz | Zadat poptávku | |
| 084 41547e0 |
C00066508
482000053241 |
SUPPORT BRACKET - HANDLE | Na dotaz | Zadat poptávku | |
| 085 41547e0 |
C00049978
482000053273 |
DOOR INSULATION | Na dotaz | Zadat poptávku | |
| 086 41547e0 |
C00058859 | PANEL RIGHT | Na dotaz | Zadat poptávku | |
| 087 41547e0 |
C00083260 | SIDE PANEL DX | Na dotaz | Zadat poptávku | |
| 087 41547e0 |
C00083261
482000053496 |
BOČNÍ STĚNA LEVÁ 'STAR' | Na dotaz | Zadat poptávku | |
| 088 41547e0 |
C00052527
482000026798 |
Minutka | 824 Kč
€ 33.90 |
||
| 089 41547e0 |
C00074264
482000054510 |
PUSHBUTTON | Na dotaz | Zadat poptávku | |
| 090 41547e0 |
C00074265
482000054508 |
LAMP SWITCH | Na dotaz | Zadat poptávku | |
| 091 41547e0 |
C00074266
482000054108 |
SWITCH SUPPORT | Na dotaz | Zadat poptávku | |
| 092 41547e0 |
C00074267
482000054109 |
CAP FOR IGNITION SWITCH | Na dotaz | Zadat poptávku | |
| 093 41547e0 |
C00048786
482000092665 |
BLACK CAP FOR LIGHT SWITCH ROLD | Na dotaz | Zadat poptávku | |
| 094 41547e0 |
C00030503
482000037922 |
PILOT LAMPE RED TOP90 | Na dotaz | Zadat poptávku | |
| 095 41547e0 |
C00062761 | PILOT LAMP LENS RED | Na dotaz | Zadat poptávku | |
| 096 41547e0 |
C00074254
482000076305 |
KNOB DISC | Na dotaz | Zadat poptávku | |
| 097 41547e0 |
C00064343
482000027153 |
PRUŽINA KOTOUČE OVLADAČE 'STAR' | Na dotaz | Zadat poptávku | |
| 098 41547e0 |
C00074252
482000027286 |
KNOB | Na dotaz | Zadat poptávku | |
| 099 41547e0 |
C00083263 | KNOB | Na dotaz | Zadat poptávku | |
| 100 41547e0 |
C00083264 | DASHBORAD SERIG. | Na dotaz | Zadat poptávku | |
| 101 41547e0 |
C00083265 | BOX TYPE | Na dotaz | Zadat poptávku | |
