IGNIS RBF 48/I DOUBLE DOOR NO FROST
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | RBF 48/I DOUBLE DOOR NO FROST |
| Kód 12NC/I.C. kód: | 853995593010 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 853995593011 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR72549 |
C00340800
481246238082 |
Foot | Na dotaz | Zadat poptávku | |
| 011 2 WHR72549 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
| 012 0 WHR72549 |
C00336795
481252878048 |
Roller | Na dotaz | Zadat poptávku | |
| 040 0 WHR72549 |
C00583842
481241778019 |
Hinge upper. | Na dotaz | Zadat poptávku | |
| 040 1 WHR72549 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR72549 |
C00492120
481253538084 |
Shim | Na dotaz | Zadat poptávku | |
| 040 3 WHR72549 |
C00488942
481241718995 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 4 WHR72549 |
C00342472
481246228054 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 040 5 WHR72549 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 6 WHR72549 |
C00336366
481241778022 |
Shim | Na dotaz | Zadat poptávku | |
| 040 7 WHR72549 |
C00488925
481241718853 |
Hinge left | Na dotaz | Zadat poptávku | |
| 040 9 WHR72549 |
C00488943
481241719016 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 047 3 WHR72549 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
| 070 0 WHR72549 |
C00583941
481246488012 |
PANEL. | Na dotaz | Zadat poptávku | |

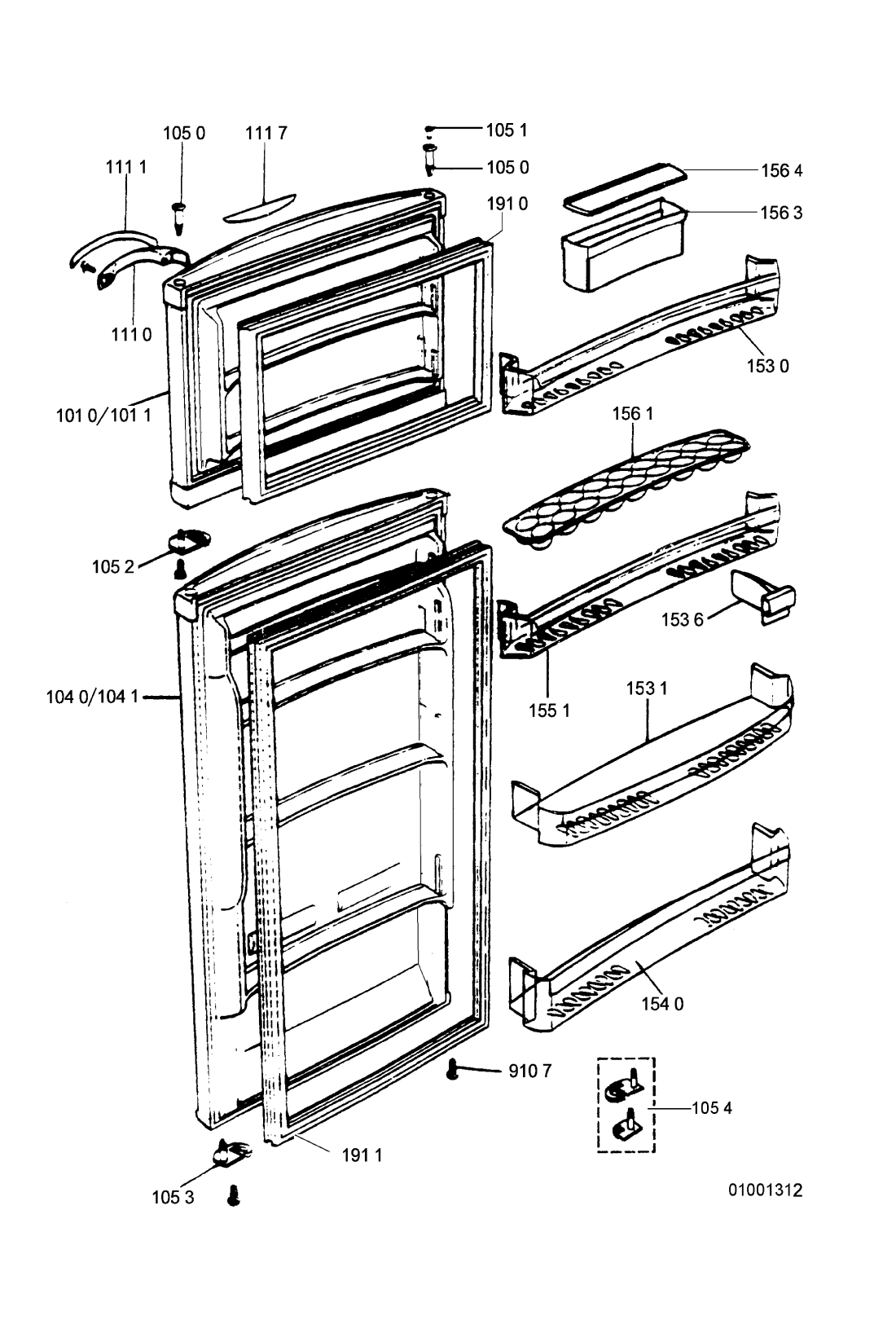

| 101 0 WHR72549 |
C00583888
481244268967 |
Door ,freezer. | Na dotaz | Zadat poptávku | |
| 101 1 WHR72549 |
C00527842
481241818417 |
Door,freezer left | Na dotaz | Zadat poptávku | |
| 102 0 WHR72549 |
C00485190
481244229121 |
Evapor.door | Na dotaz | Zadat poptávku | |
| 102 1 WHR72549 |
C00583874
481244228965 |
Cover. | Na dotaz | Zadat poptávku | |
| 104 0 WHR72549 |
C00583887
481244268966 |
Door ,ref.. | Na dotaz | Zadat poptávku | |
| 104 1 WHR72549 |
C00587082
481241828413 |
Door refriger. left. | Na dotaz | Zadat poptávku | |
| 105 0 WHR72549 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 1 WHR72549 |
C00336004
481253288012 |
zaslepka | Na dotaz | Zadat poptávku | |
| 105 2 WHR72549 |
C00344061
481246228181 |
Bushing white | Na dotaz | Zadat poptávku | |
| 105 3 WHR72549 |
C00498375
481246228179 |
Bushing right,white. | Na dotaz | Zadat poptávku | |
| 105 4 WHR72549 |
C00584409
481231018573 |
Door revers.Kit | Na dotaz | Zadat poptávku | |
| 111 0 WHR72549 |
C00583961
481249818165 |
HANDLE. | Na dotaz | Zadat poptávku | |
| 111 1 WHR72549 |
C00583962
481249848005 |
Insert. | Na dotaz | Zadat poptávku | |
| 111 7 WHR72549 |
C00576246
481244028949 |
Nameplate.. | Na dotaz | Zadat poptávku | |
| 153 0 WHR72549 |
C00583913
481245838048 |
Door dairy ,freezer. | Na dotaz | Zadat poptávku | |
| 153 1 WHR72549 |
C00489004
481241828034 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 6 WHR72549 |
C00491895
481246078892 |
SPACER | Na dotaz | Zadat poptávku | |
| 154 0 WHR72549 |
C00491687
481241848491 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 154 2 WHR72549 |
C00485820
481245838028 |
SHELF | Na dotaz | Zadat poptávku | |
| 154 3 WHR72549 |
C00583911
481245838029 |
SHELF. | Na dotaz | Zadat poptávku | |
| 155 1 WHR72549 |
C00583855
481241879651 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 156 0 WHR72549 |
C00335336
481241828031 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 156 1 WHR72549 |
C00583924
481246088236 |
Holder eggs. | Na dotaz | Zadat poptávku | |
| 156 2 WHR72549 |
C00491545
481240478299 |
SPACER | Na dotaz | Zadat poptávku | |
| 156 3 WHR72549 |
C00500821
481241828033 |
zasobnik na led | Na dotaz | Zadat poptávku | |
| 156 4 WHR72549 |
C00495595
481244228966 |
COVER | Na dotaz | Zadat poptávku | |
| 191 0 WHR72549 |
C00529774
481246818016 |
Magnetic seal ref. | Na dotaz | Zadat poptávku | |
| 191 1 WHR72549 |
C00583951
481246818015 |
NAHRADENE 481246818275 | Na dotaz | Zadat poptávku | |
| 203 0 WHR72549 |
C00338714
481232518003 |
Insulation ,rear | Na dotaz | Zadat poptávku | |
| 203 1 WHR72549 |
C00527316
481232518004 |
Insulation front | Na dotaz | Zadat poptávku | |
| 242 0 WHR72549 |
C00342288
481241879647 |
zasuvka na zeleninu | Na dotaz | Zadat poptávku | |
| 242 1 WHR72549 |
C00583826
481240488009 |
Front Crisper. | Na dotaz | Zadat poptávku | |
| 242 3 WHR72549 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
| 242 4 WHR72549 |
C00583854
481241879648 |
GRID. | Na dotaz | Zadat poptávku | |
| 244 1 WHR72549 |
C00583844
481241828032 |
DRAWER. | Na dotaz | Zadat poptávku | |
| 244 2 WHR72549 |
C00495311
481245838031 |
SHELF | Na dotaz | Zadat poptávku | |
| 244 3 WHR72549 |
C00485821
481245838032 |
Shelf | Na dotaz | Zadat poptávku | |
| 246 0 WHR72549 |
C00335356
481241828029 |
Tray ,freezer | Na dotaz | Zadat poptávku | |
| 246 1 WHR72549 |
C00583850
481241848489 |
Shelf ,freezer. | Na dotaz | Zadat poptávku | |
| 261 0 WHR72549 |
C00336930
481246818014 |
Rail right | Na dotaz | Zadat poptávku | |
| 261 1 WHR72549 |
C00336932
481246218183 |
Rail left | Na dotaz | Zadat poptávku | |
| 263 0 WHR72549 |
C00336264
481246218184 |
Slide | Na dotaz | Zadat poptávku | |
| 263 1 WHR72549 |
C00335790
481240448671 |
drzak | Na dotaz | Zadat poptávku | |
| 301 0 WHR72549 |
C00583903
481245319587 |
Insert. | Na dotaz | Zadat poptávku | |
| 301 4 WHR72549 |
C00583920
481246078891 |
Front panel. | Na dotaz | Zadat poptávku | |
| 350 0 WHR72549 |
C00483767
481245298181 |
CONTROL PANEL | Na dotaz | Zadat poptávku | |
| 351 0 WHR72549 |
C00557164
481245228072 |
INTERFACE.. | Na dotaz | Zadat poptávku | |
| 356 0 WHR72549 |
C00583789
481227158162 |
KNOB THERMOSTAT. | Na dotaz | Zadat poptávku | |
| 402 0 WHR72549 |
C00576145
481236138058 |
Compressor FGS 100 HA 220-240V/50Hz | Na dotaz | Zadat poptávku | |
| 402 1 WHR72549 |
C00335359
481241879646 |
Tray | Na dotaz | Zadat poptávku | |
| 402 3 WHR72549 |
C00331559
481246699005 |
Base compressor | Na dotaz | Zadat poptávku | |
| 402 4 WHR72549 |
C00574987
481253538085 |
Clip. | Na dotaz | Zadat poptávku | |
| 440 0 WHR72549 |
C00574714
481236138051 |
MOTOR VENTILATORA 220V/60HZ | Na dotaz | Zadat poptávku | |
| 440 1 WHR72549 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR72549 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR72549 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR72549 |
C00320266
481225948141 |
ELEMENT DEFROST | Na dotaz | Zadat poptávku | |
| 480 0 WHR72549 |
C00343501
481201978807 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 491 0 WHR72549 |
C00343456
481246279821 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 500 0 WHR72549 |
C00482533
481227158163 |
CONTROL BOARD | Na dotaz | Zadat poptávku | |
| 500 1 WHR72549 |
C00342539
481244028945 |
Cover Control board | Na dotaz | Zadat poptávku | |
| 566 0 WHR72549 |
C00319312
481228238041 |
Thermostat | Na dotaz | Zadat poptávku | |
| 566 1 WHR72549 |
C00339546
481246048885 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 566 2 WHR72549 |
C00314686
481228238042 |
termostat | Na dotaz | Zadat poptávku | |
| 614 0 WHR72549 |
C00495590
481228028012 |
Relay + overload | Na dotaz | Zadat poptávku | |
| 651 0 WHR72549 |
C00341807
481213428061 |
Lamp220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR72549 |
C00339579
481225528011 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 1 WHR72549 |
C00342197
481246228056 |
Deflector | Na dotaz | Zadat poptávku | |
| 652 3 WHR72549 |
C00342514
481246098006 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 652 7 WHR72549 |
C00342198
481246228057 |
Deflector | Na dotaz | Zadat poptávku | |
| 691 0 WHR72549 |
C00336525
481228268021 |
Sensor kit | Na dotaz | Zadat poptávku | |
| 740 0 WHR72549 |
C00583969
481251148216 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 1 WHR72549 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
| 740 2 WHR72549 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
| 743 0 WHR72549 |
C00498501
481248028035 |
difuzor | Na dotaz | Zadat poptávku | |
| 743 1 WHR72549 |
C00335877
481246048884 |
Support | Na dotaz | Zadat poptávku | |
| 743 4 WHR72549 |
C00485134
481244078918 |
Cover | Na dotaz | Zadat poptávku | |
| 745 0 WHR72549 |
C00341099
481251138149 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR72549 |
C00339197
481244228963 |
Housing Evaporator | Na dotaz | Zadat poptávku | |
| 745 2 WHR72549 |
C00583803
481232588007 |
Insulation. | Na dotaz | Zadat poptávku | |
| 745 3 WHR72549 |
C00497490
481232518021 |
Cover rubber. | Na dotaz | Zadat poptávku | |
| 745 4 WHR72549 |
C00335834
481253598061 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 760 1 WHR72549 |
C00319191
481246048883 |
Support Air clean filt. | Na dotaz | Zadat poptávku | |
| 760 2 WHR72549 |
C00344625
481249038001 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 764 0 WHR72549 |
C00583958
481248028036 |
DRYER. | Na dotaz | Zadat poptávku | |
| 765 1 WHR72549 |
C00342327
481244069029 |
Cover,front | Na dotaz | Zadat poptávku | |
| 765 2 WHR72549 |
C00342370
481244069031 |
Cover rear | Na dotaz | Zadat poptávku | |
| 765 3 WHR72549 |
C00343377
481246048882 |
Clamp Cover | Na dotaz | Zadat poptávku | |
| 765 4 WHR72549 |
C00342450
481225528004 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 781 0 WHR72549 |
C00337398
481217088005 |
Tube | Na dotaz | Zadat poptávku | |
| 900 0 WHR72549 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
| 900 2 WHR72549 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR72549 |
C00336665
481256018026 |
Screw | Na dotaz | Zadat poptávku | |
| 910 1 WHR72549 |
C00336666
481252388006 |
Screw | Na dotaz | Zadat poptávku | |
| 910 3 WHR72549 |
C00336570
481256018025 |
Screw M5x10mm | Na dotaz | Zadat poptávku | |
| 910 5 WHR72549 |
C00492140
481256018024 |
Screw | Na dotaz | Zadat poptávku | |
| 910 7 WHR72549 |
C00336667
481256018022 |
Screw | Na dotaz | Zadat poptávku | |
| 965 0 WHR72549 |
C00342336
481244229065 |
Cover white | Na dotaz | Zadat poptávku | |
| 965 3 WHR72549 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR72549 |
C00695111 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
