HOT POINT ARISTON RMBA 12001
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | RMBA 12001 |
| Kód 12NC: | 869990680840 |
| I.C. kód: | 58680840000 |
| Značka: | HOT POINT ARISTON |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 58680840010, 58680840011 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

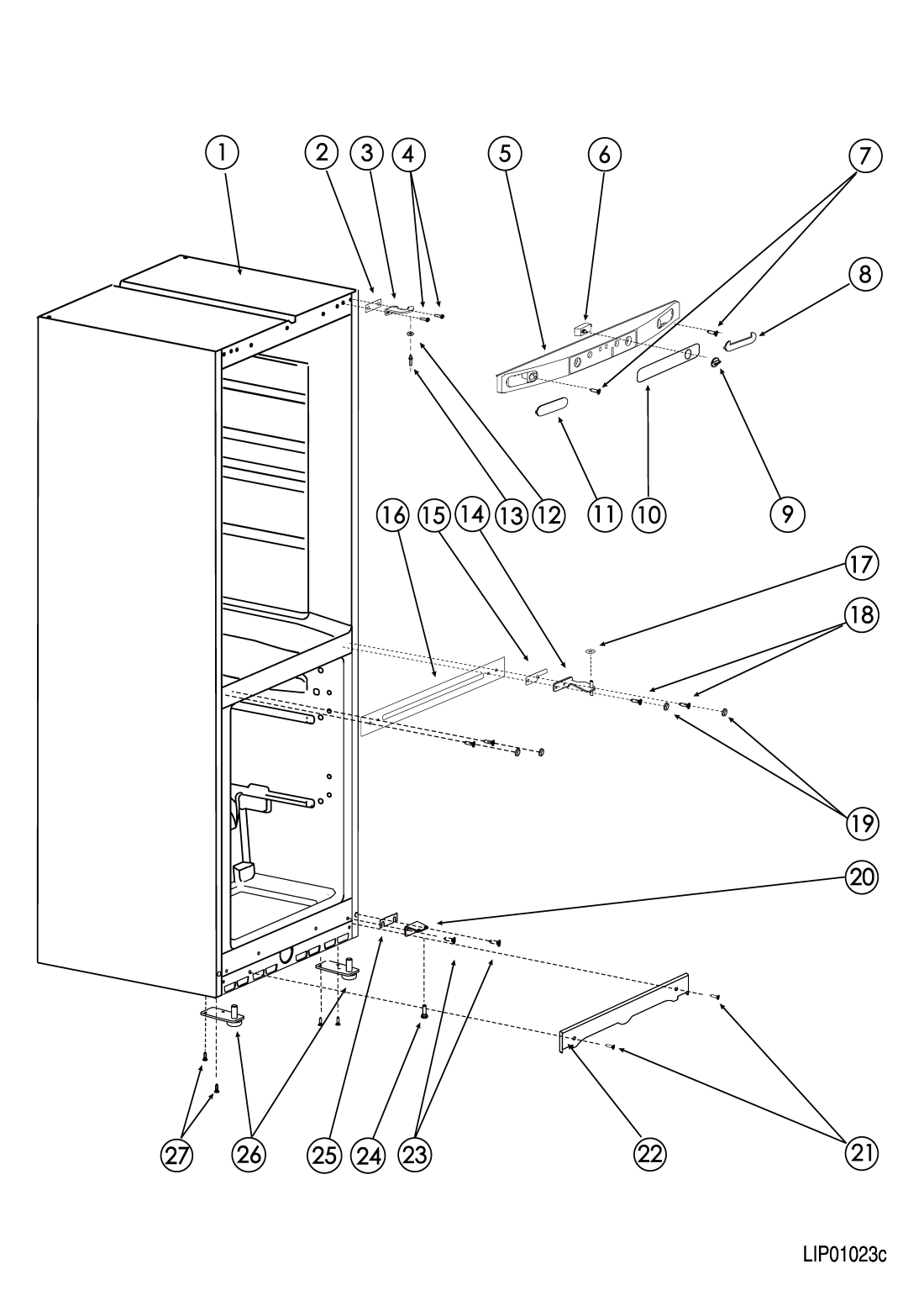

| 001 LIP01023c |
C00276957 | CABINET ASSEMBLY RMBA1200.. | Na dotaz | Zadat poptávku | |
| 002 LIP01023c |
C00855081 | CONTROL PLATE | Na dotaz | Zadat poptávku | |
| 003 LIP01023c |
C00855093 | UPPER HINGE | Na dotaz | Zadat poptávku | |
| 004 LIP01023c |
C00855101 | #N/A | Na dotaz | Zadat poptávku | |
| 005 LIP01023c |
C00857217 | control panel | Na dotaz | Zadat poptávku | |
| 006 LIP01023c |
C00276523
482000049308 |
Thermostat KDF28Q5 | Na dotaz | Zadat poptávku | |
| 007,021,023 LIP01023c |
C00855016
488000855016 |
SELF-TAPP. SCREW ТСВ 4,8x22,22 | Na dotaz | Zadat poptávku | |
| 008 LIP01023c |
C00857219
488000857219 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 009 LIP01023c |
C00276958 | KNOB | Na dotaz | Zadat poptávku | |
| 010 LIP01023c |
C00276524
482000052486 |
DECORATIVE PANEL | Na dotaz | Zadat poptávku | |
| 011 LIP01023c |
C00857218
488000857218 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 012,015,017 LIP01023c |
C00857199
488000857199 |
ADJUSTMENT WASHER PW | Na dotaz | Zadat poptávku | |
| 013 LIP01023c |
C00855088 | Hinge pivot | Na dotaz | Zadat poptávku | |
| 014 LIP01023c |
C00855044 | Complete Hinge | Na dotaz | Zadat poptávku | |
| 016 LIP01023c |
C00855051 | PLATE CENTRAL PAINTED | Na dotaz | Zadat poptávku | |
| 018 LIP01023c |
C00855006
488000855006 |
SCREW SТ 4,8x22 | Na dotaz | Zadat poptávku | |
| 019 LIP01023c |
C00857057
488000857057 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 020 LIP01023c |
C00257117 | Hinge | Na dotaz | Zadat poptávku | |
| 022 LIP01023c |
C00256159 | KICKSTRIP | Na dotaz | Zadat poptávku | |
| 024 LIP01023c |
C00855046
488000855046 |
BOTTOM HINGE PIN | Na dotaz | Zadat poptávku | |
| 025 LIP01023c |
C00855054 | CONTROL PLATE | Na dotaz | Zadat poptávku | |
| 026 LIP01023c |
C00256180
488000256180 |
FOOT AND SUPPORT LEFT | Na dotaz | Zadat poptávku | |
| 026 LIP01023c |
C00256813
488000256813 |
FOOT AND SUPPORT RIGHT | Na dotaz | Zadat poptávku | |
| 027 LIP01023c |
C00855007
488000855007 |
S-TAPP. SCREW WITH WASHER ТЕ 4,8x16 | Na dotaz | Zadat poptávku | |
| 001 LIP02022a |
C00857109
488000857109 |
Ceiling Light Fixture | Na dotaz | Zadat poptávku | |
| 002 LIP02022a |
C00856029
488000856029 |
Light Heat Protection | Na dotaz | Zadat poptávku | |
| 003 LIP02022a |
C00857027
488000857027 |
PLUG FOR BUSH | Na dotaz | Zadat poptávku | |
| 004,009 LIP02022a |
C00855010
488000855010 |
SELF-TAPP. SCREW Т1/2Т 4,2х15,87 | Na dotaz | Zadat poptávku | |
| 005 LIP02022a |
C00857046 | THERMOSTAT BOX PW | Na dotaz | Zadat poptávku | |
| 005 LIP02022a |
C00509216
488000509216 |
THERMOSTAT BOX GW | Na dotaz | Zadat poptávku | |
| 006 LIP02022a |
C00859993
488000859993 |
LAMP HOUSING | Na dotaz | Zadat poptávku | |
| 007 LIP02022a |
C00857174
488000857174 |
Pouzdro lednice | 43 Kč
€ 1.80 |
||
| 008 LIP02022a |
C00857190
488000857190 |
FLEXIBLE COUPLING PW | Na dotaz | Zadat poptávku | |
| 011 LIP02022a |
C00267829 | Cork | Na dotaz | Zadat poptávku | |
| 012 LIP02022a |
C00855084 | bottle wire shelf | Na dotaz | Zadat poptávku | |
| 013 LIP02022a |
C00257779
482000047557 |
SHELF GLAAS | Na dotaz | Zadat poptávku | |
| 014 LIP02022a |
C00257135 | CHILLER | Na dotaz | Zadat poptávku | |
| 015 LIP02022a |
C00257136 | CHILLER COVER | Na dotaz | Zadat poptávku | |
| 016 LIP02022a |
C00257780
482000047558 |
SHELF GLAAS | Na dotaz | Zadat poptávku | |
| 019 LIP02022a |
C00257234
482000042606 |
BOX FOR FREEZER | Na dotaz | Zadat poptávku | |
| 020,021 LIP02022a |
C00256495
482000049208 |
DRAWER FRONT PANEL-SCREENED | Na dotaz | Zadat poptávku | |
| 022 LIP02022a |
C00857048
488000857048 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 023,024 LIP02022a |
C00857049
488000857049 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 025 LIP02022a |
C00857020
488000857020 |
ICE TRAY | Na dotaz | Zadat poptávku | |
| 026 LIP02022a |
C00853002 | EVAPORATOR ASSEMBLY | Na dotaz | Zadat poptávku | |
| 027 LIP02022a |
C00256885 | DIVIDER | Na dotaz | Zadat poptávku | |
| 028 LIP02022a |
C00256887 | VEGETABLE TRAY FRONT | Na dotaz | Zadat poptávku | |
| 029 LIP02022a |
C00256889
488000256889 |
BOX VEGETABLES | Na dotaz | Zadat poptávku | |
| 001 LIP0311 |
C00257139
482000049212 |
FALSE PANEL | Na dotaz | Zadat poptávku | |
| 004 LIP0311 |
C00857279 | Upper Plate Cover | Na dotaz | Zadat poptávku | |
| 006 LIP0311 |
C00854009
488000854009 |
Magnet Gasket 1009x571 | Na dotaz | Zadat poptávku | |
| 006 LIP0311 |
C00256893 | DOOR OF FRIDGE | Na dotaz | Zadat poptávku | |
| 006 LIP0311 |
C00854014
488000854014 |
Magnet Gasket | Na dotaz | Zadat poptávku | |
| 007 LIP0311 |
C00256506
482000049210 |
HANGING RACK | Na dotaz | Zadat poptávku | |
| 008 LIP0311 |
C00267496
482000042594 |
Form for eggs | Na dotaz | Zadat poptávku | |
| 009,010,017 LIP0311 |
C00267498
482000049247 |
INTERMIEDATE DOOR SHELF | Na dotaz | Zadat poptávku | |
| 011 LIP0311 |
C00857213
482000049147 |
Bottle Holder PW | Na dotaz | Zadat poptávku | |
| 012 LIP0311 |
C00256512
482000052493 |
HANGING RACK BOTTOM | Na dotaz | Zadat poptávku | |
| 013,014 LIP0311 |
C00267843
482000042279 |
Plug | Na dotaz | Zadat poptávku | |
| 015 LIP0311 |
C00855013
488000855013 |
SELF-TAPP. SCREW Т1/2Т 3,5x12,7 | Na dotaz | Zadat poptávku | |
| 016 LIP0311 |
C00857184 | Zámek | 25 Kč
€ 1.00 |
||
| 017 LIP0311 |
C00257235 | DOOR FREEZER | Na dotaz | Zadat poptávku | |
| 018 LIP0311 |
C00857186 | Closure Aid | Na dotaz | Zadat poptávku | |
| 019 LIP0311 |
C00857188 | Closure Aid | Na dotaz | Zadat poptávku | |
| 020 LIP0311 |
C00857006
488000857006 |
DOOR HINGE BUSH | Na dotaz | Zadat poptávku | |
| 002 LIP0411 |
C00855001 | TOP PAINTED | Na dotaz | Zadat poptávku | |
| 003 LIP0411 |
C00857178 | REAR REST | Na dotaz | Zadat poptávku | |
| 004 LIP0411 |
C00857009 | CABLING SLEEVE | Na dotaz | Zadat poptávku | |
| 005,013 LIP0411 |
C00855091 | screws | Na dotaz | Zadat poptávku | |
| 006 LIP0411 |
C00853011
488000853011 |
CONDENSATOR | Na dotaz | Zadat poptávku | |
| 006 LIP0411 |
C00853008 | FINISHED CONDENSATOR L=1200 | Na dotaz | Zadat poptávku | |
| 007 LIP0411 |
C00857344
488000857344 |
CONDENSATE TRAY ASSEMBLY | Na dotaz | Zadat poptávku | |
| 007 LIP0411 |
C00857114
488000857114 |
CONDENDSATE TRAY ASSEMBLY | Na dotaz | Zadat poptávku | |
| 008 LIP0411 |
C00855058
488000855058 |
PLATE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 008 LIP0411 |
C00260795 | Compressor GVM57AA | Na dotaz | Zadat poptávku | |
| 009 LIP0411 |
C00851053 | RUN CAPACITOR | Na dotaz | Zadat poptávku | |
| 009 LIP0411 |
C00275446
482000042783 |
Compressor NLE11KK.4 | Na dotaz | Zadat poptávku | |
| 009 LIP0411 |
C00275444
482000047623 |
Compressor TLES10KK3 | Na dotaz | Zadat poptávku | |
| 010 LIP0411 |
C00855023
488000855023 |
PROCESS TUBE DIAM. 6 | Na dotaz | Zadat poptávku | |
| 011 LIP0411 |
C00851123
482000048793 |
COMPRESSOR TLES6F IN ASSEMBLY. | Na dotaz | Zadat poptávku | |
| 012 LIP0411 |
C00855063
488000855063 |
CROSS PIECE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 013 LIP0411 |
C00855047
488000855047 |
ROLLER PIN | Na dotaz | Zadat poptávku | |
| 014 LIP0411 |
C00857146
488000857146 |
ROLLER | Na dotaz | Zadat poptávku | |
| 999 LIP0411 |
C00851101
488000851101 |
POWER CORD | Na dotaz | Zadat poptávku | |
