HOT POINT ARISTON RMBA 2200.L
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | RMBA 2200.L |
| Kód 12NC: | 869990486280 |
| I.C. kód: | 58486280000 |
| Značka: | HOT POINT ARISTON |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

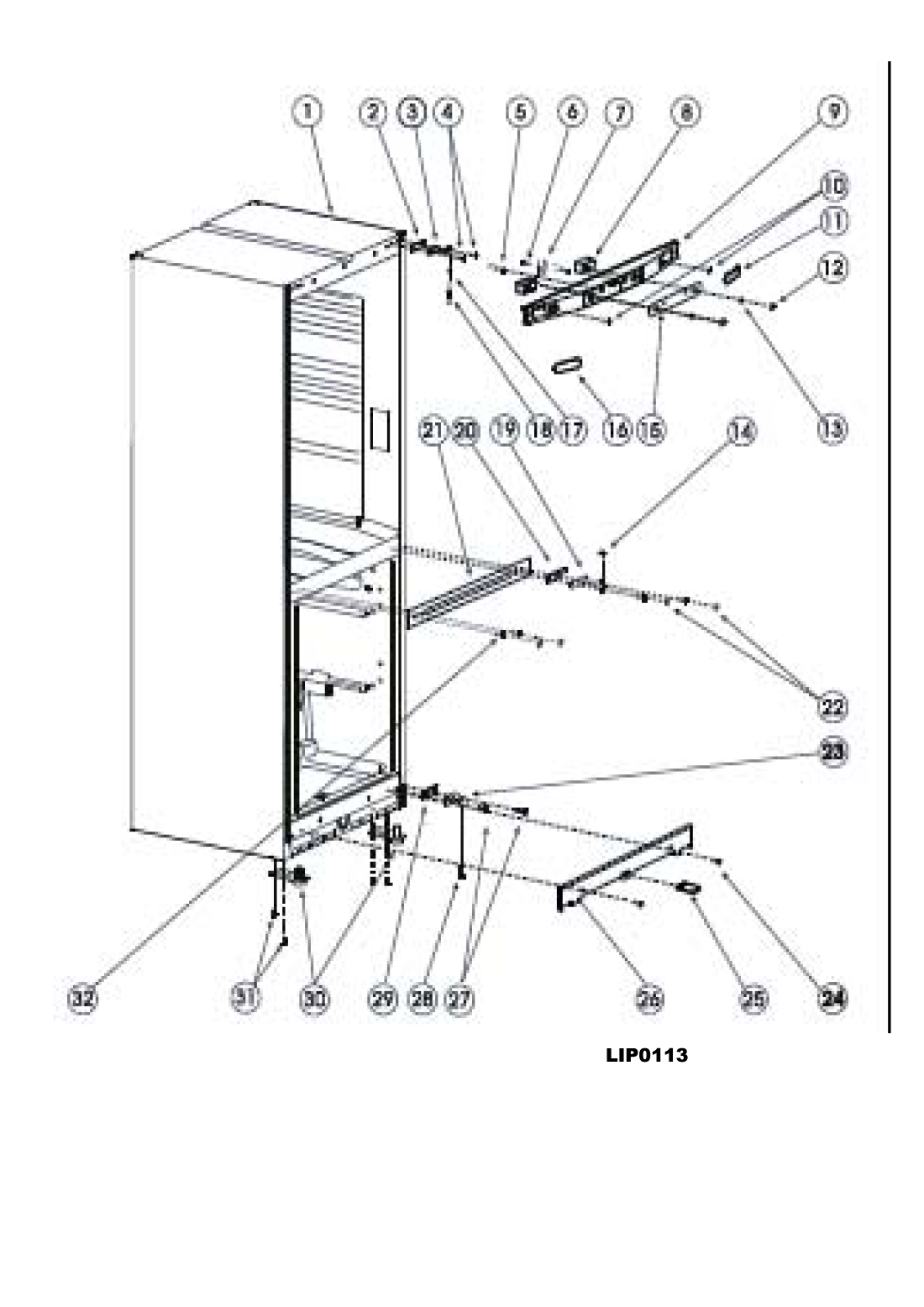

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 LIP0113 |
C00854229 | CABINET SEMI-ASSEMBLED | Na dotaz | Zadat poptávku | |
| 002,020,029 LIP0113 |
C00857199
488000857199 |
ADJUSTMENT WASHER PW | Na dotaz | Zadat poptávku | |
| 003 LIP0113 |
C00855093 | UPPER HINGE | Na dotaz | Zadat poptávku | |
| 004,027,031 LIP0113 |
C00855007
488000855007 |
S-TAPP. SCREW WITH WASHER ТЕ 4,8x16 | Na dotaz | Zadat poptávku | |
| 005 LIP0113 |
C00851058 | INDICATOR LAMP | Na dotaz | Zadat poptávku | |
| 006 LIP0113 |
C00855010
488000855010 |
SELF-TAPP. SCREW Т1/2Т 4,2х15,87 | Na dotaz | Zadat poptávku | |
| 007 LIP0113 |
C00857163
488000857163 |
Bracket Support for Harness PW | Na dotaz | Zadat poptávku | |
| 008 LIP0113 |
C00851146
482000042779 |
Thermostat ТАМ133-1М-110-1,5-4,8-1-А | Na dotaz | Zadat poptávku | |
| 009 LIP0113 |
C00857217 | control panel | Na dotaz | Zadat poptávku | |
| 010 LIP0113 |
C00855016
488000855016 |
SELF-TAPP. SCREW ТСВ 4,8x22,22 | Na dotaz | Zadat poptávku | |
| 011 LIP0113 |
C00857219
488000857219 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 012 LIP0113 |
C00856070 | TERMOSTAT SWITCH KNOB PAINTED | Na dotaz | Zadat poptávku | |
| 013 LIP0113 |
C00855021
488000855021 |
CLEMPING COLLAR | Na dotaz | Zadat poptávku | |
| 014,017 LIP0113 |
C00855027 | WASHER | Na dotaz | Zadat poptávku | |
| 015 LIP0113 |
C00856071 | DECORATIVE PANEL | Na dotaz | Zadat poptávku | |
| 016 LIP0113 |
C00857218
488000857218 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 018 LIP0113 |
C00855088 | Hinge pivot | Na dotaz | Zadat poptávku | |
| 019 LIP0113 |
C00855044 | Complete Hinge | Na dotaz | Zadat poptávku | |
| 021 LIP0113 |
C00855051 | PLATE CENTRAL PAINTED | Na dotaz | Zadat poptávku | |
| 022 LIP0113 |
C00857057
488000857057 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 023 LIP0113 |
C00257117 | Hinge | Na dotaz | Zadat poptávku | |
| 024 LIP0113 |
C00855015
488000855015 |
SELF-TAPP. SCREW ТСВ 4,2x22,22 | Na dotaz | Zadat poptávku | |
| 025 LIP0113 |
C00257120 | CONDENSATE DREIN PIPE | Na dotaz | Zadat poptávku | |
| 026 LIP0113 |
C00257132 | SOCLE | Na dotaz | Zadat poptávku | |
| 028 LIP0113 |
C00855046
488000855046 |
BOTTOM HINGE PIN | Na dotaz | Zadat poptávku | |
| 030 LIP0113 |
C00256180
488000256180 |
FOOT AND SUPPORT LEFT | Na dotaz | Zadat poptávku | |
| 030 LIP0113 |
C00256813
488000256813 |
FOOT AND SUPPORT RIGHT | Na dotaz | Zadat poptávku | |
| 032 LIP0113 |
C00855006
488000855006 |
SCREW SТ 4,8x22 | Na dotaz | Zadat poptávku | |
| 001 LIP0213 |
C00857109
488000857109 |
Ceiling Light Fixture | Na dotaz | Zadat poptávku | |
| 002 LIP0213 |
C00856029
488000856029 |
Light Heat Protection | Na dotaz | Zadat poptávku | |
| 003 LIP0213 |
C00857027
488000857027 |
PLUG FOR BUSH | Na dotaz | Zadat poptávku | |
| 005 LIP0213 |
C00857046 | THERMOSTAT BOX PW | Na dotaz | Zadat poptávku | |
| 005 LIP0213 |
C00509216
488000509216 |
THERMOSTAT BOX GW | Na dotaz | Zadat poptávku | |
| 006 LIP0213 |
C00859993
488000859993 |
LAMP HOUSING | Na dotaz | Zadat poptávku | |
| 007 LIP0213 |
C00857174
488000857174 |
Pouzdro lednice | 43 Kč
€ 1.80 |
||
| 008 LIP0213 |
C00857190
488000857190 |
FLEXIBLE COUPLING PW | Na dotaz | Zadat poptávku | |
| 010 LIP0213 |
C00851049
482000049300 |
LAMP SWITCH | Na dotaz | Zadat poptávku | |
| 011 LIP0213 |
C00857170
488000857170 |
PUSHER PW | Na dotaz | Zadat poptávku | |
| 012 LIP0213 |
C00256492
482000044271 |
GLASS SHELF | Na dotaz | Zadat poptávku | |
| 012 LIP0213 |
C00267892
482000043398 |
Shelf glass | Na dotaz | Zadat poptávku | |
| 013 LIP0213 |
C00855084 | bottle wire shelf | Na dotaz | Zadat poptávku | |
| 014 LIP0213 |
C00257135 | CHILLER | Na dotaz | Zadat poptávku | |
| 015 LIP0213 |
C00257136 | CHILLER COVER | Na dotaz | Zadat poptávku | |
| 016 LIP0213 |
C00257137
482000043264 |
SHELF GLASS | Na dotaz | Zadat poptávku | |
| 017 LIP0213 |
C00857283
482000048833 |
SEPARATOR | Na dotaz | Zadat poptávku | |
| 018 LIP0213 |
C00857206 | Vegetable Tray | Na dotaz | Zadat poptávku | |
| 019 LIP0213 |
C00256494 | VEGETABLE TRAY FRONT | Na dotaz | Zadat poptávku | |
| 020 LIP0213 |
C00257234
482000042606 |
BOX FOR FREEZER | Na dotaz | Zadat poptávku | |
| 021 LIP0213 |
C00857276
488000857276 |
FREEZER TRAY | Na dotaz | Zadat poptávku | |
| 022,023 LIP0213 |
C00256495
482000049208 |
DRAWER FRONT PANEL-SCREENED | Na dotaz | Zadat poptávku | |
| 024 LIP0213 |
C00857048
488000857048 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 025 LIP0213 |
C00857049
488000857049 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 026 LIP0213 |
C00857020
488000857020 |
ICE TRAY | Na dotaz | Zadat poptávku | |
| 027 LIP0213 |
C00853007 | EVAPORATOR ASSEMBLY | Na dotaz | Zadat poptávku | |
| 028 LIP0213 |
C00857074
488000857074 |
ICE SCRAPER | Na dotaz | Zadat poptávku | |
| 029 LIP0213 |
C00857102
488000857102 |
SHELF REST PIN PW | Na dotaz | Zadat poptávku | |
| 030 LIP0213 |
C00857025
488000857025 |
BRUSH | Na dotaz | Zadat poptávku | |
| 031 LIP0213 |
C00856121
482000090139 |
KRYT MOTOREK AIR | Na dotaz | Zadat poptávku | |
| 032 LIP0213 |
C00856122 | UPPER FAN COVER | Na dotaz | Zadat poptávku | |
| 033 LIP0213 |
C00257134 | FAN | Na dotaz | Zadat poptávku | |
| 001 LIP0313 |
C00257139
482000049212 |
FALSE PANEL | Na dotaz | Zadat poptávku | |
| 002 LIP0313 |
C00855011
488000855011 |
SELF-TAPP. SCREW 3,5x13 | Na dotaz | Zadat poptávku | |
| 003 LIP0313 |
C00857063
488000857063 |
DECORATIVE COVER PW | Na dotaz | Zadat poptávku | |
| 006 LIP0313 |
C00854009
488000854009 |
Magnet Gasket 1009x571 | Na dotaz | Zadat poptávku | |
| 006 LIP0313 |
C00256893 | DOOR OF FRIDGE | Na dotaz | Zadat poptávku | |
| 007 LIP0313 |
C00256506
482000049210 |
HANGING RACK | Na dotaz | Zadat poptávku | |
| 008,010 LIP0313 |
C00256508
482000042577 |
HANGING RACK UPPER | Na dotaz | Zadat poptávku | |
| 009 LIP0313 |
C00256509
482000047548 |
EGG HOLDE | Na dotaz | Zadat poptávku | |
| 011 LIP0313 |
C00857213
482000049147 |
Bottle Holder PW | Na dotaz | Zadat poptávku | |
| 012 LIP0313 |
C00256512
482000052493 |
HANGING RACK BOTTOM | Na dotaz | Zadat poptávku | |
| 015 LIP0313 |
C00855013
488000855013 |
SELF-TAPP. SCREW Т1/2Т 3,5x12,7 | Na dotaz | Zadat poptávku | |
| 016 LIP0313 |
C00857184 | Zámek | 25 Kč
€ 1.00 |
||
| 017 LIP0313 |
C00257235 | DOOR FREEZER | Na dotaz | Zadat poptávku | |
| 017 LIP0313 |
C00854014
488000854014 |
Magnet Gasket | Na dotaz | Zadat poptávku | |
| 018 LIP0313 |
C00857186 | Closure Aid | Na dotaz | Zadat poptávku | |
| 019 LIP0313 |
C00857188 | Closure Aid | Na dotaz | Zadat poptávku | |
| 020 LIP0313 |
C00857006
488000857006 |
DOOR HINGE BUSH | Na dotaz | Zadat poptávku | |
| 002 LIP0413 |
C00855001 | TOP PAINTED | Na dotaz | Zadat poptávku | |
| 003 LIP0413 |
C00857178 | REAR REST | Na dotaz | Zadat poptávku | |
| 004 LIP0413 |
C00857009 | CABLING SLEEVE | Na dotaz | Zadat poptávku | |
| 006 LIP0413 |
C00853008 | FINISHED CONDENSATOR L=1200 | Na dotaz | Zadat poptávku | |
| 007 LIP0413 |
C00857114
488000857114 |
CONDENDSATE TRAY ASSEMBLY | Na dotaz | Zadat poptávku | |
| 008,010 LIP0413 |
C00851121
482000048792 |
COMPRESSOR TLES4F ASSEMBLY | Na dotaz | Zadat poptávku | |
| 009 LIP0413 |
C00855058
488000855058 |
PLATE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 012 LIP0413 |
C00855064 | CROSS PIECE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 013 LIP0413 |
C00855047
488000855047 |
ROLLER PIN | Na dotaz | Zadat poptávku | |
| 014 LIP0413 |
C00857146
488000857146 |
ROLLER | Na dotaz | Zadat poptávku | |
