| Komerční kód: | RMBHA 3200 L.X |
| Kód 12NC: | 869990540300 |
| I.C. kód: | 58540300000 |
| Značka: | HOT POINT ARISTON |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

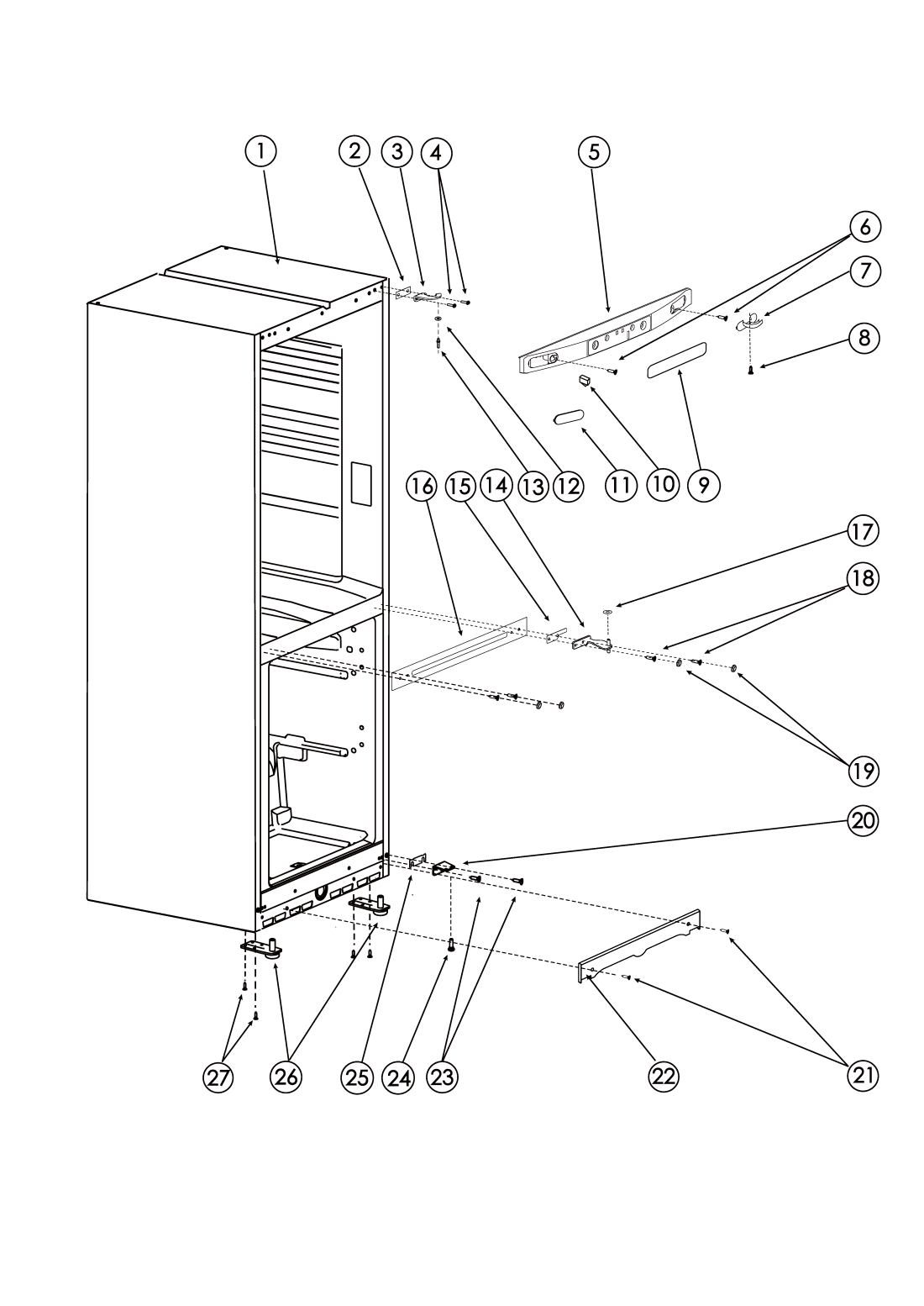

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 LIP01022 |
C00267822 | Cabinet | Na dotaz | Zadat poptávku | |
| 002 LIP01022 |
C00855081 | CONTROL PLATE | Na dotaz | Zadat poptávku | |
| 003 LIP01022 |
C00267825
482000041894 |
Holder top | Na dotaz | Zadat poptávku | |
| 004 LIP01022 |
C00855101 | #N/A | Na dotaz | Zadat poptávku | |
| 005 LIP01022 |
C00257741 | PANEL | Na dotaz | Zadat poptávku | |
| 006,021,023 LIP01022 |
C00855016
488000855016 |
SELF-TAPP. SCREW ТСВ 4,8x22,22 | Na dotaz | Zadat poptávku | |
| 007 LIP01022 |
C00267827 | Cover holder | Na dotaz | Zadat poptávku | |
| 008 LIP01022 |
C00855012 | SELF-TAPP. SCREW Т1/2Т 2,9x9,52 | Na dotaz | Zadat poptávku | |
| 009 LIP01022 |
C00267828 | False molding | Na dotaz | Zadat poptávku | |
| 010 LIP01022 |
C00851157
488000851157 |
LEVER SWITCH | Na dotaz | Zadat poptávku | |
| 011 LIP01022 |
C00857218
488000857218 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 012 LIP01022 |
C00855027 | WASHER | Na dotaz | Zadat poptávku | |
| 013 LIP01022 |
C00855088 | Hinge pivot | Na dotaz | Zadat poptávku | |
| 014 LIP01022 |
C00855044 | Complete Hinge | Na dotaz | Zadat poptávku | |
| 015 LIP01022 |
C00855055 | CONTROL PLATE | Na dotaz | Zadat poptávku | |
| 016 LIP01022 |
C00855051 | PLATE CENTRAL PAINTED | Na dotaz | Zadat poptávku | |
| 017 LIP01022 |
C00857199
488000857199 |
ADJUSTMENT WASHER PW | Na dotaz | Zadat poptávku | |
| 018 LIP01022 |
C00855006
488000855006 |
SCREW SТ 4,8x22 | Na dotaz | Zadat poptávku | |
| 019 LIP01022 |
C00857057
488000857057 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 020 LIP01022 |
C00855041 | Hinge | Na dotaz | Zadat poptávku | |
| 022 LIP01022 |
C00257742
482000049209 |
TRIM | Na dotaz | Zadat poptávku | |
| 024 LIP01022 |
C00855046
488000855046 |
BOTTOM HINGE PIN | Na dotaz | Zadat poptávku | |
| 025 LIP01022 |
C00855054 | CONTROL PLATE | Na dotaz | Zadat poptávku | |
| 027 LIP01022 |
C00855007
488000855007 |
S-TAPP. SCREW WITH WASHER ТЕ 4,8x16 | Na dotaz | Zadat poptávku | |
| 030 LIP01022 |
C00256180
488000256180 |
FOOT AND SUPPORT LEFT | Na dotaz | Zadat poptávku | |
| 030 LIP01022 |
C00256813
488000256813 |
FOOT AND SUPPORT RIGHT | Na dotaz | Zadat poptávku | |
| 001 LIP02022 |
C00857109
488000857109 |
Ceiling Light Fixture | Na dotaz | Zadat poptávku | |
| 002 LIP02022 |
C00856029
488000856029 |
Light Heat Protection | Na dotaz | Zadat poptávku | |
| 003 LIP02022 |
C00857027
488000857027 |
PLUG FOR BUSH | Na dotaz | Zadat poptávku | |
| 004,009 LIP02022 |
C00855010
488000855010 |
SELF-TAPP. SCREW Т1/2Т 4,2х15,87 | Na dotaz | Zadat poptávku | |
| 005 LIP02022 |
C00857046 | THERMOSTAT BOX PW | Na dotaz | Zadat poptávku | |
| 006 LIP02022 |
C00859993
488000859993 |
LAMP HOUSING | Na dotaz | Zadat poptávku | |
| 007 LIP02022 |
C00857174
488000857174 |
Pouzdro lednice | 43 Kč
€ 1.80 |
||
| 008 LIP02022 |
C00857190
488000857190 |
FLEXIBLE COUPLING PW | Na dotaz | Zadat poptávku | |
| 011 LIP02022 |
C00267829 | Cork | Na dotaz | Zadat poptávku | |
| 012 LIP02022 |
C00855084 | bottle wire shelf | Na dotaz | Zadat poptávku | |
| 013 LIP02022 |
C00256492
482000044271 |
GLASS SHELF | Na dotaz | Zadat poptávku | |
| 013 LIP02022 |
C00267892
482000043398 |
Shelf glass | Na dotaz | Zadat poptávku | |
| 014 LIP02022 |
C00257135 | CHILLER | Na dotaz | Zadat poptávku | |
| 015 LIP02022 |
C00257136 | CHILLER COVER | Na dotaz | Zadat poptávku | |
| 016 LIP02022 |
C00257137
482000043264 |
SHELF GLASS | Na dotaz | Zadat poptávku | |
| 017 LIP02022 |
C00857206 | Vegetable Tray | Na dotaz | Zadat poptávku | |
| 018 LIP02022 |
C00256494 | VEGETABLE TRAY FRONT | Na dotaz | Zadat poptávku | |
| 019 LIP02022 |
C00257234
482000042606 |
BOX FOR FREEZER | Na dotaz | Zadat poptávku | |
| 020,021 LIP02022 |
C00256495
482000049208 |
DRAWER FRONT PANEL-SCREENED | Na dotaz | Zadat poptávku | |
| 022 LIP02022 |
C00857048
488000857048 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 023,024 LIP02022 |
C00857049
488000857049 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 025 LIP02022 |
C00857020
488000857020 |
ICE TRAY | Na dotaz | Zadat poptávku | |
| 026 LIP02022 |
C00267830 | Evaporator | Na dotaz | Zadat poptávku | |
| 001 LIP03022 |
C00257610
482000047553 |
FALSHPANEL | Na dotaz | Zadat poptávku | |
| 002,015,025 LIP03022 |
C00855013
488000855013 |
SELF-TAPP. SCREW Т1/2Т 3,5x12,7 | Na dotaz | Zadat poptávku | |
| 004,005 LIP03022 |
C00857279 | Upper Plate Cover | Na dotaz | Zadat poptávku | |
| 006 LIP03022 |
C00854009
488000854009 |
Magnet Gasket 1009x571 | Na dotaz | Zadat poptávku | |
| 006 LIP03022 |
C00267841 | Door fridge | Na dotaz | Zadat poptávku | |
| 007 LIP03022 |
C00256506
482000049210 |
HANGING RACK | Na dotaz | Zadat poptávku | |
| 008 LIP03022 |
C00256509
482000047548 |
EGG HOLDE | Na dotaz | Zadat poptávku | |
| 009,010 LIP03022 |
C00256508
482000042577 |
HANGING RACK UPPER | Na dotaz | Zadat poptávku | |
| 011 LIP03022 |
C00857213
482000049147 |
Bottle Holder PW | Na dotaz | Zadat poptávku | |
| 012 LIP03022 |
C00256512
482000052493 |
HANGING RACK BOTTOM | Na dotaz | Zadat poptávku | |
| 013,014 LIP03022 |
C00857231
482000049134 |
PLUG | Na dotaz | Zadat poptávku | |
| 016 LIP03022 |
C00857185 | Closure Aid | Na dotaz | Zadat poptávku | |
| 017 LIP03022 |
C00854014
488000854014 |
Magnet Gasket | Na dotaz | Zadat poptávku | |
| 017 LIP03022 |
C00267847 | Door frezeer | Na dotaz | Zadat poptávku | |
| 018 LIP03022 |
C00857187 | Closure Aid | Na dotaz | Zadat poptávku | |
| 019 LIP03022 |
C00857189 | Closure Aid | Na dotaz | Zadat poptávku | |
| 020 LIP03022 |
C00277413
482000043292 |
DISPLAY TOUCH ROHS KIT+8200954 | Na dotaz | Zadat poptávku | |
| 021 LIP03022 |
C00267848 | Frame display | Na dotaz | Zadat poptávku | |
| 022 LIP03022 |
C00857006
488000857006 |
DOOR HINGE BUSH | Na dotaz | Zadat poptávku | |
| 023 LIP03022 |
C00267849 | Handle | Na dotaz | Zadat poptávku | |
| 024 LIP03022 |
C00267850 | Cork handle | Na dotaz | Zadat poptávku | |
| 026 LIP03022 |
C00267505 | Holder cups | Na dotaz | Zadat poptávku | |
| 002 LIP04022 |
C00855040 | TOP COLOURED | Na dotaz | Zadat poptávku | |
| 003 LIP04022 |
C00857178 | REAR REST | Na dotaz | Zadat poptávku | |
| 004 LIP04022 |
C00857009 | CABLING SLEEVE | Na dotaz | Zadat poptávku | |
| 005,013 LIP04022 |
C00855091 | screws | Na dotaz | Zadat poptávku | |
| 006 LIP04022 |
C00853008 | FINISHED CONDENSATOR L=1200 | Na dotaz | Zadat poptávku | |
| 009 LIP04022 |
C00857344
488000857344 |
CONDENSATE TRAY ASSEMBLY | Na dotaz | Zadat poptávku | |
| 010 LIP04022 |
C00855058
488000855058 |
PLATE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 011 LIP04022 |
C00851119
482000044199 |
COMPRESSOR NLY6F | Na dotaz | Zadat poptávku | |
| 012 LIP04022 |
C00855023
488000855023 |
PROCESS TUBE DIAM. 6 | Na dotaz | Zadat poptávku | |
| 014 LIP04022 |
C00855063
488000855063 |
CROSS PIECE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 015 LIP04022 |
C00855047
488000855047 |
ROLLER PIN | Na dotaz | Zadat poptávku | |
| 016 LIP04022 |
C00857146
488000857146 |
ROLLER | Na dotaz | Zadat poptávku | |
| 017 LIP04022 |
C00118178 | ZÁTKA SERIAL | Na dotaz | Zadat poptávku | |
| 018 LIP04022 |
C00267521 | Cover box card | Na dotaz | Zadat poptávku | |
| 019 LIP04022 |
C00267852 | Module Full Static (VDR) | Na dotaz | Zadat poptávku | |
| 019 LIP04022 |
C00268259 | CARD RMBHA 3200.LX SW 28540300001 | Na dotaz | Zadat poptávku | |
| 020 LIP04022 |
C00267523 | Box for main card | Na dotaz | Zadat poptávku | |
| 021 LIP04022 |
C00257783 | ELECTROVALVE | Na dotaz | Zadat poptávku | |
| 022 LIP04022 |
C00257784 | FIXTURE ELECTROVALVE | Na dotaz | Zadat poptávku | |
