| Komerční kód: | RMBMA 3185.1 |
| Kód 12NC: | 869990627560 |
| I.C. kód: | 58627560000 |
| Značka: | HOT POINT ARISTON |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

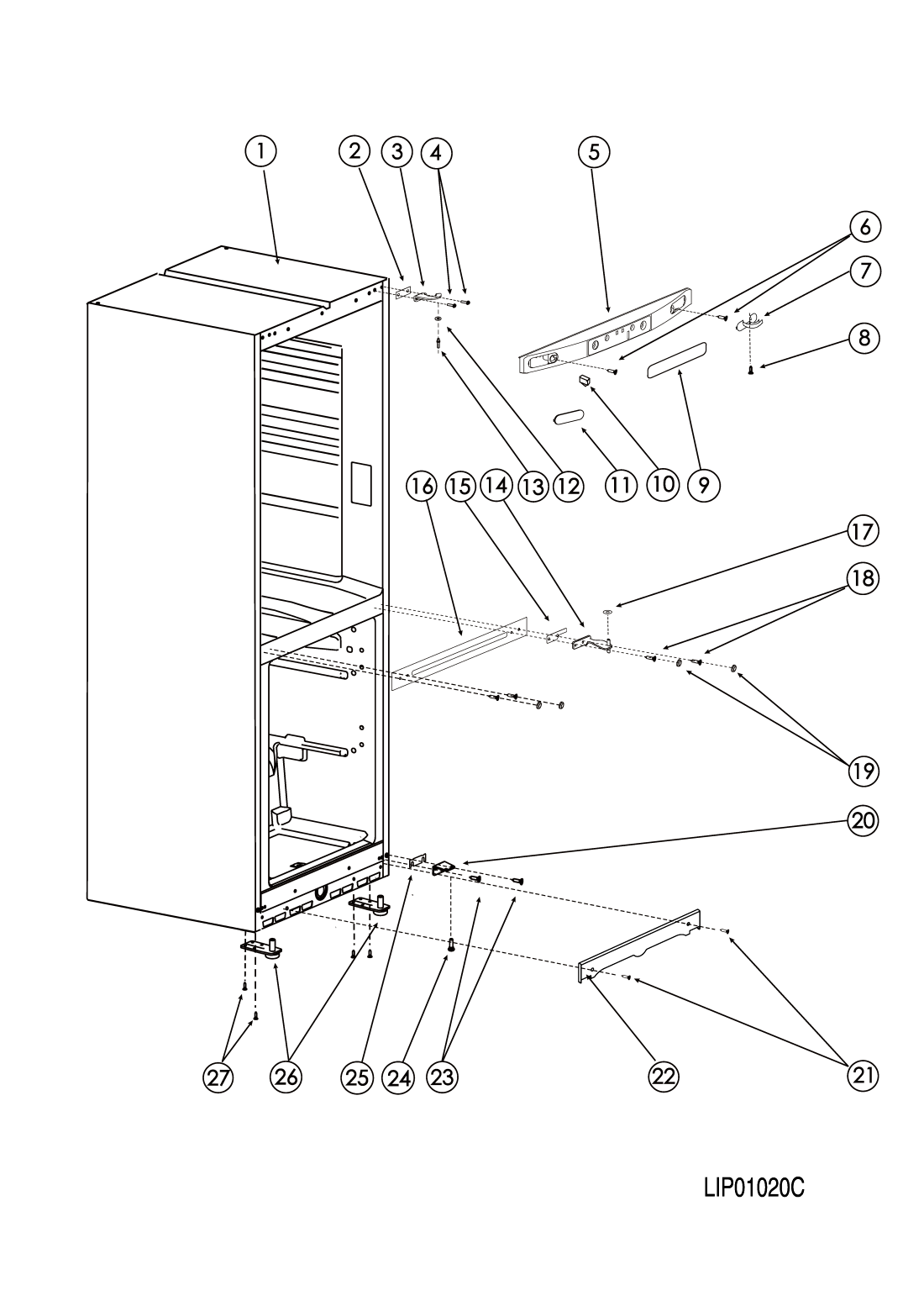

| 001 LIP01020C |
C00274626 | CABINET ASSEMBLY F062756 | Na dotaz | Zadat poptávku | |
| 002 LIP01020C |
C00855081 | CONTROL PLATE | Na dotaz | Zadat poptávku | |
| 003 LIP01020C |
C00267825
482000041894 |
Holder top | Na dotaz | Zadat poptávku | |
| 004 LIP01020C |
C00855101 | #N/A | Na dotaz | Zadat poptávku | |
| 005 LIP01020C |
C00857323 | Cabinet Control Panel | Na dotaz | Zadat poptávku | |
| 006,021,023 LIP01020C |
C00855016
488000855016 |
SELF-TAPP. SCREW ТСВ 4,8x22,22 | Na dotaz | Zadat poptávku | |
| 007 LIP01020C |
C00267827 | Cover holder | Na dotaz | Zadat poptávku | |
| 008 LIP01020C |
C00855012 | SELF-TAPP. SCREW Т1/2Т 2,9x9,52 | Na dotaz | Zadat poptávku | |
| 009 LIP01020C |
C00267828 | False molding | Na dotaz | Zadat poptávku | |
| 010 LIP01020C |
C00851157
488000851157 |
LEVER SWITCH | Na dotaz | Zadat poptávku | |
| 011 LIP01020C |
C00857218
488000857218 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 012 LIP01020C |
C00855027 | WASHER | Na dotaz | Zadat poptávku | |
| 013 LIP01020C |
C00855088 | Hinge pivot | Na dotaz | Zadat poptávku | |
| 014 LIP01020C |
C00855044 | Complete Hinge | Na dotaz | Zadat poptávku | |
| 015 LIP01020C |
C00855055 | CONTROL PLATE | Na dotaz | Zadat poptávku | |
| 016 LIP01020C |
C00855051 | PLATE CENTRAL PAINTED | Na dotaz | Zadat poptávku | |
| 017 LIP01020C |
C00857199
488000857199 |
ADJUSTMENT WASHER PW | Na dotaz | Zadat poptávku | |
| 018 LIP01020C |
C00855006
488000855006 |
SCREW SТ 4,8x22 | Na dotaz | Zadat poptávku | |
| 019 LIP01020C |
C00857057
488000857057 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 020 LIP01020C |
C00855041 | Hinge | Na dotaz | Zadat poptávku | |
| 022 LIP01020C |
C00256159 | KICKSTRIP | Na dotaz | Zadat poptávku | |
| 024 LIP01020C |
C00855046
488000855046 |
BOTTOM HINGE PIN | Na dotaz | Zadat poptávku | |
| 025 LIP01020C |
C00855054 | CONTROL PLATE | Na dotaz | Zadat poptávku | |
| 026 LIP01020C |
C00256180
488000256180 |
FOOT AND SUPPORT LEFT | Na dotaz | Zadat poptávku | |
| 026 LIP01020C |
C00256813
488000256813 |
FOOT AND SUPPORT RIGHT | Na dotaz | Zadat poptávku | |
| 027 LIP01020C |
C00855007
488000855007 |
S-TAPP. SCREW WITH WASHER ТЕ 4,8x16 | Na dotaz | Zadat poptávku | |
| 001 LIP0215 |
C00857109
488000857109 |
Ceiling Light Fixture | Na dotaz | Zadat poptávku | |
| 002 LIP0215 |
C00856029
488000856029 |
Light Heat Protection | Na dotaz | Zadat poptávku | |
| 003 LIP0215 |
C00857027
488000857027 |
PLUG FOR BUSH | Na dotaz | Zadat poptávku | |
| 004 LIP0215 |
C00855010
488000855010 |
SELF-TAPP. SCREW Т1/2Т 4,2х15,87 | Na dotaz | Zadat poptávku | |
| 005 LIP0215 |
C00857046 | THERMOSTAT BOX PW | Na dotaz | Zadat poptávku | |
| 006 LIP0215 |
C00859993
488000859993 |
LAMP HOUSING | Na dotaz | Zadat poptávku | |
| 007 LIP0215 |
C00857174
488000857174 |
Pouzdro lednice | 43 Kč
€ 1.80 |
||
| 008 LIP0215 |
C00267829 | Cork | Na dotaz | Zadat poptávku | |
| 009 LIP0215 |
C00855084 | bottle wire shelf | Na dotaz | Zadat poptávku | |
| 010 LIP0215 |
C00256492
482000044271 |
GLASS SHELF | Na dotaz | Zadat poptávku | |
| 010 LIP0215 |
C00267892
482000043398 |
Shelf glass | Na dotaz | Zadat poptávku | |
| 011 LIP0215 |
C00257135 | CHILLER | Na dotaz | Zadat poptávku | |
| 012 LIP0215 |
C00257136 | CHILLER COVER | Na dotaz | Zadat poptávku | |
| 013 LIP0215 |
C00257137
482000043264 |
SHELF GLASS | Na dotaz | Zadat poptávku | |
| 014 LIP0215 |
C00256889
488000256889 |
BOX VEGETABLES | Na dotaz | Zadat poptávku | |
| 015 LIP0215 |
C00256887 | VEGETABLE TRAY FRONT | Na dotaz | Zadat poptávku | |
| 016 LIP0215 |
C00857276
488000857276 |
FREEZER TRAY | Na dotaz | Zadat poptávku | |
| 017 LIP0215 |
C00257133 | Door-Screened | Na dotaz | Zadat poptávku | |
| 018 LIP0215 |
C00256495
482000049208 |
DRAWER FRONT PANEL-SCREENED | Na dotaz | Zadat poptávku | |
| 019 LIP0215 |
C00857048
488000857048 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 020 LIP0215 |
C00857049
488000857049 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 021 LIP0215 |
C00857020
488000857020 |
ICE TRAY | Na dotaz | Zadat poptávku | |
| 022 LIP0215 |
C00274627 | EVAPORATOR ASSEMBLY WHITE | Na dotaz | Zadat poptávku | |
| 001 LIP03023C |
C00257139
482000049212 |
FALSE PANEL | Na dotaz | Zadat poptávku | |
| 002,015 LIP03023C |
C00855013
488000855013 |
SELF-TAPP. SCREW Т1/2Т 3,5x12,7 | Na dotaz | Zadat poptávku | |
| 004 LIP03023C |
C00857279 | Upper Plate Cover | Na dotaz | Zadat poptávku | |
| 006 LIP03023C |
C00854009
488000854009 |
Magnet Gasket 1009x571 | Na dotaz | Zadat poptávku | |
| 006 LIP03023C |
C00274635 | DOOR OF FRIDGE | Na dotaz | Zadat poptávku | |
| 007 LIP03023C |
C00256506
482000049210 |
HANGING RACK | Na dotaz | Zadat poptávku | |
| 008 LIP03023C |
C00267496
482000042594 |
Form for eggs | Na dotaz | Zadat poptávku | |
| 009,010 LIP03023C |
C00267498
482000049247 |
INTERMIEDATE DOOR SHELF | Na dotaz | Zadat poptávku | |
| 011 LIP03023C |
C00857213
482000049147 |
Bottle Holder PW | Na dotaz | Zadat poptávku | |
| 012 LIP03023C |
C00256512
482000052493 |
HANGING RACK BOTTOM | Na dotaz | Zadat poptávku | |
| 013,014 LIP03023C |
C00267843
482000042279 |
Plug | Na dotaz | Zadat poptávku | |
| 016 LIP03023C |
C00857185 | Closure Aid | Na dotaz | Zadat poptávku | |
| 017 LIP03023C |
C00257138 | DOOR FREEZER | Na dotaz | Zadat poptávku | |
| 017 LIP03023C |
C00854010
488000854010 |
Magnet Gasket 654x571 | Na dotaz | Zadat poptávku | |
| 018 LIP03023C |
C00857187 | Closure Aid | Na dotaz | Zadat poptávku | |
| 019 LIP03023C |
C00857189 | Closure Aid | Na dotaz | Zadat poptávku | |
| 020 LIP03023C |
C00287882
482000031808 |
MID DISPLAY ASSEMBLY IRIDIUM+8200953 | Na dotaz | Zadat poptávku | |
| 020 LIP03023C |
C00266938
482000043291 |
MID DISPLAY ASSEMBLY IRIDIUM+8200953 | Na dotaz | Zadat poptávku | |
| 021 LIP03023C |
C00274633 | Frame panel | Na dotaz | Zadat poptávku | |
| 022 LIP03023C |
C00857006
488000857006 |
DOOR HINGE BUSH | Na dotaz | Zadat poptávku | |
| 026 LIP03023C |
C00267505 | Holder cups | Na dotaz | Zadat poptávku | |
| 001 LIP04022 |
C00851053 | RUN CAPACITOR | Na dotaz | Zadat poptávku | |
| 002 LIP04022 |
C00855001 | TOP PAINTED | Na dotaz | Zadat poptávku | |
| 003 LIP04022 |
C00857178 | REAR REST | Na dotaz | Zadat poptávku | |
| 004 LIP04022 |
C00857009 | CABLING SLEEVE | Na dotaz | Zadat poptávku | |
| 005,013 LIP04022 |
C00855091 | screws | Na dotaz | Zadat poptávku | |
| 006 LIP04022 |
C00853011
488000853011 |
CONDENSATOR | Na dotaz | Zadat poptávku | |
| 009 LIP04022 |
C00857114
488000857114 |
CONDENDSATE TRAY ASSEMBLY | Na dotaz | Zadat poptávku | |
| 010 LIP04022 |
C00855058
488000855058 |
PLATE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 011 LIP04022 |
C00851119
482000044199 |
COMPRESSOR NLY6F | Na dotaz | Zadat poptávku | |
| 012 LIP04022 |
C00855023
488000855023 |
PROCESS TUBE DIAM. 6 | Na dotaz | Zadat poptávku | |
| 014 LIP04022 |
C00855063
488000855063 |
CROSS PIECE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 015 LIP04022 |
C00855047
488000855047 |
ROLLER PIN | Na dotaz | Zadat poptávku | |
| 016 LIP04022 |
C00857146
488000857146 |
ROLLER | Na dotaz | Zadat poptávku | |
| 017 LIP04022 |
C00118178 | ZÁTKA SERIAL | Na dotaz | Zadat poptávku | |
| 018 LIP04022 |
C00267521 | Cover box card | Na dotaz | Zadat poptávku | |
| 019 LIP04022 |
C00267852 | Module Full Static (VDR) | Na dotaz | Zadat poptávku | |
| 019 LIP04022 |
C00274647 | CARD RMBMA31851 SW 28627560002 | Na dotaz | Zadat poptávku | |
| 020 LIP04022 |
C00267523 | Box for main card | Na dotaz | Zadat poptávku | |
| 021 LIP04022 |
C00257783 | ELECTROVALVE | Na dotaz | Zadat poptávku | |
| 022 LIP04022 |
C00257784 | FIXTURE ELECTROVALVE | Na dotaz | Zadat poptávku | |
| 999 LIP04022 |
C00851101
488000851101 |
POWER CORD | Na dotaz | Zadat poptávku | |
