| Komerční kód: | S 4505/1 WS |
| Kód 12NC/I.C. kód: | 857437522000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

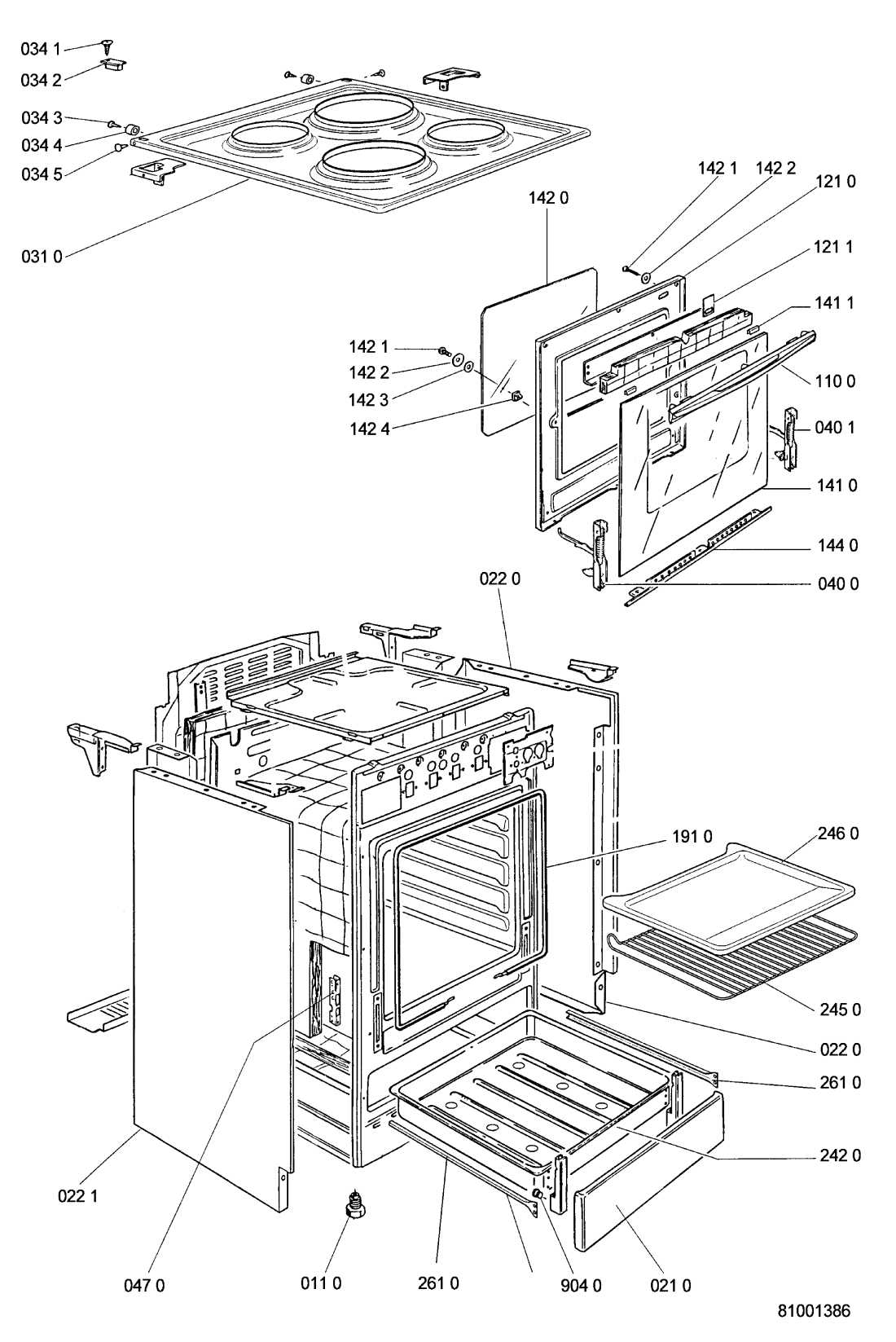

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR103010 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR103010 |
C00499250
481945349622 |
Front panel | Na dotaz | Zadat poptávku | |
| 022 0 WHR103010 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR103010 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR103010 |
C00499159
481944059814 |
HOB | Na dotaz | Zadat poptávku | |
| 034 1 WHR103010 |
C00336257
481946699118 |
SLIDE BEARING | Na dotaz | Zadat poptávku | |
| 034 2 WHR103010 |
C00336753
481950219456 |
SCREW | Na dotaz | Zadat poptávku | |
| 034 3 WHR103010 |
C00336754
481950218473 |
Screw | Na dotaz | Zadat poptávku | |
| 034 4 WHR103010 |
C00336218
481946689136 |
SPACER | Na dotaz | Zadat poptávku | |
| 034 5 WHR103010 |
C00499628
481953598492 |
PIN | Na dotaz | Zadat poptávku | |
| 040 0 WHR103010 |
C00499101
481941719353 |
HINGE | Na dotaz | Zadat poptávku | |
| 040 1 WHR103010 |
C00499102
481941719354 |
HINGE | Na dotaz | Zadat poptávku | |
| 047 0 WHR103010 |
C00339880
481941719352 |
HINGE | Na dotaz | Zadat poptávku | |
| 110 0 WHR103010 |
C00499892
481949858481 |
Handle door | Na dotaz | Zadat poptávku | |
| 121 0 WHR103010 |
C00596696
481944059817 |
Door,inner. | Na dotaz | Zadat poptávku | |
| 121 1 WHR103010 |
C00596775
481946669986 |
Gasket border. | Na dotaz | Zadat poptávku | |
| 141 0 WHR103010 |
C00596720
481945058137 |
Door glass cristal oven. | Na dotaz | Zadat poptávku | |
| 141 1 WHR103010 |
C00596774
481946669982 |
Gasket. | Na dotaz | Zadat poptávku | |
| 142 0 WHR103010 |
C00338930
481945069701 |
INNER GLASS | Na dotaz | Zadat poptávku | |
| 142 1 WHR103010 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 1 WHR103010 |
C00336756
481950218474 |
SCREW | Na dotaz | Zadat poptávku | |
| 142 2 WHR103010 |
C00337256
481953258272 |
Washer | Na dotaz | Zadat poptávku | |
| 142 2 WHR103010 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR103010 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR103010 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 144 0 WHR103010 |
C00337465
481946078082 |
TRIM,DOOR | Na dotaz | Zadat poptávku | |
| 191 0 WHR103010 |
C00340467
481946669984 |
Gasket door | Na dotaz | Zadat poptávku | |
| 242 0 WHR103010 |
C00499128
481941879661 |
DRAWER | Na dotaz | Zadat poptávku | |
| 245 0 WHR103010 |
C00499261
481945819325 |
ROST | Na dotaz | Zadat poptávku | |
| 246 0 WHR103010 |
C00490616
481941838342 |
Baking tray | Na dotaz | Zadat poptávku | |
| 261 0 WHR103010 |
C00336960
481946238718 |
RAIL | Na dotaz | Zadat poptávku | |
| 320 0 WHR103010 |
C00596737
481945358618 |
Control panel. | Na dotaz | Zadat poptávku | |
| 331 0 WHR103010 |
C00596686
481941258574 |
Knob switch. | Na dotaz | Zadat poptávku | |
| 331 1 WHR103010 |
C00755924
481941258586 |
Knob switch | Na dotaz | Zadat poptávku | |
| 331 2 WHR103010 |
C00596687
481941258585 |
Knob Thermostat. | Na dotaz | Zadat poptávku | |
| 351 0 WHR103010 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 351 1 WHR103010 |
C00341470
481913448464 |
Pilot lamp L= 600 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR103010 |
C00341776
481938118201 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR103010 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 452 0 WHR103010 |
C00755925
481925928756 |
Heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR103010 |
C00319652
481925928757 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 456 1 WHR103010 |
C00335920
481940478722 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 456 2 WHR103010 |
C00597253
481946689389 |
CLAMPING PIECE. | Na dotaz | Zadat poptávku | |
| 461 0 WHR103010 |
C00343118
481925998509 |
Cooking plate D145 1000W 230V | Na dotaz | Zadat poptávku | |
| 461 1 WHR103010 |
C00490351
481925998649 |
Cooking plate D180 1500W 230V | Na dotaz | Zadat poptávku | |
| 461 6 WHR103010 |
C00320463
481925998515 |
plotna varna 180 mm | 1 298 Kč
€ 53.30 |
||
| 483 0 WHR103010 |
C00498931
481932058338 |
Connect.cable elec.plate | Na dotaz | Zadat poptávku | |
| 491 0 WHR103010 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR103010 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR103010 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 554 0 WHR103010 |
C00335484
481927128855 |
termostat | Na dotaz | Zadat poptávku | |
| 554 1 WHR103010 |
C00582291
481940118719 |
Clamp thermostat bulb. | Na dotaz | Zadat poptávku | |
| 562 0 WHR103010 |
C00597117
481927129102 |
Thermostat cut-off. | Na dotaz | Zadat poptávku | |
| 620 0 WHR103010 |
C00755927
481927328379 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 622 0 WHR103010 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR103010 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR103010 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 904 0 WHR103010 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
