BAUKNECHT S 5505 WS COOKERS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | S 5505 WS COOKERS BK |
| Kód 12NC/I.C. kód: | 857437522110 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

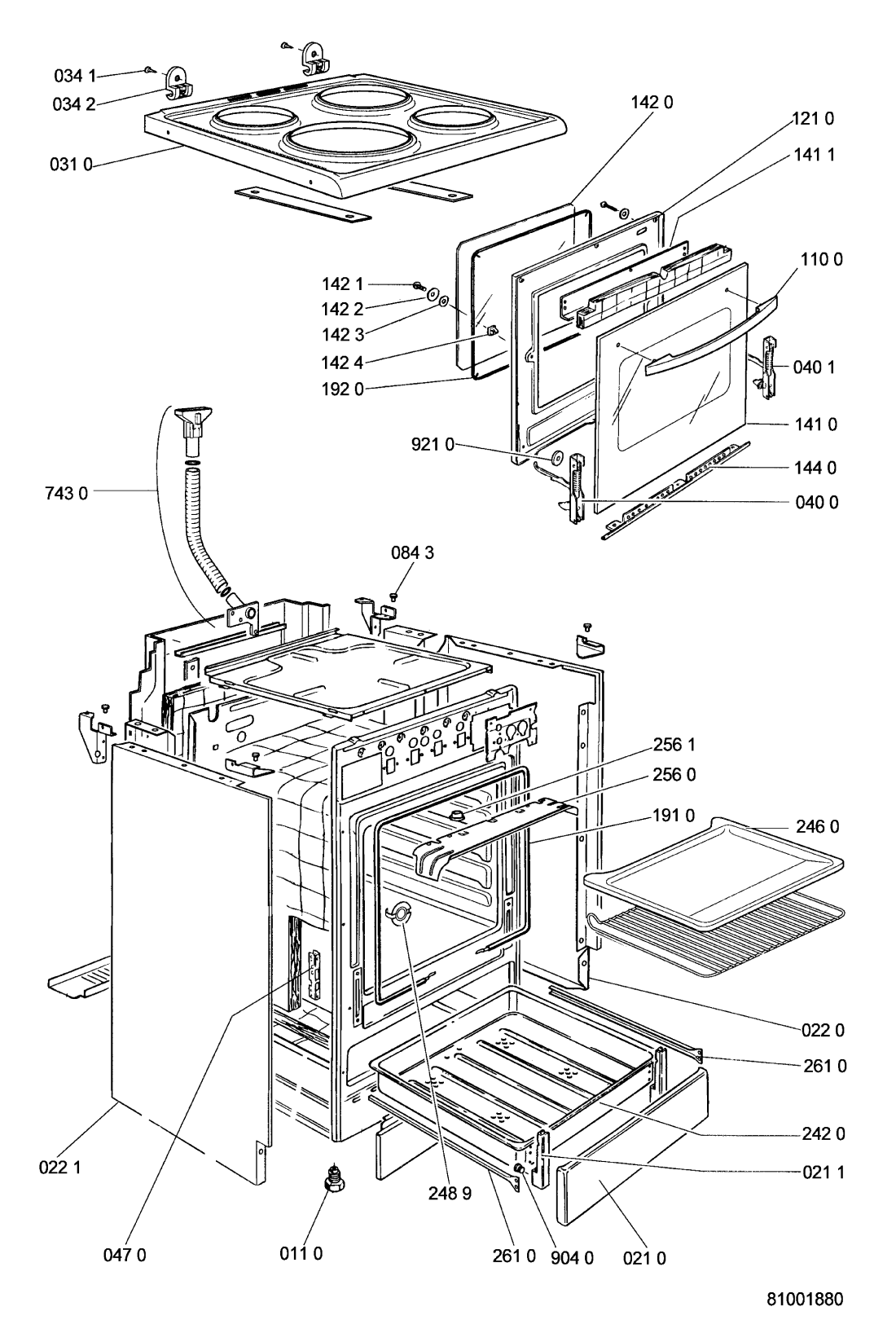

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR87302 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR87302 |
C00499250
481945349622 |
Front panel | Na dotaz | Zadat poptávku | |
| 021 1 WHR87302 |
C00596665
481940254004 |
Bracket ,drawer. | Na dotaz | Zadat poptávku | |
| 022 0 WHR87302 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR87302 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR87302 |
C00596708
481944239479 |
Hob. | Na dotaz | Zadat poptávku | |
| 034 1 WHR87302 |
C00492027
481250218517 |
Screw | Na dotaz | Zadat poptávku | |
| 034 2 WHR87302 |
C00492104
481253258017 |
Spacer rear | Na dotaz | Zadat poptávku | |
| 040 0 WHR87302 |
C00499101
481941719353 |
HINGE | Na dotaz | Zadat poptávku | |
| 040 1 WHR87302 |
C00499102
481941719354 |
HINGE | Na dotaz | Zadat poptávku | |
| 047 0 WHR87302 |
C00339880
481941719352 |
HINGE | Na dotaz | Zadat poptávku | |
| 084 3 WHR87302 |
C00582512
481990704928 |
Rubber | Na dotaz | Zadat poptávku | |
| 110 0 WHR87302 |
C00499505
481949858532 |
RUKOVAT DVERI | Na dotaz | Zadat poptávku | |
| 121 0 WHR87302 |
C00499180
481944239132 |
INNERDOOR,OVEN | Na dotaz | Zadat poptávku | |
| 141 0 WHR87302 |
C00596558
481245058522 |
Oven door. | Na dotaz | Zadat poptávku | |
| 141 1 WHR87302 |
C00610514
481946089559 |
TRIM,DOOR. | Na dotaz | Zadat poptávku | |
| 142 0 WHR87302 |
C00485253
481245058523 |
INNER GLASS | Na dotaz | Zadat poptávku | |
| 142 1 WHR87302 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR87302 |
C00337256
481953258272 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR87302 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR87302 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 144 0 WHR87302 |
C00337465
481946078082 |
TRIM,DOOR | Na dotaz | Zadat poptávku | |
| 191 0 WHR87302 |
C00340467
481946669984 |
Gasket door | Na dotaz | Zadat poptávku | |
| 192 0 WHR87302 |
C00486147
481246668685 |
Gasket Oven | Na dotaz | Zadat poptávku | |
| 242 0 WHR87302 |
C00499128
481941879661 |
DRAWER | Na dotaz | Zadat poptávku | |
| 246 0 WHR87302 |
C00490616
481941838342 |
Baking tray | Na dotaz | Zadat poptávku | |
| 248 9 WHR87302 |
C00582221
481246279785 |
Plug rotisserie hole plug. | Na dotaz | Zadat poptávku | |
| 256 0 WHR87302 |
C00596776
481946689146 |
Knob protection. | Na dotaz | Zadat poptávku | |
| 256 1 WHR87302 |
C00596777
481946698939 |
Spacer. | Na dotaz | Zadat poptávku | |
| 261 0 WHR87302 |
C00336960
481946238718 |
RAIL | Na dotaz | Zadat poptávku | |
| 320 0 WHR87302 |
C00596995
481245319999 |
Control panel. | Na dotaz | Zadat poptávku | |
| 331 0 WHR87302 |
C00500517
481241128715 |
Knob eletric plate | Na dotaz | Zadat poptávku | |
| 334 1 WHR87302 |
C00527657
481241128714 |
Knob oven switch (WH) | Na dotaz | Zadat poptávku | |
| 334 2 WHR87302 |
C00527656
481241128713 |
Knob oven thermostat (WH) | Na dotaz | Zadat poptávku | |
| 351 0 WHR87302 |
C00341470
481913448464 |
Pilot lamp L= 600 mm | Na dotaz | Zadat poptávku | |
| 351 1 WHR87302 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR87302 |
C00488698
481238118271 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR87302 |
C00610502
481246279786 |
Lens orange. | Na dotaz | Zadat poptávku | |
| 452 0 WHR87302 |
C00316357
481925928758 |
Heating element top + grill | Na dotaz | Zadat poptávku | |
| 454 1 WHR87302 |
C00335920
481940478722 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 454 2 WHR87302 |
C00597253
481946689389 |
CLAMPING PIECE. | Na dotaz | Zadat poptávku | |
| 456 0 WHR87302 |
C00319652
481925928757 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 461 0 WHR87302 |
C00343118
481925998509 |
Cooking plate D145 1000W 230V | Na dotaz | Zadat poptávku | |
| 461 1 WHR87302 |
C00490351
481925998649 |
Cooking plate D180 1500W 230V | Na dotaz | Zadat poptávku | |
| 461 6 WHR87302 |
C00555753
481925998563 |
Cooking plate d=180 2.. | Na dotaz | Zadat poptávku | |
| 491 0 WHR87302 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR87302 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR87302 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 554 0 WHR87302 |
C00335484
481927128855 |
termostat | Na dotaz | Zadat poptávku | |
| 554 1 WHR87302 |
C00343269
481949248166 |
Clip Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR87302 |
C00597117
481927129102 |
Thermostat cut-off. | Na dotaz | Zadat poptávku | |
| 620 0 WHR87302 |
C00335698
481927618266 |
spínač | Na dotaz | Zadat poptávku | |
| 622 0 WHR87302 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR87302 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR87302 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 743 0 WHR87302 |
C00556328
481953048845 |
Conveyor.. | Na dotaz | Zadat poptávku | |
| 904 0 WHR87302 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 921 0 WHR87302 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
