| Komerční kód: | SDD 54 US |
| Kód 12NC: | 851299601110 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální domácí čištění |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR20031 |
C00535828
482000100624 |
Fastener stoko 4 piec faston | Na dotaz | Zadat poptávku | |
| 999,A010 WHR20031 |
C00495326
483286001391 |
Heating element 2000 W | Na dotaz | Zadat poptávku | |
| 999,B034 WHR20031 |
C00535825
482000100621 |
Reductor pressure sale0.5LT/M | Na dotaz | Zadat poptávku | |

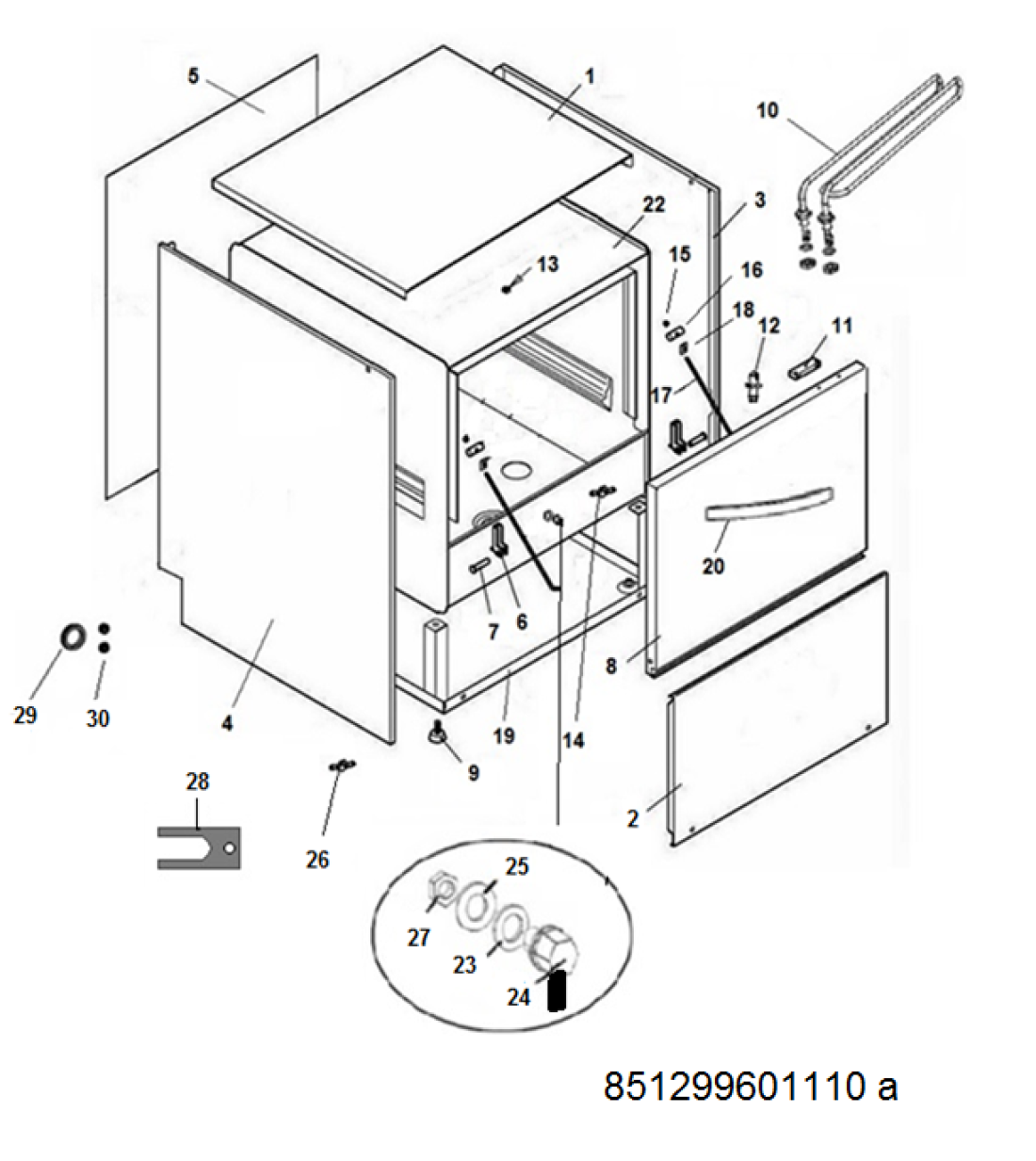

| A001 WHR20031 |
C00520090
482000098531 |
Panel upper st inox 441 | Na dotaz | Zadat poptávku | |
| A002,A005 WHR20031 |
C00535971
482000100644 |
Panel lower N700 | Na dotaz | Zadat poptávku | |
| A003 WHR20031 |
C00520091
482000098532 |
Panel side right inox 441 | Na dotaz | Zadat poptávku | |
| A004 WHR20031 |
C00520092
482000098533 |
Panel side left inox 441 | Na dotaz | Zadat poptávku | |
| A006 WHR20031 |
C00339856
483286008122 |
Hinge | Na dotaz | Zadat poptávku | |
| A007 WHR20031 |
C00341442
483286008121 |
Pin hinge | Na dotaz | Zadat poptávku | |
| A008 WHR20031 |
C00519935
482000098493 |
Door standard with M.A. | Na dotaz | Zadat poptávku | |
| A009 WHR20031 |
C00423471
483286011296 |
Fastener Rubber leg | Na dotaz | Zadat poptávku | |
| A011 WHR20031 |
C00338315
483286008861 |
Magnet ,cover | Na dotaz | Zadat poptávku | |
| A012 WHR20031 |
C00342109
483286008118 |
Door catch | Na dotaz | Zadat poptávku | |
| A013 WHR20031 |
C00519764
482000098430 |
Ring upper panel fixing | Na dotaz | Zadat poptávku | |
| A014 WHR20031 |
C00423467
483286011292 |
Thermostat | Na dotaz | Zadat poptávku | |
| A015 WHR20031 |
C00338037
483286008135 |
Nut | Na dotaz | Zadat poptávku | |
| A016 WHR20031 |
C00344331
483286008134 |
Bolt | Na dotaz | Zadat poptávku | |
| A017 WHR20031 |
C00335460
483286008131 |
tyč spojovací | 1 315 Kč
€ 57.80 |
||
| A018 WHR20031 |
C00337753
483286008133 |
Plate tie rod | Na dotaz | Zadat poptávku | |
| A019 WHR20031 |
C00535972
482000100645 |
Base N700 2015 | Na dotaz | Zadat poptávku | |
| A020 WHR20031 |
C00519768
482000098434 |
Handle | Na dotaz | Zadat poptávku | |
| A021 WHR20031 |
C00519788
482000098454 |
Tank lock resist silicone | Na dotaz | Zadat poptávku | |
| A022 WHR20031 |
C00535973
482000100646 |
Tank N750B | Na dotaz | Zadat poptávku | |
| A023 WHR20031 |
C00413099
482000012774 |
Těsnění | 1 560 Kč
€ 68.60 |
||
| A024 WHR20031 |
C00413100
482000012775 |
Fitting Detergent INOX - Inlet tank | 2 784 Kč
€ 122.40 |
||
| A025 WHR20031 |
C00413098
482000012773 |
Podložka | 889 Kč
€ 39.10 |
||
| A026 WHR20031 |
C00522741
482000099282 |
Thermostat tank 42o paddle | Na dotaz | Zadat poptávku | |
| A027 WHR20031 |
C00413097
482000012772 |
Nut ATB 5 | Na dotaz | Zadat poptávku | |
| A028 WHR20031 |
C00522736
482000099277 |
Bracket splashback curtain | Na dotaz | Zadat poptávku | |
| A029 WHR20031 |
C00517754
483286008938 |
Grommet | Na dotaz | Zadat poptávku | |
| A030 WHR20031 |
C00340204
483286008919 |
Grommet | Na dotaz | Zadat poptávku | |
| B001 WHR20031 |
C00536023
482000100626 |
Boiler B 3.6L | Na dotaz | Zadat poptávku | |
| B002 WHR20031 |
C00416863
482000019908 |
Safety Thermos. 110° | Na dotaz | Zadat poptávku | |
| B003 WHR20031 |
C00337971
483286008139 |
O-Ring | Na dotaz | Zadat poptávku | |
| B004 WHR20031 |
C00421824
483286003819 |
Heating element | Na dotaz | Zadat poptávku | |
| B005 WHR20031 |
C00338536
483286008153 |
Knob | Na dotaz | Zadat poptávku | |
| B006 WHR20031 |
C00335524
483286008871 |
Thermostat 0 - 90°C | 1 642 Kč
€ 72.20 |
||
| B007 WHR20031 |
C00417521
482000021333 |
Lamella brass | Na dotaz | Zadat poptávku | |
| B008 WHR20031 |
C00501057
483286000485 |
Inlet ,ELBOW | Na dotaz | Zadat poptávku | |
| B009 WHR20031 |
C00416944
482000020115 |
Pump CRC-R DX | Na dotaz | Zadat poptávku | |
| B010 WHR20031 |
C00413096
482000012770 |
Inlet valve 2way red. | Na dotaz | Zadat poptávku | |
| B011 WHR20031 |
C00520056
482000098524 |
Regulator group 3.75 LT. GREY | Na dotaz | Zadat poptávku | |
| B012 WHR20031 |
C00344923
482000012771 |
Hose inlet 90° 1500mm S 800 HW | Na dotaz | Zadat poptávku | |
| B013 WHR20031 |
C00520042
482000098510 |
Ring air gap | Na dotaz | Zadat poptávku | |
| B014 WHR20031 |
C00520043
482000098511 |
Ring AIR GAP | Na dotaz | Zadat poptávku | |
| B015 WHR20031 |
C00520044
482000098512 |
Pipe air | Na dotaz | Zadat poptávku | |
| B016,E008 WHR20031 |
C00339400
483286008798 |
Hose ,pressostat | Na dotaz | Zadat poptávku | |
| B017 WHR20031 |
C00497215
483286001003 |
Pressostat | Na dotaz | Zadat poptávku | |
| B018,E028 WHR20031 |
C00524371
483286001397 |
Spring | Na dotaz | Zadat poptávku | |
| B019 WHR20031 |
C00520045
482000098513 |
Cover internal air gap | Na dotaz | Zadat poptávku | |
| B020 WHR20031 |
C00536024
482000100627 |
Plate protect. Tank | Na dotaz | Zadat poptávku | |
| B021 WHR20031 |
C00522787
482000099302 |
Valve half close no return | Na dotaz | Zadat poptávku | |
| B022,C008 WHR20031 |
C00417122
482000020358 |
Ring packing 2013 | Na dotaz | Zadat poptávku | |
| B023 WHR20031 |
C00413933
482000013899 |
Čerpadlo | 4 771 Kč
€ 209.70 |
||
| B024,B027 WHR20031 |
C00339444
483286008155 |
TRANSPARENT HOSE 4X7 | Na dotaz | Zadat poptávku | |
| B025 WHR20031 |
C00421486
483286003391 |
Filter, weight DET./BRILL. | Na dotaz | Zadat poptávku | |
| B026 WHR20031 |
C00413095
482000012769 |
Dispencer detergent PERIST. SEKO | Na dotaz | Zadat poptávku | |
| B028 WHR20031 |
C00524241
483286000997 |
Support | Na dotaz | Zadat poptávku | |
| B029 WHR20031 |
C00423529
483286011362 |
Lid | Na dotaz | Zadat poptávku | |
| B030 WHR20031 |
C00524005
483286000134 |
Nut | Na dotaz | Zadat poptávku | |
| B031 WHR20031 |
C00524006
483286000135 |
Gasket | Na dotaz | Zadat poptávku | |
| B032 WHR20031 |
C00413934
482000013900 |
Salt container with sensor | Na dotaz | Zadat poptávku | |
| B033 WHR20031 |
C00497210
483286000136 |
Water softener | 5 272 Kč
€ 231.70 |
||
| C001 WHR20031 |
C00520096
482000098537 |
OVER FLOW SPC | Na dotaz | Zadat poptávku | |
| C002 WHR20031 |
C00500555
483286008886 |
Pipe ,outlet upper | Na dotaz | Zadat poptávku | |
| C003 WHR20031 |
C00373912
483286008878 |
Čerpadlo | 7 916 Kč
€ 348.00 |
||
| C004 WHR20031 |
C00339368
483286000128 |
Hose draining d19 90° 2000 PS + CURVA | Na dotaz | Zadat poptávku | |
| C005 WHR20031 |
C00520046
482000098514 |
Pipe N45/N50/N90/E50/N650 | Na dotaz | Zadat poptávku | |
| C006 WHR20031 |
C00373911
483286008891 |
Nátrubek myčky | 1 038 Kč
€ 45.60 |
||
| C007 WHR20031 |
C00339181
483286008806 |
Hub ,washing/rinse | Na dotaz | Zadat poptávku | |
| C009 WHR20031 |
C00417121
482000020357 |
Ring packing 2013 | Na dotaz | Zadat poptávku | |
| C010 WHR20031 |
C00501118
483286008884 |
Stopper | Na dotaz | Zadat poptávku | |
| C011 WHR20031 |
C00517736
483286008887 |
Pin ,rinse | Na dotaz | Zadat poptávku | |
| C012 WHR20031 |
C00340175
483286008807 |
Guide | Na dotaz | Zadat poptávku | |
| C013 WHR20031 |
C00341423
483286008811 |
Pipe ,fitting | Na dotaz | Zadat poptávku | |
| C014 WHR20031 |
C00421388
483286003278 |
Inlet ,ELBOW | Na dotaz | Zadat poptávku | |
| C015 WHR20031 |
C00500402
483286008889 |
Spacer | Na dotaz | Zadat poptávku | |
| C016 WHR20031 |
C00500314
483286008956 |
Flange | Na dotaz | Zadat poptávku | |
| C017 WHR20031 |
C00520098
482000098539 |
Filter w cilinder H140 98MM | Na dotaz | Zadat poptávku | |
| C018 WHR20031 |
C00517733
483286008881 |
Pipe | Na dotaz | Zadat poptávku | |
| C019 WHR20031 |
C00413102
482000012777 |
Pipe N750_E50_E45 | Na dotaz | Zadat poptávku | |
| C020 WHR20031 |
C00417101
482000020337 |
Tube N45-N50-CAPOT | Na dotaz | Zadat poptávku | |
| C021 WHR20031 |
C00519642
482000097731 |
Čerpadlo vypouštěcí myčky nádobí | 3 483 Kč
€ 153.10 |
||
| D001 WHR20031 |
C00337987
483286008323 |
sroub | 1 176 Kč
€ 51.70 |
||
| D002 WHR20031 |
C00416947
482000020118 |
Spray arm | Na dotaz | Zadat poptávku | |
| D002 WHR20031 |
C00413894
482000013850 |
Spray arm | Na dotaz | Zadat poptávku | |
| D003 WHR20031 |
C00413104
482000012779 |
Pin | Na dotaz | Zadat poptávku | |
| D004 WHR20031 |
C00337267
483286008828 |
rameno horní | 6 132 Kč
€ 269.50 |
||
| D005 WHR20031 |
C00339184
483286008189 |
Hub | Na dotaz | Zadat poptávku | |
| E001 WHR20031 |
C00535975
482000100648 |
Plate with support | Na dotaz | Zadat poptávku | |
| E002 WHR20031 |
C00423483
483286011309 |
Coil,reed relay | Na dotaz | Zadat poptávku | |
| E003 WHR20031 |
C00416865
482000019910 |
Spacer | Na dotaz | Zadat poptávku | |
| E004 WHR20031 |
C00423488
483286011315 |
Terminal strip | Na dotaz | Zadat poptávku | |
| E005 WHR20031 |
C00384761
483286008913 |
Terminal Board | Na dotaz | Zadat poptávku | |
| E006 WHR20031 |
C00416949
482000020120 |
Vzduchová komora poloprofesionální myčky | 773 Kč
€ 34.00 |
||
| E007 WHR20031 |
C00340540
483286008162 |
Gasket | Na dotaz | Zadat poptávku | |
| E009 WHR20031 |
C00423499
483286011327 |
Presostat 35/17 | Na dotaz | Zadat poptávku | |
| E010 WHR20031 |
C00517721
483286001706 |
Cable holder | Na dotaz | Zadat poptávku | |
| E011 WHR20031 |
C00416867
482000019912 |
Screwed joint PG16 | Na dotaz | Zadat poptávku | |
| E012 WHR20031 |
C00423487
483286011314 |
Connect.cable | Na dotaz | Zadat poptávku | |
| E013 WHR20031 |
C00520099
482000098540 |
Connector ELCA CARDS 3 Pole | Na dotaz | Zadat poptávku | |
| E014 WHR20031 |
C00520100
482000098541 |
Connector ELCA CARDS 5 Pole | Na dotaz | Zadat poptávku | |
| E015 WHR20031 |
C00520101
482000098542 |
Connector ELCA CARDS 7 Pole | Na dotaz | Zadat poptávku | |
| E016 WHR20031 |
C00409081
482000005020 |
Switch | Na dotaz | Zadat poptávku | |
| E017 WHR20031 |
C00409083
482000005022 |
Support #25 | Na dotaz | Zadat poptávku | |
| E018 WHR20031 |
C00419329
482000090466 |
Button round d25 dark blue | Na dotaz | Zadat poptávku | |
| E019 WHR20031 |
C00342723
483286008836 |
stykač | 3 654 Kč
€ 160.60 |
||
| E020 WHR20031 |
C00520102
482000098543 |
Spacer CARD FRONT H = 11MM | Na dotaz | Zadat poptávku | |
| E021 WHR20031 |
C00423484
483286011311 |
Interf.filter | Na dotaz | Zadat poptávku | |
| E022 WHR20031 |
C00406906
482000000370 |
Nut | Na dotaz | Zadat poptávku | |
| E023 WHR20031 |
C00520103
482000098544 |
Card ELCA L 600MM FLAT | Na dotaz | Zadat poptávku | |
| E024 WHR20031 |
C00520104
482000098545 |
Insulator piece DIGIT2 ELCA BASIC | Na dotaz | Zadat poptávku | |
| E025 WHR20031 |
C00522774
482000099289 |
User board digit 2 / 7 relay | Na dotaz | Zadat poptávku | |
| E026 WHR20031 |
C00520106
482000098547 |
Card FRONT DIGIT2 ELCA | Na dotaz | Zadat poptávku | |
| E027 WHR20031 |
C00520108
482000098549 |
Plate license | Na dotaz | Zadat poptávku | |
| E029 WHR20031 |
C00519777
482000098443 |
Svorka inox | Na dotaz | Zadat poptávku | |
| 999 WHR20035 |
C00559781 | IFU WHP | Na dotaz | Zadat poptávku | |
