BAUKNECHT SMZK 4640/1 WS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SMZK 4640/1 WS |
| Kód 12NC/I.C. kód: | 857434422120 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící sporáky a trouby |
| Další podobné modely: | 857434420120 |
Potřebujete servis? Jsme tady pro Vás

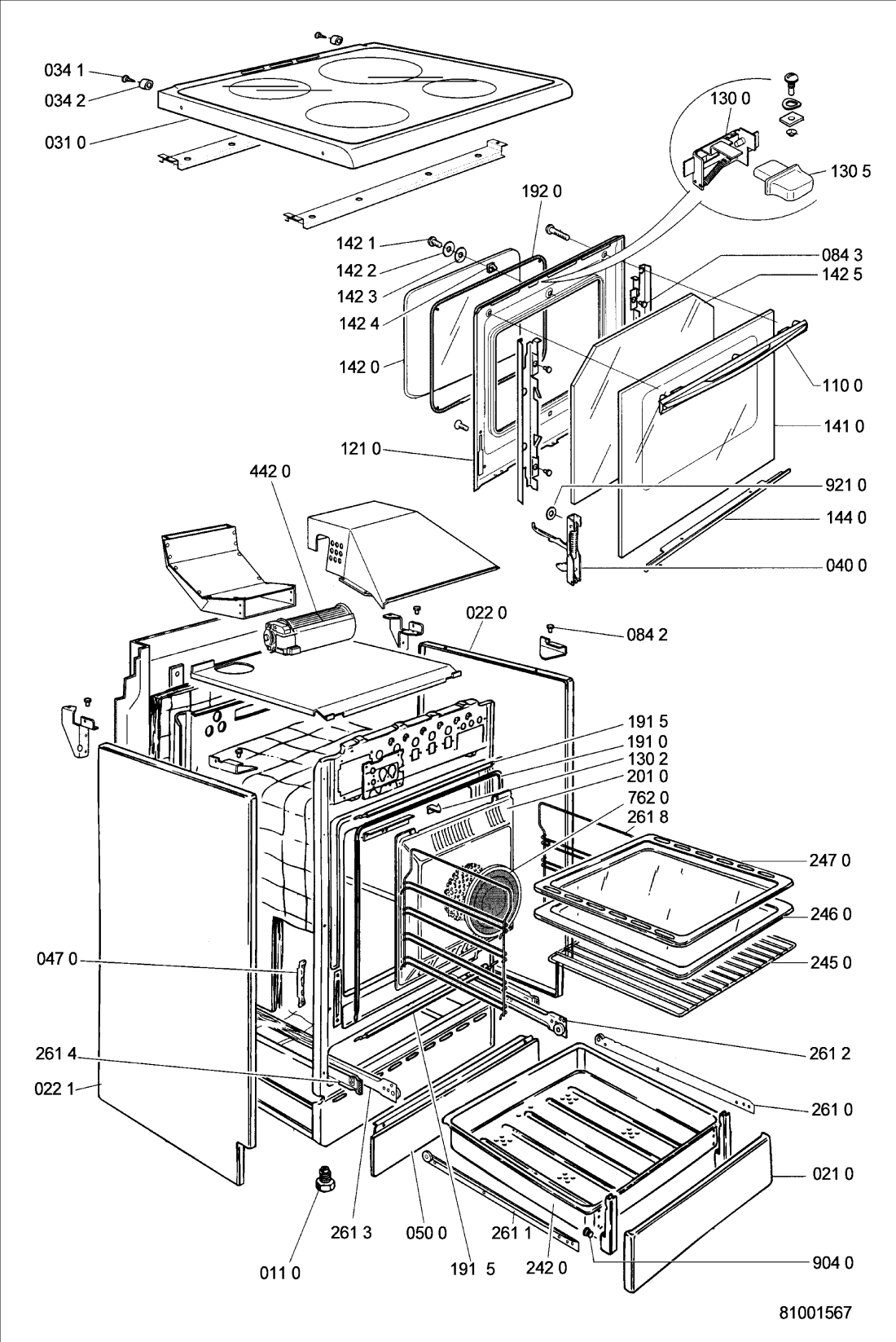

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR102953 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR102953 |
C00597189
481944059773 |
Panel front ,Drawer. | Na dotaz | Zadat poptávku | |
| 022 0 WHR102953 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR102953 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR102953 |
C00596940
481244038995 |
Hob. | Na dotaz | Zadat poptávku | |
| 034 1 WHR102953 |
C00582998
481950218479 |
Screw. | Na dotaz | Zadat poptávku | |
| 034 2 WHR102953 |
C00336218
481946689136 |
SPACER | Na dotaz | Zadat poptávku | |
| 040 0 WHR102953 |
C00500443
481241718822 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR102953 |
C00480937
481941719509 |
ZAVES | Na dotaz | Zadat poptávku | |
| 050 0 WHR102953 |
C00597197
481944238259 |
Plinth cover. | Na dotaz | Zadat poptávku | |
| 084 2 WHR102953 |
C00582512
481990704928 |
Rubber | Na dotaz | Zadat poptávku | |
| 084 3 WHR102953 |
C00129135
481946818364 |
DRAIN SUPPORT ML45-I | Na dotaz | Zadat poptávku | |
| 110 0 WHR102953 |
C00495852
481949858583 |
Handle door | Na dotaz | Zadat poptávku | |
| 121 0 WHR102953 |
C00597205
481944239464 |
Innerdoor,oven. | Na dotaz | Zadat poptávku | |
| 130 0 WHR102953 |
C00597283
481953538166 |
Child-prooflock oven door | Na dotaz | Zadat poptávku | |
| 130 2 WHR102953 |
C00490838
481953538165 |
Hook | Na dotaz | Zadat poptávku | |
| 130 5 WHR102953 |
C00488082
481941129668 |
Knob child security | Na dotaz | Zadat poptávku | |
| 141 0 WHR102953 |
C00755982
481945058211 |
Oven glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR102953 |
C00556072
481945058268 |
Inner glass.. | Na dotaz | Zadat poptávku | |
| 142 1 WHR102953 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR102953 |
C00494772
481953258274 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR102953 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR102953 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 142 5 WHR102953 |
C00556077
481945058424 |
Inner glass third glas.. | Na dotaz | Zadat poptávku | |
| 144 0 WHR102953 |
C00597237
481946078814 |
Trim door. | Na dotaz | Zadat poptávku | |
| 191 0 WHR102953 |
C00481208
481946669979 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 191 5 WHR102953 |
C00597259
481946818363 |
Gasket. | Na dotaz | Zadat poptávku | |
| 192 0 WHR102953 |
C00556210
481946669981 |
Gasket door.. | Na dotaz | Zadat poptávku | |
| 201 0 WHR102953 |
C00492373
481944059783 |
Panel rear | Na dotaz | Zadat poptávku | |
| 242 0 WHR102953 |
C00597181
481941838343 |
Drawer. | Na dotaz | Zadat poptávku | |
| 245 0 WHR102953 |
C00496490
481990704917 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR102953 |
C00597182
481941838383 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR102953 |
C00490617
481941838344 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR102953 |
C00597242
481946238859 |
Rail right. | Na dotaz | Zadat poptávku | |
| 261 1 WHR102953 |
C00597244
481946238861 |
Rail left. | Na dotaz | Zadat poptávku | |
| 261 2 WHR102953 |
C00597157
481940479307 |
Support. | Na dotaz | Zadat poptávku | |
| 261 3 WHR102953 |
C00597241
481946238858 |
Rail. | Na dotaz | Zadat poptávku | |
| 261 4 WHR102953 |
C00597240
481946238857 |
Rail. | Na dotaz | Zadat poptávku | |
| 261 8 WHR102953 |
C00597233
481945858728 |
Inset grid. | Na dotaz | Zadat poptávku | |
| 320 0 WHR102953 |
C00755983
481945358764 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR102953 |
C00597172
481941258573 |
Knob regulation. | Na dotaz | Zadat poptávku | |
| 331 1 WHR102953 |
C00488108
481941129747 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 331 2 WHR102953 |
C00755957
481941359056 |
Knob elec.oven | Na dotaz | Zadat poptávku | |
| 351 0 WHR102953 |
C00481287
481913448485 |
Pilot lamp L= 750 mm | Na dotaz | Zadat poptávku | |
| 351 1 WHR102953 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR102953 |
C00341776
481938118201 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR102953 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 440 0 WHR102953 |
C00373292
481963118346 |
Motor fan complete | Na dotaz | Zadat poptávku | |
| 442 0 WHR102953 |
C00481301
481936118469 |
Ventilator tangential | Na dotaz | Zadat poptávku | |
| 451 0 WHR102953 |
C00375163
481925928759 |
Heating element forced air | Na dotaz | Zadat poptávku | |
| 454 0 WHR102953 |
C00597110
481925928891 |
Heating element + grill upper. | Na dotaz | Zadat poptávku | |
| 456 0 WHR102953 |
C00481291
481925928812 |
OHRIEVACIE TELESO | Na dotaz | Zadat poptávku | |
| 462 0 WHR102953 |
C00597114
481925998524 |
Cooking plate 145mm radiant 1200W. | Na dotaz | Zadat poptávku | |
| 462 1 WHR102953 |
C00555750
481925998404 |
NAHRADENE 481225998319 N | Na dotaz | Zadat poptávku | |
| 462 2 WHR102953 |
C00531273
481925998453 |
Cooking plate 210mm 21 210mm 2100 W | Na dotaz | Zadat poptávku | |
| 466 0 WHR102953 |
C00500283
481913448458 |
Pilot lamp residual heat | Na dotaz | Zadat poptávku | |
| 491 0 WHR102953 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR102953 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR102953 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 554 0 WHR102953 |
C00494281
481927129094 |
Thermostat 5519063803 | Na dotaz | Zadat poptávku | |
| 554 1 WHR102953 |
C00597151
481940118892 |
Clip front thermostat bulb. | Na dotaz | Zadat poptávku | |
| 554 2 WHR102953 |
C00582291
481940118719 |
Clamp thermostat bulb. | Na dotaz | Zadat poptávku | |
| 562 0 WHR102953 |
C00597123
481928228635 |
Thermostat safety(cut-off) | Na dotaz | Zadat poptávku | |
| 620 0 WHR102953 |
C00495790
481927328438 |
Selector,switch oven | Na dotaz | Zadat poptávku | |
| 622 0 WHR102953 |
C00481295
481927328385 |
REGULATOR | Na dotaz | Zadat poptávku | |
| 651 0 WHR102953 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR102953 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 762 0 WHR102953 |
C00597099
481912118212 |
filtr tukovy | Na dotaz | Zadat poptávku | |
| 904 0 WHR102953 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 921 0 WHR102953 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
