BAUKNECHT SN 5510 WS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SN 5510 WS |
| Kód 12NC: | 857433222220 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

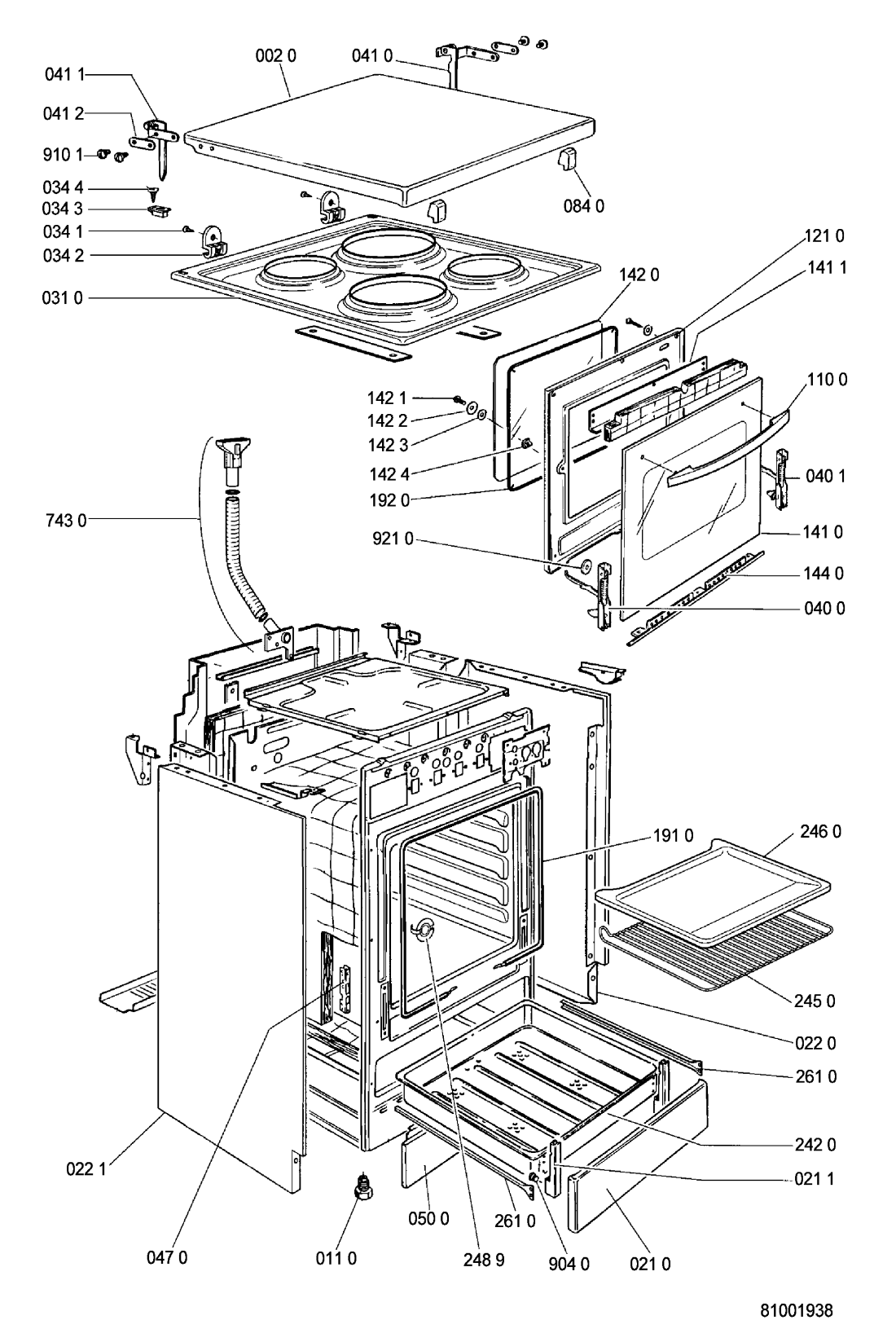

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR103060 |
C00597191
481944059818 |
Lid. | Na dotaz | Zadat poptávku | |
| 011 0 WHR103060 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR103060 |
C00499250
481945349622 |
Front panel | Na dotaz | Zadat poptávku | |
| 021 1 WHR103060 |
C00596665
481940254004 |
Bracket ,drawer. | Na dotaz | Zadat poptávku | |
| 022 0 WHR103060 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR103060 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR103060 |
C00755928
481244039008 |
Hob | Na dotaz | Zadat poptávku | |
| 034 1 WHR103060 |
C00336754
481950218473 |
Screw | Na dotaz | Zadat poptávku | |
| 034 2 WHR103060 |
C00492104
481253258017 |
Spacer rear | Na dotaz | Zadat poptávku | |
| 034 3 WHR103060 |
C00622691
481946238717 |
GUIDE | Na dotaz | Zadat poptávku | |
| 034 4 WHR103060 |
C00336753
481950219456 |
SCREW | Na dotaz | Zadat poptávku | |
| 040 0 WHR103060 |
C00499101
481941719353 |
HINGE | Na dotaz | Zadat poptávku | |
| 040 1 WHR103060 |
C00499102
481941719354 |
HINGE | Na dotaz | Zadat poptávku | |
| 041 0 WHR103060 |
C00747278
481941719347 |
Hinge | Na dotaz | Zadat poptávku | |
| 041 1 WHR103060 |
C00490578
481941719348 |
Hinge | Na dotaz | Zadat poptávku | |
| 041 2 WHR103060 |
C00597257
481946818283 |
Plate hinge. | Na dotaz | Zadat poptávku | |
| 047 0 WHR103060 |
C00339880
481941719352 |
HINGE | Na dotaz | Zadat poptávku | |
| 050 0 WHR103060 |
C00490674
481944059816 |
Plinth | Na dotaz | Zadat poptávku | |
| 084 0 WHR103060 |
C00597248
481946248405 |
Buffer. | Na dotaz | Zadat poptávku | |
| 110 0 WHR103060 |
C00499505
481949858532 |
RUKOVAT DVERI | Na dotaz | Zadat poptávku | |
| 121 0 WHR103060 |
C00499180
481944239132 |
INNERDOOR,OVEN | Na dotaz | Zadat poptávku | |
| 141 0 WHR103060 |
C00596558
481245058522 |
Oven door. | Na dotaz | Zadat poptávku | |
| 141 1 WHR103060 |
C00610514
481946089559 |
TRIM,DOOR. | Na dotaz | Zadat poptávku | |
| 142 0 WHR103060 |
C00485253
481245058523 |
INNER GLASS | Na dotaz | Zadat poptávku | |
| 142 1 WHR103060 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR103060 |
C00337256
481953258272 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR103060 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR103060 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 144 0 WHR103060 |
C00337465
481946078082 |
TRIM,DOOR | Na dotaz | Zadat poptávku | |
| 191 0 WHR103060 |
C00340467
481946669984 |
Gasket door | Na dotaz | Zadat poptávku | |
| 192 0 WHR103060 |
C00486147
481246668685 |
Gasket Oven | Na dotaz | Zadat poptávku | |
| 242 0 WHR103060 |
C00499128
481941879661 |
DRAWER | Na dotaz | Zadat poptávku | |
| 245 0 WHR103060 |
C00499261
481945819325 |
ROST | Na dotaz | Zadat poptávku | |
| 246 0 WHR103060 |
C00490616
481941838342 |
Baking tray | Na dotaz | Zadat poptávku | |
| 248 9 WHR103060 |
C00582221
481246279785 |
Plug rotisserie hole plug. | Na dotaz | Zadat poptávku | |
| 261 0 WHR103060 |
C00336960
481946238718 |
RAIL | Na dotaz | Zadat poptávku | |
| 320 0 WHR103060 |
C00755930
481245310023 |
Control panel | Na dotaz | Zadat poptávku | |
| 334 0 WHR103060 |
C00500517
481241128715 |
Knob eletric plate | Na dotaz | Zadat poptávku | |
| 334 1 WHR103060 |
C00487744
481246279794 |
Knob oven switch | Na dotaz | Zadat poptávku | |
| 334 2 WHR103060 |
C00527656
481241128713 |
Knob oven thermostat (WH) | Na dotaz | Zadat poptávku | |
| 351 0 WHR103060 |
C00481287
481913448485 |
Pilot lamp L= 750 mm | Na dotaz | Zadat poptávku | |
| 351 1 WHR103060 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR103060 |
C00488698
481238118271 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR103060 |
C00610502
481246279786 |
Lens orange. | Na dotaz | Zadat poptávku | |
| 452 0 WHR103060 |
C00755925
481925928756 |
Heating element | Na dotaz | Zadat poptávku | |
| 454 1 WHR103060 |
C00335920
481940478722 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 454 2 WHR103060 |
C00597253
481946689389 |
CLAMPING PIECE. | Na dotaz | Zadat poptávku | |
| 456 0 WHR103060 |
C00319652
481925928757 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 461 0 WHR103060 |
C00598824
481925998559 |
Cooking plate d.145 1000 W. | Na dotaz | Zadat poptávku | |
| 461 1 WHR103060 |
C00499869
481925998646 |
Cooking plate d=180 1 d=180 1500 W | Na dotaz | Zadat poptávku | |
| 461 6 WHR103060 |
C00555753
481925998563 |
Cooking plate d=180 2.. | Na dotaz | Zadat poptávku | |
| 491 0 WHR103060 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR103060 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR103060 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 554 0 WHR103060 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 96.10 |
||
| 554 1 WHR103060 |
C00343269
481949248166 |
Clip Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR103060 |
C00597117
481927129102 |
Thermostat cut-off. | Na dotaz | Zadat poptávku | |
| 620 0 WHR103060 |
C00755927
481927328379 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 622 0 WHR103060 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR103060 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR103060 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 743 0 WHR103060 |
C00556328
481953048845 |
Conveyor.. | Na dotaz | Zadat poptávku | |
| 904 0 WHR103060 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 910 1 WHR103060 |
C00599476
481950218472 |
Screw | Na dotaz | Zadat poptávku | |
| 921 0 WHR103060 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
