BAUKNECHT SNI 4510 WS COOKERS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SNI 4510 WS COOKERS BK |
| Kód 12NC: | 857433316020 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

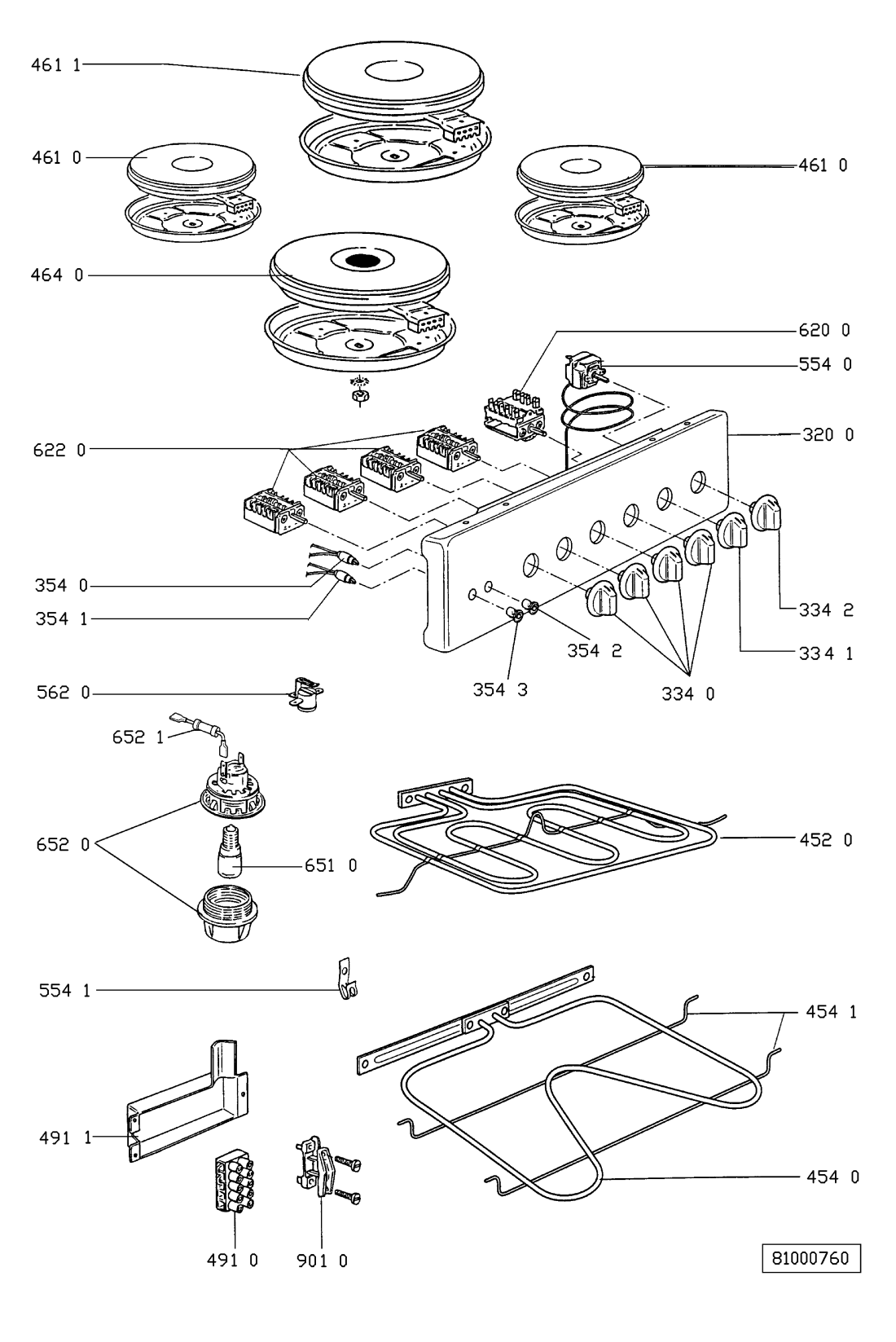

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 1 WHR87336 |
C00336753
481950219456 |
SCREW | Na dotaz | Zadat poptávku | |
| 002 2 WHR87336 |
C00336257
481946699118 |
SLIDE BEARING | Na dotaz | Zadat poptávku | |
| 011 0 WHR87336 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 022 0 WHR87336 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR87336 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR87336 |
C00499159
481944059814 |
HOB | Na dotaz | Zadat poptávku | |
| 031 1 WHR87336 |
C00336754
481950218473 |
Screw | Na dotaz | Zadat poptávku | |
| 031 2 WHR87336 |
C00499628
481953598492 |
PIN | Na dotaz | Zadat poptávku | |
| 031 3 WHR87336 |
C00336218
481946689136 |
SPACER | Na dotaz | Zadat poptávku | |
| 041 0 WHR87336 |
C00499101
481941719353 |
HINGE | Na dotaz | Zadat poptávku | |
| 041 1 WHR87336 |
C00499102
481941719354 |
HINGE | Na dotaz | Zadat poptávku | |
| 045 0 WHR87336 |
C00339880
481941719352 |
HINGE | Na dotaz | Zadat poptávku | |
| 051 0 WHR87336 |
C00490674
481944059816 |
Plinth | Na dotaz | Zadat poptávku | |
| 053 0 WHR87336 |
C00499250
481945349622 |
Front panel | Na dotaz | Zadat poptávku | |
| 111 0 WHR87336 |
C00499892
481949858481 |
Handle door | Na dotaz | Zadat poptávku | |
| 121 0 WHR87336 |
C00596696
481944059817 |
Door,inner. | Na dotaz | Zadat poptávku | |
| 121 1 WHR87336 |
C00596775
481946669986 |
Gasket border. | Na dotaz | Zadat poptávku | |
| 121 2 WHR87336 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
| 121 3 WHR87336 |
C00336756
481950218474 |
SCREW | Na dotaz | Zadat poptávku | |
| 141 0 WHR87336 |
C00596720
481945058137 |
Door glass cristal oven. | Na dotaz | Zadat poptávku | |
| 141 1 WHR87336 |
C00596774
481946669982 |
Gasket. | Na dotaz | Zadat poptávku | |
| 142 0 WHR87336 |
C00338930
481945069701 |
INNER GLASS | Na dotaz | Zadat poptávku | |
| 142 1 WHR87336 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR87336 |
C00337256
481953258272 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR87336 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR87336 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 144 0 WHR87336 |
C00337465
481946078082 |
TRIM,DOOR | Na dotaz | Zadat poptávku | |
| 191 0 WHR87336 |
C00340467
481946669984 |
Gasket door | Na dotaz | Zadat poptávku | |
| 192 0 WHR87336 |
C00556211
481946669985 |
SEAL,GLASS INNER DOOR.. | Na dotaz | Zadat poptávku | |
| 243 0 WHR87336 |
C00499128
481941879661 |
DRAWER | Na dotaz | Zadat poptávku | |
| 243 1 WHR87336 |
C00336960
481946238718 |
RAIL | Na dotaz | Zadat poptávku | |
| 243 2 WHR87336 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 244 0 WHR87336 |
C00499261
481945819325 |
ROST | Na dotaz | Zadat poptávku | |
| 246 0 WHR87336 |
C00490616
481941838342 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR87336 |
C00596692
481941838341 |
FAT PAN. | Na dotaz | Zadat poptávku | |
| 248 9 WHR87336 |
C00499373
481946248436 |
CAP | Na dotaz | Zadat poptávku | |
| 256 0 WHR87336 |
C00596776
481946689146 |
Knob protection. | Na dotaz | Zadat poptávku | |
| 256 1 WHR87336 |
C00596777
481946698939 |
Spacer. | Na dotaz | Zadat poptávku | |
| 320 0 WHR87336 |
C00596737
481945358618 |
Control panel. | Na dotaz | Zadat poptávku | |
| 334 0 WHR87336 |
C00596686
481941258574 |
Knob switch. | Na dotaz | Zadat poptávku | |
| 334 1 WHR87336 |
C00596689
481941258587 |
Knob switch oven. | Na dotaz | Zadat poptávku | |
| 334 2 WHR87336 |
C00596687
481941258585 |
Knob Thermostat. | Na dotaz | Zadat poptávku | |
| 354 0 WHR87336 |
C00621525
481913448483 |
Pilot lamp 600 mm | Na dotaz | Zadat poptávku | |
| 354 1 WHR87336 |
C00621526
481913448484 |
Pilot lamp 230 mm | Na dotaz | Zadat poptávku | |
| 354 2 WHR87336 |
C00556193
481946279853 |
Lens ,red.. | Na dotaz | Zadat poptávku | |
| 354 3 WHR87336 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 452 0 WHR87336 |
C00481292
481925928819 |
Heating element top + grill 400 V | Na dotaz | Zadat poptávku | |
| 454 0 WHR87336 |
C00497084
481925928821 |
Heating element lower 400 V | Na dotaz | Zadat poptávku | |
| 454 1 WHR87336 |
C00335920
481940478722 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 461 0 WHR87336 |
C00500381
481925998434 |
Cooking plate d 145 1000 W | Na dotaz | Zadat poptávku | |
| 461 1 WHR87336 |
C00596636
481925998435 |
Cooking plate d 180 1500 W. | Na dotaz | Zadat poptávku | |
| 464 0 WHR87336 |
C00531272
481925998436 |
Cooking plate d 180 ra d 180 rapid 2000 | Na dotaz | Zadat poptávku | |
| 491 0 WHR87336 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR87336 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 554 0 WHR87336 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 96.10 |
||
| 554 1 WHR87336 |
C00582291
481940118719 |
Clamp thermostat bulb. | Na dotaz | Zadat poptávku | |
| 562 0 WHR87336 |
C00335671
481928248262 |
Switch,thermal cut-off-thermostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR87336 |
C00335698
481927618266 |
spínač | 680 Kč
€ 29.90 |
||
| 622 0 WHR87336 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR87336 |
C00341822
481913488106 |
Lamp E14-240V 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR87336 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 652 1 WHR87336 |
C00621980
481911248029 |
Resistor oven lamp | Na dotaz | Zadat poptávku | |
| 901 0 WHR87336 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
