WHIRLPOOL SPIW 422LL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPIW 422LL |
| Kód 12NC/I.C. kód: | 853007943000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

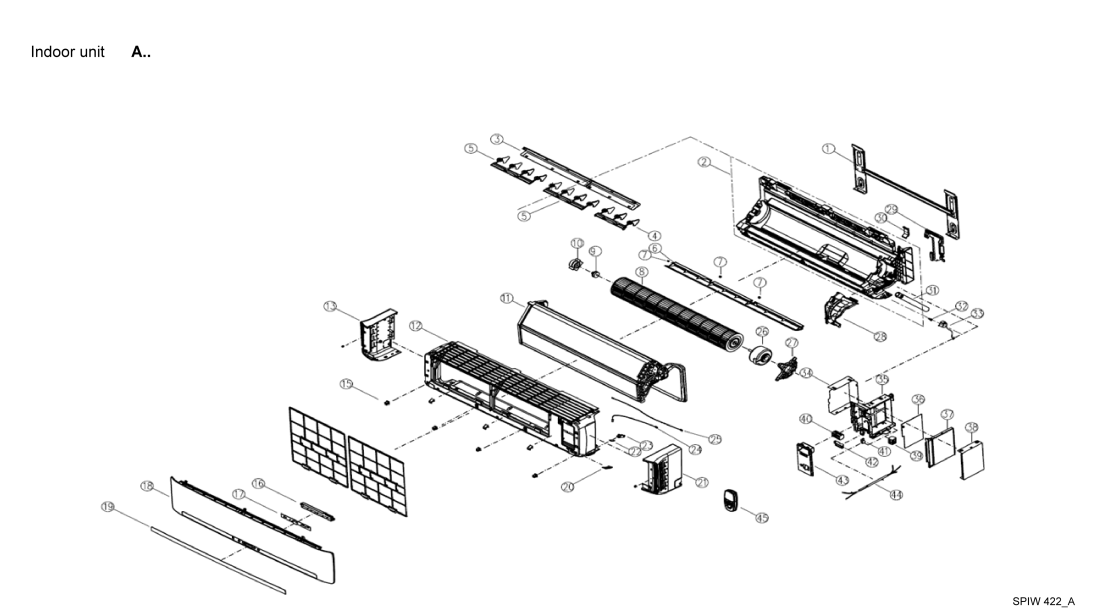

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22098 |
C00541559 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22098 |
C00541560 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22098 |
C00561947 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| A01 WHR22098 |
C00386051
482000006139 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A02 WHR22098 |
C00386156
482000021494 |
Rear panel | Na dotaz | Zadat poptávku | |
| A03 WHR22098 |
C00386157
482000021496 |
Air guide | Na dotaz | Zadat poptávku | |
| A04 WHR22098 |
C00386054
482000021410 |
Air guide | Na dotaz | Zadat poptávku | |
| A05 WHR22098 |
C00386357
482000021497 |
Air guide | Na dotaz | Zadat poptávku | |
| A06 WHR22098 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A07 WHR22098 |
C00386159
482000021498 |
Fan | Na dotaz | Zadat poptávku | |
| A08 WHR22098 |
C00386059
480150100234 |
Ložisko | Na dotaz | Zadat poptávku | |
| A09 WHR22098 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| A10 WHR22098 |
C00386160
482000092470 |
Refrigeration system | Na dotaz | Zadat poptávku | |
| A11 WHR22098 |
C00386358
482000021500 |
Cover front | Na dotaz | Zadat poptávku | |
| A12 WHR22098 |
C00386280
482000021392 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A13 WHR22098 |
C00386336
482000092177 |
Display board | Na dotaz | Zadat poptávku | |
| A14 WHR22098 |
C00417646
482000021501 |
Front panel | Na dotaz | Zadat poptávku | |
| A15 WHR22098 |
C00503854
482000094007 |
Display DIAPHRAGM | Na dotaz | Zadat poptávku | |
| A16 WHR22098 |
C00386282
482000021415 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A17 WHR22098 |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
| A18 WHR22098 |
C00378139
482000000400 |
Sensor temper. coil | Na dotaz | Zadat poptávku | |
| A19 WHR22098 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| A20 WHR22098 |
C00386452
482000091841 |
FAN MOTOR | Na dotaz | Zadat poptávku | |
| A21 WHR22098 |
C00386031
482000021401 |
Cover | Na dotaz | Zadat poptávku | |
| A22 WHR22098 |
C00386164
482000021505 |
Protect motor | Na dotaz | Zadat poptávku | |
| A23 WHR22098 |
C00386050
482000021404 |
Deflector | Na dotaz | Zadat poptávku | |
| A24 WHR22098 |
C00386056
482000021411 |
Deflector | Na dotaz | Zadat poptávku | |
| A25 WHR22098 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A26 WHR22098 |
C00386049
482000021506 |
Steppin motor | Na dotaz | Zadat poptávku | |
| A27 WHR22098 |
C00386002
482000021395 |
Elect.parts box plate | Na dotaz | Zadat poptávku | |
| A28 WHR22098 |
C00386010
482000021396 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| A29 WHR22098 |
C00503831
482000094008 |
Control board INDOOR | Na dotaz | Zadat poptávku | |
| A30 WHR22098 |
C00386027
482000021398 |
Elect.parts box cover | Na dotaz | Zadat poptávku | |
| A31 WHR22098 |
C00386028
482000021399 |
Elect.parts box cover | Na dotaz | Zadat poptávku | |
| A32 WHR22098 |
C00386169
480150100146 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A33 WHR22098 |
C00503832
482000094009 |
Wire TERMINAL BOARD | Na dotaz | Zadat poptávku | |
| A34 WHR22098 |
C00386001
482000021394 |
Clamp | Na dotaz | Zadat poptávku | |
| A35 WHR22098 |
C00385999
482000021393 |
Cover | Na dotaz | Zadat poptávku | |
| A36 WHR22098 |
C00386174
482000010402 |
Cable mains | Na dotaz | Zadat poptávku | |
| A37 WHR22098 |
C00496502
482000017856 |
Remote control | Na dotaz | Zadat poptávku | |
| B01 WHR22098 |
C00386086
482000006149 |
Front panel | Na dotaz | Zadat poptávku | |
| B02 WHR22098 |
C00409765
482000006151 |
Fan Out door | Na dotaz | Zadat poptávku | |
| B03 WHR22098 |
C00503833
482000094010 |
Motor fan | Na dotaz | Zadat poptávku | |
| B04 WHR22098 |
C00386434
482000021283 |
Bracket motor | Na dotaz | Zadat poptávku | |
| B05 WHR22098 |
C00386102
482000021422 |
Condenser | Na dotaz | Zadat poptávku | |
| B06 WHR22098 |
C00386098
482000006157 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B07 WHR22098 |
C00386110
482000010407 |
Air grid | Na dotaz | Zadat poptávku | |
| B08 WHR22098 |
C00503834
482000094011 |
Part upper | Na dotaz | Zadat poptávku | |
| B09 WHR22098 |
C00503835
482000094012 |
Control board | Na dotaz | Zadat poptávku | |
| B10 WHR22098 |
C00386118
482000010409 |
Wire box | Na dotaz | Zadat poptávku | |
| B11 WHR22098 |
C00503836
482000094013 |
Filter BOARD | Na dotaz | Zadat poptávku | |
| B12 WHR22098 |
C00415532
482000017898 |
Fuse | Na dotaz | Zadat poptávku | |
| B13 WHR22098 |
C00386171
482000010332 |
Wire terminal board | Na dotaz | Zadat poptávku | |
| B14 WHR22098 |
C00385985
480150100377 |
Sensor temper. Outdoor ambient | Na dotaz | Zadat poptávku | |
| B15 WHR22098 |
C00378140
482000000401 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B16 WHR22098 |
C00377023
480150100848 |
Sensor temper. Outdoor ambient | Na dotaz | Zadat poptávku | |
| B17 WHR22098 |
C00386124
480150100843 |
Valve 4-WAY | Na dotaz | Zadat poptávku | |
| B18 WHR22098 |
C00386125
481236058434 |
Valve 4 Way | Na dotaz | Zadat poptávku | |
| B19 WHR22098 |
C00503837
482000094014 |
Valve 4-way assy | Na dotaz | Zadat poptávku | |
| B20 WHR22098 |
C00503838
482000094015 |
Cover cable | Na dotaz | Zadat poptávku | |
| B21 WHR22098 |
C00386133
482000006169 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B22 WHR22098 |
C00412026
482000010413 |
Side panel | Na dotaz | Zadat poptávku | |
| B23 WHR22098 |
C00386202
482000006161 |
Valve 3 Way | Na dotaz | Zadat poptávku | |
| B24 WHR22098 |
C00409772
482000006164 |
Valve 2 way | Na dotaz | Zadat poptávku | |
| B25 WHR22098 |
C00503855
482000094016 |
Cover | Na dotaz | Zadat poptávku | |
| B26 WHR22098 |
C00503825
482000094017 |
Wire | Na dotaz | Zadat poptávku | |
| B27 WHR22098 |
C00412028
482000010416 |
Overload prot. | Na dotaz | Zadat poptávku | |
| B28 WHR22098 |
C00503826
482000094018 |
Compressor | Na dotaz | Zadat poptávku | |
| B29 WHR22098 |
C00503827
482000094019 |
Base | Na dotaz | Zadat poptávku | |
| B30 WHR22098 |
C00386136
482000010419 |
PFC reactor | Na dotaz | Zadat poptávku | |
| B31 WHR22098 |
C00386135
482000010420 |
Cover | Na dotaz | Zadat poptávku | |
| B32 WHR22098 |
C00503828
482000094020 |
Partition | Na dotaz | Zadat poptávku | |
