| Komerční kód: | SPIW309A2BK |
| Kód 12NC: | 853120202010 |
| Značka: | BAUKNECHT |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

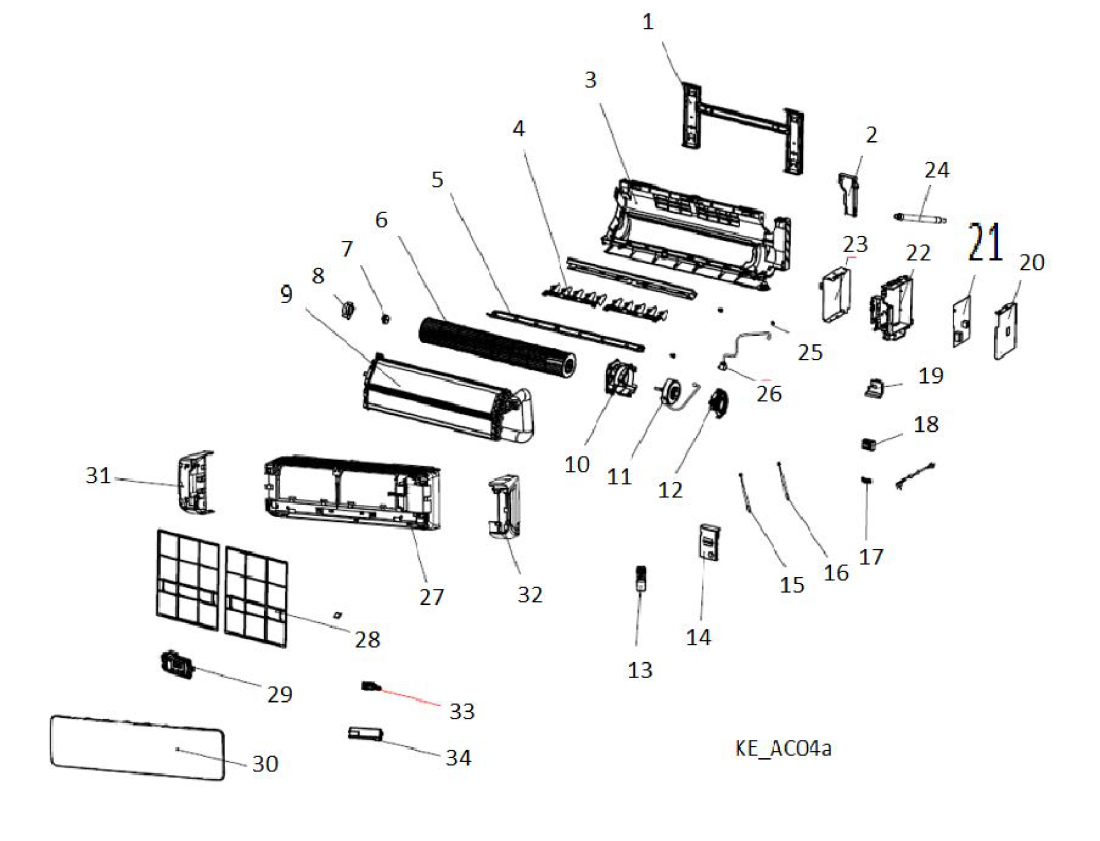

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A001 WHR22231 |
C00536088
482000010365 |
installation plate assy | Na dotaz | Zadat poptávku | |
| A002 WHR22231 |
C00513507
482000010355 |
Cap for hole | Na dotaz | Zadat poptávku | |
| A003 WHR22231 |
C00385800
482000021162 |
Rear panel | Na dotaz | Zadat poptávku | |
| A004 WHR22231 |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| A005 WHR22231 |
C00386332
482000021163 |
Air guide | Na dotaz | Zadat poptávku | |
| A006 WHR22231 |
C00385810
482000010356 |
Ventilátor klim.vnitřní jednotka | 2 031 Kč
€ 89.30 |
||
| A007 WHR22231 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| A008 WHR22231 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| A009 WHR22231 |
C00385813
482000017859 |
Evaporator | Na dotaz | Zadat poptávku | |
| A010 WHR22231 |
C00385815
482000010311 |
Protect motor | Na dotaz | Zadat poptávku | |
| A011 WHR22231 |
C00378271
482000010312 |
Motor fan | Na dotaz | Zadat poptávku | |
| A012 WHR22231 |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| A013 WHR22231 |
C00521553
482000098840 |
Remote control | Na dotaz | Zadat poptávku | |
| A014 WHR22231 |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A015 WHR22231 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| A016 WHR22231 |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
| A017 WHR22231 |
C00385825
482000092111 |
Clamp | Na dotaz | Zadat poptávku | |
| A018 WHR22231 |
C00385835
482000018034 |
Connection cl. | Na dotaz | Zadat poptávku | |
| A019 WHR22231 |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A020 WHR22231 |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| A021 WHR22231 |
C00520291
482000098634 |
Control board indoor main | Na dotaz | Zadat poptávku | |
| A022 WHR22231 |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| A023 WHR22231 |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| A024 WHR22231 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A025 WHR22231 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A026 WHR22231 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| A027 WHR22231 |
C00520284
482000098627 |
P.U.shell | Na dotaz | Zadat poptávku | |
| A028 WHR22231 |
C00520287
482000098630 |
Filter net | Na dotaz | Zadat poptávku | |
| A029 WHR22231 |
C00506410
482000095042 |
Display | Na dotaz | Zadat poptávku | |
| A030 WHR22231 |
C00521556
482000098843 |
Panel | Na dotaz | Zadat poptávku | |
| A031 WHR22231 |
C00520285
482000098628 |
P.U.shell | Na dotaz | Zadat poptávku | |
| A032 WHR22231 |
C00520286
482000098629 |
P.U.shell | Na dotaz | Zadat poptávku | |
| A033 WHR22231 |
C00506412
482000095044 |
Electronic box | Na dotaz | Zadat poptávku | |
| A034 WHR22231 |
C00506467
482000095064 |
Plate Communication conver | Na dotaz | Zadat poptávku | |
| B001 WHR22231 |
C00521428
488000521428 |
panel parts | Na dotaz | Zadat poptávku | |
| B002 WHR22231 |
C00378154
482000000515 |
Propeller fan blade | Na dotaz | Zadat poptávku | |
| B003 WHR22231 |
C00385866
482000017843 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
| B004 WHR22231 |
C00520294
482000098637 |
Support motor | Na dotaz | Zadat poptávku | |
| B005 WHR22231 |
C00520295
482000098638 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B006 WHR22231 |
C00520296
482000098639 |
User board upper | Na dotaz | Zadat poptávku | |
| B007 WHR22231 |
C00520297
482000098640 |
Guard back | Na dotaz | Zadat poptávku | |
| B008 WHR22231 |
C00520298
482000098641 |
Condenser assembly | Na dotaz | Zadat poptávku | |
| B009 WHR22231 |
C00520299
482000098642 |
Holder base part | Na dotaz | Zadat poptávku | |
| B010 WHR22231 |
C00520300
482000098643 |
Panel clap | Na dotaz | Zadat poptávku | |
| B011 WHR22231 |
C00385880
482000000386 |
Transformer | Na dotaz | Zadat poptávku | |
| B012 WHR22231 |
C00520301
482000098644 |
Valve 4-way assembly | Na dotaz | Zadat poptávku | |
| B013 WHR22231 |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| B014 WHR22231 |
C00386291
482000021198 |
Coil | Na dotaz | Zadat poptávku | |
| B015 WHR22231 |
C00520302
482000098645 |
Compressor | Na dotaz | Zadat poptávku | |
| B016 WHR22231 |
C00386293
482000021200 |
Cable harness | Na dotaz | Zadat poptávku | |
| B017 WHR22231 |
C00520303
482000098646 |
Valve seat | Na dotaz | Zadat poptávku | |
| B018 WHR22231 |
C00520304
482000098647 |
Capillary tube assy | Na dotaz | Zadat poptávku | |
| B019 WHR22231 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| B020 WHR22231 |
C00385957
482000010346 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| B021 WHR22231 |
C00520305
482000098648 |
User board right side | Na dotaz | Zadat poptávku | |
| B022 WHR22231 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B023 WHR22231 |
C00520233
482000098617 |
Box electric | Na dotaz | Zadat poptávku | |
| B024 WHR22231 |
C00520306
482000098649 |
User board connecting | Na dotaz | Zadat poptávku | |
| B025 WHR22231 |
C00385982
482000021177 |
Terminal board | Na dotaz | Zadat poptávku | |
| B026 WHR22231 |
C00520307
482000098650 |
Control board outdoor main | Na dotaz | Zadat poptávku | |
| B028 WHR22231 |
C00506473
482000095086 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B029 WHR22231 |
C00506474
482000095087 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B030 WHR22231 |
C00386310
482000021210 |
Temperature sensor | Na dotaz | Zadat poptávku | |
