| Komerční kód: | SPIW 309L |
| Kód 12NC/I.C. kód: | 853120201100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

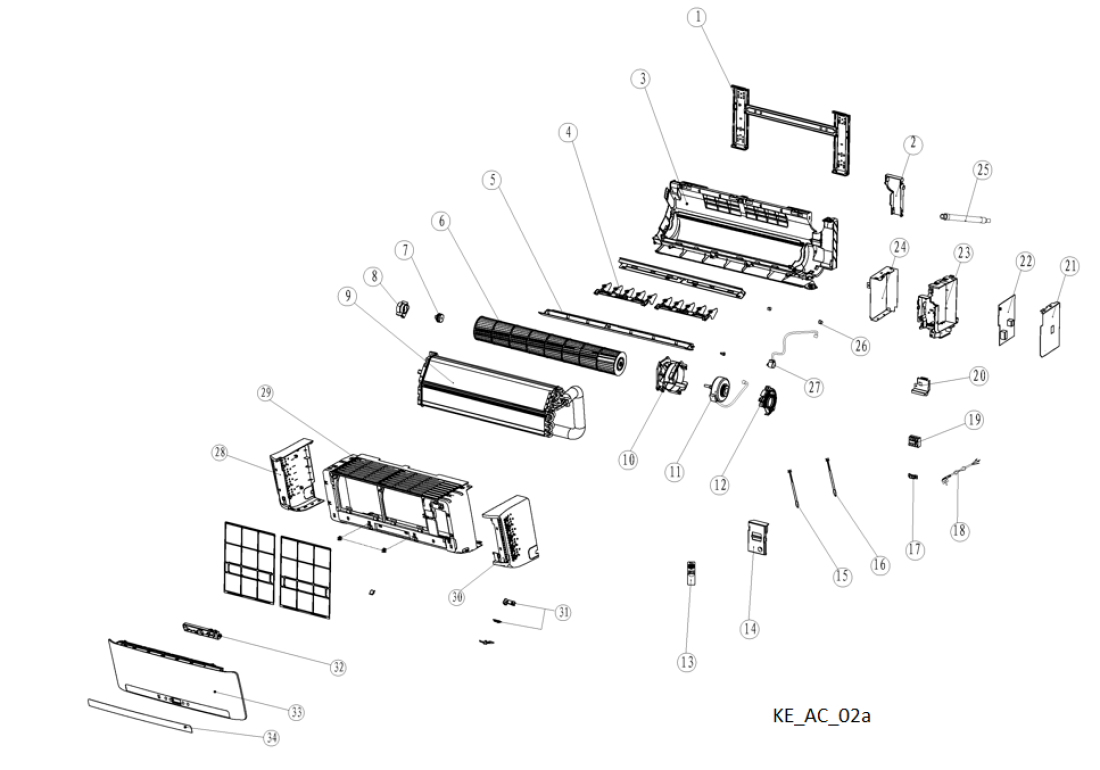

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR11525 |
C00386262
482000021361 |
Carbon filter (white grid) | Na dotaz | Zadat poptávku | |
| 999 WHR11525 |
C00412065
482000010469 |
Carbon filterr (black net) | Na dotaz | Zadat poptávku | |
| 999 WHR11525 |
C00541918 | IFU WHP | Na dotaz | Zadat poptávku | |
| 999 WHR11525 |
C00541919 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| A001 WHR11525 |
C00386236
482000010322 |
Mounting plate | Na dotaz | Zadat poptávku | |
| A002 WHR11525 |
C00513507
482000010355 |
Cap for hole | Na dotaz | Zadat poptávku | |
| A003 WHR11525 |
C00386303
482000021180 |
Rear panel | Na dotaz | Zadat poptávku | |
| A004 WHR11525 |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| A005 WHR11525 |
C00386251
482000021181 |
Air guide | Na dotaz | Zadat poptávku | |
| A006 WHR11525 |
C00378268
482000010298 |
Turbine blades | Na dotaz | Zadat poptávku | |
| A007 WHR11525 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| A008 WHR11525 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| A009 WHR11525 |
C00386234
482000021182 |
Výparník | 6 412 Kč
€ 263.70 |
||
| A010 WHR11525 |
C00506426
482000095058 |
Protect motor | Na dotaz | Zadat poptávku | |
| A011 WHR11525 |
C00520222
482000098606 |
Motor fan | Na dotaz | Zadat poptávku | |
| A012 WHR11525 |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| A013 WHR11525 |
C00520210
482000098594 |
Remote control | Na dotaz | Zadat poptávku | |
| A014 WHR11525 |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A015 WHR11525 |
C00378139
482000000400 |
Sensor temper. coil | Na dotaz | Zadat poptávku | |
| A016 WHR11525 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| A017 WHR11525 |
C00385825
482000092111 |
Clamp | Na dotaz | Zadat poptávku | |
| A019 WHR11525 |
C00385835
482000018034 |
Connection cl. | Na dotaz | Zadat poptávku | |
| A020 WHR11525 |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A021 WHR11525 |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| A022 WHR11525 |
C00520236
482000098620 |
Control board indoor main | Na dotaz | Zadat poptávku | |
| A023 WHR11525 |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| A024 WHR11525 |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| A025 WHR11525 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A026 WHR11525 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A027 WHR11525 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| A028 WHR11525 |
C00386264
482000021165 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A029 WHR11525 |
C00386263
482000021183 |
Cover front | Na dotaz | Zadat poptávku | |
| A030 WHR11525 |
C00386267
482000021166 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A031 WHR11525 |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
| A032 WHR11525 |
C00520224
482000098608 |
Display component | Na dotaz | Zadat poptávku | |
| A033 WHR11525 |
C00417419
482000021186 |
Front panel | Na dotaz | Zadat poptávku | |
| A034 WHR11525 |
C00520225
482000098609 |
Display film | Na dotaz | Zadat poptávku | |
| 999 WHR11526 |
C00619880
488000619880 |
valve cover | Na dotaz | Zadat poptávku | |
| 999 WHR11526 |
C00634049
488000634049 |
valve cover screw | Na dotaz | Zadat poptávku | |
| 999 WHR11526 |
C00634050
488000634050 |
right side panel access | Na dotaz | Zadat poptávku | |
| B001 WHR11526 |
C00520226
482000098610 |
Panel parts | Na dotaz | Zadat poptávku | |
| B002 WHR11526 |
C00386274
482000021191 |
Fan wheel | Na dotaz | Zadat poptávku | |
| B003 WHR11526 |
C00386276
482000021192 |
FAN MOTOR outdoor | Na dotaz | Zadat poptávku | |
| B004 WHR11526 |
C00520227
482000098611 |
Motor supporter | Na dotaz | Zadat poptávku | |
| B005 WHR11526 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| B006 WHR11526 |
C00386351
482000091714 |
UPPER BOARD | Na dotaz | Zadat poptávku | |
| B007 WHR11526 |
C00386312
482000021211 |
Air grid rear | Na dotaz | Zadat poptávku | |
| B008 WHR11526 |
C00386283
482000021194 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B009 WHR11526 |
C00386285
482000021195 |
BASE | Na dotaz | Zadat poptávku | |
| B010 WHR11526 |
C00386288
482000021196 |
Separator | Na dotaz | Zadat poptávku | |
| B011 WHR11526 |
C00385880
482000000386 |
Transformer | Na dotaz | Zadat poptávku | |
| B012 WHR11526 |
C00520237
482000098621 |
Valve 4-way assembly | Na dotaz | Zadat poptávku | |
| B013 WHR11526 |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| B014 WHR11526 |
C00386291
482000021198 |
Coil | Na dotaz | Zadat poptávku | |
| B015 WHR11526 |
C00520238
482000098622 |
Compressor | Na dotaz | Zadat poptávku | |
| B016 WHR11526 |
C00386293
482000021200 |
Cable harness | Na dotaz | Zadat poptávku | |
| B017 WHR11526 |
C00386295
482000021201 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B018 WHR11526 |
C00520239
482000098623 |
Capillary tube assy | Na dotaz | Zadat poptávku | |
| B019 WHR11526 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| B020 WHR11526 |
C00385957
482000010346 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| B021 WHR11526 |
C00386297
482000021203 |
Side panel | Na dotaz | Zadat poptávku | |
| B022 WHR11526 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B023 WHR11526 |
C00520233
482000098617 |
Box electric | Na dotaz | Zadat poptávku | |
| B024 WHR11526 |
C00385981
482000000382 |
Support plate | Na dotaz | Zadat poptávku | |
| B025 WHR11526 |
C00385982
482000021177 |
Terminal board | Na dotaz | Zadat poptávku | |
| B026 WHR11526 |
C00520240
482000098624 |
Control board outdoor main assy | Na dotaz | Zadat poptávku | |
| B027 WHR11526 |
C00520235
482000098619 |
Cover electric box | Na dotaz | Zadat poptávku | |
| B028 WHR11526 |
C00506473
482000095086 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B029 WHR11526 |
C00506474
482000095087 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B030 WHR11526 |
C00386310
482000021210 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| B031 WHR11526 |
C00386250
480150100864 |
Holder Sensor temper. | Na dotaz | Zadat poptávku | |
