WHIRLPOOL SPIW312A3WF
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPIW312A3WF |
| Kód 12NC/I.C. kód: | 853004901000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

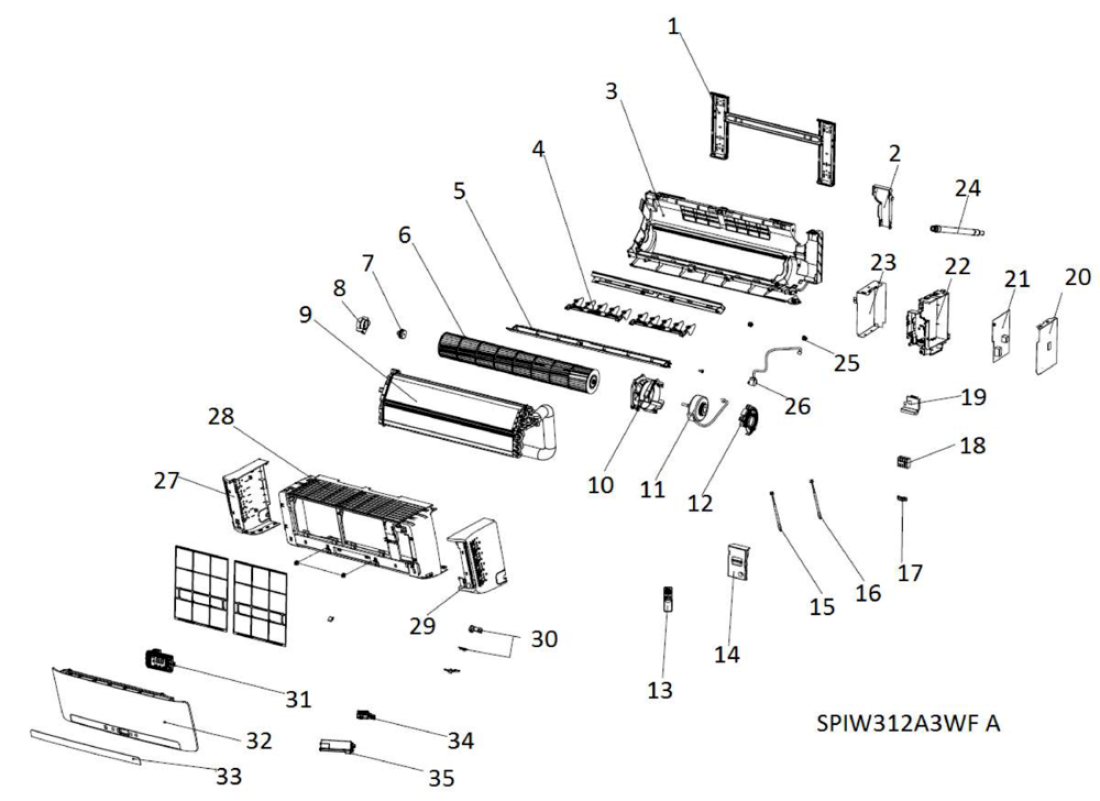

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 01A csm_ A |
C00536088
482000010365 |
Držák | 861 Kč
€ 35.40 |
||
| 02A csm_ A |
C00513507
482000010355 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 03A csm_ A |
C00385800
482000021162 |
Rear panel | Na dotaz | Zadat poptávku | |
| 04A csm_ A |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| 05A csm_ A |
C00386332
482000021163 |
Air guide | Na dotaz | Zadat poptávku | |
| 06A csm_ A |
C00385810
482000010356 |
Ventilátor klim.vnitřní jednotka | 1 463 Kč
€ 60.10 |
||
| 07A csm_ A |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| 08A csm_ A |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| 09A csm_ A |
C00506425
482000095057 |
Coolingsystem | Na dotaz | Zadat poptávku | |
| 10A csm_ A |
C00506426
482000095058 |
Protect motor | Na dotaz | Zadat poptávku | |
| 11A csm_ A |
C00506427
482000095059 |
Motor fan | Na dotaz | Zadat poptávku | |
| 12A csm_ A |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| 13A csm_ A |
C00506428
482000095060 |
Dálkové ovládání | 3 588 Kč
€ 147.40 |
||
| 13A csm_ A |
C00906322
488000906322 |
Remote control | Na dotaz | Zadat poptávku | |
| 14A csm_ A |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| 15A csm_ A |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 16A csm_ A |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
| 17A csm_ A |
C00385825
482000092111 |
Clamp | Na dotaz | Zadat poptávku | |
| 18A csm_ A |
C00385835
482000018034 |
Connection cl. | Na dotaz | Zadat poptávku | |
| 19A csm_ A |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| 20A csm_ A |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| 21A csm_ A |
C00506476
482000095089 |
Control board indoor | Na dotaz | Zadat poptávku | |
| 22A csm_ A |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| 23A csm_ A |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| 24A csm_ A |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| 25A csm_ A |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 26A csm_ A |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| 27A csm_ A |
C00386264
482000021165 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| 28A csm_ A |
C00386335
482000091815 |
SHELL | Na dotaz | Zadat poptávku | |
| 29A csm_ A |
C00386267
482000021166 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| 30A csm_ A |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
| 31A csm_ A |
C00506430
482000095062 |
Display unit | Na dotaz | Zadat poptávku | |
| 32A csm_ A |
C00417416
482000021169 |
Front panel | Na dotaz | Zadat poptávku | |
| 33A csm_ A |
C00506431
482000095063 |
Display membrane | Na dotaz | Zadat poptávku | |
| 34A csm_ A |
C00506412
482000095044 |
Electronic box | Na dotaz | Zadat poptávku | |
| 35A csm_ A |
C00506467
482000095064 |
WiFi communication module | Na dotaz | Zadat poptávku | |
| 01B csm_ B |
C00506432
482000095065 |
Panel | Na dotaz | Zadat poptávku | |
| 02B csm_ B |
C00506433
482000095066 |
Fan | Na dotaz | Zadat poptávku | |
| 03B csm_ B |
C00506434
482000095067 |
Motor fan | Na dotaz | Zadat poptávku | |
| 04B csm_ B |
C00506435
482000095068 |
Support motor | Na dotaz | Zadat poptávku | |
| 05B csm_ B |
C00506436
482000095069 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 06B csm_ B |
C00506437
482000095070 |
Plate upper | Na dotaz | Zadat poptávku | |
| 07B csm_ B |
C00506438
482000095071 |
Guard back | Na dotaz | Zadat poptávku | |
| 08B csm_ B |
C00506477
482000095090 |
Condenser | Na dotaz | Zadat poptávku | |
| 09B csm_ B |
C00506440
482000095073 |
Holder | Na dotaz | Zadat poptávku | |
| 10B csm_ B |
C00506478
482000095091 |
Partition | Na dotaz | Zadat poptávku | |
| 11B csm_ B |
C00385880
482000000386 |
Transformer | Na dotaz | Zadat poptávku | |
| 12B csm_ B |
C00506479
482000095092 |
Valve 4 way | Na dotaz | Zadat poptávku | |
| 13B csm_ B |
C00386291
482000021198 |
Coil | Na dotaz | Zadat poptávku | |
| 14B csm_ B |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 15B csm_ B |
C00506443
482000095076 |
Compressor | Na dotaz | Zadat poptávku | |
| 16B csm_ B |
C00506444
482000095077 |
Wire connect | Na dotaz | Zadat poptávku | |
| 17B csm_ B |
C00506480
482000095093 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 18B csm_ B |
C00506446
482000095079 |
Valve 2 way | Na dotaz | Zadat poptávku | |
| 19B csm_ B |
C00395513
480150100844 |
Valve | Na dotaz | Zadat poptávku | |
| 20B csm_ B |
C00506447
482000095080 |
Kryt kabelů | 917 Kč
€ 37.70 |
||
| 21B csm_ B |
C00503746
482000093976 |
kryt | 455 Kč
€ 18.70 |
||
| 22B csm_ B |
C00506468
482000095081 |
Plate connector | Na dotaz | Zadat poptávku | |
| 23B csm_ B |
C00506469
482000095082 |
Terminal board | Na dotaz | Zadat poptávku | |
| 24B csm_ B |
C00506470
482000095083 |
Electronic box | Na dotaz | Zadat poptávku | |
| 25B csm_ B |
C00506481
482000095094 |
Control unit | Na dotaz | Zadat poptávku | |
| 26B csm_ B |
C00506472
482000095085 |
Electronic box cover | Na dotaz | Zadat poptávku | |
| 27B csm_ B |
C00506473
482000095086 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 28B csm_ B |
C00506474
482000095087 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 29B csm_ B |
C00386310
482000021210 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| 30B csm_ B |
C00506475
482000095088 |
Sensor mounting plate | Na dotaz | Zadat poptávku | |
